20
FAMILIARISATION
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition us-
ing the key.


DRIVING SAFELY

Stop & Start


Going into engine STOP mode
The "ECO"
warning lamp
comes on in the instrument
panel and the engine automati-
cally goes into standby, with a
6-speed electronic gear control gear-
box
and at speeds below 4 mph (6 km/h),
press the brake pedal or put the gear
lever in position N
.
Going into engine START mode

Deactivation/Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
161 The system is reactivated au-
tomatically at every new start
using the key. The "ECO"
warning lamp goes
off and the engine restarts auto-
matically with a 6-speed elec-
tronic gear control gearbox
:


- gear lever in position A
or M
, release
the brake pedal,

- or gear lever in position N
and the
brake pedal released, move the
gear lever to position A
or M
,

- or engage reverse.
In some circumstances, STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for few seconds, then
goes off. In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.

35
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action/Observations








Engine
autodiagnosis
system


fi xed. The emission control system
has a fault. The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or qualifi ed workshop without delay.

fl ashing. The engine management
system has a fault.
Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.






Low fuel
level


fi xed with the needle
in the red zone. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve.
Refuel as soon as possible to avoid running out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a suffi cient addition of fuel is made.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.





Maximum
coolant
temperature


fi xed with the needle
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or a qualifi ed workshop.






Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.







Dynamic
stability
control
(ESP/ASR)

fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of the
vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
ESP/ASR system has a fault. Have it checked by a PEUGEOT or a
qualifi ed workshop.

61
COMFORT

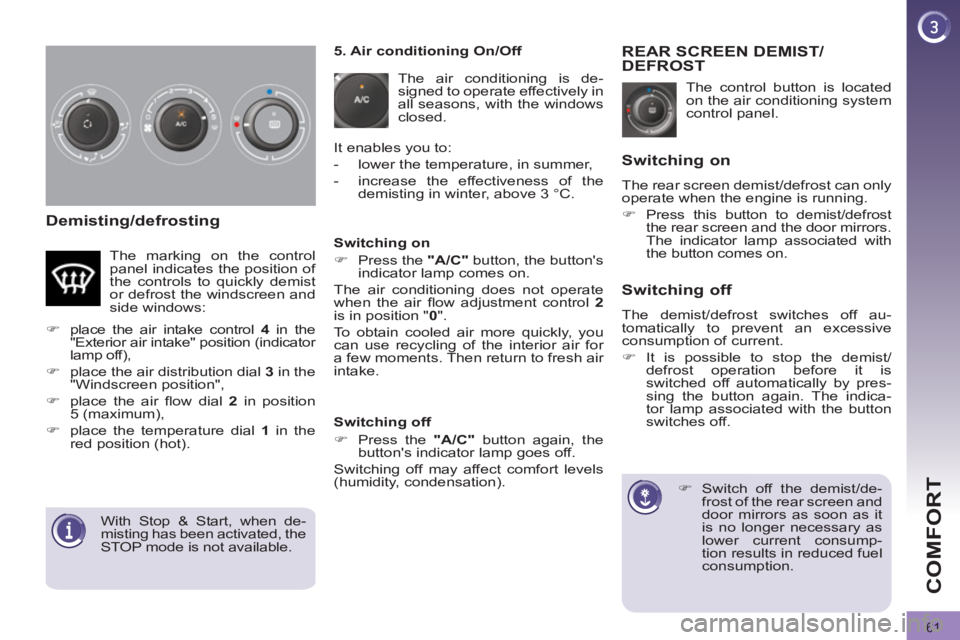

Demisting/defrosting

The control button is located
on the air conditioning system
control panel.








REAR SCREEN DEMIST/
DEFROST



)
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consump-
tion results in reduced fuel
consumption.



Switching on

The rear screen demist/defrost can only
operate when the engine is running.


)
Press this button to demist/defrost
the rear screen and the door mirrors.
The indicator lamp associated with
the button comes on.



Switching off

The demist/defrost switches off au-
tomatically to prevent an excessive
consumption of current.


)
It is possible to stop the demist/
defrost operation before it is
switched off automatically by pres-
sing the button again. The indica-
tor lamp associated with the button
switches off.


5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the
demisting in winter, above 3 °C.


Switching off


)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).

Switching on


)
Press the "A/C"
button, the button's
indicator lamp comes on.
The air conditioning does not operate
when the air fl ow adjustment control 2

is in position " 0
".
To obtain cooled air more quickly, you
can use recycling of the interior air for
a few moments. Then return to fresh air
intake. The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:


)
place the air intake control 4
in the
"Exterior air intake" position (indicator
lamp off),

)
place the air distribution dial 3
in the
"Windscreen position",

)
place the air fl ow dial 2
in position
5 (maximum),

)
place the temperature dial 1
in the
red position (hot).







With Stop & Start, when de-
misting has been activated, the
STOP mode is not available.

63
COMFORT

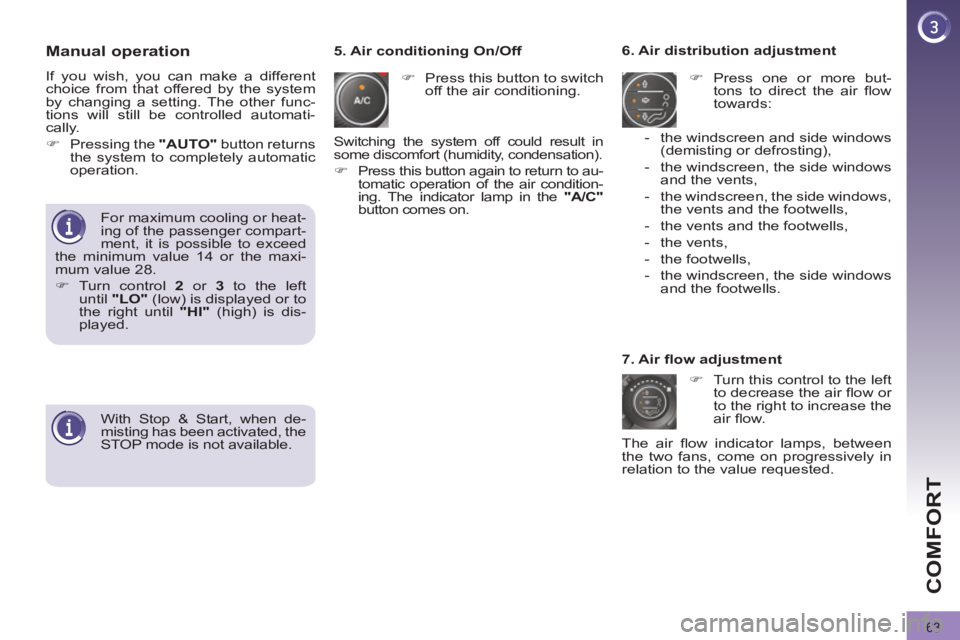

Manual operation

If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.


)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.

)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment


)
Press one or more but-
tons to direct the air fl ow
towards:

7. Air fl ow adjustment


)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
5. Air conditioning On/Off


- the windscreen and side windows
(demisting or defrosting),

- the windscreen, the side windows
and the vents,

- the windscreen, the side windows,
the vents and the footwells,

- the vents and the footwells,

- the vents,

- the footwells,

- the windscreen, the side windows
and the footwells.


The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested. For maximum cooling or heat-
ing of the passenger compart-
ment, it is possible to exceed
the minimum value 14 or the maxi-
mum value 28.


)
Turn control 2
or 3
to the left
until "LO"
(low) is displayed or to
the right until "HI"
(high) is dis-
played.
Switching the system off could result in
some discomfort (humidity, condensation).


)
Press this button again to return to au-
tomatic operation of the air condition-
ing. The indicator lamp in the "A/C"

button comes on.







With Stop & Start, when de-
misting has been activated, the
STOP mode is not available.

78
ACCESS














Lost keys

Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to fi nd the key code and the transponder
code required to order a new key.







Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition
switch when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.

157
DRIVING

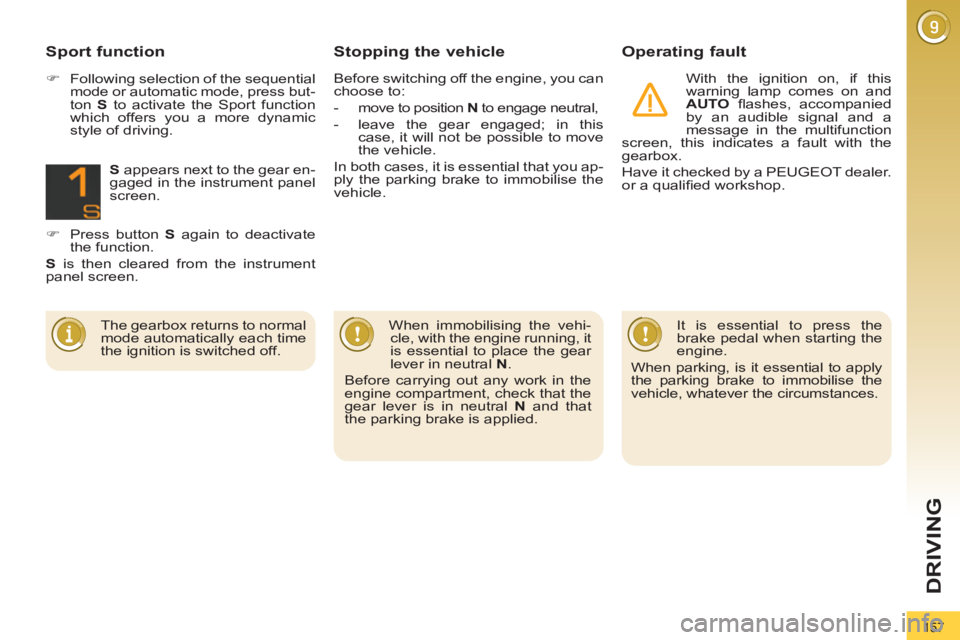

Stopping the vehicle
Operating fault

With the ignition on, if this
warning lamp comes on and
AUTO
fl ashes, accompanied
by an audible signal and a
message in the multifunction
screen, this indicates a fault with the
gearbox.
Have it checked by a PEUGEOT dealer.
or a qualifi ed workshop.

It is essential to press the
brake pedal when starting the
engine.
When parking, is it essential to apply
the parking brake to immobilise the
vehicle, whatever the circumstances.


When immobilising the vehi-
cle, with the engine running, it
is essential to place the gear
lever in neutral N
.
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N
and that
the parking brake is applied.



Sport function



)
Following selection of the sequential
mode or automatic mode, press but-
ton S
to activate the Sport function
which offers you a more dynamic
style of driving.

S
appears next to the gear en-
gaged in the instrument panel
screen.


)
Press button S
again to deactivate
the function.

S
is then cleared from the instrument
panel screen.

The gearbox returns to normal
mode automatically each time
the ignition is switched off.
Before switching off the engine, you can
choose to:


- move to position N
to engage neutral,

- leave the gear engaged; in this
case, it will not be possible to move
the vehicle.
In both cases, it is essential that you ap-
ply the parking brake to immobilise the
vehicle.

220
02
2
1
SETUP2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOKSETUP

Before using the system for the fi rst time, you are advised to listen
to, say and practice the tutorial.

Press the SETUP button and select
the "Language & Speech" function.
Turn the ring and select "Voice control".
Activate voice recognition.
Select "Tutorial".










VOICE COMMANDS -
VOICE RECO. INITIATION

The phrases to be spoken according to the context are indicated in
the tables below.
Speak and Peugeot Connect Media acts.

Pressing the end of the lighting
control stalk activates voice
recognition.



CONTEXT



SAY



ACTION




GENERAL

Help address book
Help voice control
Help media
Help navigation
Help telephone
Help radio
Cancel
Correction Access to the address book help
Access to the voice recognition help
Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help
To cancel a voice command which is in
progress
Request to correct the last voice
recognition carried out
Clear


RADIO

Select station
Station
Read out station list
Enter frequency
Select wave band
AM
FM
TA on
TA off Select a radio station
Select a radio station using its RDS
description from the
RADIO list
Listen to the list of stations available
Listen to the frequency of the current
radio station
Choose the frequency waveband
(AM or FM)
Change the frequency waveband to AM
Change the frequency waveband to FM
Activate Traffi c Info (TA)
Deactivate Traffi c Info


NAVIGATION

Destination input
Voice advice off
Voice advice on
Save address
Start guidance

Abort guidance
Navigate entry
POI Search Command to enter a new destination
address
Deactivate the spoken guidance
instructions
Activate the spoken guidance instructions
Save an address in the address book
Start guidance (once the address has
been entered)
Stop the guidance
Start guidance to an entry in the address
book
Start guidance to a point of interest

VOICE COMMANDS AND STEERING MOUNTED CONTROLS

232
04
NAV
1
3
4
5
6
7
2
8
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

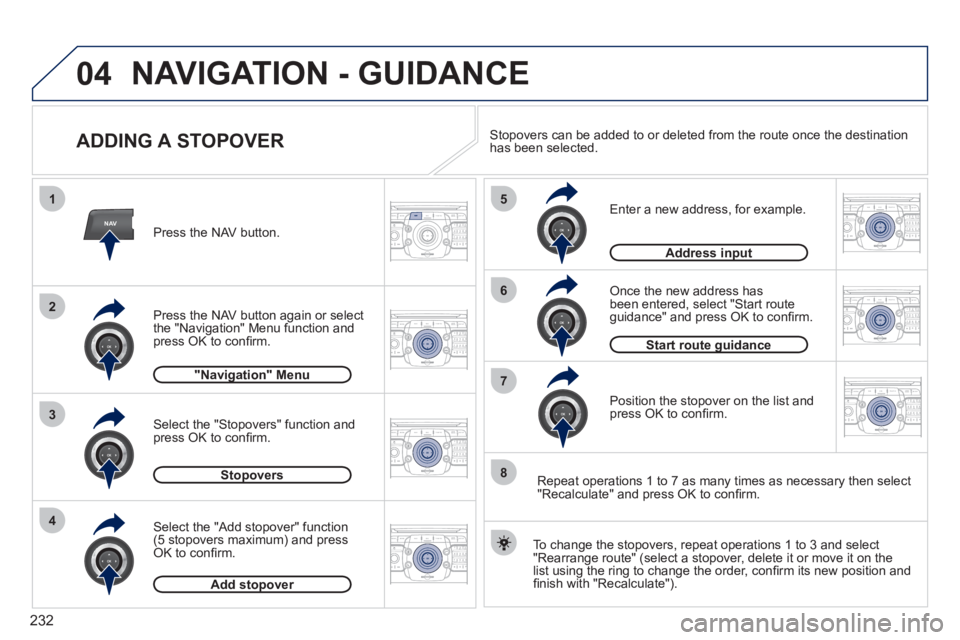

ADDING A STOPOVER

Enter a new address, for example.
Once the new address has
been entered, select "Start route
guidance" and press OK to confi rm.
Position the stopover on the list and
press OK to confi rm. Press the NAV button.
Press the NAV button again or select
the "Navigation" Menu function and
press OK to confi rm.
Select the "Add stopover" function
(5 stopovers maximum) and press
OK to confi rm.

Select the "Stopovers" function and
press OK to confi rm.


"Navigation" Menu



Stopovers



Add stopover

Address input

To change the stopovers, repeat operations 1 to 3 and select
"Rearrange route" (select a stopover, delete it or move it on the
list using the ring to change the order, confi rm its new position and
fi nish with "Recalculate"). Stopovers can be added to or deleted from the route once the destination
has been selected.
Repeat operations 1 to 7 as many times as necessary then select
"Recalculate" and press OK to confi rm.
Start route guidance


NAVIGATION - GUIDANCE
