EMERGENCY OR ASSISTANCE CALL USING PEUGEOT
CONNECT MEDIA

If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated with fl ashing
of the orange indicator lamp indicates a malfunction. Contact a
PEUGEOT dealer.

In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team
which receives locating information from the vehicle
and can send a detailed alert to the relevant emergency
services.
In countries in which the team is not operational, or
when the locating service has been expressly declined,
the call is sent to the emergency services (112).









Warning - the emergency call and the services are only active
if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational.










Press this button for access to PEUGEOT services.

Customer call
Select "Customer call" to request
any information about the PEUGEOT
marque.
Select "PEUGEOT Assistance" to
make a roadside assistance call.

PEUGEOT Assistance




This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check the
confi guration of these services and, if desired, modifi ed to suit your
wishes.

205
05
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESCTRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
TRAFFIC
1
3
4
5
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2

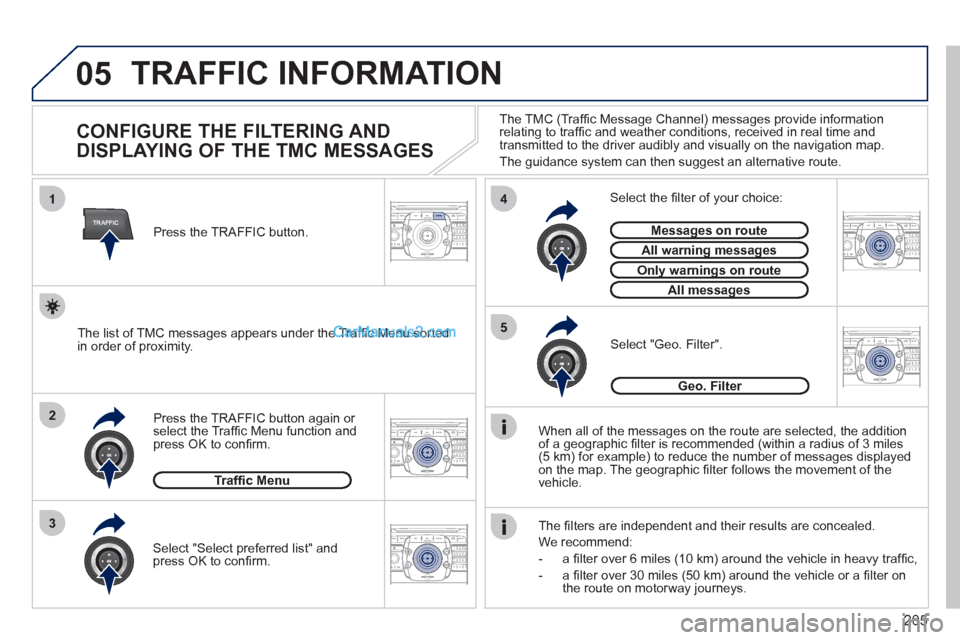

TRAFFIC INFORMATION










CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES

When all of the messages on the route are selected, the addition
of a geographic fi lter is recommended (within a radius of 3 miles
(5 km) for example) to reduce the number of messages displayed
on the map. The geographic fi lter follows the movement of the
vehicle.

The fi lters are independent and their results are concealed.
We recommend:


- a fi lter over 6 miles (10 km) around the vehicle in heavy traffi c,

- a fi lter over 30 miles (50 km) around the vehicle or a fi lter on
the route on motorway journeys.


Press the TRAFFIC button again or
select the Traffi c Menu function and
press OK to confi rm.
Select "Geo. Filter".
The list of TMC messages appears under the Traffi c Menu sorted
in order of proximity.


Select the fi lter of your choice:


Messages on route



All warning messages



Only warnings on route



All messages



Traffi c Menu





Select "Select preferred list" and
press OK to confi rm.
The TMC (Traffi c Message Channel) messages provide information
relating to traffi c and weather conditions, received in real time and
transmitted to the driver audibly and visually on the navigation map.
The guidance system can then suggest an alternative route.


Press the TRAFFIC button.

Geo. Filter

210
07
1
3
42ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK2
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
5
7
8
6
9
RADIONAV ESC TRAFFICMEDIAMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOKRADIONAV ESC TRAFFICMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

Select "Jukebox management" then
"Add fi les" and press OK at each step
to confi rm.
Press the MEDIA button. Press the
MEDIA button again or select Media
Menu and press OK to confi rm.
Insert an audio/MP3 CD, a USB
memory stick or an SD card.







JUKEBOX


Add fi les


Check that the active MEDIA source is that of the medium used
(CD, USB or SD card).

Select "Add fi les from MP3-Disc" for
example and press OK to validate.
Select the tracks required then "Rip
selection" or select all of the tracks using
"Rip all".


Select "[New folder]" to create a new
folder or select an existing folder
(created previously).

Add fi les from MP3-Disc


[New folder]



"Do you want to change the names of the
tracks that will be ripped?": select "Yes" to
change them or "No".

To copy an MP3 CD, then select "Real
time ripping", "Fast ripping"/"High quality
(192 kbit/sec)" or "Standard quality
(128 kbit/sec)" then select "Start ripping".


Confi rm the warning message by
pressing "OK" to start the copy.

OK



Yes No

When copying is in progress, switching off the ignition will interrupt the
process but it will resume directly when the ignition is switched on again.

MUSIC MEDIA PLAYERS


COPYING A CD, A USB MEMORY STICK OR AN SD CARD
ONTO THE HARD DISK

219
10
MEDIA
TRAFFIC
SCREEN MENU MAP













MAIN FUNCTION


OPTION A

OPTION B…

option A1



option A2


1
2
3
2
3


"Traffic" Menu


Messages on route



Select preferred list
1
2
3

Deactivate PIN 4


Only warnings on route
3


All warning messages
3


All messages
3


Geo. Filter
3

Within 2 miles (3 km) 4

Within 3 miles (5 km) 4

Within 6 miles (10 km) 4

Within 30 miles (50 km) 4


On confi rmation
Read out settings
2
3


Incoming messages
3


TMC station information
2


"Media" Menu


Audio CD/MP3-Disc
/

DVD-Audio
/ DVD-Video


Select media
1
2
3


Jukebox (Folders & Files)
3


SD-Card
3


USB
3


External device (audio/AV)

3


Add fi les

Jukebox management
2
3

Folders & Files 4


Create folder
3


Modify content
3


Edit playlist
3


Play options
3

Playlists 4


Memory capacity

3


Refer to the "
Sound settings
"
menu
details of which are shown on the next
page.

Sound settings
2
3


Aspect ratio
Video settings
2
3


Menu language 3


Display 3

Brightness 4

Contrast 4

Colour 4

226


QUESTION



ANSWER



SOLUTION


"TA" is selected.
However, certain traffi c
jams along the route are
not indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
The time taken to calculate
a route sometimes seems
longer than usual. The performance of the system may slow down temporarily if a CD/DVD
is being copied onto the Jukebox at the same time as a route is being
calculated. Wait until the CD/DVD has been copied or stop
the copying before starting the guidance function.
I receive a speed camera
alert for a speed camera
which is not on my route. The system announces all speed cameras positioned in a cone located
in front of the vehicle. It may detect speed cameras located on nearby or
parallel roads. Zoom in on the map to view the exact position of
the speed camera.
The speed camera
audible warning does not
work. The audible warning is not active. Activate the audible warning on Navigation Menu,
Settings, Set parameters for risk areas.
The alert volume is set to minimum. Increase the volume of the alert when passing a
speed camera.
Does the emergency call
function work without a
SIM card? No, as certain national regulations impose the presence of a SIM card in
order to make an emergency call. Insert a valid SIM card in the slot.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then
select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.

243
05
2 1
3
4
5

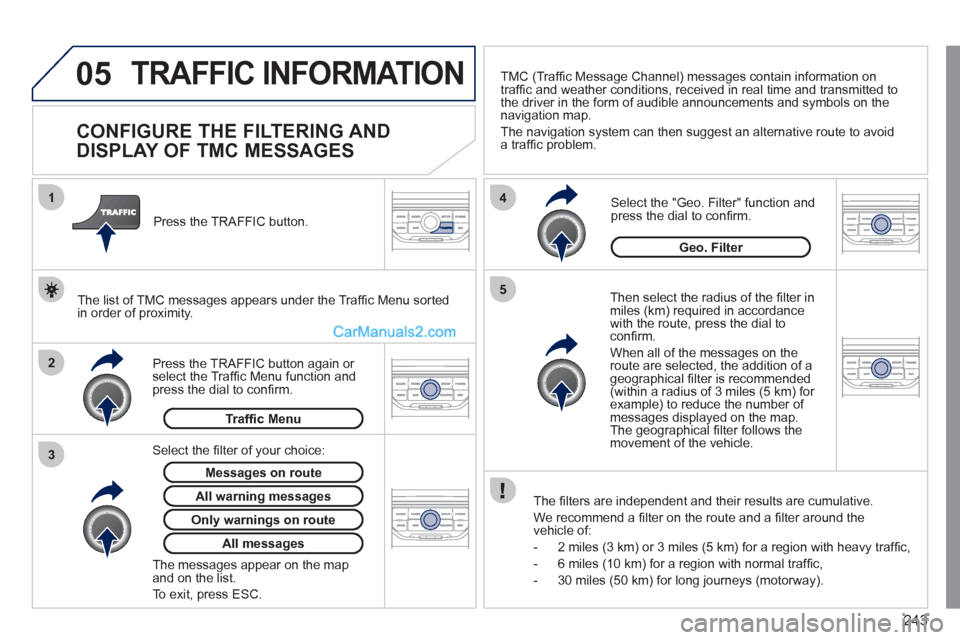

TRAFFIC INFORMATION









CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES

Then select the radius of the fi lter in
miles (km) required in accordance
with the route, press the dial to
confi rm.
When all of the messages on the
route are selected, the addition of a
geographical fi lter is recommended
(within a radius of 3 miles (5 km) for
example) to reduce the number of
messages displayed on the map.
The geographical fi lter follows the
movement of the vehicle.

The fi lters are independent and their results are cumulative.
We recommend a fi lter on the route and a fi lter around the
vehicle of:


- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,

- 6 miles (10 km) for a region with normal traffi c,

- 30 miles (50 km) for long journeys (motorway).


Press the TRAFFIC button again or
select the Traffi c Menu function and
press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on
traffi c and weather conditions, received in real time and transmitted to
the driver in the form of audible announcements and symbols on the
navigation map.
The navigation system can then suggest an alternative route to avoid
a traffi c problem.

Select the "Geo. Filter" function and
press the dial to confi rm.

Messages on route

The list of TMC messages appears under the Traffi c Menu sorted
in order of proximity.

All warning messages

Traffi c Menu



Select the fi lter of your choice:

Only warnings on route


All messages

The messages appear on the map
and on the list.
To exit, press ESC.
Geo. Filter

253
10
RADIO
SCREEN MENU MAP


"Traffic" Menu


Messages on route
Only warnings on route
All warning messages
All messages

Within
2 miles (3 km)
Geo. Filter

Within
3 miles (5 km)

Within
6 miles (10 km)


Within
30 miles (50 km)


Within 60 miles (100 km)





"Music" Menu


Select music
Sound settings

Balance/Fader


Bass/Treble

Linear
Equalizer

Classic
Jazz
Rock/Pop
Techno Vocal

Loudness


Speed dependent volume


Reset sound settings




"Radio" Menu


Waveband

AM


Linear
FM


Manual tune
Sound settings

Balance/Fader


Bass/Treble


Equalizer














MAIN FUNCTION


OPTION A

option A1


option A2




OPTION B...

1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
3
1
2
3
2
3

281
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Multifunction screens .............42-49
Hazard warning lamps .............. 101
Switch panel ............................... 16
Emergency and
assistance call ................ 102, 181
Instrument panels ..................22-25
Warning lamps .......................26-35
Indicators ...............................36-39
Buttons ..................................40-41


- Check/service indicator/
trip distance recorder

- lighting dimmer


Lighting controls ....................85-89
Headlamp height adjustment ...89-90
Stop & Start .......................128-130

Speed limiter......................131-132
Cruise control ....................133-134
Door mirrors ...........................67-68
Electric windows ....................77-78

Dashboard fuses ...............160-162
Opening the bonnet .................. 138
Steering wheel adjustment ......... 69
Horn .......................................... 102
Courtesy lamps........................... 93
Seat belt/passenger's front
airbag warning lamps display ...107
Rear view mirror ......................... 69
Sun visor..................................... 96

Wiper controls........................91-93
Trip computer ........................50-52

Peugeot Connect Media ....185-228
Setting the date/time................. 218

Peugeot Connect Navigation ...229-260
Setting the date/time................. 252
Peugeot Connect Sound ...261-278
Setting the date/time................. 273

Ventilation ..............................53-54
Manual air conditioning..........55-56
Digital air conditioning ...........57-58

Parking brake ........................... 122
Manual gearbox .................122-124
Automatic gearbox.............125-127

"AIRWAVE" system controls ....... 65
Retractable roof control .............6-7
Control for all four windows ........ 78
