3
i
i
i
56
COMFORT
The control button is located
on the heating or air condition-
ing system control panel.
REAR SCREEN DEMIST/
DEFROST
)
Switch off the demist/defrost of
the rear screen and door mir-
rors as soon as it is no longer
needed as lower current con-
sumption results in reduced
fuel consumption.
If the engine is switched off before the
demist/defrost is switched off auto-
matically, demist/defrost will resume
next time the engine is switched on.
The demist/defrost is deactivated
when the retractable roof is stored in
the boot.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Switching off
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching off
)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
)
Press this button to demist/defrost
the rear screen and the exterior mir-
rors. The indicator lamp associated
with the button comes on.
)
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
Switching on
)
Press the "A/C"
button, the button's
indicator lamp comes on.
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With manual air conditioning
)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.
)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).
)
Switch on the air conditioning by
pressing the "A/C"
button; the warn-
ing lamp in the button comes on.
The air conditioning does not ope-
rate when the air fl ow adjustment
control 2
is in position " 0
".
With Stop & Start, when the de-
misting, air conditioning and air
fl ow functions are activated, STOP
mode is not available.
Page 59 of 292
3
ii
i
57
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the value displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning can only operate
with the engine running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.
2. Driver's side adjustment
DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate effec-
tively in all seasons, with automatic adap-
tation in the "cabriolet" confi guration. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
)
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off and the indicator lamp
in the "AUTO"
button comes on.
1. Automatic comfort programme
3. Passenger side adjustment
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 67 of 292
3
i!
i
65
COMFORT
Controlling the "AIRWAVE" system
When the engine is running, the "AIRWAVE"
system, located in the head restraint of each
front seat, can be controlled separately to
produce heated blown air directed towards
the neck of each occupant.
Heated seats control
With the engine running, the front seats
can be heated separately.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0:
Off.
1:
Low.
2:
Medium.
3:
High.
)
Use the corresponding adjustment
dial, placed on the centre console,
to set the temperature and fl ow of
blown air required:
0:
Off.
1:
Low.
2:
Medium.
3:
High.
)
Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. Do not use the "AIRWAVE" system
if a child seat is installed on the
front passenger seat.
In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.
Page 68 of 292
3
!
!
66
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.
Recalling a stored position
Storing a position
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2
)
Switch on the ignition.
)
Adjust your seat and your door mirrors.
)
Press button M
, then press button 1
or 2
within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers. The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2
)
Press and hold button 1
or 2
until
the audible signal is heard indicat-
ing the end of the adjustment.
Page 69 of 292
3
!
i
i
!
67
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting
Unfolding
)
From outside: unlock the vehicle us-
ing the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards. If the mirrors are folded using con-
trol A
, they will not unfold when the
vehicle is unlocked. Pull again on
control A
.
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-defrost"
page).
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Page 70 of 292
3
68
COMFORT

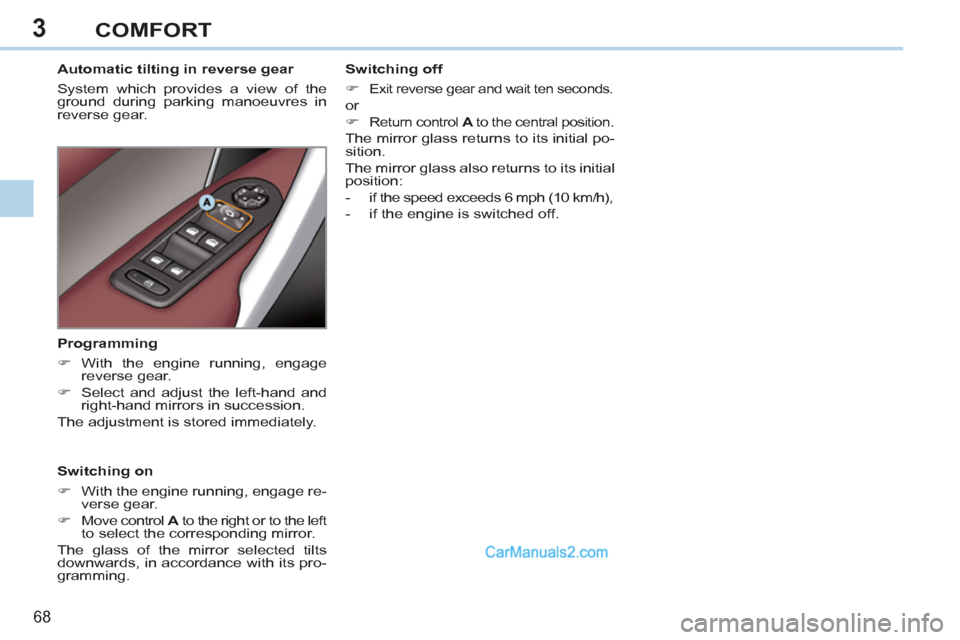

Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
)
With the engine running, engage re-
verse gear.
)
Move control A
to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
)
With the engine running, engage
reverse gear.
)
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
)
Exit reverse gear and wait ten seconds.
or
)
Return control A
to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Page 74 of 292
4
i
72
ACCESS
Locating your vehicle
)
Press the closed padlock
to locate your locked ve-
hicle in a car park.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key
)
First press this button to fold the
key.
This is indicated by lighting of the cour-
tesy lamps and side spotlamps and
fl ashing of the direction indicators for a
few seconds.
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release
the key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Key left in the "Ignition on"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition
on
)
.
Page 76 of 292
4
!
74
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.
