Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
If one of the doors or the boot is still
open, the central locking does not
take place.
After unlocking the vehicle, if none
of the openings - door or boot - are
opened within thirty seconds, the
vehicle will lock itself again auto-
matically.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock
again within fi ve seconds
to deadlock the vehicle.
Locking the vehicle
)
Press the closed padlock
to lock the vehicle com-
pletely.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Normal locking using the remote
control
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
The central locking also locks the glove
box and the front armrest compartment.
According to version, the door mirrors
fold at the same time.
)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely.
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Page 90 of 292
5
!
AUTO
88
VISIBILITY
Automatic illumination
of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn the ring to the "AUTO"
posi-
tion. The automatic illumination of
headlamps is accompanied by a
message in the screen.
Deactivation
)
Turn the ring to another position.
Deactivation is accompanied by a
message in the screen.
In fog or snow, the sunshine sen-
sor may detect suffi cient light. In
this case, the lighting will not come
on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters in the vehicle confi gura-
tion menu,
- automatic activation of "guide-me-
home" lighting when automatic
lillumination of headlamps is in
operation.
Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed in the instru-
ment panel and/or a message appears
in the screen, accompanied by an au-
dible signal.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
Page 91 of 292
5
i
i
89
VISIBILITY
EXTERIOR WELCOME
LIGHTING
The remote switching on of the lighting
and side spotlamps makes your approach
to the vehicle easier in poor light. It is ac-
tivated in accordance with the light inten-
sity detected by the brightness sensor.
Switching on
)
Press the open padlock on the re-
mote control.
The dipped beam headlamps and
the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming
The lighting duration is
selected via the vehicle
confi guration menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
Initial setting is position "0"
. To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised
loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 94 of 292
5
!
i
92
VISIBILITY
Windscreen and headlamp
wash
)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.
Screenwash/headlamp wash low
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/
or the service warning lamp is displayed
on the instrument panel, accompanied by
an audible signal and a message on the
multifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the
ignition is switched on, or every time the
stalk is operated, until the reservoir is fi lled.
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wip-
ers must be reactivated if the igni-
tion has been off for more than one
minute, by pushing the stalk down-
wards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Page 98 of 292
6
96
FITTINGS
LOCKABLE, REFRIGERATED
GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.
)
To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A
,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.
)
With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
BAG HOOK
)
Press the lower part of the hook to
unfold it.
)
Hang the strap of your bag on the
hook to secure it.
Page 159 of 292
10
157
PRACTICAL INFORMATION

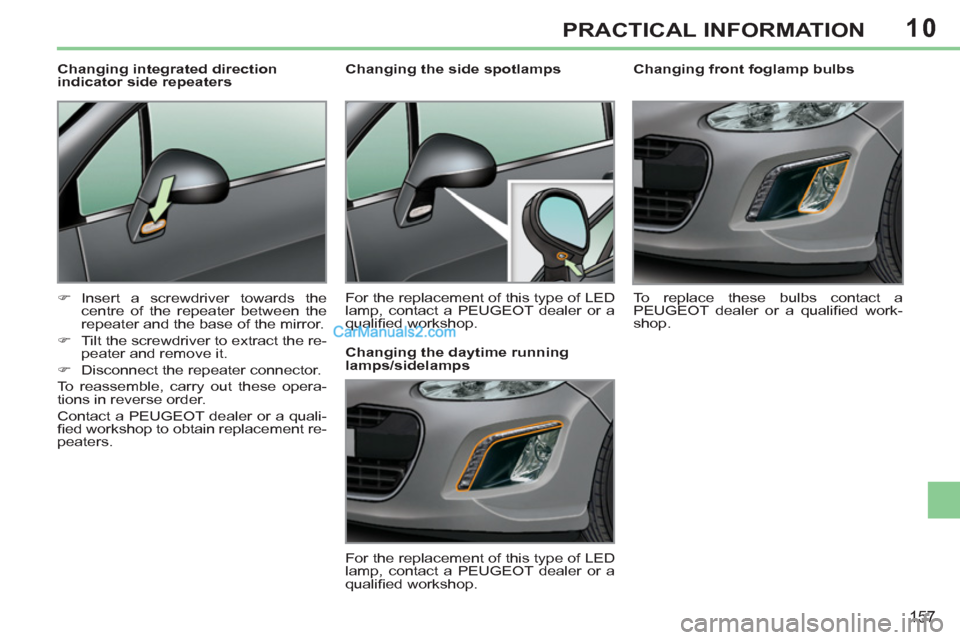

Changing front foglamp bulbs
