2011 Peugeot 308 CC navigation

240
04
8
6
7
4
3
5
2
1

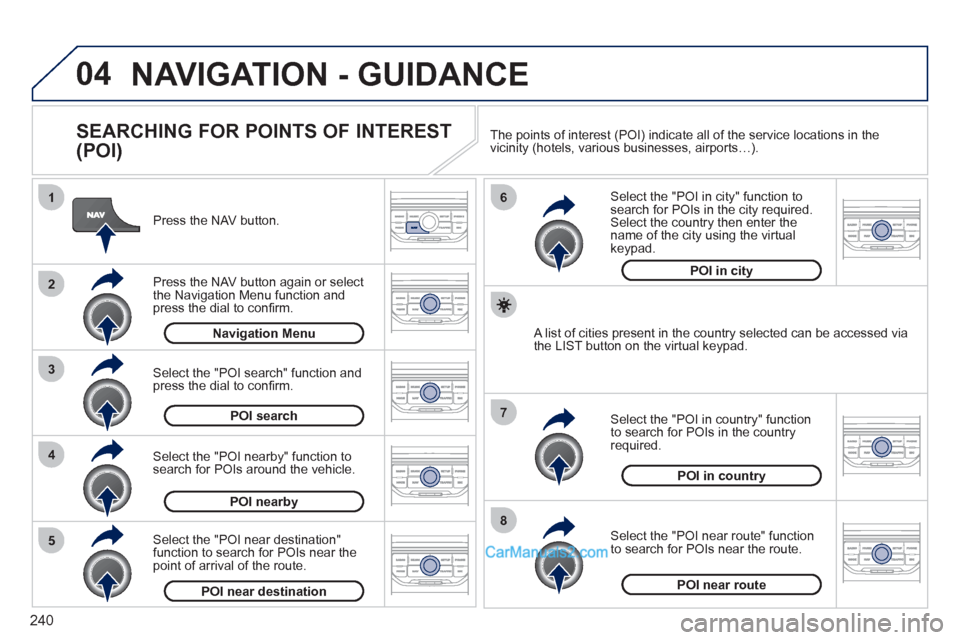

NAVIGATION - GUIDANCE


SEARCHING FOR POINTS OF INTEREST
(POI)

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "POI nearby" function to
search for POIs around the vehicle.
Select the "POI search" function and
press the dial to confi rm.
Navigation Menu



POI search



POI nearby


Select the "POI in city" function to
search for POIs in the city required.
Select the country then enter the
name of the city using the virtual
keypad.

Select the "POI near route" function
to search for POIs near the route.
Select the "POI in country" function
to search for POIs in the country
required.

Select the "POI near destination"
function to search for POIs near the
point of arrival of the route.

POI near destination


POI near route



POI in country


POI in city



A list of cities present in the country selected can be accessed via
the LIST button on the virtual keypad. The points of interest (POI) indicate all of the service locations in the
vicinity (hotels, various businesses, airports…).

241
04 NAVIGATION - GUIDANCE

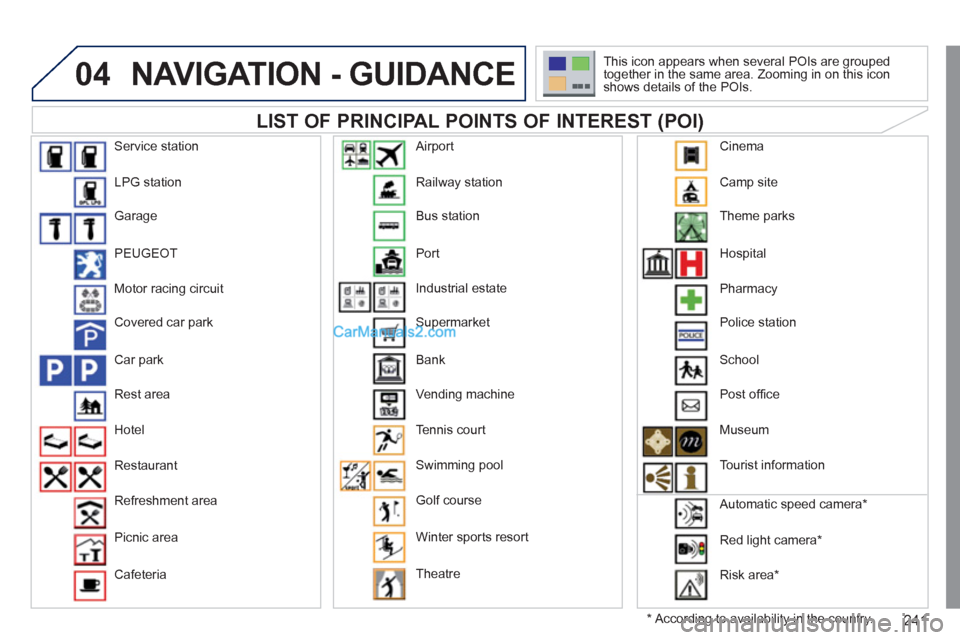

LIST OF PRINCIPAL POINTS OF INTEREST (POI)


*
According to availability in the country. This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.

Service station
LPG station
Garage
PEUGEOT
Motor racing circuit
Covered car park
Car park
Rest area

Hotel
Restaurant
Refreshment area
Picnic area
Cafeteria Railway station
Bus station
Port

Industrial estate
Supermarket
Bank
Vending machine

Tennis court
Swimming pool
Golf course
Winter sports resort
Theatre
Airport
Camp site

Theme parks
Hospital
Pharmacy
Police station
School
Post offi ce
Museum
Tourist information
Automatic speed camera *
Red light camera *
Risk area *

Cinema

242
04
5
6
3 2 1
4

NAVIGATION SETTINGS


Select "Set parameters for risk
areas" for access to the "Display
on map", "Visual alert" and "Sound
alert" functions.
Select the "POI categories on Map"
function to select the POIs to be
displayed on the map by default.
Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Settings" function and
press the dial to confi rm.
POI categories on Map



Settings


Set parameters for risk areas



Navigation Menu



NAVIGATION - GUIDANCE


Select the "Navi volume" function
and turn the dial to set the volume
of each voice synthesiser (traffi c
information, alert messages…).

Navi volume


The adjustment of the volume for the Risk Areas POIs is used only
during the transmission of an alert.


UPDATING THE RISK AREAS POIs
(Speed camera information)

This requires an SDHC (High Capacity) compatible reader.
Download the update fi le from the Internet (www.peugeot.fr or
www.peugeot.co.uk).
Open this fi le and copy the extracted documents to the
DATABASE folder on the SD card, replacing the existing fi les.



To activate or deactivate vocal guidance, with guidance active and
the map displayed in the screen, press the dial and then select or
deselect "Voice advice".

Voice advice

243
05
2 1
3
4
5
TRAFFIC INFORMATION









CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES

Then select the radius of the fi lter in
miles (km) required in accordance
with the route, press the dial to
confi rm.
When all of the messages on the
route are selected, the addition of a
geographical fi lter is recommended
(within a radius of 3 miles (5 km) for
example) to reduce the number of
messages displayed on the map.
The geographical fi lter follows the
movement of the vehicle.

The fi lters are independent and their results are cumulative.
We recommend a fi lter on the route and a fi lter around the
vehicle of:


- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,

- 6 miles (10 km) for a region with normal traffi c,

- 30 miles (50 km) for long journeys (motorway).


Press the TRAFFIC button again or
select the Traffi c Menu function and
press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on
traffi c and weather conditions, received in real time and transmitted to
the driver in the form of audible announcements and symbols on the
navigation map.
The navigation system can then suggest an alternative route to avoid
a traffi c problem.

Select the "Geo. Filter" function and
press the dial to confi rm.

Messages on route

The list of TMC messages appears under the Traffi c Menu sorted
in order of proximity.

All warning messages

Traffi c Menu



Select the fi lter of your choice:

Only warnings on route


All messages

The messages appear on the map
and on the list.
To exit, press ESC.
Geo. Filter

246
07 MUSIC MEDIA PLAYERS







CD, MP3/WMA CD
INFORMATION AND ADVICE

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.
If the disc is recorded in another format it may not be played
correctly.
It is recommended that the same recording standard is always
used for an individual disc, with as low a speed as possible
(4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
The Peugeot Connect Navigation will only play audio fi les with
the extension ".mp3" with a speed of between 8 Kbps and
320 Kbps and the extension ".wma" with a speed of between
5 Kbps and 384 Kbps.
It also supports the VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3
and the WMA format, an abbreviation of Windows Media Audio and
the property of Microsoft, are audio compression standards which
permit the recording of several tens of music fi les on a single disc.

It is advisable to restrict fi le names to 20 characters, without
using special characters (e.g.: " ? ; ù) to avoid any play or display
problems.

249
08
1
2
3
5 4

*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.

BLUETOOTH TELEPHONE
















PAIRING A TELEPHONE
FIRST CONNECTION



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot
Connect Navigation must be carried out with the vehicle stationary.
The ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
Enter the authentication code on the telephone.
The code to be entered is displayed on the screen
of the system.
Some telephones offer automatic reconnection of
the telephone every time the ignition is switched on.
A message confi rms the pairing.

To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to
confi rm.

Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list.
This synchronisation may take a few minutes * .
Pairing can also be started from the telephone (refer to the
telephone instructions).
Visit www.peugeot.co.uk for more information (compatibility,
more help, ...).

Press the PHONE button.
For a fi rst connection, select
"Search phone" and press the dial to
confi rm. Then select the name of the
telephone.

Search phone

250
08
1
2
4
3

*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.
BLUETOOTH TELEPHONE
















CONNECTING A TELEPHONE



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
The last telephone connected is reconnected
automatically.
A message confi rms the connection.
When a telephone is already
connected, to change it press the
PHONE button, then select Phone
Menu and press the dial to confi rm.
Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list. This
synchronisation may take a few minutes * .

The list of telephones connected previously (4 maximum) appears
on the multifunction screen. Select the telephone required for a
new connection.
Visit www.peugeot.co.uk for more information (compatibility,
more help, ...).

Press the PHONE button.
Select "Connect phone". Select the
telephone and press to confi rm.

Connect phone

251
08
1
3 2
2 1
Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s

To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
Select the Phone Menu function and
press the dial to confi rm.


The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.



No


743.1


It is also possible to select a number from the address book.
You can select "Dial from address book". The Peugeot Connect
Navigation can record up to 1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than two
seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.
BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list
