SAFETY

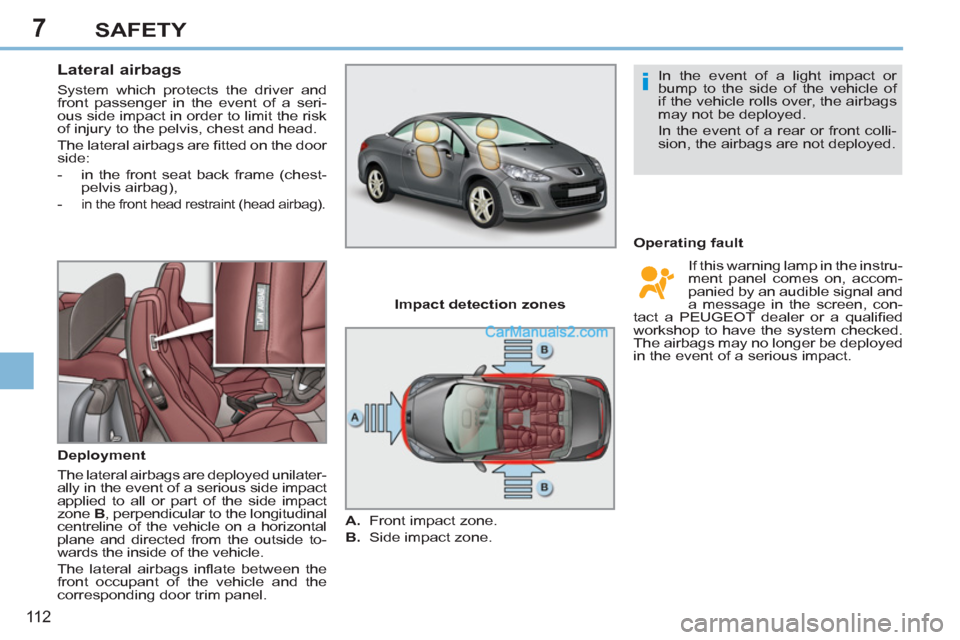

Lateral airbags

System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the pelvis, chest and head.
The lateral airbags are fi tted on the door
side:


- in the front seat back frame (chest-
pelvis airbag),

-
in the front head restraint (head airbag).


Deployment
The lateral airbags are deployed unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The lateral airbags infl ate between the
front occupant of the vehicle and the
corresponding door trim panel.
Operating fault

Impact detection zones


A.
Front impact zone.

B.
Side impact zone. If this warning lamp in the instru-
ment panel comes on, accom-
panied by an audible signal and
a message in the screen, con-
tact a PEUGEOT dealer or a qualifi ed
workshop to have the system checked.
The airbags may no longer be deployed
in the event of a serious impact.
In the event of a light impact or
bump to the side of the vehicle of
if the vehicle rolls over, the airbags
may not be deployed.
In the event of a rear or front colli-
sion, the airbags are not deployed.

8
!
i
i
128
DRIVING








STOP & START

The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, etc...). The engine
restarts automatically - START mode -
as soon as you want to move off. The
restart takes place instantly, quickly and
silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as offering
the comfort of silence when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
A time counter calculates
the sum of the periods in
STOP mode during a jour-
ney. It rests itself to zero
every time the ignition is
switched on with the key. For your comfort when parking,
STOP mode is not available for a
few seconds after coming out of re-
verse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for ex-
ample.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fas-
tened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO"
warning lamp fl ash-
es for a few seconds, then goes
off.

This operation is perfectly normal.



In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.

10
i
i
171
PRACTICAL INFORMATION





TOWING A TRAILER,
A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

Driving advice

We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a PEUGEOT dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted in accordance with the
vehicle manufacturer's instructions. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
In all cases, keep a check on the coolant
temperature.

Braking
Towing a trailer increases the braking
distance.

Tyres


)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.


Lighting


)
Check the electrical lighting and signal-
ling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.

12
175
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit the towed weight.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre VTi



1.6 litre THP



1.6 litre THP



1.6 litre THP




120 hp



156 hp



150 hp



163 hp



200 hp



Gearboxes


Manual



Manual



Automatic



Automatic



Manual



Model codes: 4B...


5FS-0



5FV-8



5FV-A



5FE-J



5FM-J



5FU-8


- Unladen weight
1 480
1 515
1 530
1 540
1 540
1 535
- Kerb weight
1 555
1 590
1 605
1 615
1 615
1 610
- Gross vehicle weight (GVW)
1 885

1 940
1 970
1 970
1 970
1 984
- Gross train weight (GTW)



on a 12 % gradient
2 985
3 340
3 240
2 770
2 770
2 784
- Braked trailer (within GTW limit)


on a 10 % or 12 % gradient
1 100
1 400
1 270
800
800
800
- Braked trailer * (with load transfer
within GTW limit)
1 200
1 400
1 270
800
800
800
- Unbraked trailer
750
750
750
750
750
750
- Recommended nose weight
64
64
64
64
64
64

12
177
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre e-HDi PEF

112 hp



2.0 litre HDi PEF
163 hp



Gearboxes


Manual



Manual



Automatic



Model codes: 4B...


9HR-8/S



RHH-8



RHH-A


- Unladen weight
1 535
1 577
1 625
- Kerb weight
1 610
1 652
1 700
- Gross vehicle weight (GVW)
1 950
2 025
2 050
- Gross train weight (GTW)



on a 12 % gradient
3 050
3 525
3 550
- Braked trailer (within GTW limit)



on a 10 % or 12 % gradient
1 100
1 500
1 500
- Braked trailer * (with load transfer within
GTW limit)
1 200
1 500
1 500
- Unbraked trailer
750
750
750
- Recommended nose weight
64
64
64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit the towed weight.

281
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Instrument panels ..................22-25
Warning lamps .......................26-35
Indicators ...............................36-39
Buttons ..................................40-41


- Check/service indicator/trip
distance recorder

- lighting dimmer

Courtesy lamps........................... 93
Seat belt/passenger’s front airbag
warning lamps display ............ 107
Rear view mirror ......................... 69
Sun visor..................................... 96

Lighting controls ....................85-89

Ventilation ..............................53-54
Manual air conditioning..........55-56
Digital air conditioning ...........57-58
Peugeot Connect Media ....185-228
Setting the date/time................. 218

Peugeot Connect Navigation .....229-260
Setting the date/time................. 252
Peugeot Connect Sound .....261-278
Setting the date/time................. 273
Dashboard fuses ...............160-162
Opening the bonnet .................. 138
Speed limiter......................131-132
Cruise control ....................133-134
Multifunction screens .............42-49
Hazard warning lamps .............. 101
Switch panel ............................... 16
Emergency or
assistance call ................ 102, 181

Wiper controls........................91-93
Trip computer ........................50-52

Headlamp height adjustment ....89-90
Stop & Start .......................128-130

Door mirrors ...........................67-68
Electric windows ....................77-78

"AIRWAVE" system controls ....... 65
Retractable roof control .............6-7
Control for all four windows ........ 78

Parking brake ........................... 122
Manual gearbox .................122-124
Automatic gearbox.............125-127
Steering wheel adjustment ......... 69
Horn .......................................... 102

284
ALPHABETICAL INDEX
Halogen headlamps ....................... 155
Hands-free telephone ..... 213, 249, 271
Hazard warning lamps.................... 101
Headlamp adjustment ................ 89, 90
Headlamps, directional ............. 90, 155
Headlamp wash ................................ 92
Headlamp wash reservoir............... 142
Heated seats .................................... 65
Heating ................................. 20, 55, 57
Height and reach adjustment,
steering wheel .............................. 69
Hill start assist ................................ 124
Horn ................................................ 102 Diesel additive level........................ 143
Diesel engine .................... 84, 139, 141
Dimensions ..................................... 178
Dipped beam .................... 85, 155, 156
Dipstick ..................................... 37, 142
Directional lighting ............................ 90
Direction indicators ......... 101, 155, 158
Door mirrors ............................... 67, 68
Doors ................................................ 79
Doors emergency control ................. 81
Door pockets .................................... 95
Driving positions (storing) ................. 66
EBA
(Emergency braking assistance) ... 104
Economy mode .............................. 168
Electric seats .............................. 63, 66
Electric window controls ................... 77
Electronic brake force distribution
(EBFD) ....................................... 104
Electronic engine immobiliser..... 72, 74
Emergency braking system ............ 104
Emergency call ............... 102, 182, 183
Emergency warning lamps ............. 101
Energy economy mode .................. 168
Engine compartment .............. 140, 141
Engine compartment fusebox......... 163
Engine oil level indicator .......... 37, 142
Engines................................... 174, 176
Environment ...........20, 54, 56, 74, 143
ESP/ASR ........................................ 105G.P.S. ..................................... 196, 235
Gear lever ......................................... 20
Gear lever,
automatic gearbox ...................... 125
Gear lever,
manual gearbox ......................... 122
Gear shift indicator ......................... 123
Glove box ......................................... 96
Guidance ................................ 196, 235
Guide-me-home................................ 88
E
F
G
H
I
Filling with fuel ............................ 83, 84
Fittings, boot ..................................... 99
Flashing indicators ................. 101, 157
Front airbags .......................... 110, 113
Front armrest .................................... 97
Front foglamps ................. 86, 155, 157
Front parking
sensors ....................................... 136
Front seats ................................. 62, 63
Front wash-wipe ............................... 92
Fuel....................................... 20, 83, 84
Fuel consumption ............................. 20
Fuel filler cap .................................... 83
Fuel filler flap .............................. 83, 84
Fuel gauge ....................................... 83
Fuel tank ..................................... 83, 84
Fuses .............................................. 160
Indicator/warning lamps .............. 26-35
Indicators, direction ........................ 101
Inflating accessories
(using the kit) ............................. 150
Inflating tyres .................................... 21
Inputs
for audio system ......... 212, 248, 270
Instrument panel lighting .................. 41
Instrument panels ........................ 22-24
Instrument panel screen .............. 22-25
Interior fittings ................................... 95
Interior mood lighting ........................ 94
ISOFIX child seats.................. 120, 121
ISOFIX mountings .......................... 119

285
ALPHABETICAL INDEX
Oil filter ........................................... 144
Oil level ..................................... 37, 142 Navigation............................... 196, 235
Neck heater ...................................... 65
Neck heater control .......................... 65
Number plate lamps ....................... 158 Main beam ........................ 85, 155, 156
Manual gearbox ......122, 123, 128, 145
Manufacturer's identification
plates .......................................... 179
Map reading lamps ........................... 93
Markings, identification ................... 179
Mat.................................................... 98
Menu, main ..................................... 264
Mini fuel level.................................... 83
Misfuel prevention ............................ 84
Monochrome screen ............... 264, 274
Mountings for ISOFIX seats ........... 119
MP3 CD .......................... 208, 247, 267
Multifunction screen
(with audio equipment) ...42, 45, 47, 49
Music media players....... 208, 246, 266
Keeping children safe.... 109, 111, 114-121
Key in ignition warning ..................... 72
Key with remote control ............... 70-74 Jack ................................................ 151
Jukebox (copy) ............................... 210
Jukebox (playing) ........................... 211
Paint colour code............................ 179
Parking brake ......................... 122, 145
Particle emission filter ............ 143, 144
Passenger compartment filter ........ 144
Petrol engine ............................ 84, 140
PEUGEOT call button ............ 182, 183
PEUGEOT CONNECT
ASSISTANCE ............................. 182
Peugeot Connect
Media ......... 25, 47, 49, 50, 185-228
Peugeot Connect
Navigation ...............45, 49, 229-260
PEUGEOT CONNECT SOS .......... 182
Peugeot Connect
Sound ............................42, 261-278
PEUGEOT services ........................ 183
PIN code ......................................... 216
Player, CD MP3 .............. 208, 246, 267
Priming the fuel system .................. 139
Protecting children ... 109, 111, 114-121
Puncture ......................................... 146
J
M
K
L
N
Labels, identification ....................... 179
Lamps, warning
and indicator ............................ 26-35
Lateral airbags ........................ 112, 113
LED lamps ........................................ 87
Level, brake fluid ............................ 142
Level, headlamp wash.............. 92, 143
Level, power steering fluid ............. 142
Levels and checks ................... 140-143
Lighting, guide-me home ............ 87, 88
Lighting, interior .......................... 93, 94
Lighting bulbs (replacement) ... 155-159
Lighting dimmer ................................ 41
Lighting stalk .................................... 85
Loading ............................................. 20
Load reduction mode...................... 168
Locating your vehicle........................ 72
Locking from the inside .................... 80
Locking the boot ............................... 82Opening the bonnet ........................ 138
Opening the boot ........................ 70, 82
Opening the doors ................ 70, 79, 81
Opening the retractable roof .............. 6
Opening the retractable screen ........ 49
Opening the windows ....................... 77
Operation indicator lamps ........... 29-35
O
P
Luggage retaining net..................... 100
Luggage retaining strap.................... 99
