2011 Peugeot 308 CC door lock

5
i
i
93
VISIBILITY









Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
To maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the fi rst signs of
wear.













COURTESY LAMPS



1.
Front courtesy lamp


2.
Map reading lamp


3.
Rear courtesy lamp




Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, different
lighting times are available:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

-
with the engine running, unlimited.




- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when the remote control locking
button is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.


Map reading lamps



)
With the ignition on, press the cor-
responding switch.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

5
i
i
94
VISIBILITY








INTERIOR MOOD LIGHTING

Different lighting times are available:


- when the ignition is off, approxi-
mately ten minutes,

- in energy economy mode, approxi-
mately thirty seconds,

- when the engine is running, no
limit. Your vehicle is fi tted with two boot lamps;
one in the left-hand boot side trim and a
second in the boot lid interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.






INTERIOR WELCOME LIGHTING




BOOT LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.

Switching on



)
Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.


Switching off

The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.


Programming

The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.

Switching on

At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.


Programming

The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting. The function is activated or
deactivated via the vehicle
confi guration menu.
This function is activated
by default. The lighting duration is
selected via the vehicle
confi guration menu.

6
95
FITTINGS

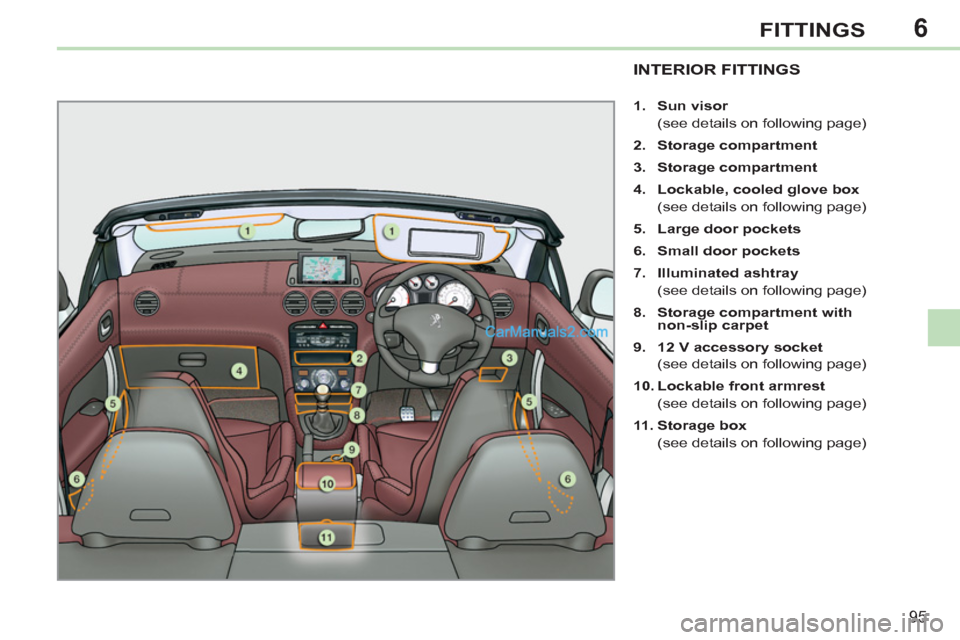

INTERIOR FITTINGS



1.
Sun visor

(see details on following page)

2.
Storage compartment


3.
Storage compartment


4.
Lockable, cooled glove box

(see details on following page)

5.
Large door
pockets


6.
Small door
pockets


7.
Illuminated ashtray

(see details on following page)

8.
Storage compartment with
non-slip carpet


9.
12 V
accessory
socket

(see details on following page)

10.
Lockable front armrest

(see details on following page)

11 .
Storage box

(see details on following page)

8
PRND
!i
127
DRIVING

Return to automatic operation



)
At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.



Manual operation



)
Select position M
for sequential

changing of the six gears.

)
Push the lever towards the +
sign to
change up a gear.

)
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.

M
and the gears engaged
manually appear in succes-
sion in the instrument panel.
If the engine speed is too low or too
high, the gear selected fl ashes for a few
seconds, then the actual gear engaged
is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1
automatically.
The sport and snow programmes do not
operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).



Stopping the vehicle

Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle.

Operating fault


There is a risk of damage to the
gearbox:


- if you press the accelerator and
brake pedals at the same time,

- if you force the lever from posi-
tion P
to another position when
the battery is fl at.
To reduce fuel consumption during
a long period stationary with the
engine running (traffi c jam, etc.),
place the gear lever in position N

and apply the parking brake.
If the lever is not in position P
,
when the driver’s door is opened
or approximately 45 seconds after
the ignition is switched off, there is
an audible signal is heard accom-
panied by a message.


)
Return the lever to position P
;
the audible signal stops and the
message disappears.
When the ignition is on, the il-
lumination of this warning lamp,
accompanied by an audible sig-
nal and a message in the mul-
tifunction screen, indicates a gearbox
malfunction.
In this case, the gearbox switches
to emergency mode and is locked in
3rd gear. You may feel a substantial
knock when changing from P
to R
and
from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed a speed of 60 mph
(100 km/h), local speed restrictions per-
mitting.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.

10
161
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is located in the lower left
of the dashboard.

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating



Functions




F1



-

Not used.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply.


F6



30 A

Rear one-touch electric windows, exterior door
opening controls.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.


F8



20 A



Audio equipment, audio/telephone, multifunction screen, tyre
under-infl ation detection, interior storage compartments.



F9



30 A

Front 12 V socket, cigarette lighter.


F10



15 A

Steering mounted controls, alarm siren,
alarm control unit.


F11



15 A

Low current ignition switch.

10
162
PRACTICAL INFORMATION


Fuse N°



Rating



Functions




F12



15 A

Instrument panel, seat belt and passenger’s front
airbag warning lamps display, air conditioning,
driver’s seat memory unit, retractable roof unit.


F13



5 A

Engine fusebox, airbags.


F14



15 A

Multifunction screen, amplifi er, hands-free kit,
rain/sunshine sensor, parking sensors control unit,
passenger’s seat memory unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.


Fuse N°



Rating



Functions




G36



30 A

Driver and passenger heated seats.


G37



5 A

Trailer fusebox.


G38



30 A

Driver’s seat memory unit.


G39


- Not used.


G40



30 A

Hi-Fi amplifi er, passenger’s seat memory unit.

279
VISUAL SEARCH
EXTERIOR


Boot ...................................... 80, 82
Temporary tyre repair kit ....146-150
Changing a wheel ..............151-154


- tools

- removing/refi tting


Changing bulbs..................158-159


- rear lamps

- 3rd brake lamp

- number plate lamps

Parking sensors .................135-136
Towbar ...................................... 171
Towing ...............................169-170
Remote control key................70-74


- opening/closing

- unlocking/partial opening of the
boot

- anti-theft protection

- starting

- battery


Accessories .......................172-173
Retractable roof .........................6-7

Fuel tank ................................83-84
Door mirrors ...........................67-68
Side spotlamps ................... 89, 157

Doors .....................................79-81


- opening/closing

- central locking

- emergency locking
Alarm .....................................75-76
Electric windows ....................77-78
Lighting controls ....................85-89
Directional lighting ...................... 90
Headlamp height adjustment ....89-90
Changing bulbs..................155-157


- front lamps

- foglamps

- direction indicator repeaters



Braking assistance ................... 104
Trajectory control ...................... 105
Tyre under-inflation detection .... 103
Tyre pressures .................. 150, 179

283
ALPHABETICAL INDEX
ABS and EBFD systems ................ 104
Accessories .................................... 172
Accessories socket, 12 V ................. 98
Access to rear seats ......................... 64
Adjusting headlamps .................. 89, 90
Adjusting the steering
wheel ............................................ 69
Airbags ........................................... 110
Air conditioning ..................... 20, 55, 57
Air conditioning (digital) .................... 57
Air conditioning (manual).................. 55
Air filter ........................................... 144
Air vents ........................................... 53
Alarm ................................................ 75
Anti-lock braking system (ABS) ...... 104
Anti-swirl net ..................................... 59
Anti-theft steering lock ...................... 72
Ashtray ............................................. 98
Assistance call ................ 102, 182, 183
Audible warning .............................. 102
Audio/video sockets ....................... 212
Audio streaming (Bluetooth) ........... 272
Automatic gearbox ................. 125, 145
Automatic illumination
of headlamps .......................... 85, 88
Automatic operation of hazard
warning lamps ............................ 101
Automatic rain sensitive
windscreen wipers .................. 91, 92
Auxiliary socket .............. 212, 248, 270CHECK ............................................. 40
Checking levels ...................... 142, 143
Checking the engine oil level ........... 37
Checking tyre pressures
(using the kit) ............................. 150
Checks..................................... 138-145
Children ................... 109, 111, 114-121
Child seats .............................. 114-121
Closing the boot ............................... 82
Closing the doors ............................. 79
Closing the retractable roof ................ 6
Cold climate screen ........................ 172
Connectors, audio ....97, 248, 268, 270
Control for retractable roof ................. 6
Control for the four windows ............ 77
Control stalk, wipers ................... 91, 92
Coolant level ............................. 36, 142
Coolant temperature ......................... 36
Coolant temperature indicator .......... 36
Courtesy lamps ................................ 93
Courtesy mirror ................................. 96
Cruise control ................................. 133 Battery .................................... 144, 166
Battery, remote control ............... 73, 74
Battery recharge ............................. 167
Bluetooth telephone
(hands-free) ........................... 213-271
Bonnet ............................................ 138
Bonnet stay .................................... 138
Boot .................................................. 82
Boot (fittings) .................................. 100
Boot (opening) .................................. 70
Boot lamp ......................................... 94
Boot screen .................................... 100
Brake discs ..................................... 145
Brake lamps ................................... 158
Brake pads ..................................... 145
Brakes ............................................ 145
Braking assistance system ............. 104
AB
Capacity, fuel tank ............................ 83
CD MP3 .......................... 208, 246, 267
Central locking .................................. 80
Changing a bulb ...................... 155-159
Changing a fuse ...................... 160-165
Changing a wheel.................... 151-154
Changing a wiper blade ........... 93, 169
Changing the date .................. 218, 252
Changing the remote control battery .... 73
Changing the time .......... 218, 252, 273
C
D
Dashboard fusebox ........................ 161
Date (display) ................. 218, 252, 273
Daytime running lamps..... 87, 155, 157
Deactivating the passenger airbag ....111
Deadlocking ...................................... 71
Defrosting ................................... 56, 57
Dials and gauges......................... 22-24
