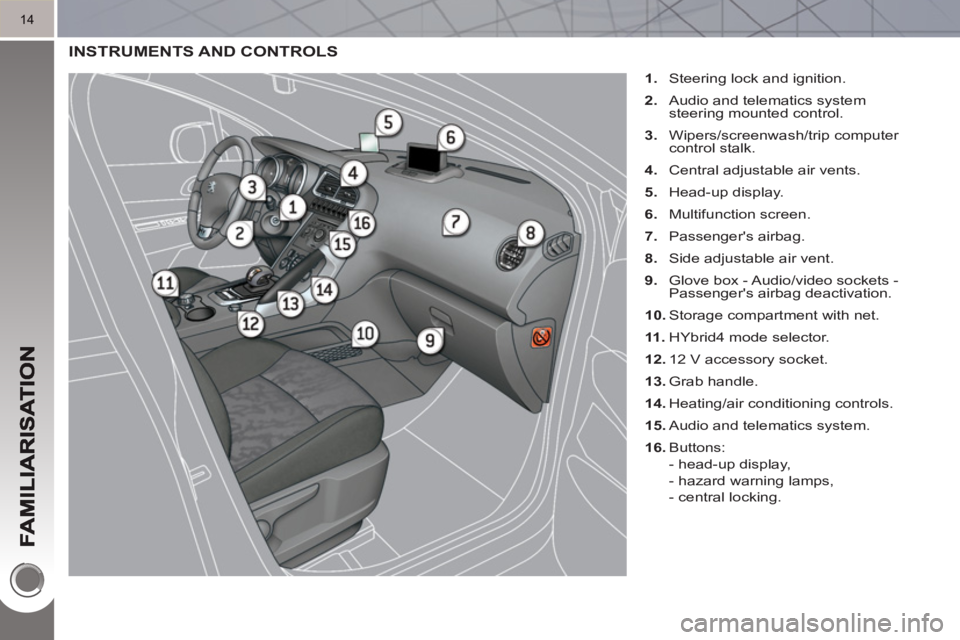

INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10.
Storage compartment with net.

11 .
HYbrid4 mode selector.

12.
12 V accessory socket.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- central locking.

48

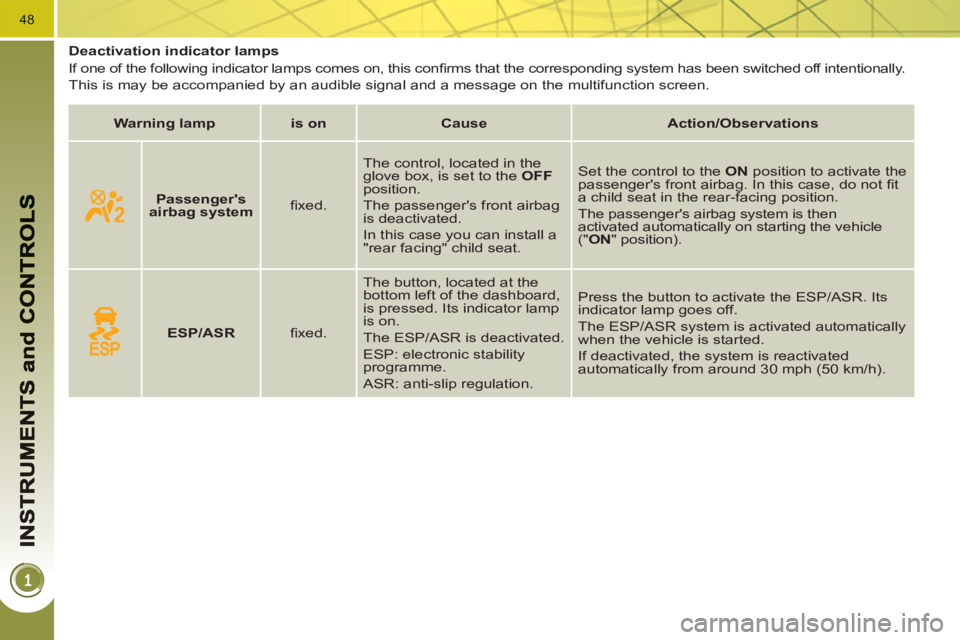

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp



is on



Cause



Action/Observations






Passenger's
airbag system


fi xed. The control, located in the
glove box, is set to the OFF

position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the ON
position to activate the
passenger's front airbag. In this case, do not fi t
a child seat in the rear-facing position.
The passenger's airbag system is then
activated automatically on starting the vehicle
("ON" position).




ESP/ASR


fi xed. The button, located at the
bottom left of the dashboard,
is pressed. Its indicator lamp
is on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-slip regulation. Press the button to activate the ESP/ASR. Its
indicator lamp goes off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If deactivated, the system is reactivated
automatically from around 30 mph (50 km/h).

FITTINGS
106

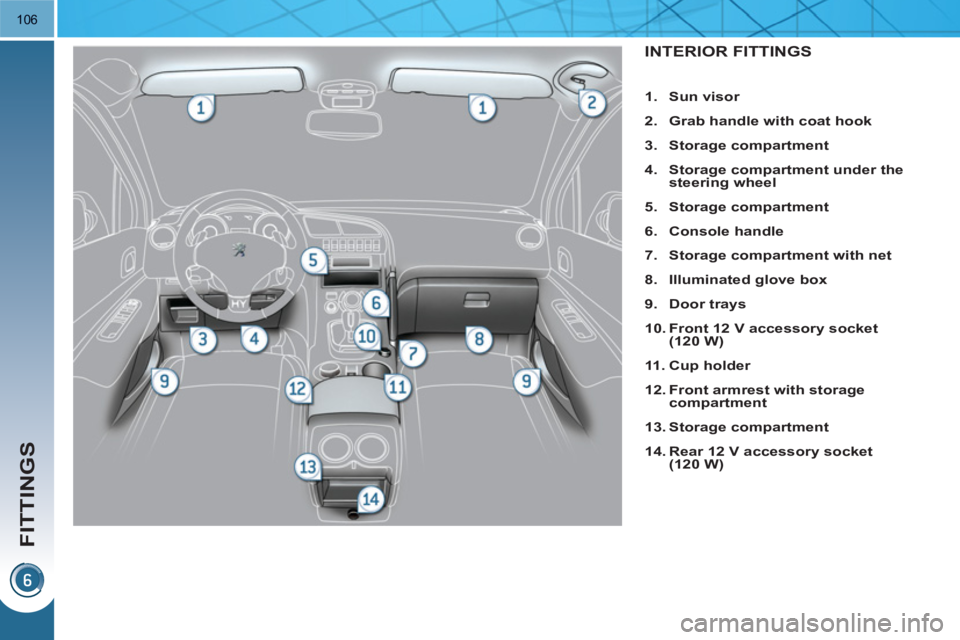

INTERIOR FITTINGS


1.
Sun visor


2.
Grab handle with coat hook


3.
Storage compartment


4.
Storage compartment under the
steering wheel


5.
Storage compartment


6.
Console handle


7.
Storage compartment with net


8.
Illuminated glove box


9.
Door trays


10.
Front 12 V accessory socket
(120 W)


11 .
Cup holder


12.
Front armrest with storage
compartment


13.
Storage compartment


14.
Rear 12 V accessory socket
(120 W)

FITTINGS
107

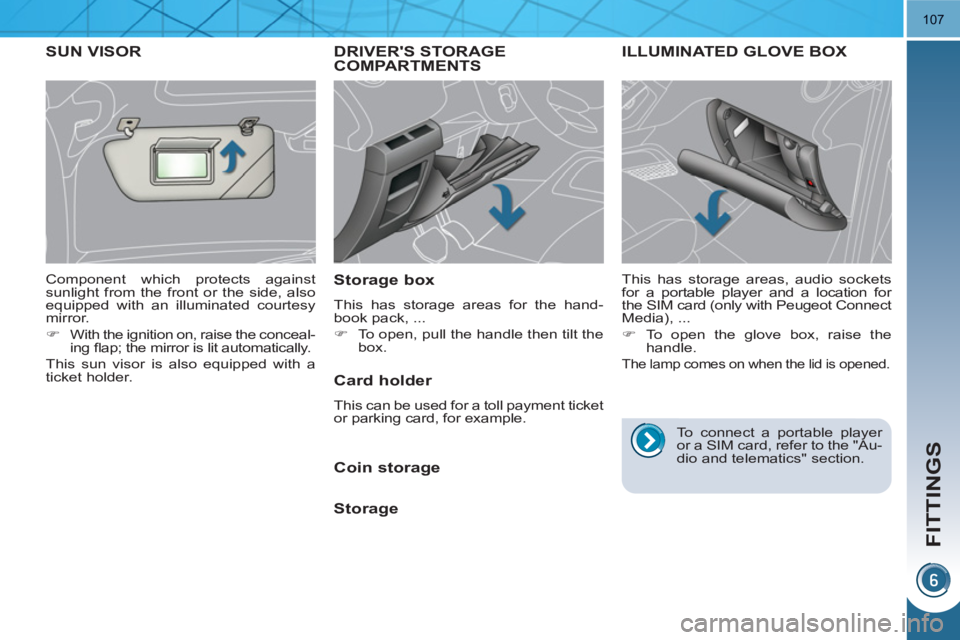

DRIVER'S STORAGECOMPARTMENTS

Storage box

This has storage areas for the hand-
book pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX

This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...


)
To open the glove box, raise the
handle.

The lamp comes on when the lid is opened.
SUN VISOR

Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)
With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment ticket
or parking card, for example.


Coin storage

Storage

To connect a portable player
or a SIM card, refer to the "Au-
dio and telematics" section.

132

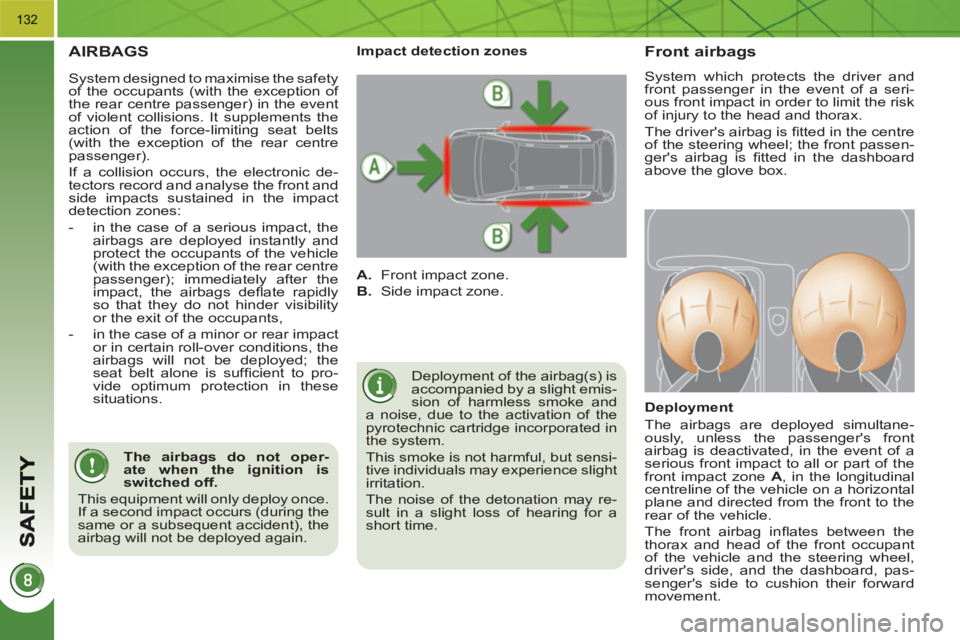

AIRBAGS

Deployment of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may re-
sult in a slight loss of hearing for a
short time.

Front airbags

System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
front impact zone A
, in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
The front airbag infl ates between the
thorax and head of the front occupant
of the vehicle and the steering wheel,
driver's side, and the dashboard, pas-
senger's side to cushion their forward
movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

The airbags do not oper-
ate when the ignition is
switched off.

This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:


- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder visibility
or the exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.

PRACTICAL INFORMATION
163
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
12 V compressor.
Contains a sealant cartridge for
the temporary repair of a tyre and
can be used to adjust the tyre
pressures.

2.
Two chocks to chock the vehicle.

3.
Socket for security bolts (located
in the glove box) * .
For adapting the wheelbrace to
the special security bolts.


List of tools

Other accessories

4.
Removable towing eye.
Refer to "Electric parking brake"
in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".

5.
Electric parking brake emergency
release control.

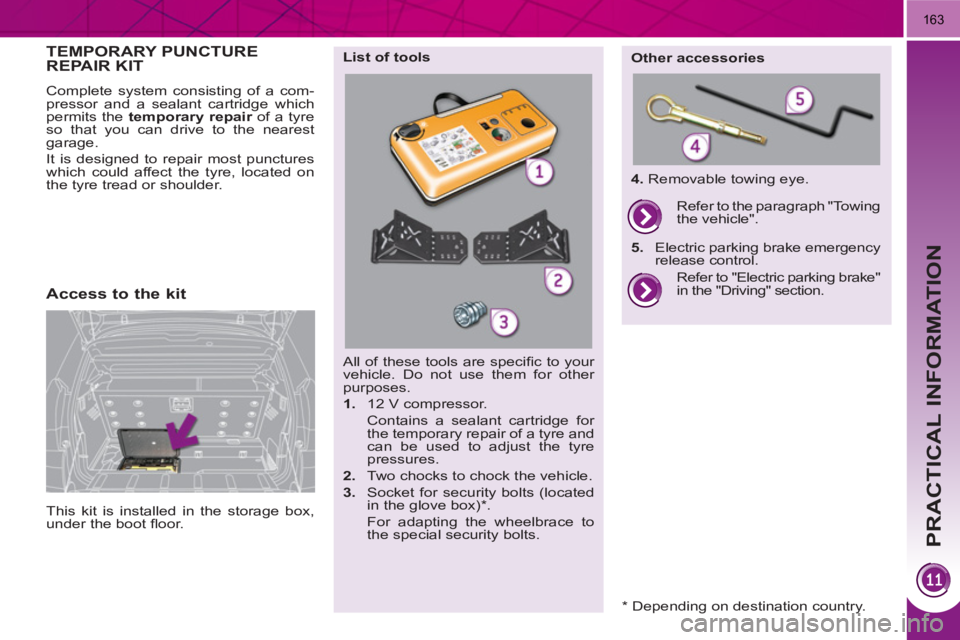

TEMPORARY PUNCTUREREPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits the temporary repair
of a tyre
so that you can drive to the nearest
garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.



Access to the kit

This kit is installed in the storage box,
under the boot fl oor.

*
Depending on destination country.

PRACTICAL INFORMATION
169
CHANGING A WHEEL
The tools are stowed in the boot.


Access to the tools

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
Wheelbrace *

.
For removing the wheel trim and
removing the wheel fi xing bolts.

2.
Jack with integral handle *

.
For raising the vehicle.

3.
"Bolt cover" tool (according to
equipment) *

.
For removing the bolt protectors
(covers) on alloy wheels.

4.
Centring guide *

.
For refi tting an alloy wheel to the
hub.
List of tools

Other accessories
5.
Socket for the security bolts
(located in the glove box) *

.
For adapting the wheelbrace to
the special "security" bolts.

6.
Two chocks to immobilise the
vehicle.


7.
Removable towing eye.
Refer to "Electric parking brake"
in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".

8.
Electric parking brake emergency
release control.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.

*
According to country.
Take care to use the jacking
points provided for the jack to
avoid damaging the cables.

PRACTICAL INFORMATION
177

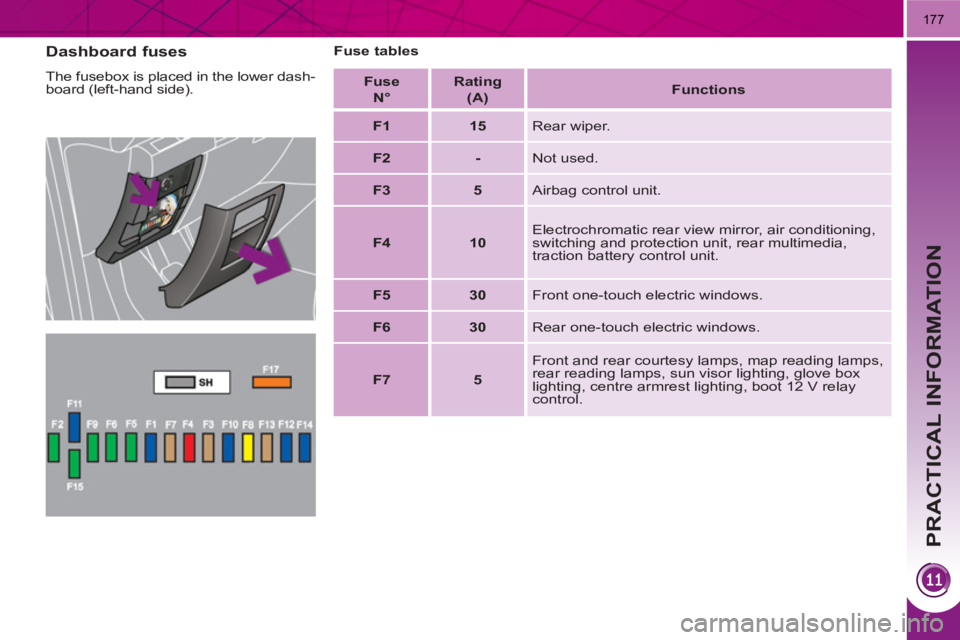

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables

Fuse
N°

Rating
(A)


Functions




F1



15

Rear wiper.


F2



-

Not used.


F3



5

Airbag control unit.


F4



10

Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia,
traction battery control unit.


F5



30

Front one-touch electric windows.


F6



30

Rear one-touch electric windows.


F7



5

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.
