2011 PEUGEOT 207 USB

7
FAMILIARISATION
INTERIOR


Dual-zone digital air conditioning
This system allows different levels of
comfort to be set for the driver and the
front passenger. It then automatically
controls these levels according to the
ambient conditions.



50

Distance recorder
The trip distance recorder is reset to
zero by pressing the right-hand button
in the instrument panel for more than
two seconds.



32


Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Peugeot
Connect Sound, Peugeot Connect USB,
Bluetooth hands-free system, Peugeot
Connect Navigation, auxiliary sockets.

Peugeot Connect Navigation




179

Peugeot Connect Sound




213

Peugeot Connect USB




220

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio equipment steering mounted
controls.

3.
Wiper/wash-wipe/trip computer
control stalk.

4.
Hazard warning lamps switch.

5.
Multifunction screen.
Seat belt fastening status warning
lamps.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box/Passenger's airbag
deactivation/Audio/video sockets.

9.
Heated seat control.

10.
Front ashtray.

11 .
12 V accessory socket.

12.
USB port.

13.
Dynamic stability control
(ESP/ASR) button.
Central locking button.
Electric child lock button.

14.
Heating/air conditioning controls.

15.
Storage compartment.

16.
Peugeot Connect Sound or
Peugeot Connect Navigation.

17.
Central adjustable air vents.

2
!
!
COMFORT
60
MATS
Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as possible,

)
unclip the fi xings,

)
remove the mat.

PEUGEOT CONNECT USB


The "AUX"
connection box, located in
the centre console, comprises an auxil-
iary JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
in the multifunction screen.

Connected to the USB port, the porta-
ble device charges automatically while
in use.

For more information on the use of
this equipment, refer to the "Audio
and Telematics" section.
To avoid any risk of jamming of the
pedals:


- only use mats which are suited
to the fi xings already present
in the vehicle; these fi xings
must be used,

- never fi t one mat on top of
another.
The use of mats not approved
by PEUGEOT may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.

2COMFORT
61

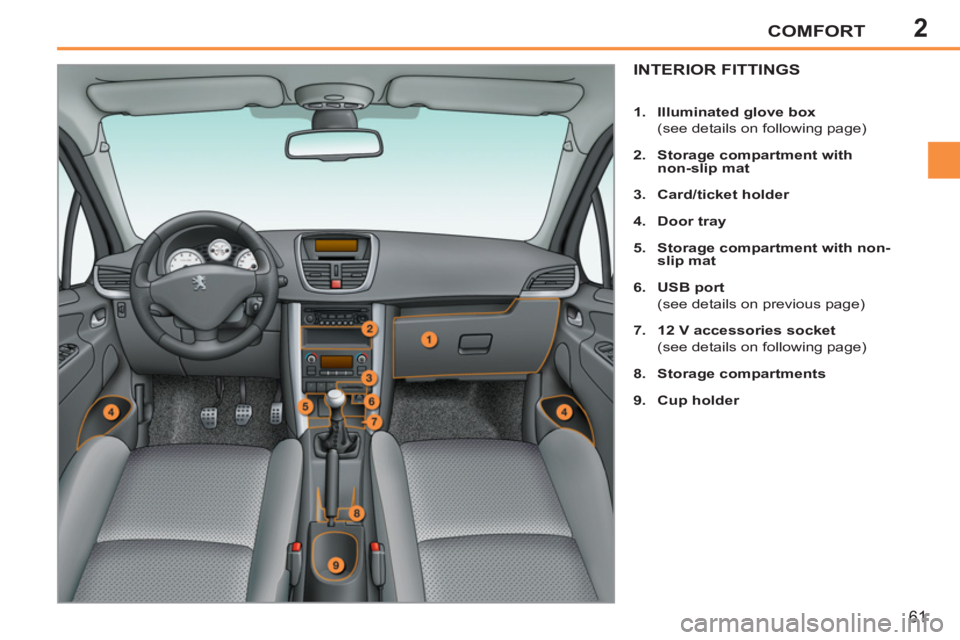

INTERIOR FITTINGS


1.
Illuminated glove box


(see details on following page)

2.
Storage compartment with
non-slip mat


3.
Card

/ticket

holder


4.
Door tray


5.
Storage compartment with non-
slip mat


6.
USB port


(see details on previous page)

7.
12 V accessories socket


(see details on following page)

8.
Storage compartments


9.
Cup holder

9
!
i
i
PRACTICAL INFORMATION
161

Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC)
.


Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses avail-
able in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the
range of recommended equipment
and accessories.

"Multimedia":
audio systems, satellite navigation
systems, hands-free kit, CD changer,
speakers, DVD player, connection kit
for MP3 or CD player, USB Box...
You can also obtain products for cleaning
and maintenance (exterior and interior),
topping up (screenwash...), and refi lls
(cartridge for the temporary puncture re-
pair kit...) by visiting a PEUGEOT dealer.

213

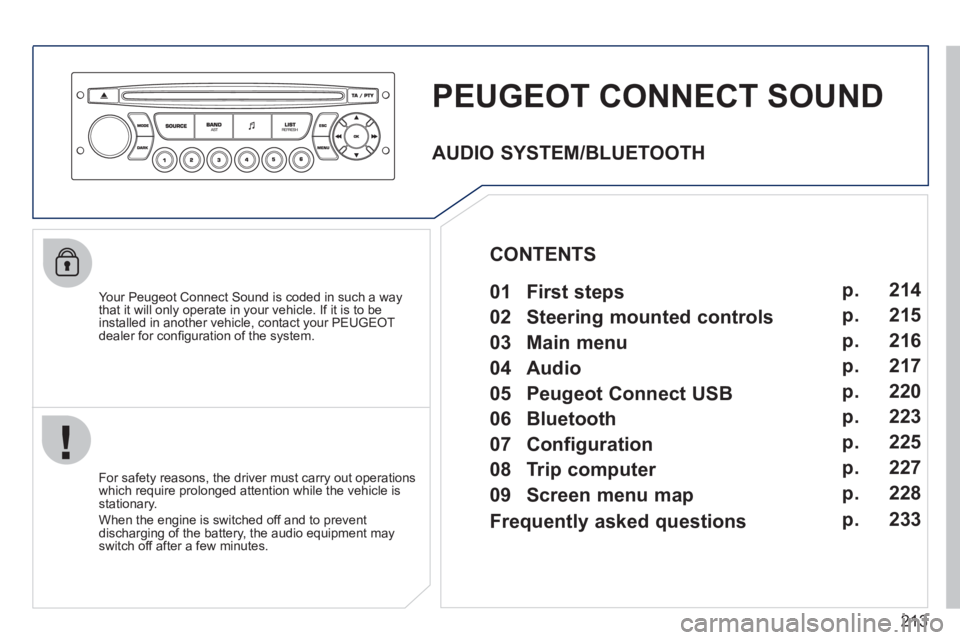

PEUGEOT CONNECT SOUND

Your Peugeot Connect Sound is coded in such a way
that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact your PEUGEOT
dealer for confi guration of the system.

For safet
y reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the audio equipment mayswitch off after a few minutes.

AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 Peugeot Connect USB

06 Bluetooth

07 Configuration

08 Trip computer

09 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p. 214
215
216
217
220
223
225
227
228
CONTENTS

Frequently asked questions p. 233

214
01
1
22
10101111
133144155
33445566778899
122

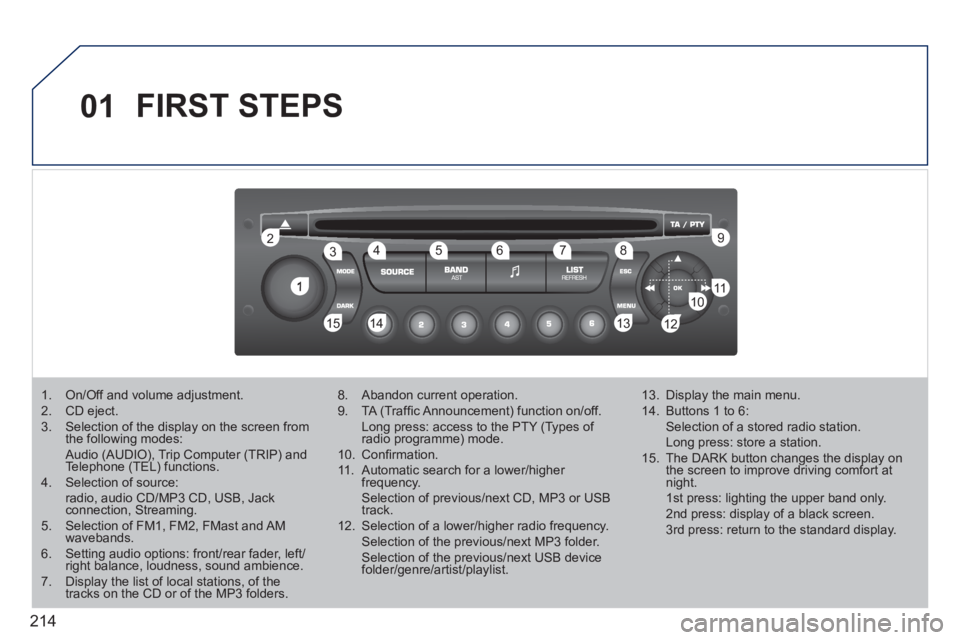

FIRST STEPS
1. On/Off and volume adjustment. 2. CD eject. 3. Selection of the display on the screen from the following modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions. 4. Selection of source: radio, audio CD/MP3 CD, USB, Jackconnection, Streaming. 5. Selection of FM1, FM2, FMast and AMwavebands.6. Setting audio options: front/rear fader, left/right balance, loudness, sound ambience.7. Display the list of local stations, of thetracks on the CD or of the MP3 folders.


8. Abandon current operation.

9. TA (Traffi c Announcement) function on/off. Long press: access to the PTY (Types of radio programme) mode.g


10. Confi rmation.

11. Automatic search for a lower/higher frequency. Selection of previous/next CD, MP3 or USB track.

12. Selection of a lower/higher radio frequency. Selection of the previous/next MP3 folder. Selection of the previous/next USB devicefolder/genre/artist/playlist.


13. Display the main menu.

14. Buttons 1 to 6: Selection of a stored radio station. Long press: store a station.

15. The DARK button changes the display on the screen to improve driving comfort at night. 1st press: lighting the upper band only. 2nd press: display of a black screen. 3rd press: return to the standard display.

215
02STEERING MOUNTED CONTROLS

RADIO: selection of the next stored station.

USB: selection of the next genre/artist/folder from the classifi cation list.
Selection of the next item on a menu.
RADIO: selection of the previous stored station.

USB: selection of the previous genre/artist/folder from the classifi cation list.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3/USB: selection of the next track.
CD/USB: continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/MP3/USB: selection of the previous track.
CD/USB: continuous press: fast reverse.
Selection of the next item.

- Change of sound source.

- Confi rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:access to the telephone menu.


Volume increase.
Volume decrease.
Mute: press the volumeincrease and decreasebuttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
