2011 NISSAN VERSA HATCHBACK Quick Reference Guide

Quick RefeRence Guide
2011
VeRSA

*See your Owner’s Manual for more information.

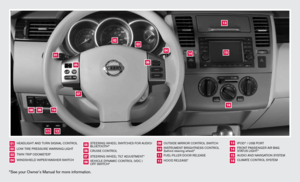

HeAd LiGHT And Tu Rn S iG nAL c OnTROL
LOW Ti Re PR eSS uRe WAR ninG Li GHT
TW in TR iP O dOM eTe R*
W ind SHieLd W iP eR/WASH eR SW iTc H STee
Rin G WH eeL SW iTc HeS fOR A udiO/
BLueTOOTH
®
c Rui Se c OnTROL
STee Rin G WH eeL Ti LT Ad Ju STM enT*
Ve Hic Le d YnAM ic cOnTROL (Vdc )
O ff SW iTc H* O
uTS ide M iRROR c OnTROL SW iTc H
in STR uM enT BR iGHTne SS cOnTROL
(behind steering wheel)*
fue L-fiLLe R dOOR R eLeAS e
HOO d ReLeAS e* i
POd
® / u SB PORT
f RO nT PASS enGeR Ai R BAG
STATu S LiGHT*
A udi O And nAVi GATiOn SYSTe M
c Li MATe c OnTROL SYSTe M
01020304
05
09
13
06
10
141516
07
11
08
12
02
03
01
04
05
09
15
06
12
16
07
13
08
14
11
10

This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand
the important safety warnings, features, operation and maintenance of your
vehicle. All information, specifications, photographs and illustrations in this
publication are those in effect at the time of printing. niSSA n reserves the
right to change specifications or design without notice and without obligation.
TABLe O f cOnTenTS
Additional information about your vehicle is also available in your Owner’s
Manual, navigation System Owner’s Manual, electronic Quick Reference
Guide (e QRG) and at www.nissanusa.com.
New SYSTe M FeaTureS
u SB/iPod® interface (if so equipped) .............................. 2
navigation System (if so equipped) ................................2
eSS eNTial iNF orMa TioN
Loose fuel cap (if so equipped) .................................. 3
Tire Pressure Monitoring System (TPMS) ...........................3
ABS Self-Test (if so equipped) .................................... 3
Fir ST Drive Fea TureS
ni SSAn intelligent k ey™ System (if so equipped) ....................4
Seat Adjustments .............................................. 4
Outside Mirror control Switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 4
Starting the engine ............................................. 5
Headlight control Switch ........................................ 5
Windshield Wiper Switch ........................................ 6
climate controls ............................................... 6

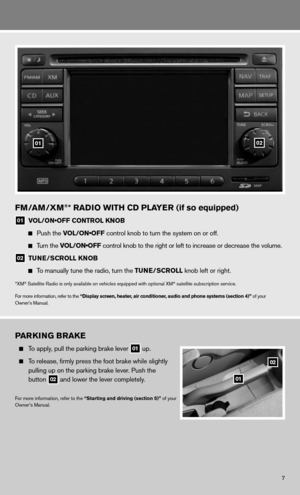

f M/AM/XM
® Radio with cd Player (if so equipped) ..................7
Parking Brake .................................................. 7

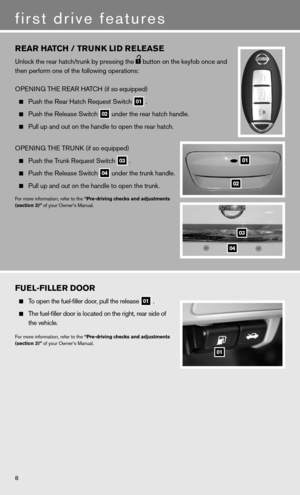

Rear Hatch/Trunk Lid Release .................................... 8
fuel-filler door ................................................. 8
S YSTe M Gui De

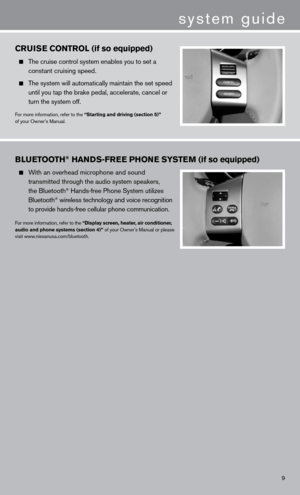

cruise control (if so equipped) ................................... 9
Bluetooth
® Hands-free Phone System (if so equipped) ................9
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secured
in child restraints or seat belts according to their age and weight.
• Do not drink and drive.
for more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.

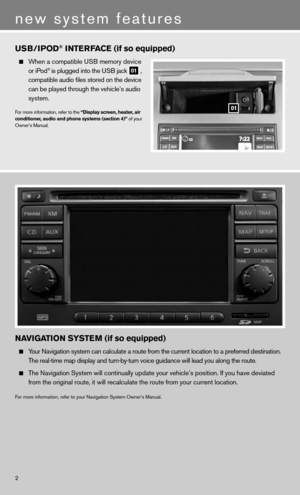

uSB/iPo D® iNTerFace (if so equipped)
When a compatible u SB memory device
or iPod® is plugged into the u SB jack
01 ,
compatible audio files stored on the device
can be played through the vehicle’s audio
system.
for more information, refer to the “Display screen, heater, air
conditioner, audio and phone systems (section 4)” of your
Owner’s Manual.
2
new system features
Navi GaTioN SYSTe M (if so equipped)
Your navigation system can calculate a route from the current location to a preferred destination.
The real-time map display and turn-by-turn voice guidance will lead you a\
long the route.

The navigation System will continually update your vehicle’s position. if you have deviated
from the original route, it will recalculate the route from your current location.
for more information, refer to your navigation System Owner’s Manual.

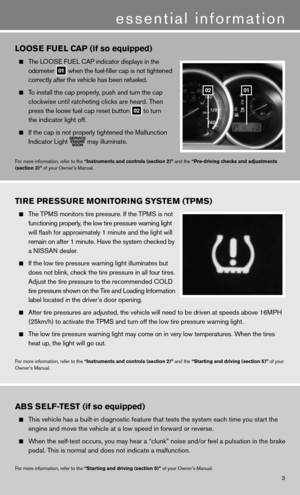

3
essential information
looSe Fuel caP (if so equipped)
The LOOS e fue L cAP indicator displays in the
odometer

01 when the fuel-filler cap is not tightened
correctly after the vehicle has been refueled.

To install the cap properly, push and turn the cap
clockwise until ratcheting clicks are heard. Then
press the loose fuel cap reset button

02 to turn
the indicator light off.

i f the cap is not properly tightened the Malfunction
indicator Light
may illuminate.
f
or more information, refer to the “instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
Tire Pre SSure M oNiTori NG SYSTe M (TPMS)
The TPMS monitors tire pressure. if the TPMS is not
functioning properly, the low tire pressure warning light
will flash for approximately 1 minute and the light will
remain on after 1 minute. Have the system checked by
a niSSAn dealer.

i f the low tire pressure warning light illuminates but
does not blink, check the tire pressure in all four tires.
Adjust the tire pressure to the recommended cOL d
tire pressure shown on the Tire and Loading information
label located in the driver’s door opening.

After tire pressures are adjusted, the vehicle will need to be driven at\
speeds above 16MPH
(25km/h) to activate the TPMS and turn off the low tire pressure warning light.

The low tire pressure warning light may come on in very low temperatures. When the tires
heat up, the light will go out.
for more information, refer to the “instruments and controls (section 2)” and the “Starting and driving (section 5)” of your
Owner’s Manual.
aBS S elF-Te ST (if so equipped)
This vehicle has a built-in diagnostic feature that tests the system each time you start the
engine and move the vehicle at a low speed in forward or reverse.

When the self-test occurs, you may hear a “clunk” noise and/or feel\
a pulsation in the brake
pedal. This is normal and does not indicate a malfunction.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
0102

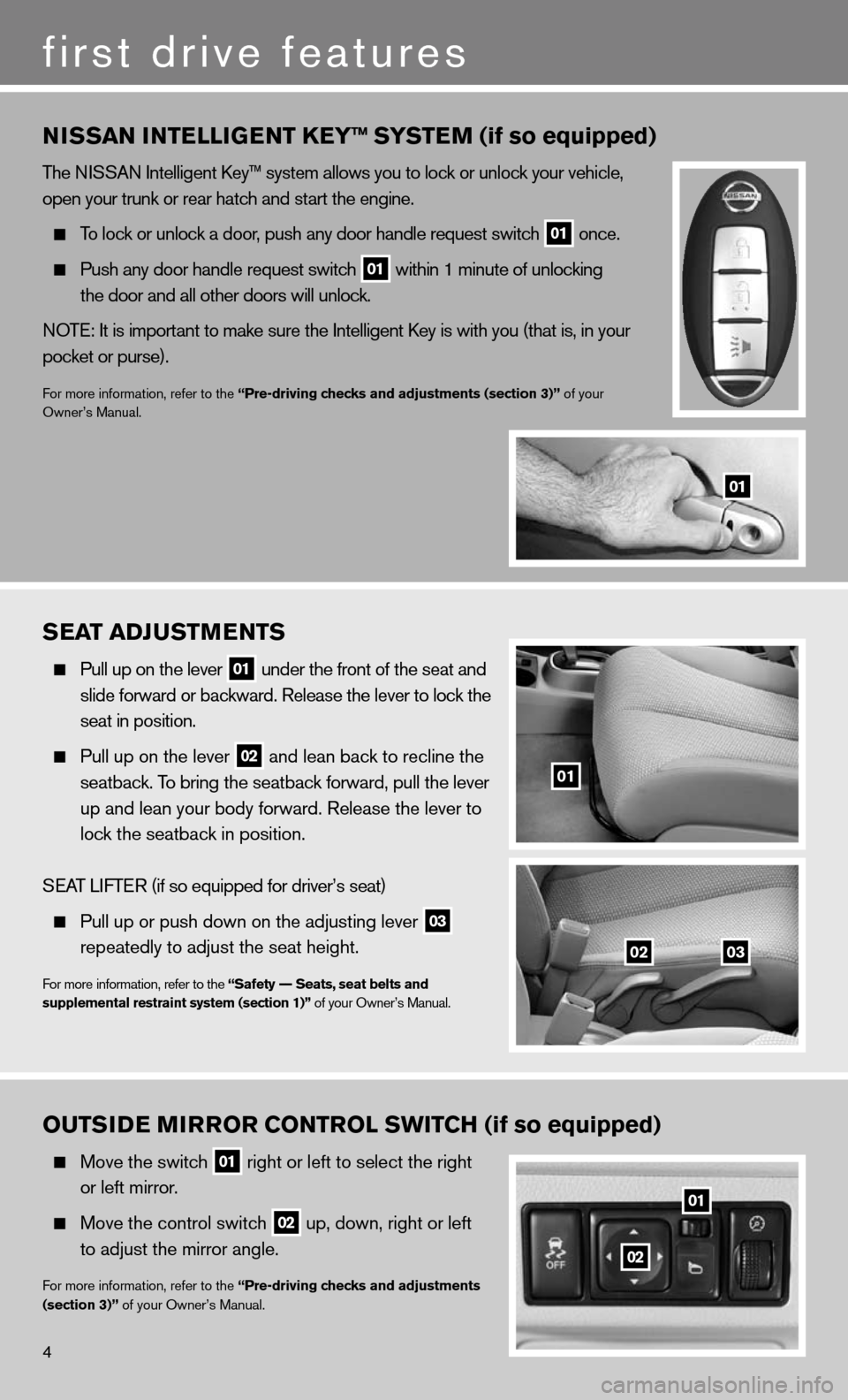

Sea T aDJ uSTM eNTS
Pull up on the lever
01 under the front of the seat and
slide forward or backward. Release the lever to lock the
seat in position.

Pull up on the lever
02 and lean back to recline the

seatback. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever to
lock the seatback in position.
SeAT LifTe R (if so equipped for driver’s seat)

Pull up or push down on the adjusting lever
03
repeatedly to adjust the seat height.
f
or more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
4
ouTS iD e M irror coNTrol SwiT cH (if so equipped)
Move the switch
01 right or left to select the right
or left mirror.

Move the control switch
02 up, down, right or left
to adjust the mirror angle.
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
N iSSaN i NTelliGeNT K eY™ SYSTe M (if so equipped)
The niSSAn intelligent k ey™ system allows you to lock or unlock your vehicle,
open your trunk or rear hatch and start the engine.

To lock or unlock a door, push any door handle request switch
01 once.

Push any door handle request switch
01 within 1 minute of unlocking
the door and all other doors will unlock.
n OT e: it is important to make sure the intelligent key is with you (that is, in your
pocket or purse).
f or more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
first drive features
01
01
01
0203
02

5

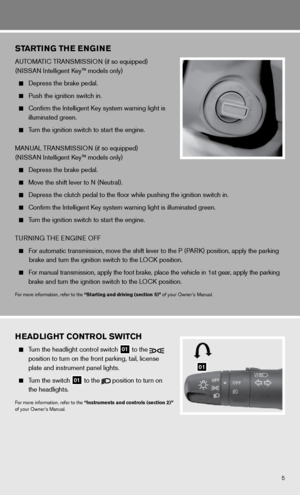

STarTi NG TH e eNGiN e
Au TOMAT ic TRA nSM iSS iO n (if so equipped)
(ni SSAn intelligent k ey™ models only)

depress the brake pedal.

Push the ignition switch in.

confirm the intelligent key system warning light is
illuminated green.

Turn the ignition switch to start the engine.

MA nuAL TRA nSM iSS iO n (if so equipped)
(ni SSAn intelligent k ey™ models only)

depress the brake pedal.

Move the shift lever to n (neutral).

depress the clutch pedal to the floor while pushing the ignition switch in.

confirm the intelligent k ey system warning light is illuminated green.

Turn the ignition switch to start the engine.

T uRnin G THe en Gine Off

f or automatic transmission, move the shift lever to the P (PAR k) position, apply the parking
brake and turn the ignition switch to the LO ck position.

for manual transmission, apply the foot brake, place the vehicle in 1st g\
ear, apply the parking
brake and turn the ignition switch to the LO ck position.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
H eaD liGHT coNTrol SwiT cH
Turn the headlight control switch
01 to the
position to turn on the front parking, tail, license

plate and instrument panel lights.

Turn the switch
01 to the
position to turn on
the headlights.
for more information, refer to the “instruments and controls (section 2)”
of your Owner’s Manual.
01

6

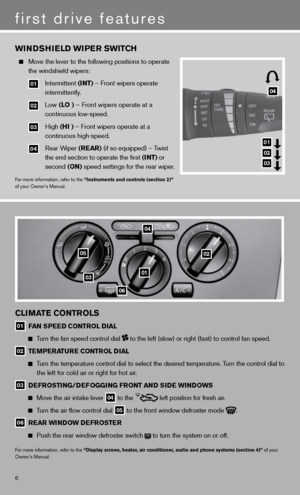

cliMaTe coNTrolS
01 F
aN SPee D coNTrol D ial

Turn the fan speed control dial to the left (slow) or right (fast) to control fan speed.
02 Te
MPera Ture coNTrol D ial

Turn the temperature control dial to select the desired temperature. Turn the control dial to
the left for cold air or right for hot air.
03 D
eFroSTi NG/DeFoGG iNG FroNT aND S iD e wi NDowS

Move the air intake lever
04 to the
left position for fresh air.


Turn the air flow control dial
05 to the front window defroster mode
.
06 rear wi
NDow D eFroSTer

Push the rear window defroster switch
to turn the system on or off.
f
or more information, refer to the “Display screen, heater, air conditioner, audio and phone systems (section 4)” of your
Owner’s Manual.
wi NDSH ielD wi Per SwiT cH
Move the lever to the following positions to operate
the windshield wipers:

01 intermittent (i NT) – front wipers operate
intermittently.

02 Low (lo ) – front wipers operate at a
continuous low-speed.

03 High (H i ) – front wipers operate at a
continuous high-speed.

04 Rear Wiper (rear) (if so equipped) – Twist
the end section to operate the first (i NT) or
second (oN) speed settings for the rear wiper.
for more information, refer to the “instruments and controls (section 2)”
of your Owner’s Manual.
first drive features
01
04
02
03
01
02
03
04
05
06
