●A new disc may be rough on its inner
and outer edges. Remove the rough
edges using the side of a pen or pencil
as illustrated.
● Never attempt to use a DVD that has
been cracked, deformed, or repaired
using adhesive. Doing so may cause
damage to the equipment.
● Handle the DVD carefully to avoid contami-
nation or flaws. Otherwise, signals may not
be read properly.
● Do not write, draw or attach anything on any
side of the DVD.
● Do not store the DVD in locations with direct
sunlight or in high temperatures or humidity.
● Always place discs in the storage case when
they are not being used.
● Do not put on any sticker or write anything
on either surface of the DVD.
DVD player operation precautions
Do not use the following DVDs as they may
cause the DVD player to malfunction:
● 3.1 in (8 cm) discs with an adapter. ●
DVDs with a region code other than
“1”. The region code
Ais displayed in
a small symbol printed on the top of
the DVD
B.
● DVDs that are not round.
● DVDs with a paper label.
● DVDs that are warped, scratched, or
have unequal edges.
● Recordable digital video discs
(DVD+R) .
● Rewritable digital video discs
(DVD+RW) .
If a DVD with a paper label is used and
becomes jammed, you may be able to reset
the unit and eject the jammed disc with the
following procedure: 1. Record the radio presets.
2. Disconnect the negative terminal from
the battery for five minutes.
3. Reconnect the negative battery termi-
nal.
4. Check to see if the jammed DVD has
been ejected. If it has not, try to eject
the DVD by pushing the eject button.

5.If the disc cannot be ejected see your
NISSAN dealer for further assistance.
6. Re-program the radio presets.
Remote control and headphones
battery replacement
Replace the battery as follows:
1. Open the lid.
2. Replace batteries with new ones.● Size AA (remote control)
● Size AAA (headphones)
Make sure that the

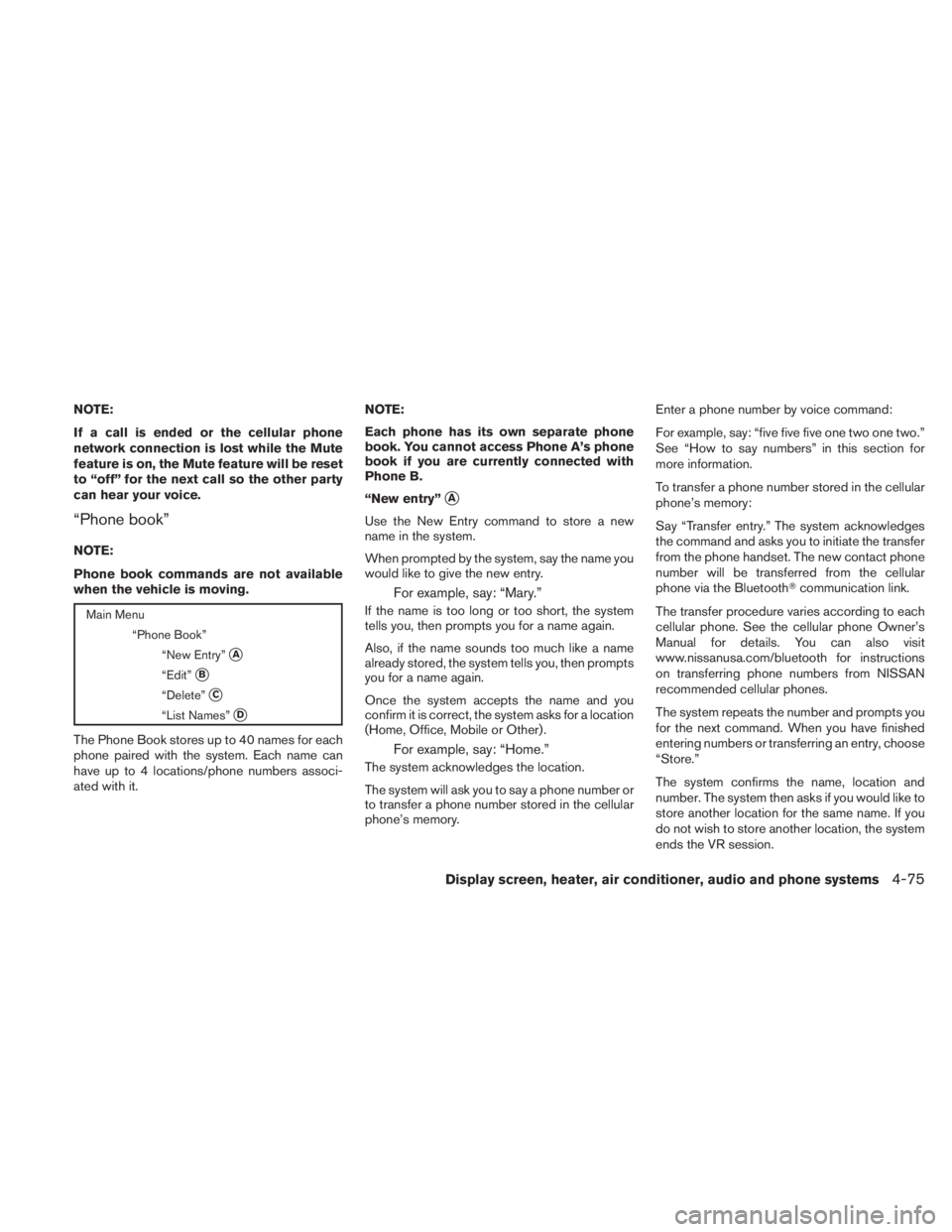

NOTE:
If a call is ended or the cellular phone
network connection is lost while the Mute
feature is on, the Mute feature will be reset
to “off” for the next call so the other party
can hear your voice.
“Phone book”
NOTE:
Phone book commands are not available
when the vehicle is moving.

WARNING
●If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an acci-
dent and could result in serious per-
sonal injury. Check the tire pressure for
all four tires. Adjust the tire pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible. (See “Flat tire” in the “In case
of emergency” section for changing a
flat tire.) ●
When a spare tire is mounted or a wheel
is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
● Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.

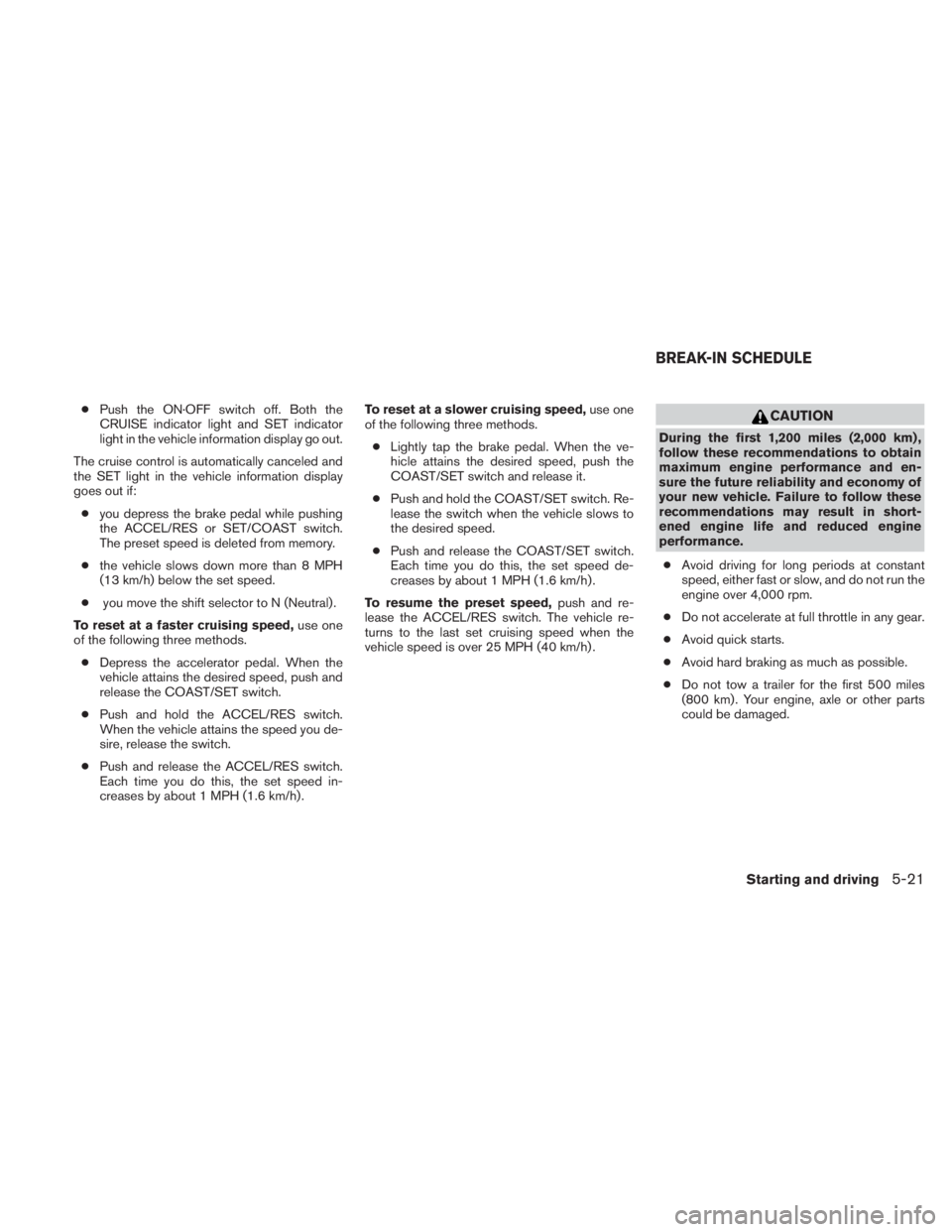

●Push the ON·OFF switch off. Both the
CRUISE indicator light and SET indicator
light in the vehicle information display go out.
The cruise control is automatically canceled and
the SET light in the vehicle information display
goes out if: ● you depress the brake pedal while pushing
the ACCEL/RES or SET/COAST switch.
The preset speed is deleted from memory.
● the vehicle slows down more than 8 MPH
(13 km/h) below the set speed.
● you move the shift selector to N (Neutral) .
To reset at a faster cruising speed, use one
of the following three methods.
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch.
When the vehicle attains the speed you de-
sire, release the switch.
● Push and release the ACCEL/RES switch.
Each time you do this, the set speed in-
creases by about 1 MPH (1.6 km/h) . To reset at a slower cruising speed,
use one
of the following three methods.
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
COAST/SET switch and release it.
● Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows to
the desired speed.
● Push and release the COAST/SET switch.
Each time you do this, the set speed de-
creases by about 1 MPH (1.6 km/h) .
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle re-
turns to the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h) .

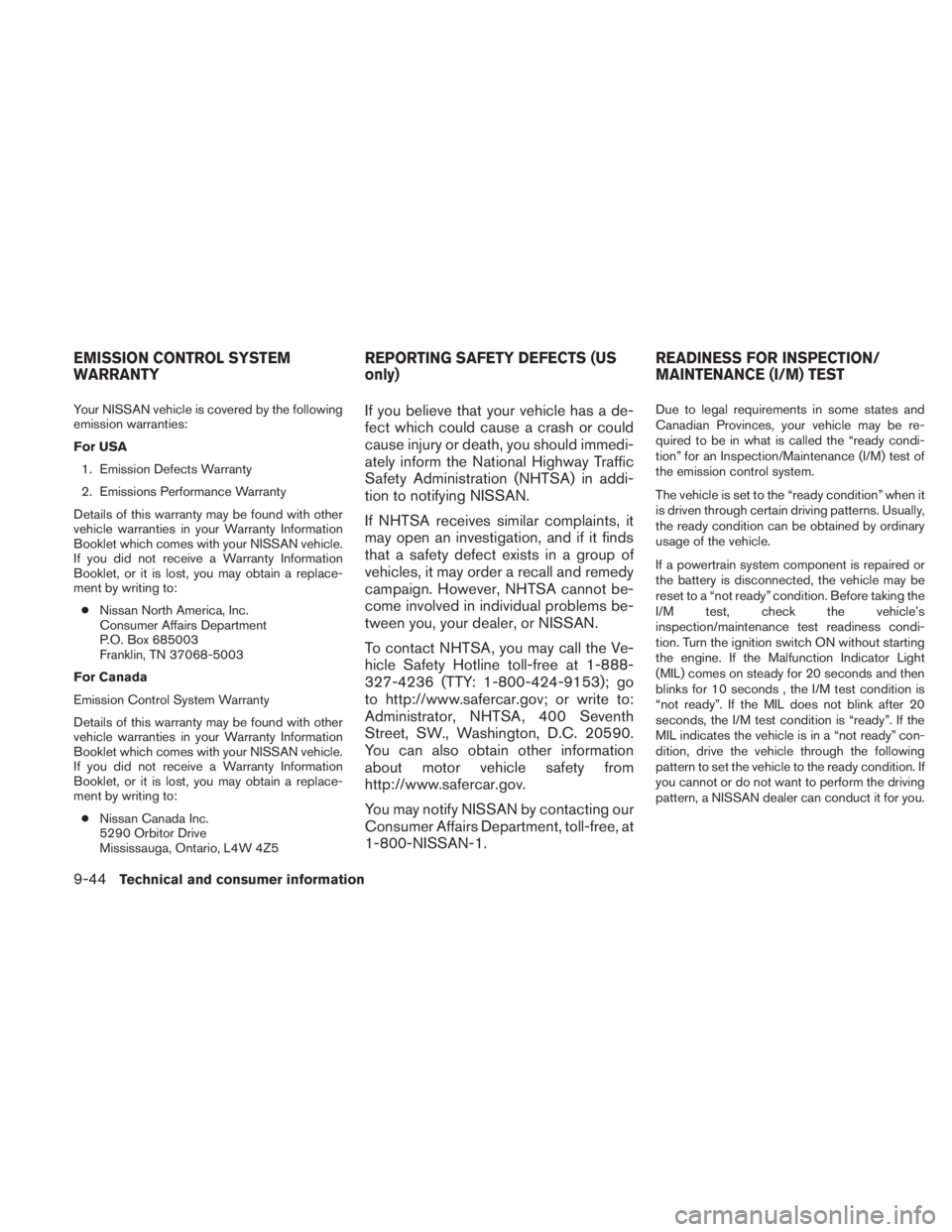

Your NISSAN vehicle is covered by the following
emission warranties:
For USA1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to: ● Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to: ● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1.Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Turn the ignition switch ON without starting
the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds , the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”. If the
MIL indicates the vehicle is in a “not ready” con-
dition, drive the vehicle through the following
pattern to set the vehicle to the ready condition. If
you cannot or do not want to perform the driving
pattern, a NISSAN dealer can conduct it for you.
EMISSION CONTROL SYSTEM
WARRANTY REPORTING SAFETY DEFECTS (US
only)READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
9-44Technical and consumer information

LightAir bag warning light .........1-62, 2-17
Brake light (See stop light) .........8-27
Bulb check/instrument panel ........2-13
Bulb replacement ..............8-27
Charge warning light ............2-15
Fog light switch ...............2-33
Headlight and turn signal switch ......2-29
Headlight control switch ..........2-29
Headlights ..................8-25
Interior light ..................2-53
Light bulbs ..................8-25
Low tire pressure warning light .......2-16
Low washer fluid warning light .......2-24
Passenger air bag and status light .....1-56
Personal lights ................2-54
Security indicator light ............2-19
Warning/indicator lights and audible
reminders ...................2-13
Lights Map lights ..................2-55
Lock Child safety rear door lock ..........3-7
Door locks ...................3-3
Glove box lock ................2-42
Power door locks ...............3-4
Low fuel warning light .......2-16, 2-17, 2-24
Low tire pressure warning light .........2-16
Low washer fluid warning light .........2-24
Luggage (See vehicle loading information) . .9-13
M
Maintenance Changing the maintenance interval .....4-5Displaying the maintenance notice
reminder
....................4-6
General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Resetting the maintenance interval ......4-6
Seat

belt maintenance ............1-24
Setting .....................4-5
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-18
Manual front seat adjustment ........1-2, 1-3
Manual windows .................2-50
Map lights ....................2-55
Map pocket ....................2-43
Meters and gauges ................2-4
Instrument brightness control ........2-32
Mirror Automatic anti-glare inside mirror ......3-17
Inside mirror .................3-16
Outside mirrors ...............3-18
Vanity mirror .................3-16
Moonroof .....................2-51
N
NISSAN mobile entertainment system
(MES) .......................4-56
NISSAN vehicle immobilizer
system ................2-26, 3-2, 5-11
O
Octane rating (See fuel octane rating) ......9-4Odometer
.....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil ..............8-9
Changing engine oil filter ..........8-10
Checking engine oil level ...........8-8
Engine oil ...................8-8
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-7
Outside mirrors .................3-18
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-46
Owner’s manual/service manual order
information ....................9-46
P
Parking Parking brake operation ...........5-19
Parking/parking
on hills...........5-30
Pedal position adjustment ............3-14
Personal lights ..................2-54
Phone, Bluetooth hands-free system.....4-67
Power Front seat adjustment .............1-4
Power door locks ...............3-4
Power outlet .................2-38
Power rear windows .............2-49
Power steering fluid .............8-11
Power steering system ...........5-31
Power windows ...............2-48
10-4

Rear power windows............2-49
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-3
Precautions on child
restraints .........1-27, 1-33, 1-37, 1-44
Precautions on seat belt usage .......1-16
Precautions on supplemental restraint
system ....................1-47
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-60
Programmable features ..............4-7
Push starting ...................6-10
R
Radio Car phone or CB radio ...........4-66
Compact Disc (CD) changer ........4-50
FM/AM radio with compact disc (CD)
player .....................4-37
FM/AM/SAT radio with compact disc (CD)
changer ....................4-46
Rear audio controls .............4-55
Steering wheel audio control switch . . . .4-54
Readiness for inspection maintenance (I/M)
test ........................9-44
Rear audio controls ...............4-55
Rear power windows ..............2-49
Rear sliding window ...............2-50
Rear sonar system ................5-35
Rear sonar system off switch ..........2-36
Rear window and outside mirror defroster
switch .......................2-28 Recorders
Event data ..................9-45
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system) ..............4-58
Remote keyless entry system ...........3-8
Reporting safety defects (US only) .......9-44
Resetting the fuel economy ............4-5
Resetting trip 1 and trip 2 ............4-4
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-27, 1-33, 1-37, 1-44
Reporting safety defects (US only) .....9-44
Screen
(See NISSAN mobile entertainment
system) ......................4-58
Seat adjustment Front manual seat adjustment ......1-2, 1-3
Front power seat adjustment .........1-4
Seat belt Child safety ..................1-25
Infants and small children ..........1-26
Injured Person ................1-19
Larger children ................1-26
Precautions on seat belt usage .......1-16
Pregnant women ...............1-19
Pre-tensioner seat belt system .......1-60
Seat belt extenders .............1-24
Seat belt maintenance ............1-24
Seat belts ...................1-16
Shoulder belt height adjustment ......1-22
Three-point type with retractor .......1-19Two-point type without retractor
(rear center lap belt)
.............1-22
Seat belt warning light ..............2-17
Seatback pockets ................2-43
Seats Adjustment ...................1-2
Automatic drive positioner ..........3-24
Front seats ...................1-2
Heated seats .................2-34
Manual front seat adjustment ......1-2, 1-3
Security indicator light ..............2-19
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-26, 3-2, 5-11
Self-adjusting brakes ..............8-20
Service manual order form ...........9-46
Servicing air conditioner .............4-30
Setting button ...................4-7
Shift lock release .................5-18
Shifting Automatic transmission ........5-14, 5-15
Shoulder belt height adjustment ........1-22
Side
air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-59
Sonar Rear system .................5-35
Spark plug replacement .............8-16
Speedometer ...................2-5
SRS warning label ................1-61
Starting Before starting the engine ..........5-11
Jump starting .................6-8
Precautions when starting and driving . . . .5-2
Push starting .................6-10
Starting the engine .............5-11
Startup screen ...................4-3
10-5
