2011 NISSAN LEAF tow

TOWING RECOMMENDED BY
NISSAN
NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or that the vehicle be placed on a flatbed
truck as illustrated.

.Never tow a vehicle using the vehi-
cle tie down hook or recovery hook.
. Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.
Rocking a stuck vehicle
If the vehicle is stuck in sand, snow, mud, etc.,
try to free it by following the procedure below.
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel left and right to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between the R
(Reverse) and D (Drive) positions.
.Apply the accelerator as little as possible
to maintain the rocking motion.
.Release the accelerator pedal before
shifting between R and D.
.Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.

6 In case of emergency
Roadside assistance program .............................................. 6-2
Emergency EV (Electric Vehicle) shut off .......................... 6-2 Flat tire ........................................................................................ 6-2
Tire Pressure Monitoring System (TPMS) ................... 6-2
Repairing flat tire ................................................................ 6-3
Jump starting ............................................................................. 6-9
If the Li-ion battery becomes completely discharged ... 6-11 Push starting .......................................................................... 6-12
Tools ........................................................................................ 6-12
Towing your vehicle ............................................................. 6-13
Towing recommended by NISSAN .......................... 6-14
Vehicle recovery (freeing stuck vehicle) ................. 6-15
Parking brake mechanical release ................................... 6-16

If the tire pressure does not increase to26
psi (180 kPa) within 10 minutes, the tire
may be seriously damaged and the tire
cannot be repaired with this tire repair
kit. Contact a NISSAN certified LEAF
dealer.
7. When the tire pressure is at the specified amount, turn the air compressor off. If the
tire cannot be inflated to the specified
amount, the air compressor can be turned
off at the minimum of 26 psi (180 kPa) .
Remove the power plug from the power
outlet and quickly remove the hose from the
tire valve. Attach the protective cap and
valve cap. Properly stow the emergency tire
puncture repair kit in the cargo area.

9 Technical and consumer information
Capacities and recommended lubricants .......................... 9-2Air conditioning system refrigerant and
lubricant recommendations .............................................. 9-3
Specifications ............................................................................ 9-4 Charging system ................................................................ 9-4
Motor ..................................................................................... 9-5
Wheels and tires ................................................................ 9-5
Dimensions and weights .................................................. 9-5
When traveling or registering your vehicle in
another country ......................................................................... 9-6
Vehicle identification ................................................................ 9-6 Vehicle Identification Number (VIN) plate .................... 9-6
Vehicle identification number (chassis number) ........ 9-6
Traction motor serial number .......................................... 9-7
F.M.V.S.S./C.M.V.S.S certification label ....................... 9-7
Emission control information label ................................. 9-7
Tire and Loading Information label ................................ 9-8
Air conditioner specification label .................................. 9-8 Installing front license plate .................................................. 9-9
Vehicle loading information ................................................ 9-10 Terms ................................................................................ 9-10
Vehicle load capacity ................................................... 9-11
Securing the load ......................................................... 9-12
Loading tips .................................................................... 9-13
Measurement of weights ............................................. 9-13
Towing a trailer ...................................................................... 9-13
Flat towing .............................................................................. 9-14
Uniform tire quality grading ................................................ 9-14
Treadwear ....................................................................... 9-14
Traction AA, A, B and C ............................................. 9-14
Temperature A, B and C ............................................. 9-14
Reporting safety defects .................................................... 9-15
Telematics overview ............................................................. 9-16
Event Data Recorder (EDR) .............................................. 9-18
Owner’s Manual/Service Manual order information .... 9-19

Checking coolant level .......................................... 8-8
Cooling system.............................................................. 8-7
Corrosion protection .................................................... 7-7
Cruise control............................................................... 5-17
Cup holders.................................................................. 2-49
D
Defroster switch, Rear window and outside
mirror defroster switch............................................... 2-40
Dimensions and weights............................................. 9-5
Dot matrix liquid crystal display............................... 2-22
Driving Cold weather driving........................................... 5-26
Driving vehicle....................................................... 5-11
Precautions when starting and driving .............. 5-2
Driving range.................................................................. 2-8
Driving vehicle.............................................................. 5-11
E
ECO indicator.............................................................. 2-10
Efficient use of your vehicle ................................. EV-22
Electric parking brake break-in................................ 5-23
Electric parking brake indicator light...................... 2-18
Electric power steering system ............................... 5-21
Emergency charge.................................................. CH-11
Emergency EV (Electric Vehicle) shut off...... 5-9, 6-2
Emergency shutoff system........................................ EV-9
Emission control information label............................ 9-7
EV Characteristics ..................................................... EV-9
EV system ..................................................................... EV-2
EV unique information............................................. EV-24
Event Data Recorder (EDR)..................................... 9-18
EVSE (Electric Vehicle Supply Equipment) ..... CH-11
EVSE (Electric Vehicle Supply
Equipment) cleaning..................................................... 7-6
F
F.M.V.S.S./C.M.V.S.S. certification label ................. 9-7
Flashers (See hazard warning flasher switch)..... 2-45
Flat tire............................................................................. 6-2
Flat towing .................................................................... 9-14
Floor mat cleaning ........................................................ 7-5
Fluid Brake fluid................................................................. 8-9
Capacities and recommended lubricants ......... 9-2
coolant ....................................................................... 8-7
Reduction gear fluid............................................... 8-9
Window washer fluid .......................................... 8-10
Fog light switch........................................................... 2-44
Front manual seat adjustment.................................... 1-3
Front passenger air bag and status light.............. 1-44
Front seat, Front seat adjustment............................. 1-3
Fuses.............................................................................. 8-16
Fusible links.................................................................. 8-17
G
Garage door open, HomeLink®Universal
Transceiver............................................................. 2-58
Gauge .............................................................................. 2-5 Driving range............................................................ 2-8
ECO indicator....................................................... 2-10
Li-ion battery available charge gauge................ 2-9
Li-ion battery capacity level gauge.................. 2-10
Li-ion battery temperature gauge........................ 2-7
Odometer.................................................................. 2-6
Power meter ............................................................. 2-7
Speedometer............................................................ 2-6
General maintenance ................................................... 8-2
Glove box...................................................................... 2-51
H
Hazard warning flasher switch................................. 2-45
Head restraints .............................................................. 1-4
Headlights Bulb replacement................................................. 8-21
Headlight Aiming Control ................................. 2-44
Headlight switch................................................... 2-41
Heated seats................................................................ 2-47
Heated steering wheel............................................... 2-45
High voltage precautions .......................................... EV-7
HomeLink
®universal transceiver............................. 2-58
Hood release................................................................ 3-16
Horn................................................................................ 2-46
How to normal charge.............................................. CH-9
How to quick charge.............................................. CH-15
How to trickle charge ............................................ CH-11
I
If the Li-ion battery becomes
completely discharged............................................... 6-11
Immediate charge.................................................... CH-24
Immobilizer system...................................................... 2-36
In-cabin microfilter ...................................................... 4-13
indicator Electric parking brake indicator light............... 2-18
Indicator lights.............................................................. 2-18
Indicators for operation.............................................. 2-23
Inside rearview mirror................................................. 3-20
Instrument brightness control .................................. 2-41
Instrument panel............................................................ 2-4
Intelligent Key system ......................................... 3-6, 5-7 Key operating range ............................................... 3-8
Key operation ........................................................ 3-10
Remote keyless operation.................................. 3-13

Parking brake mechanically release ....................... 6-16
PowerElectric power steering system ........................ 5-21
Power door lock...................................................... 3-4
Power windows .................................................... 2-54
Power economy........................................................... 5-19
Power meter ................................................................... 2-7
Power outlet ................................................................. 2-49
Power switch......................................................... 5-7, 5-8
Precautions Braking precautions............................................. 5-21
Charging................................................................ CH-2
Child restraints...................................................... 1-19
Cruise control........................................................ 5-17
High voltage precautions ................................... EV-7
Maintenance ............................................................. 8-4
Road accident precautions................................ EV-8
Seat belt usage .................................................... 1-10
Supplemental restraint system.......................... 1-36
When starting and driving .................................... 5-2
Push starting ................................................................ 6-12
Q
Quick charge............................................................ CH-15
R
Rapid air pressure loss................................................ 5-5
Rear center seat belt ................................................. 1-16
Rear door lock, Child safety rear door lock........... 3-6
Rear hatch..................................................................... 3-17
Rear seats....................................................................... 1-4
Rear window and outside mirror
defroster switch........................................................... 2-40
Rear window wiper and washer switch ............... 2-39
Reduction gear fluid..................................................... 8-9 Remote charge ........................................................ CH-24
Remote climate control.............................................. 4-11
Remote keyless entry function, For Intelligent
Key system.................................................................... 3-13
Repairing flat tire........................................................... 6-3
Repairing tire.................................................................. 6-5
Reporting safety defects........................................... 9-15
Road accident precautions....................................... EV-8
Roadside assistance program ................................... 6-2
Rollover............................................................................ 5-5
S
Safety Child seat belts .................................................... 1-17
Reporting safety defects.................................... 9-15
Scene guide At home after driving......................................... EV-21
Before driving your vehicle .............................. EV-13
Charging the Li-ion battery.............................. EV-10
Driving the vehicle.............................................. EV-17

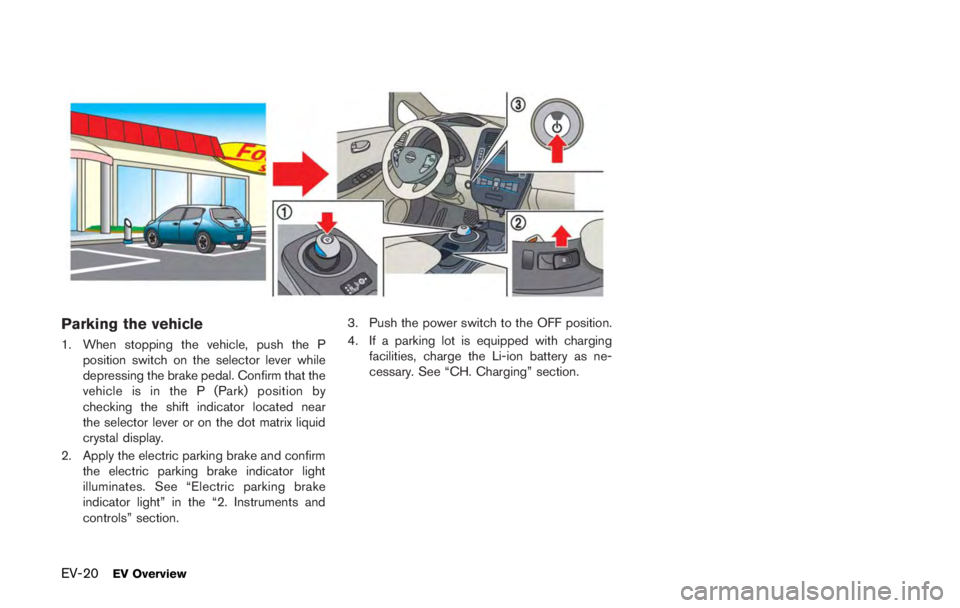

Parking the vehicle............................................. EV-20
Starting your vehicle.......................................... EV-16
Seat adjustment Front manual seat adjustment.............................. 1-3
Front seats................................................................ 1-3
Seat belt(s) Child safety............................................................ 1-17
Infants...................................................................... 1-17
Injured persons..................................................... 1-12
Larger children...................................................... 1-18
Precautions on seat belt usage........................ 1-10
Pregnant women .................................................. 1-12
Rear center seat belt .......................................... 1-16
Seat belt cleaning................................................... 7-6
Seat belt extenders.............................................. 1-16
Seat belt hooks .................................................... 1-15 Seat belt maintenance........................................ 1-16
Seat belt warning light........................................ 2-18
Seat belts............................................................... 1-10
Seat belts with pretensioners........................... 1-49
Shoulder belt height adjustment...................... 1-15
Small children........................................................ 1-18
Three-point type................................................... 1-12
Seat(s) , Seats................................................................ 1-2 Heated seats......................................................... 2-47
Security system (NISSAN Vehicle Immobilizer
System) , EV system start.......................................... 2-36
Servicing climate control........................................... 4-14
Shifting Electric shift control system .............................. 5-11
Shoulder belt height adjustment, For
front seats..................................................................... 1-15
Soft bottle holders...................................................... 2-50
Solar cell module .......................................................... 7-3
Speedometer.................................................................. 2-6
Starting .......................................................................... 5-11 Before starting system........................................ 5-10
Jump starting............................................................ 6-9
Precautions when starting and driving .............. 5-2
Push starting ......................................................... 6-12
Status light, Front passenger air bag .................... 1-44
Steering Electric power steering system ........................ 5-21
Heated steering wheel........................................ 2-45
Tilting steering column........................................ 3-19
Stopping the vehicle .................................................... 6-4
Storage .......................................................................... 2-49
Stowing golf bags....................................................... 2-53
Sun visors ..................................................................... 3-20
Supplemental air bag warning labels..................... 1-50
Supplemental air bag warning light............ 1-50, 2-18
Supplemental restraint system................................. 1-36

Precautions on supplemental
restraint system..................................................... 1-36
Switch Approaching Vehicle Sound for Pedestrians
(VSP) OFF switch................................................ 2-62
Autolight switch.................................................... 2-42
Fog light switch.................................................... 2-44
Hazard warning flasher switch.......................... 2-45
Headlight Aiming Control ................................. 2-44
Headlight switch................................................... 2-41
Power door lock switch......................................... 3-5
Rear window and outside mirror
defroster switch.................................................... 2-40
Turn signal switch ................................................ 2-44
Vehicle dynamic control (VDC) off switch..... 2-48
T
Telematics overview.................................................... 9-16
Temperature Li-ion battery temperature gauge........................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
traction motor start ..................................................... 2-36
Tilt steering column .................................................... 3-19
Tire Low tire pressure warning light........................ 2-16
Tires Flat tire....................................................................... 6-2
Low tire pressure warning system...................... 5-2
Tire and Loading information label ......... 8-27, 9-8
Tire chains.............................................................. 8-31
Tire dressing............................................................. 7-4
Tire pressure ......................................................... 8-28
Tire pressure monitoring
system (TPMS) ............................................... 5-2, 6-2
Tire rotation............................................................ 8-32
Types of tires......................................................... 8-30 Uniform tire quality grading ............................... 9-14
Wheel/tire size......................................................... 9-5
Wheels and tires.................................................. 8-25
Tools............................................................................... 6-12
To p Tether strap child restraints............................... 1-22
Towing Flat towing ............................................................. 9-14
Tow truck towing.................................................. 6-13
Towing a trailer ..................................................... 9-13
TPMS, Tire pressure monitoring system................. 5-2
TPMS, Tire pressure warning system...................... 6-2
Traction motor Traction motor serial number ............................... 9-7
Trailer towing................................................................ 9-13
Transceiver, HomeLink
®Universal
Transceiver............................................................. 2-58
Transmitter, With Intelligent Key system
(See Intelligent Key system)..................................... 3-13
Trickle charge........................................................... CH-11
Trip computer............................................................... 2-27
Turn signal switch ....................................................... 2-44
Type of charge and how to charge the
Li-ion battery................................................................ CH-5
U
Underbody cleaning ..................................................... 7-3
Uniform tire quality grading ...................................... 9-14
Unplugged status.................................................... CH-24
V
Vanity mirror.................................................................. 3-22
vehicle Dimensions and weights....................................... 9-5
Identification number (VIN)................................... 9-6 Loading information ............................................. 9-10
Recovery (freeing stuck vehicle) ...................... 6-15
Security system .................................................... 2-35
Vehicle dynamic control (VDC) off switch..... 2-48
Vehicle dynamic control (VDC) system.......... 5-24
Vehicle Dynamic Control (VDC)
warning light.......................................................... 2-18
Vehicle Dynamic Control (VDC) warning light .... 2-18
Vehicle security system ............................................. 2-35
Ventilators........................................................................ 4-2
VSP OFF switch.......................................................... 2-62
W
Warning Hazard warning flasher switch.......................... 2-45
Indicators for operation....................................... 2-23
Tire pressure monitoring
system (TPMS) ............................................... 5-2, 6-2
Warning information displays............................ 2-31
Warning lights....................................................... 2-13
Warning/indicator lights and
audible reminders................................................. 2-12
Warning and indicator lights.................................... 0-10
Warning information displays................................... 2-31
Warning labels, Air bag warning labels................. 1-50
Warning light Air bag warning light................................ 1-50, 2-18
Anti-lock braking system (ABS)
warning light.......................................................... 2-14
BRAKE system warning light (yellow) ............ 2-14
BRAKE warning light (red) ................................ 2-14
Low tire pressure warning light........................ 2-16
Seat belt warning light........................................ 2-18
Vehicle Dynamic Control (VDC)
warning light.......................................................... 2-18
Index10-5
