2011 NISSAN LATIO sensor

MULTIPORT FUEL INJECTION SYSTEMEC-53
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Air fuel ratio (A/F) sensor 1 2. Three way catalyst (Manifold) 3. Heated oxygen sensor 2
4. Three way catalyst (Under floor) 5. Muffler
Vehicle front
1. Exhaust manifold 2. Air fuel ratio (A/F) sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness connector
Vehicle front
JMBIA2192ZZ
PBIB2943E
Revision: May 2010 2011 Versa

EC-54
< FUNCTION DIAGNOSIS >[HR16DE]
MULTIPORT FUEL INJECTION SYSTEM
Component Description
INFOID:0000000005929770
1. Cooling fan motor harness connec- tor 2. Crankshaft position sensor
3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
A/F sensor 1 EC-185, "
Description"
Accelerator pedal position sensorEC-402, "Description"
Camshaft position sensor (PHASE)EC-272, "Description"
Crankshaft position sensor (POS)EC-267, "Description"
Revision: May 2010 2011 Versa

MULTIPORT FUEL INJECTION SYSTEMEC-55
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Engine coolant temperature sensor
EC-178, "Description"
Fuel injectorEC-433, "Description"
Heated oxygen sensor 2EC-207, "Description"
Intake air temperature sensorEC-164, "Description"
Knock sensorEC-263, "Description"
Mass air flow sensorEC-150, "Description"
Throttle position sensorEC-174, "Description"
Component Reference
Revision: May 2010 2011 Versa

EC-56
< FUNCTION DIAGNOSIS >[HR16DE]
ELECTRIC IGNITION SYSTEM
ELECTRIC IGNITION SYSTEM
System DiagramINFOID:0000000005929771
System DescriptionINFOID:0000000005929772
INPUT/OUTPUT SIGNAL CHART
*1: This signal is sent to the ECM via the CAN communication line.
*2: ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
Ignition order: 1 - 3 - 4 - 2
The ignition timing is controlled by the ECM to maintain
the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor (PHASE) sig-
nal. Computing this information, ignition si gnals are transmitted to the power transistor.
During the following conditions, the ignition timing is re vised by the ECM according to the other data stored in
the ECM.
• At starting
• During warm-up
• At idle
• At low battery voltage
• During acceleration
JMBIA2194GB
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS) Engine speed*
2
Piston position
Ignition timing
controlIgnition coil (with power
transistor)
Camshaft position sensor (PHASE)
Mass air flow sensor
Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
2
Knock sensorEngine knocking
Park/neutral position (PNP) switch (M/T)
Transmission range switch (A/T) Gear position
ABS actuator and electric unit (control unit) Vehicle speed*
1Combination meter
Revision: May 2010 2011 Versa

ELECTRIC IGNITION SYSTEMEC-57
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is
used under dry conditions. The retard system does not
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

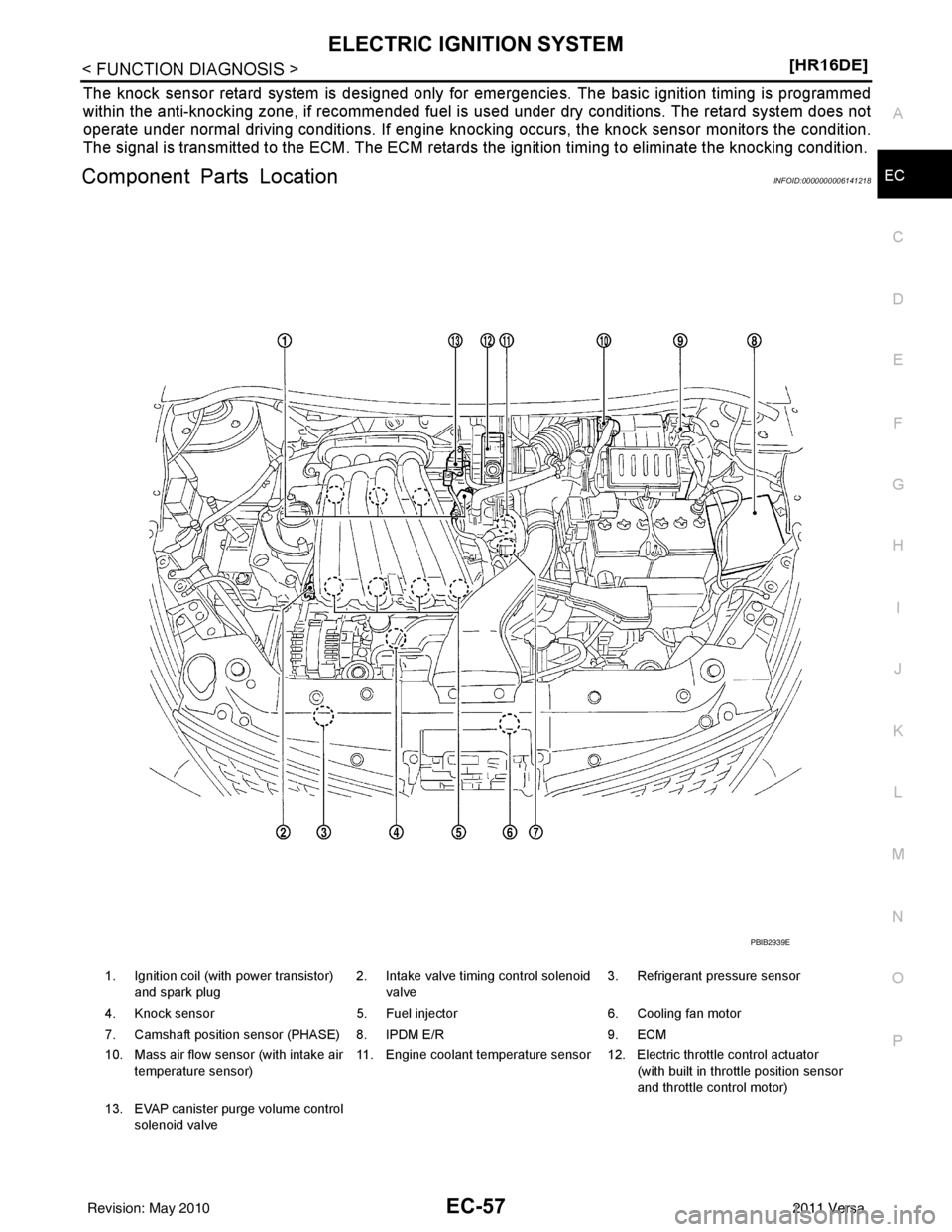

Component Parts LocationINFOID:0000000006141218
1. Ignition coil (with power transistor)
and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB2939E
Revision: May 2010 2011 Versa

EC-58
< FUNCTION DIAGNOSIS >[HR16DE]
ELECTRIC IGNITION SYSTEM

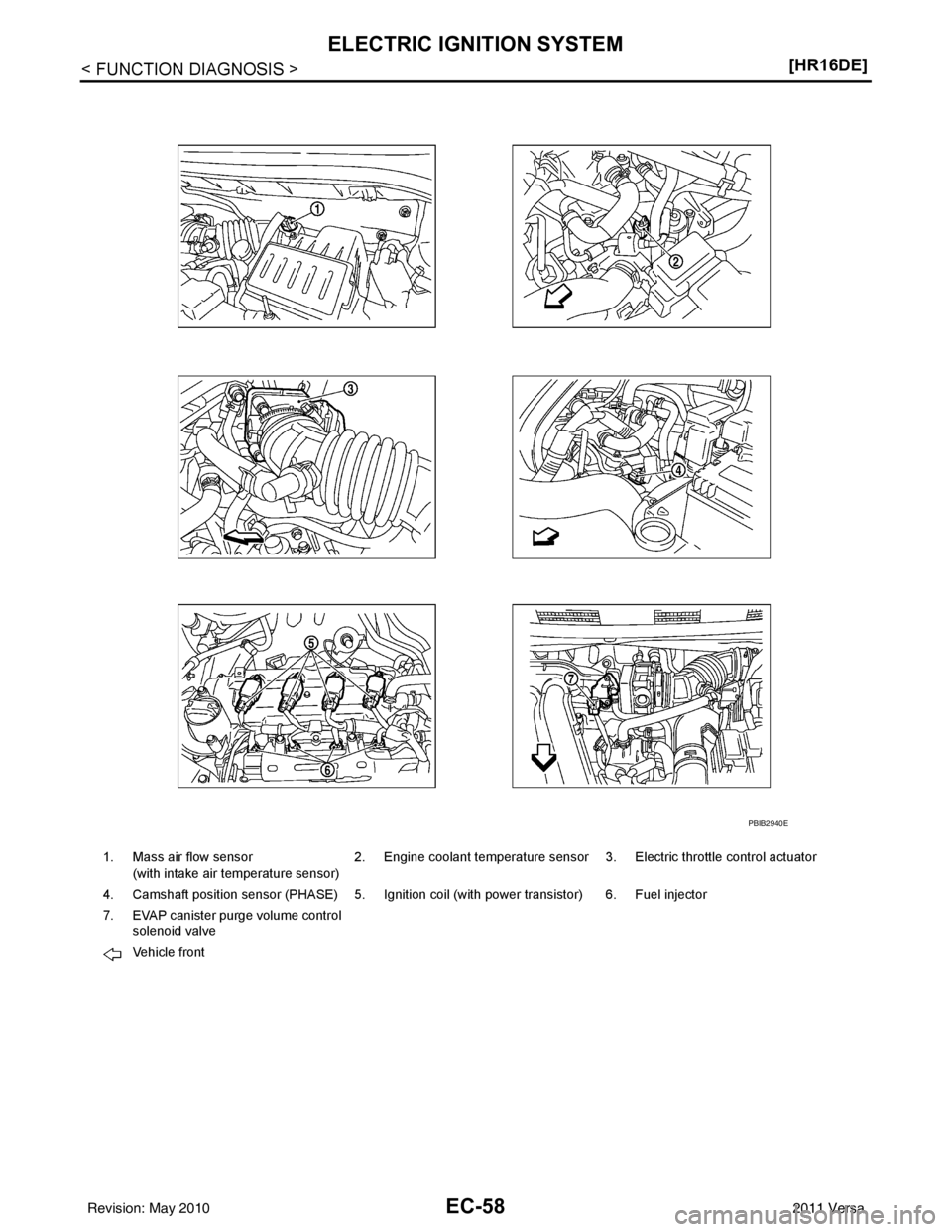

1. Mass air flow sensor
(with intake air temperature sensor) 2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control solenoid valve
Vehicle front
PBIB2940E
Revision: May 2010 2011 Versa

ELECTRIC IGNITION SYSTEMEC-59
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

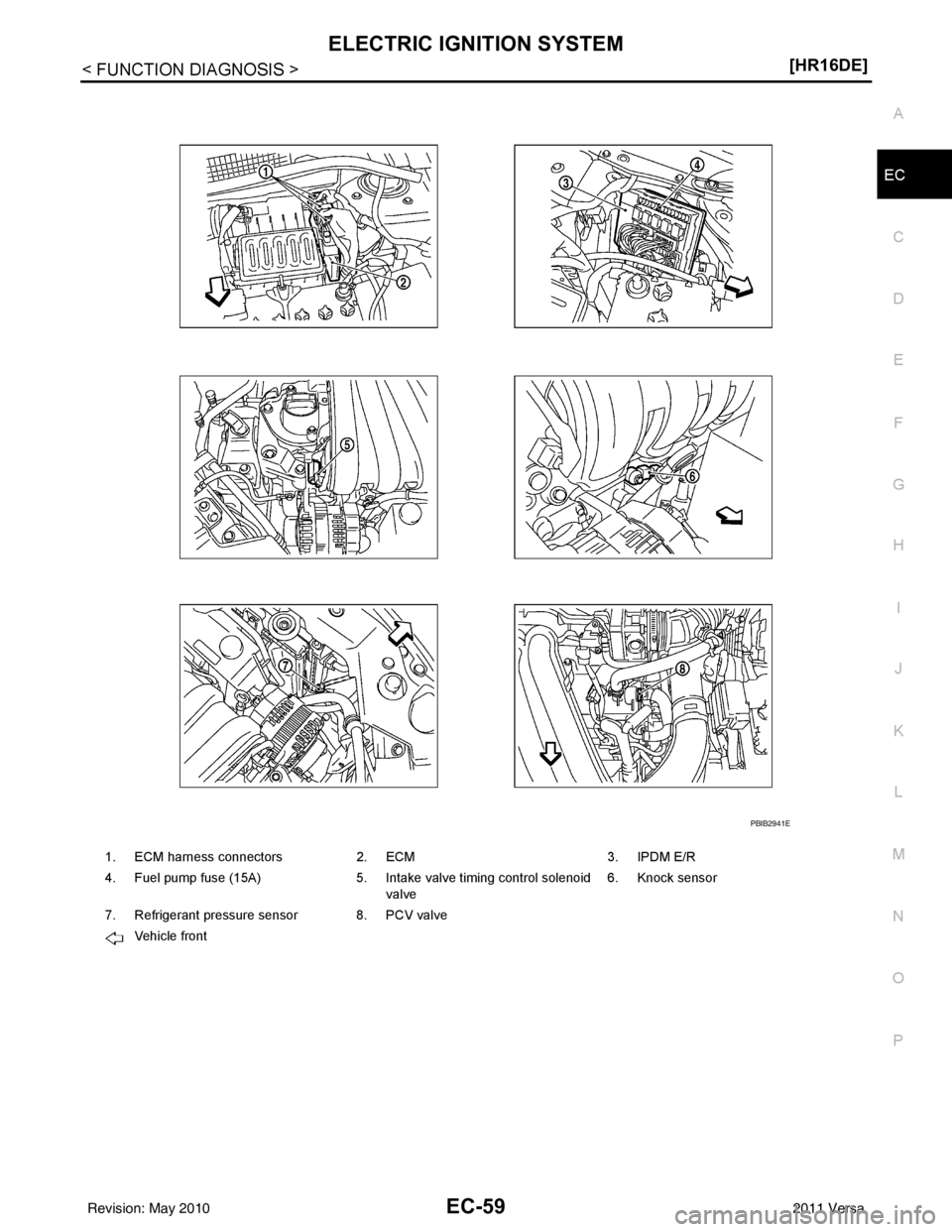

1. ECM harness connectors
2. ECM3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve 6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve Vehicle front
PBIB2941E
Revision: May 2010 2011 Versa

EC-60
< FUNCTION DIAGNOSIS >[HR16DE]
ELECTRIC IGNITION SYSTEM

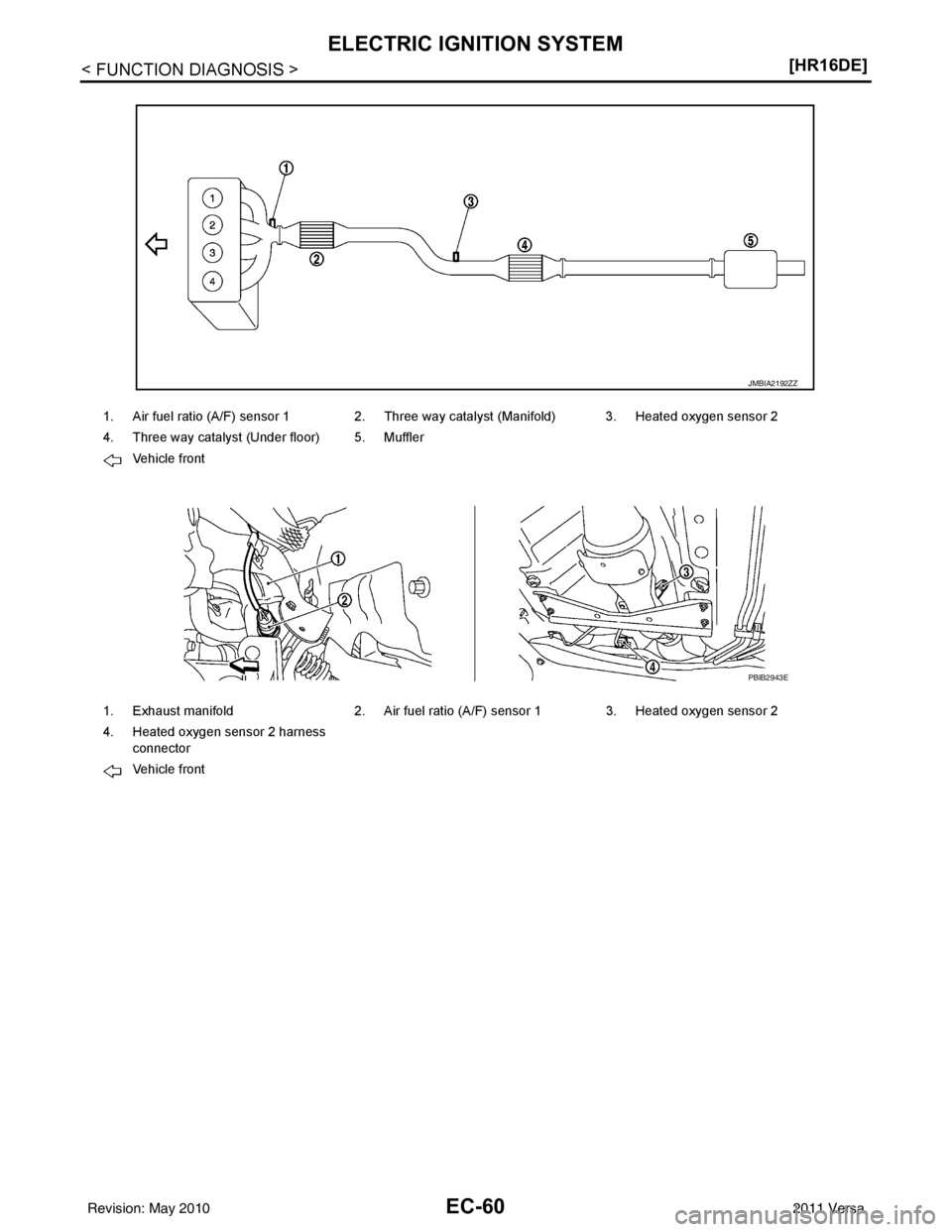

1. Air fuel ratio (A/F) sensor 1 2. Three way catalyst (Manifold) 3. Heated oxygen sensor 2
4. Three way catalyst (Under floor) 5. Muffler
Vehicle front
1. Exhaust manifold 2. Air fuel ratio (A/F) sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness connector
Vehicle front
JMBIA2192ZZ
PBIB2943E
