2011 NISSAN FRONTIER height adjustment

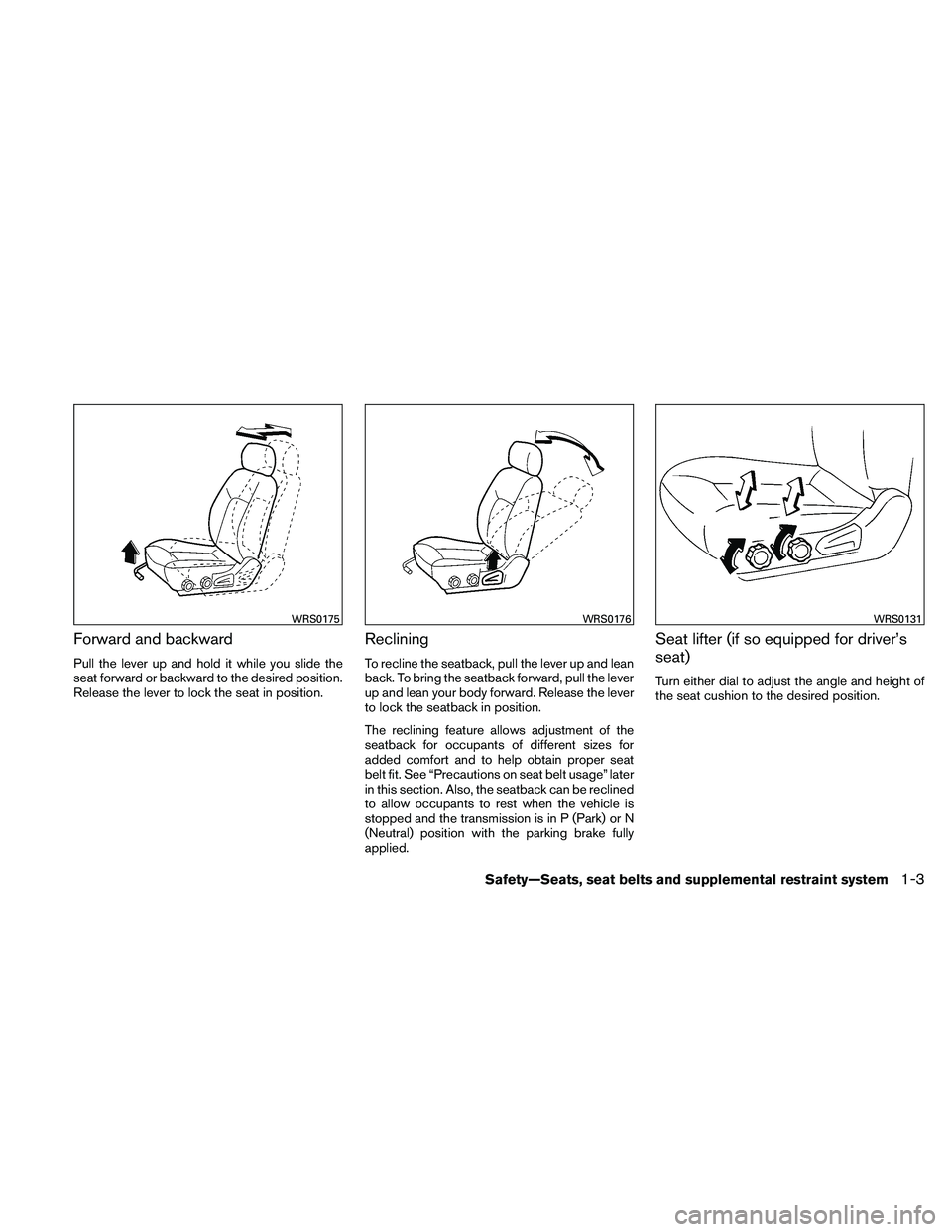

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park) or N
(Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
WRS0175WRS0176WRS0131
Safety—Seats, seat belts and supplemental restraint system1-3

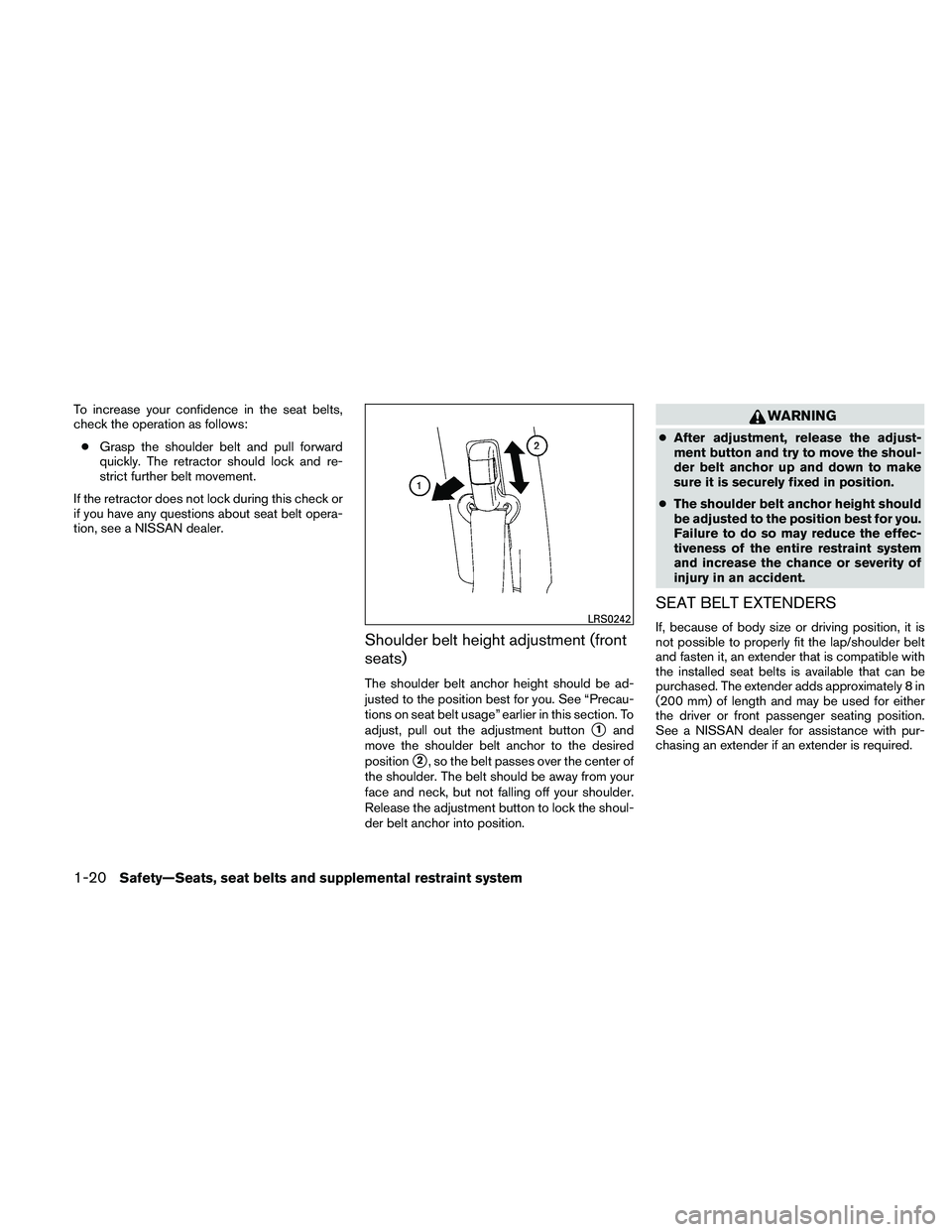

To increase your confidence in the seat belts,
check the operation as follows:● Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re-
strict further belt movement.
If the retractor does not lock during this check or
if you have any questions about seat belt opera-
tion, see a NISSAN dealer.
Shoulder belt height adjustment (front
seats)
The shoulder belt anchor height should be ad-
justed to the position best for you. See “Precau-
tions on seat belt usage” earlier in this section. To
adjust, pull out the adjustment button
1and
move the shoulder belt anchor to the desired
position
2, so the belt passes over the center of
the shoulder. The belt should be away from your
face and neck, but not falling off your shoulder.
Release the adjustment button to lock the shoul-
der belt anchor into position.
WARNING
● After adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.
● The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available that can be
purchased. The extender adds approximately 8 in
(200 mm) of length and may be used for either
the driver or front passenger seating position.
See a NISSAN dealer for assistance with pur-
chasing an extender if an extender is required.LRS0242
1-20Safety—Seats, seat belts and supplemental restraint system

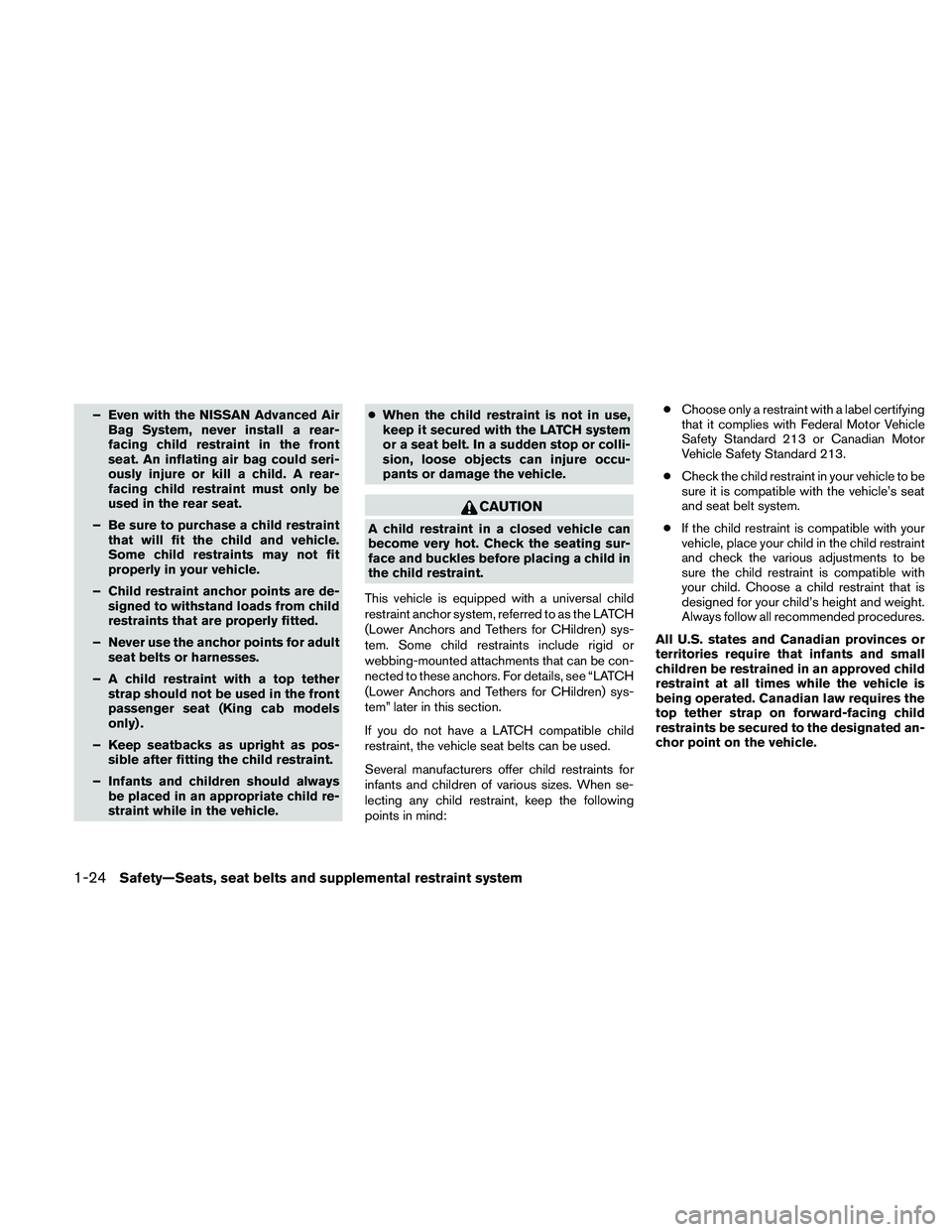

– Even with the NISSAN Advanced AirBag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could seri-
ously injure or kill a child. A rear-
facing child restraint must only be
used in the rear seat.
– Be sure to purchase a child restraint that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.
– Child restraint anchor points are de- signed to withstand loads from child
restraints that are properly fitted.
– Never use the anchor points for adult seat belts or harnesses.
– A child restraint with a top tether strap should not be used in the front
passenger seat (King cab models
only) .
– Keep seatbacks as upright as pos- sible after fitting the child restraint.
– Infants and children should always be placed in an appropriate child re-
straint while in the vehicle. ●
When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occu-
pants or damage the vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors. For details, see “LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind: ●
Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated an-
chor point on the vehicle.
1-24Safety—Seats, seat belts and supplemental restraint system

Event data..................9-38
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-6
Reporting safety defects (US only) .......9-37
Roof rack .....................2-45
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-23, 1-34, 1-46, 1-56
Reporting safety defects (US only) .....9-37
Seat Jump seat ...................1-5
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Seat belt Child safety ..................1-21
Infants and small children ..........1-22
Injured Person ................1-16
Larger children ................1-22
Precautions on seat belt usage .......1-13
Pregnant women ...............1-16
Pre-tensioner seat belt system .......1-74
Seat belt extenders .............1-20
Seat belt maintenance ............1-21
Seat belts ...................1-13
Shoulder belt height adjustment ......1-20
Three-point type with retractor .......1-16
Seat belt warning light ..............2-19
Seatback pockets ................2-43
Seats Adjustment ...................1-2 Front seats
...................1-2
Heated seats .................2-33
Manual front seat adjustment .........1-2
Security indicator light ..............2-22
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-25, 3-2, 5-11
Self-adjusting brakes ..............8-23
Service

manual order form ...........9-39
Servicing air conditioner .............4-17
Shift lock release .................5-15
Shifting Automatic transmission ...........5-14
Manual transmission .............5-17
Shoulder belt height adjustment ........1-20
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-73
Spark plug replacement .............8-19
Speedometer ...................2-4
SRS warning label ................1-75
Starting Before starting the engine ..........5-12
Jump starting .................6-9
Precautions when starting and driving . . . .5-2
Push starting .................6-11
Starting the engine .............5-12
Steering Power steering fluid .............8-14
Power steering system ...........5-32
Tilting steering wheel ............3-13
Steering wheel audio control switch ......4-35
Stop light .....................8-30
Storage ......................2-38
Storage tray ................2-38, 2-39
Sun visors ....................3-13
Sunglasses case .................2-41
Sunroof (see Moonroof) .............2-49 Supplemental air bag warning labels
......1-75
Supplemental air bag warning light . . .1-76, 2-19
Supplemental front impact air bag system . . .1-68
Supplemental restraint system Information and warning labels .......1-75
Precautions on supplemental restraint
system ....................1-61
Supplemental restraint system
(Supplemental air bag system) .........1-61
Switch Autolight switch ...............2-29
Automatic power window switch ......2-48
Clutch interlock (clutch start) switch . . . .2-36
Electronic locking rear differential (E-Lock)
system switch ................2-35
Fog light switch ...............2-31
Hazard

warning flasher switch .......2-32
Headlight and turn signal switch ......2-28
Headlight control switch ..........2-28
Hill descent control switch .........2-34
Ignition switch ................5-10
Overdrive switch ...............5-16
Power door lock switch ............3-4
Rear window defroster switch .......2-27
Turn signal switch ..............2-31
Vehicle dynamic control (VDC) off
switch .....................2-34
Windshield wiper and washer switch . . .2-26
T
Tachometer ....................2-6
Tailgate latch ............3-16, 3-18, 3-19
Temperature gauge Engine coolant temperature gauge .....2-6
10-5
