2011 NISSAN CUBE Owners Manual

Page 297 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (295,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
SDI2134
KEYFOBReplace the battery in the keyfob as follows:
1.

Page 298 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (296,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any inte

Page 299 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (297,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together
*2
until it
is securely closed.
5. Operate the buttons to c

Page 300 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (298,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SDI2497
1. Front turn signal light
2. Headlight (high-beam/low-beam)
3. Front side marker/park light
4. Map light (if so equipped)
5. Ceiling ligh

Page 301 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (299,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
HEADLIGHTSFog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the insid

Page 302 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (300,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
EXTERIOR AND INTERIOR LIGHTSItemWattage (W)Bulb No.
Headlight high/low beams (Halogen) 60/55HB2
Front turn signal light* 21PY21W
Front fog light (

Page 303 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (301,1)
Model "Z12-D" EDITED: 2010/ 9/ 27

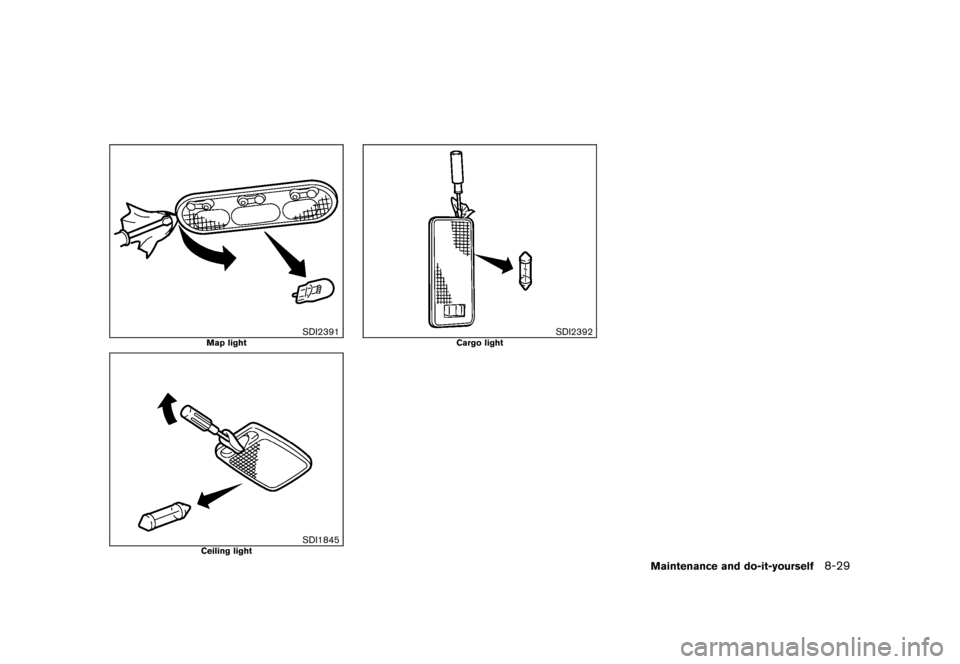

SDI2391
Map light
SDI1845
Ceiling light
SDI2392
Cargo light
Maintenance and do-it-yourself
8-29

Page 304 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (302,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
If you have a flat tire, see “FLAT TIRE” in
the “6. In case of emergency” section.TIRE PRESSURE
Tire Pressure Monitoring System (TPMS)This
