2011 NISSAN ARMADA PLATINUM Owners Manual

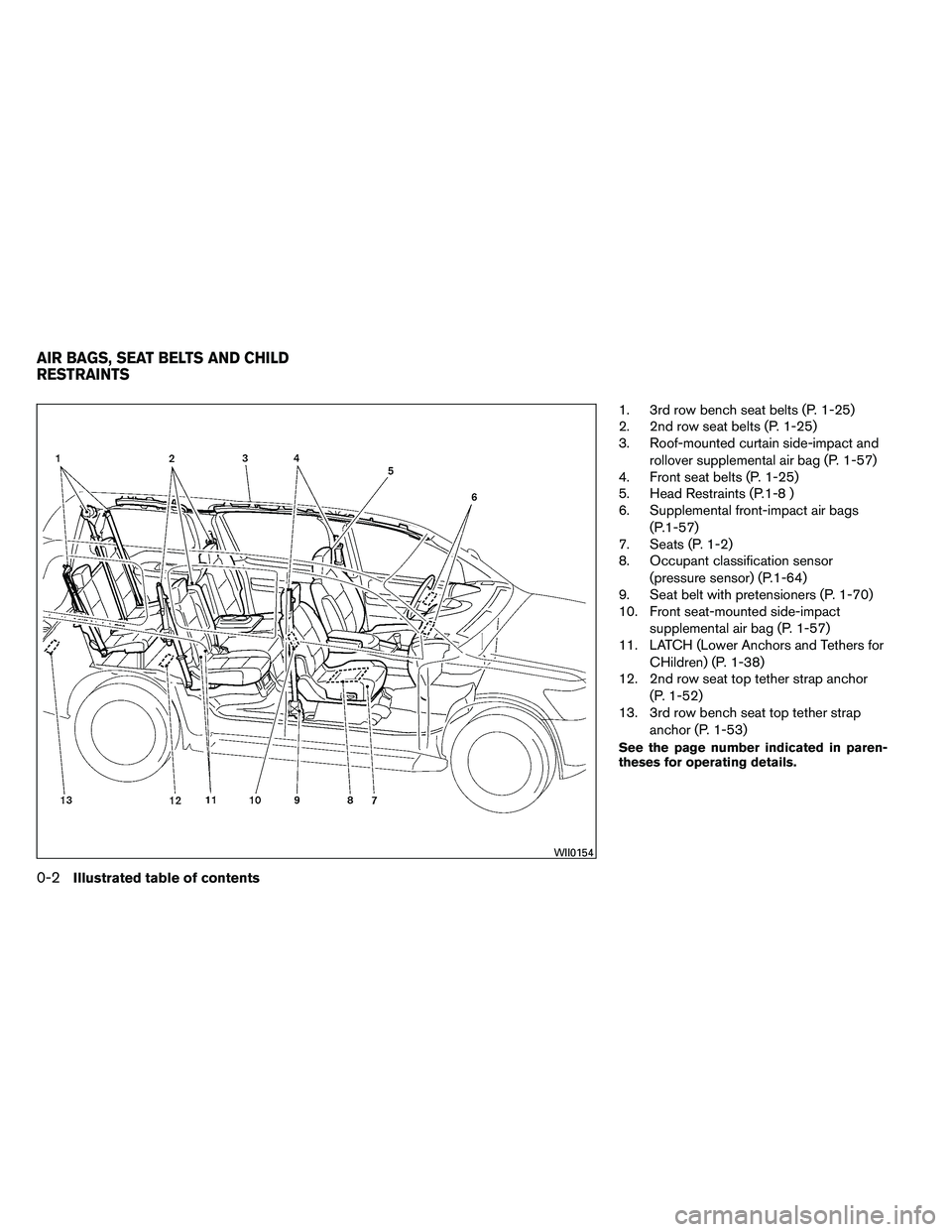

1. 3rd row bench seat belts (P. 1-25)
2. 2nd row seat belts (P. 1-25)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-57)
4. Front seat belts (P. 1-25)
5. Head Restraints (P.1-8 )
6. Supplemental front-impact air bags
(P.1-57)
7. Seats (P. 1-2)
8. Occupant classification sensor
(pressure sensor) (P.1-64)
9. Seat belt with pretensioners (P. 1-70)
10. Front seat-mounted side-impact
supplemental air bag (P. 1-57)
11. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-38)
12. 2nd row seat top tether strap anchor
(P. 1-52)
13. 3rd row bench seat top tether strap
anchor (P. 1-53)
See the page number indicated in paren-
theses for operating details.

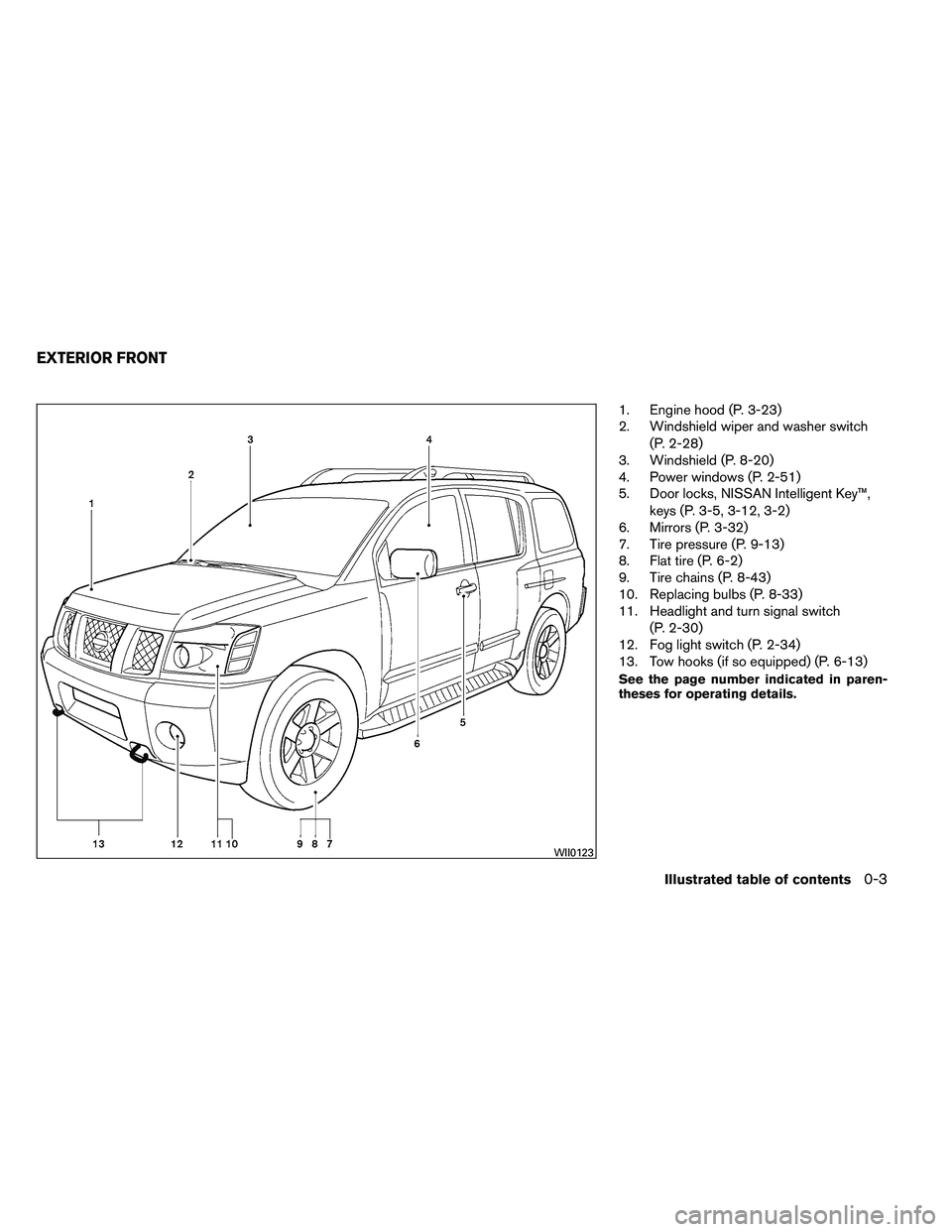

1. Engine hood (P. 3-23)
2. Windshield wiper and washer switch(P. 2-28)
3. Windshield (P. 8-20)
4. Power windows (P. 2-51)
5. Door locks, NISSAN Intelligent Key™,
keys (P. 3-5, 3-12, 3-2)
6. Mirrors (P. 3-32)
7. Tire pressure (P. 9-13)
8. Flat tire (P. 6-2)
9. Tire chains (P. 8-43)
10. Replacing bulbs (P. 8-33)
11. Headlight and turn signal switch
(P. 2-30)
12. Fog light switch (P. 2-34)
13. Tow hooks (if so equipped) (P. 6-13)
See the page number indicated in paren-
theses for operating details.

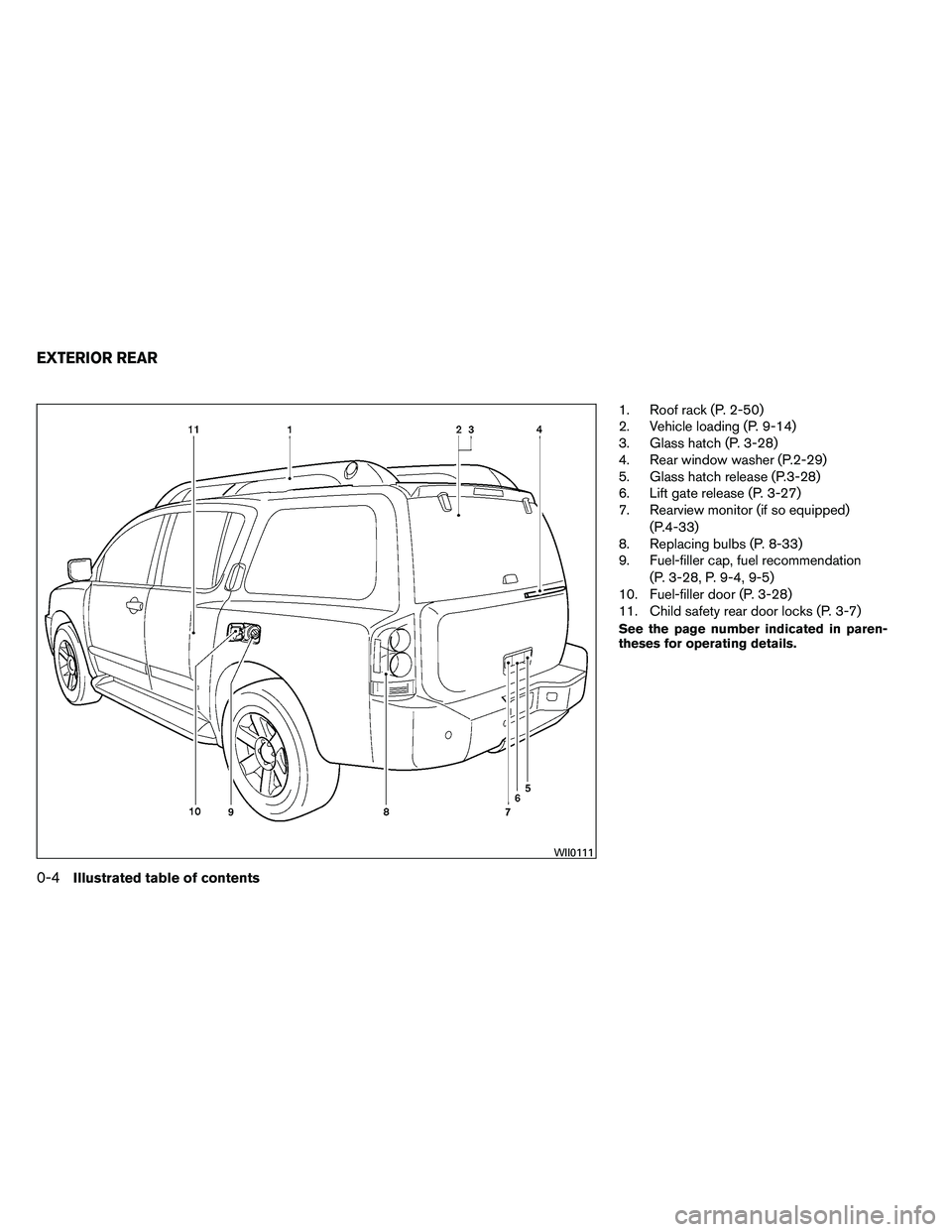

1. Roof rack (P. 2-50)
2. Vehicle loading (P. 9-14)
3. Glass hatch (P. 3-28)
4. Rear window washer (P.2-29)
5. Glass hatch release (P.3-28)
6. Lift gate release (P. 3-27)
7. Rearview monitor (if so equipped)(P.4-33)
8. Replacing bulbs (P. 8-33)
9. Fuel-filler cap, fuel recommendation
(P. 3-28, P. 9-4, 9-5)
10. Fuel-filler door (P. 3-28)
11. Child safety rear door locks (P. 3-7)
See the page number indicated in paren-
theses for operating details.

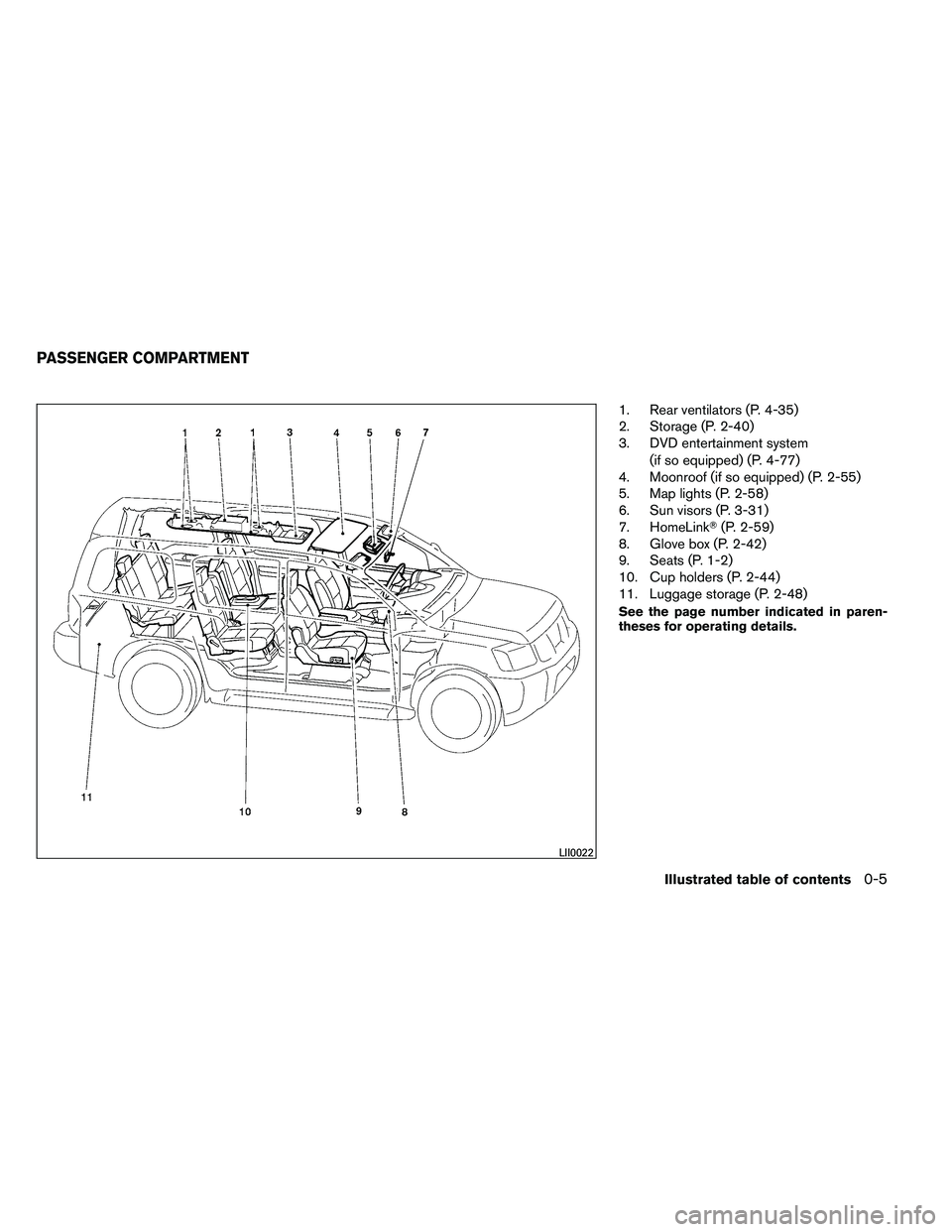

1. Rear ventilators (P. 4-35)
2. Storage (P. 2-40)
3. DVD entertainment system(if so equipped) (P. 4-77)
4. Moonroof (if so equipped) (P. 2-55)
5. Map lights (P. 2-58)
6. Sun visors (P. 3-31)
7. HomeLink (P. 2-59)
8. Glove box (P. 2-42)
9. Seats (P. 1-2)
10. Cup holders (P. 2-44)
11. Luggage storage (P. 2-48)
See the page number indicated in paren-
theses for operating details.

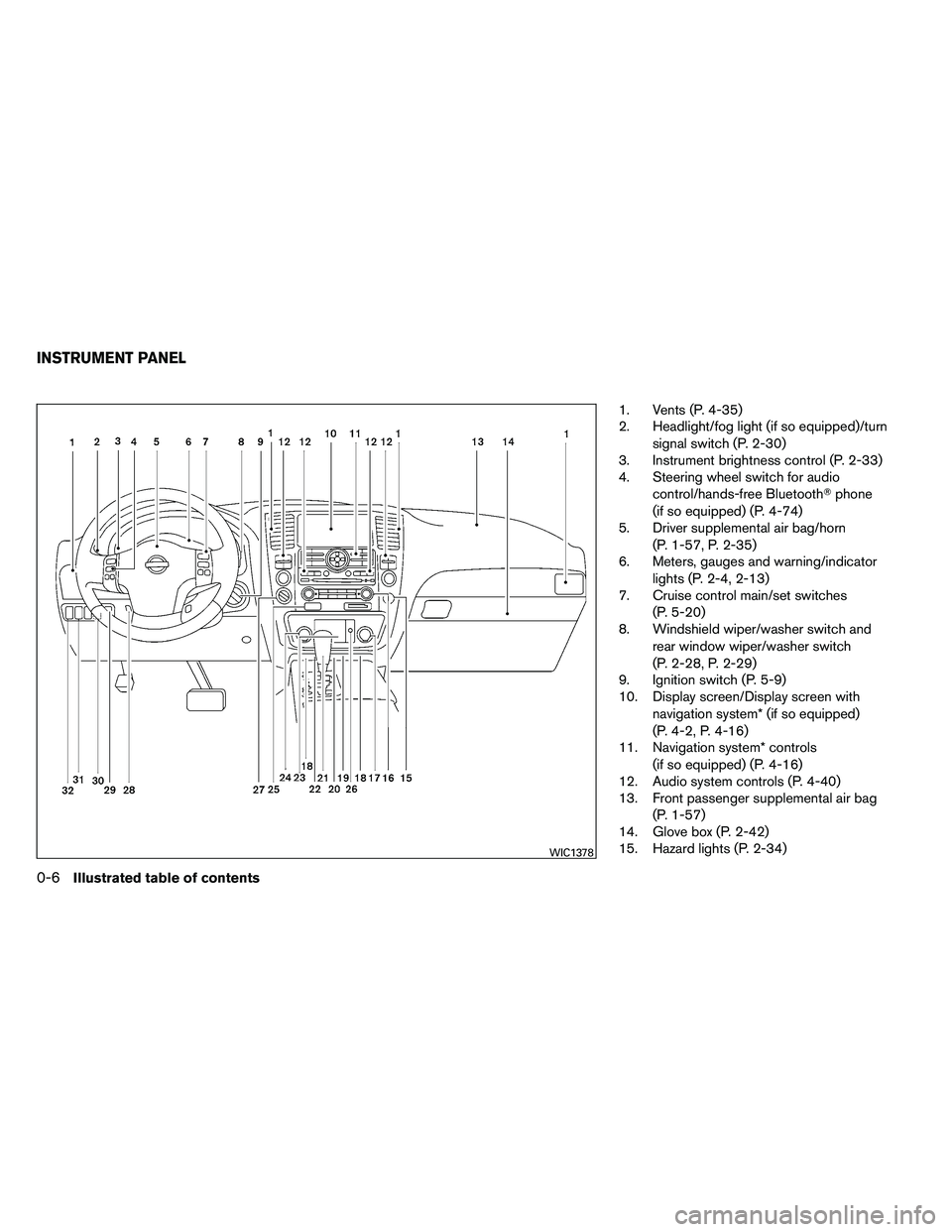

1. Vents (P. 4-35)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-30)
3. Instrument brightness control (P. 2-33)
4. Steering wheel switch for audio
control/hands-free Bluetooth phone
(if so equipped) (P. 4-74)
5. Driver supplemental air bag/horn
(P. 1-57, P. 2-35)
6. Meters, gauges and warning/indicator
lights (P. 2-4, 2-13)
7. Cruise control main/set switches
(P. 5-20)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-28, P. 2-29)
9. Ignition switch (P. 5-9)
10. Display screen/Display screen with
navigation system* (if so equipped)
(P. 4-2, P. 4-16)
11. Navigation system* controls
(if so equipped) (P. 4-16)
12. Audio system controls (P. 4-40)
13. Front passenger supplemental air bag
(P. 1-57)
14. Glove box (P. 2-42)
15. Hazard lights (P. 2-34)

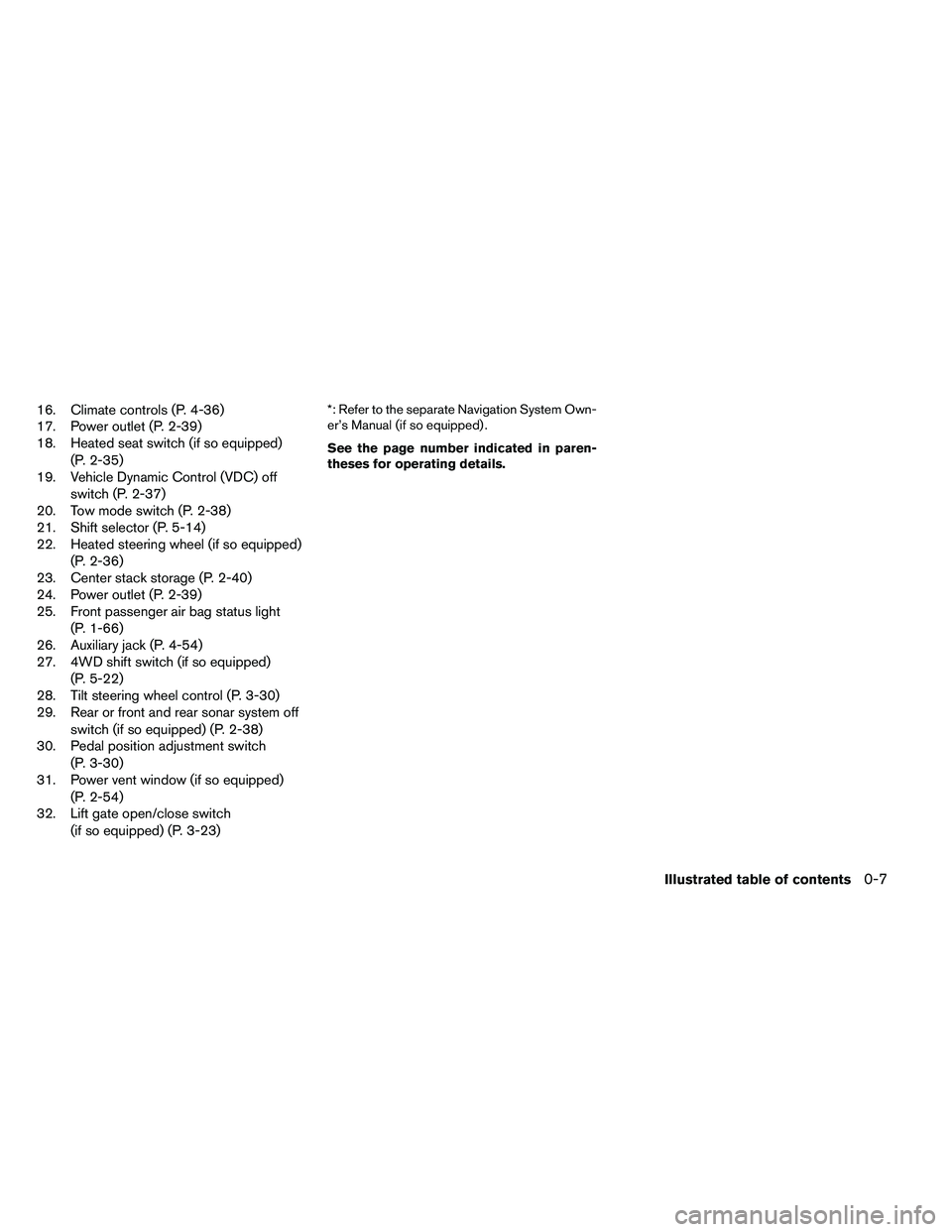

16. Climate controls (P. 4-36)
17. Power outlet (P. 2-39)
18. Heated seat switch (if so equipped)(P. 2-35)
19. Vehicle Dynamic Control (VDC) off
switch (P. 2-37)
20. Tow mode switch (P. 2-38)
21. Shift selector (P. 5-14)
22. Heated steering wheel (if so equipped)
(P. 2-36)
23. Center stack storage (P. 2-40)
24. Power outlet (P. 2-39)
25. Front passenger air bag status light
(P. 1-66)
26. Auxiliary jack (P. 4-54)
27. 4WD shift switch (if so equipped)
(P. 5-22)
28. Tilt steering wheel control (P. 3-30)
29. Rear or front and rear sonar system off
switch (if so equipped) (P. 2-38)
30. Pedal position adjustment switch
(P. 3-30)
31. Power vent window (if so equipped)
(P. 2-54)
32. Lift gate open/close switch
(if so equipped) (P. 3-23)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
