Cruise main switch indicator
This indicator illuminates when the cruise control
main switch is pushed. The indicator turns off
when the main switch is pushed again. When the
cruise main switch indicator illuminates, the
cruise control system is operational.
Cruise set switch indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the light
blinks while the engine is running, it may indicate
the cruise control system is not functioning prop-
erly. Have the system checked by a NISSAN
dealer.
NISSAN Intelligent Key™ battery dis-
charge indicator (NISSAN Intelligent Key™
model)
This indicator illuminates when the Intelligent Key
battery is running out of power.
If this indicator illuminates, replace the battery
with a new one. See “Battery replacement” in the
“Maintenance and do-it-yourself” section.
Transfer 4LO position indicator (

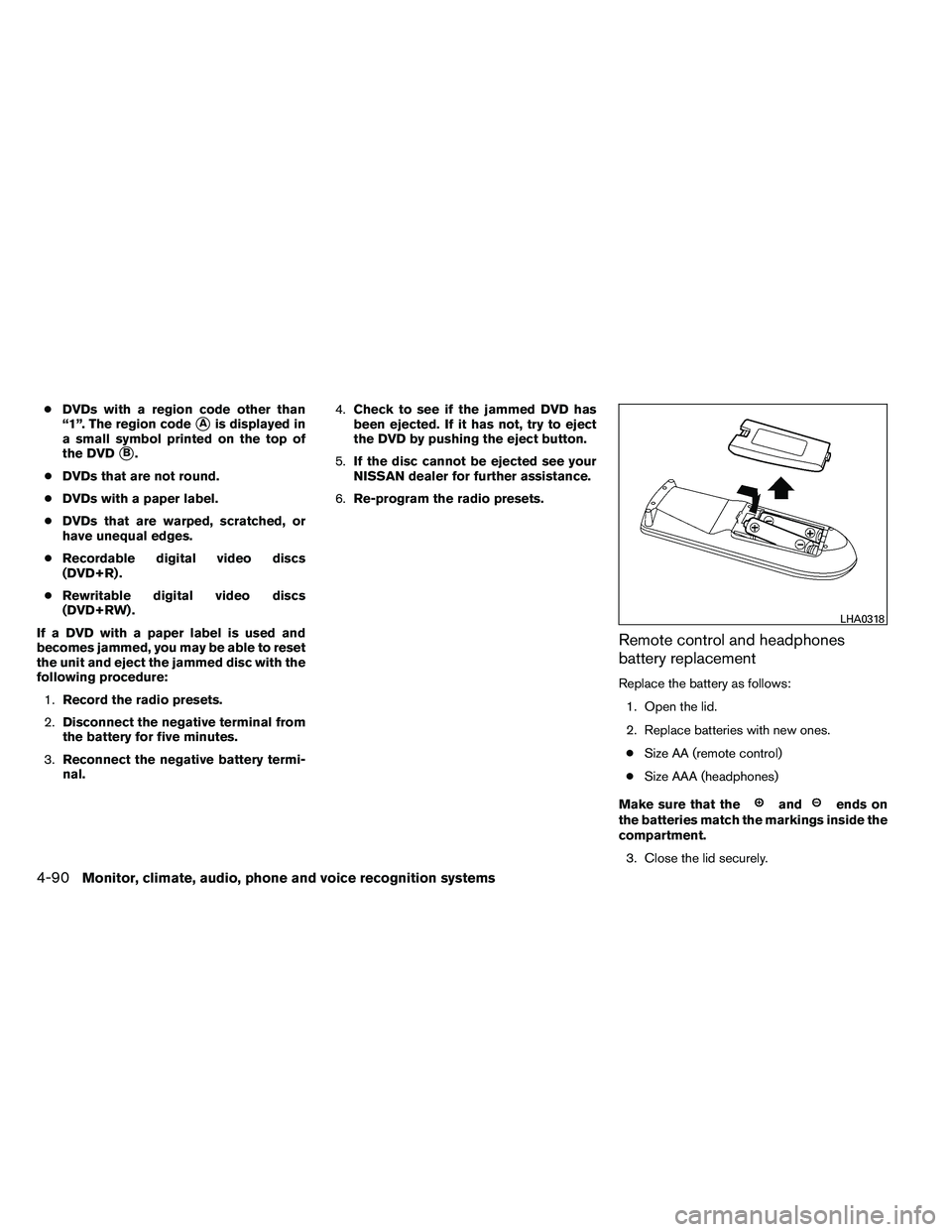

●DVDs with a region code other than
“1”. The region code
Ais displayed in
a small symbol printed on the top of
the DVD
B.
● DVDs that are not round.
● DVDs with a paper label.
● DVDs that are warped, scratched, or
have unequal edges.
● Recordable digital video discs
(DVD+R) .
● Rewritable digital video discs
(DVD+RW) .
If a DVD with a paper label is used and
becomes jammed, you may be able to reset
the unit and eject the jammed disc with the
following procedure: 1. Record the radio presets.
2. Disconnect the negative terminal from
the battery for five minutes.
3. Reconnect the negative battery termi-
nal. 4.
Check to see if the jammed DVD has
been ejected. If it has not, try to eject
the DVD by pushing the eject button.
5. If the disc cannot be ejected see your
NISSAN dealer for further assistance.
6. Re-program the radio presets.
Remote control and headphones
battery replacement
Replace the battery as follows:
1. Open the lid.
2. Replace batteries with new ones.● Size AA (remote control)
● Size AAA (headphones)
Make sure that the

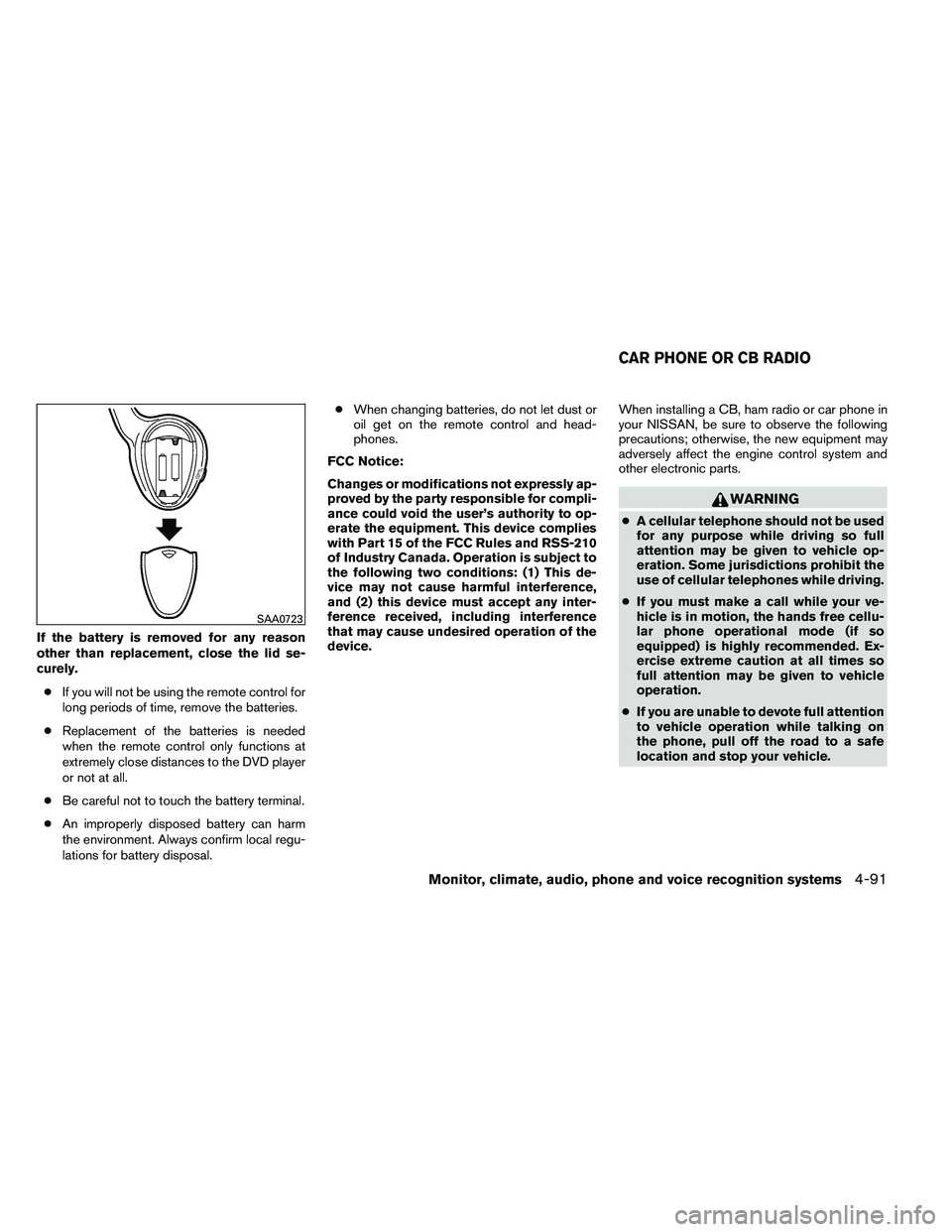

If the battery is removed for any reason
other than replacement, close the lid se-
curely.● If you will not be using the remote control for
long periods of time, remove the batteries.
● Replacement of the batteries is needed
when the remote control only functions at
extremely close distances to the DVD player
or not at all.
● Be careful not to touch the battery terminal.
● An improperly disposed battery can harm
the environment. Always confirm local regu-
lations for battery disposal. ●
When changing batteries, do not let dust or
oil get on the remote control and head-
phones.
FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment. This device complies
with Part 15 of the FCC Rules and RSS-210
of Industry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device. When installing a CB, ham radio or car phone in
your NISSAN, be sure to observe the following
precautions; otherwise, the new equipment may
adversely affect the engine control system and
other electronic parts.

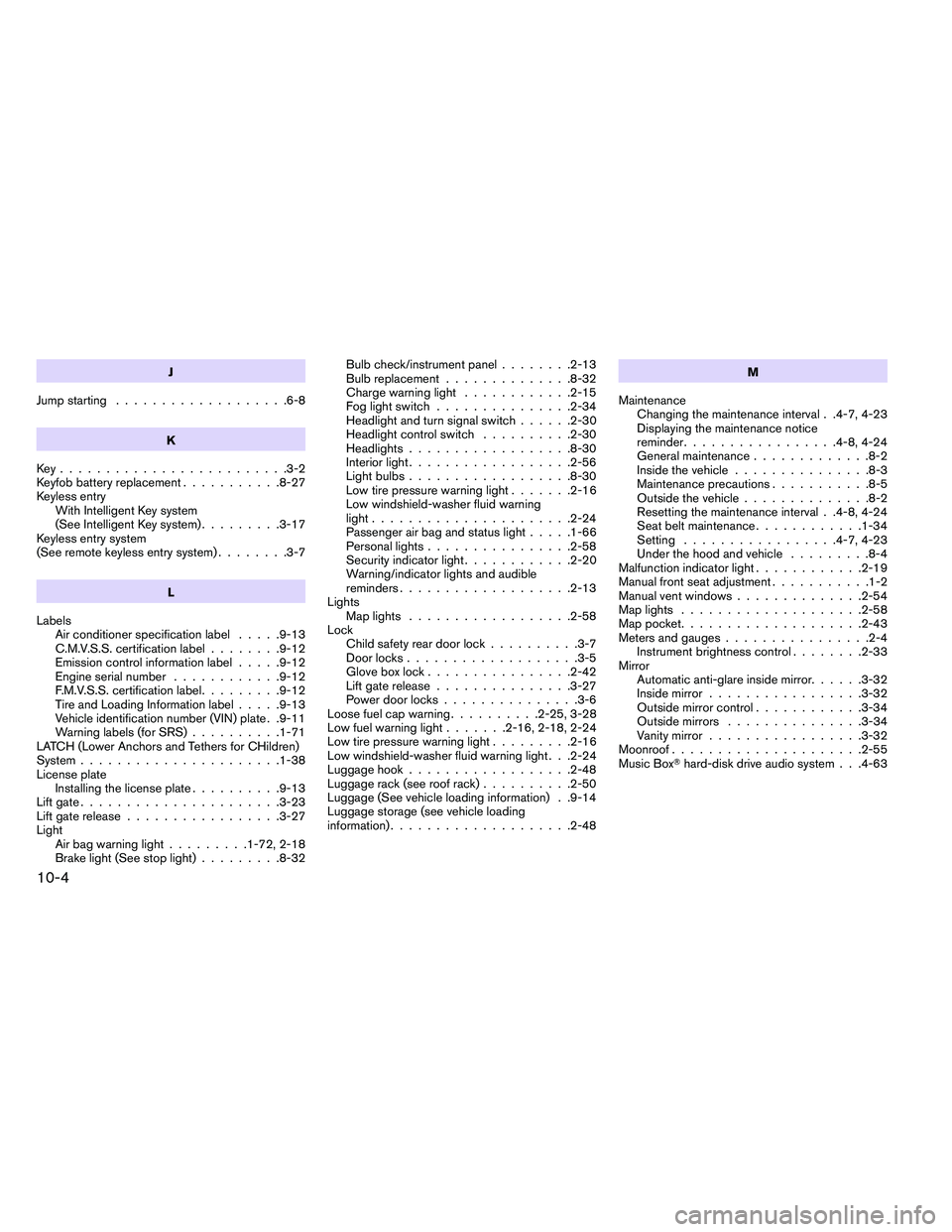

J
Jump starting ...................6-8
K
Key.........................3-2
Keyfob battery replacement ...........8-27
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-17
Keyless entry system
(See remote keyless entry system) ........3-7
L
Labels Air conditioner specification label .....9-13
C.M.V.S.S. certification label ........9-12
Emission control information label .....9-12
Engine serial number ............9-12
F.M.V.S.S. certification label .........9-12
Tire and Loading Information label .....9-13
Vehicle identification number (VIN) plate . .9-11
Warning labels (for SRS) ..........1-71
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-38
License plate Installing the license plate ..........9-13
Lift gate ......................3-23
Lift gate release .................3-27
Light Air bag warning light .........1-72, 2-18
Brake light (See stop light) .........8-32Bulb check/instrument panel
........2-13
Bulb replacement ..............8-32
Charge warning light ............2-15
Fog light switch ...............2-34
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Headlights ..................8-30
Interior light ..................2-56
Light bulbs ..................8-30
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light ......................2-24
Passenger air bag and status light .....1-66
Personal lights ................2-58
Security indicator light ............2-20
W

arning/indicator lights and audible
reminders ...................2-13
Lights Map lights ..................2-58
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Glove box lock ................2-42
Lift gate release ...............3-27
Power door locks ...............3-6
Loose fuel cap warning ..........2-25, 3-28
Low fuel warning light .......2-16, 2-18, 2-24
Low tire pressure warning light .........2-16
Low windshield-washer fluid warning light . . .2-24
Luggage hook ..................2-48
Luggage rack (see roof rack) ..........2-50
Luggage (See vehicle loading information) . .9-14
Luggage storage (see vehicle loading
information) ....................2-48 M
Maintenance Changing the maintenance interval . .4-7, 4-23
Displaying the maintenance notice
reminder .................4-8, 4-24
General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Resetting the maintenance interval . .4-8, 4-24
Seat belt maintenance ............1-34
Setting .................4-7, 4-23
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-19
Manual front seat adjustment ...........1-2
Manual vent windows ..............2-54
Map lights ....................2-58
Map pocket ....................2-43
Meters and gauges ................2-4
Instrument brightness control ........2-33
Mirror Automatic anti-glare inside mirror ......3-32
Inside mirror .................3-32
Outside mirror control ............3-34
Outside mirrors .............. .3-34
V

anity mirror .................3-32
Moonroof .....................2-55
Music Box hard-disk drive audio system . . .4-63
