2011 NISSAN ALTIMA start stop button

Engine start operation indicator (CVT
models)
This indicator illuminates when the ignition switch
is placed in the LOCK, OFF, ACC or ON position
with the shift selector in the P (Park) position.
This indicator means that the engine will start by
pushing the push-button ignition switch with the
brake pedal depressed.
Engine start operation indicator (M/T
models)
This indicator illuminates when the ignition switch
is placed in the LOCK, OFF, ACC or ON position
with the shift selector in neutral and the parking
brake on.
This indicator means that the engine will start by
pushing the ignition switch with the clutch and
the brake pedal depressed.
NISSAN Intelligent Key™ insertion indica-
tor
This indicator illuminates when the Intelligent Key
needs to be inserted into the Intelligent Key port.
(For example, the Intelligent Key battery is dis-
charged.)
If this indicator illuminates, insert the Intelligent
Key into the Intelligent Key port in the correct
direction. See “Push-button ignition switch” in
the “Starting and driving” section.NISSAN Intelligent Key™ removal indica-
tor
This indicator illuminates when the driver’s door
is opened with the ignition switch placed in the
OFF position and the Intelligent Key placed in the
Intelligent Key port. A key reminder chime also
sounds.
If this indicator illuminates, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
NISSAN Intelligent Key™ battery dis-
charge indicator
This indicator illuminates when the Intelligent Key
battery is running out of power.
If this indicator illuminates, replace the battery
with a new one. See “NISSAN Intelligent Key™” in
the “Maintenance and do-it-yourself” section.
Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. See “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section.
Check tire pressure warning
This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown on
the Tire and Loading Information label. See “Low
tire pressure warning light” earlier in this section
and “Tire Pressure Monitoring System (TPMS)”
in the “Starting and driving” section.
Instruments and controls2-25

●If the engine is very hard to start in ex-
tremely cold weather or when restarting,
depress the accelerator pedal a little (ap-
proximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5 or
6 seconds, stop cranking by pushing the
ignition switch to LOCK. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the
brake pedal and pushing the push-button
ignition switch to start the engine. If the
engine starts, but fails to run, repeat the
above procedure.

●In the manual shift mode, the transmis-
sion may shift up automatically to a
higher range than selected if the en-
gine speed is too high. When the ve-
hicle speed decreases, the transmis-
sion automatically shifts down and
shifts to 1st gear before the vehicle
comes to a stop.
● CVT operation is limited to automatic drive
mode when CVT fluid temperature is ex-
tremely low even if manual shift mode is
selected. This is not a malfunction. When
CVT fluid warms up, manual mode can be
selected.
● When the CVT fluid temperature is high, the
shift range may upshift in lower rpm than
usual. This is not a malfunction.

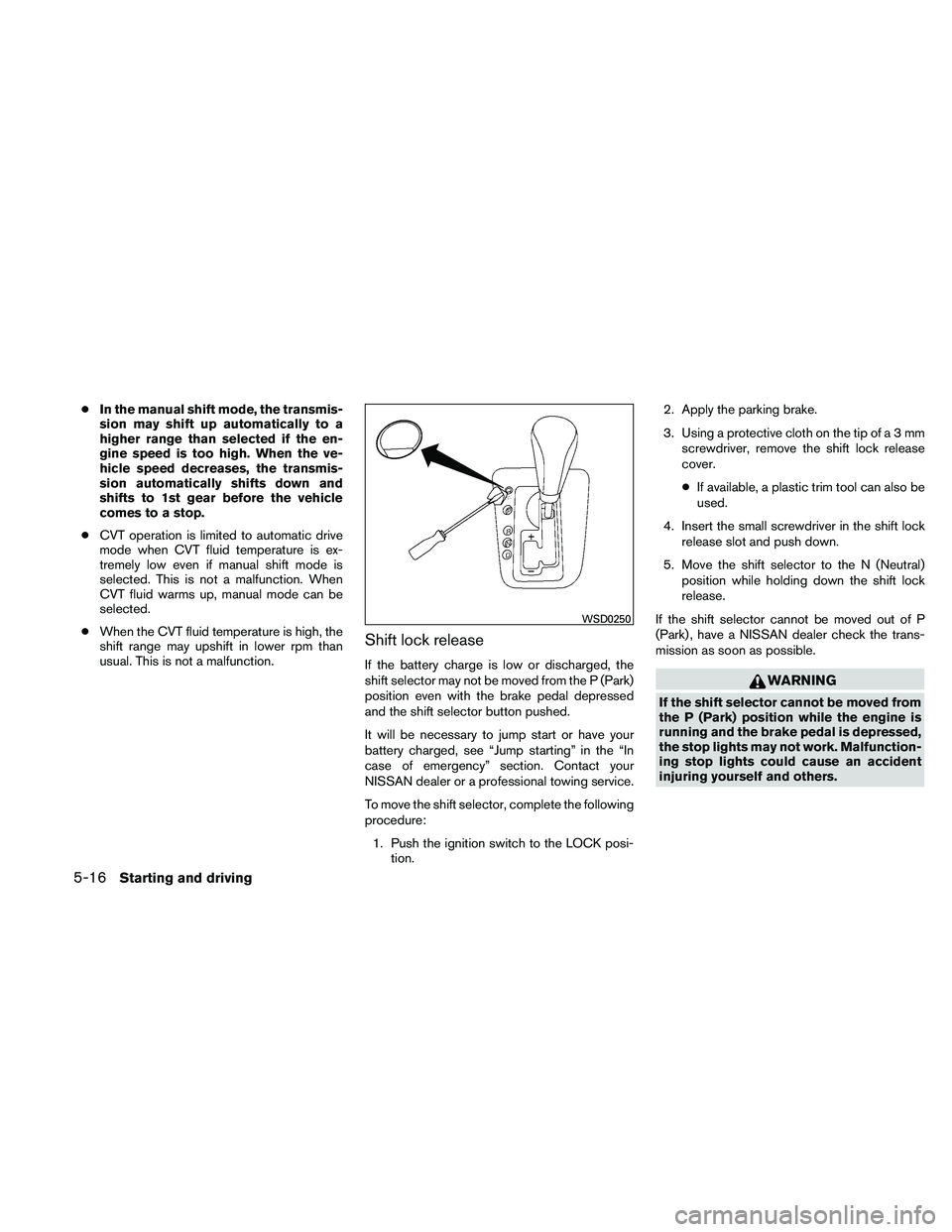

Shift lock release
If the battery charge is low or discharged, the
shift selector may not be moved from the P (Park)
position even with the brake pedal depressed
and the shift selector button pushed.
It will be necessary to jump start or have your
battery charged, see “Jump starting” in the “In
case of emergency” section. Contact your
NISSAN dealer or a professional towing service.
To move the shift selector, complete the following
procedure:
1. Push the ignition switch to the LOCK posi- tion. 2. Apply the parking brake.
3. Using a protective cloth on the tip ofa3mm
screwdriver, remove the shift lock release
cover.
● If available, a plastic trim tool can also be
used.
4. Insert the small screwdriver in the shift lock release slot and push down.
5. Move the shift selector to the N (Neutral) position while holding down the shift lock
release.
If the shift selector cannot be moved out of P
(Park) , have a NISSAN dealer check the trans-
mission as soon as possible.

Phone, Bluetoothhands-free
system ..................4-91, 4-106
Power Power door locks ...............3-5
Power outlet .................2-36
Power rear windows .............2-45
Power steering fluid .............8-14
Power steering system ...........5-24
Power windows ...............2-43
Rear power windows ............2-45
Precautions Maintenance precautions ...........8-5
Precautions on child
restraints .........1-23, 1-29, 1-34, 1-38
Precautions on seat belt usage .......1-14
Precautions on supplemental restraint
system ....................1-41
Precautions when starting and driving . . . .5-2
Programmable features ..............4-6
Push starting ...................6-10
R
Radio Car phone or CB radio ...........4-91
FM-AM radio with compact disc
(CD) player ..................4-44
FM/AM/SAT radio with CD/DVD player . .4-54
FM/AM/SAT radio with compact disc
(CD) player ..................4-48
Readiness for inspection maintenance
(I/M) test .....................9-26
Rear parcel shelf Refitting covers ...............8-37
Removing covers ...............8-37 Rear power windows
..............2-45
Rear seat ......................1-8
RearView Monitor ................4-13
Rear window and outside mirror defroster
switch .......................2-29
Recorders Event data ..................9-26
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-25
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-23, 1-29, 1-34, 1-38
Reporting safety defects (US only) .....9-25
Seat
adjustment
Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Rear seat adjustment .............1-8
Seatback pockets ................2-37
Seat belt Child safety ..................1-21
Infants and small children ..........1-22
Injured Person ................1-17
Larger children ................1-22
Precautions on seat belt usage .......1-14
Pregnant women ...............1-17
Seat belt extenders .............1-20
Seat belt maintenance ............1-20
Seat belts ...................1-14
Shoulder belt height adjustment ......1-19
Three-point type with retractor .......1-17
Seat belt warning light ..............2-14 Seats
Adjustment ...................1-2
Front seats ...................1-2
Heated seats .................2-35
Manual front seat adjustment .........1-2
Rear seat ....................1-8
Security indicator light ..............2-16
Security system (NISSAN vehicle immobilizer
system) , engine start .........2-27, 3-3, 5-9
Self-adjusting brakes ..............8-22
Service manual order form ...........9-27
Servicing air conditioner .............4-28
Setting button ...................4-6
Shifting Continuously Variable Transmission
(CVT) .....................5-13
Manual transmission .............5-18
Shift lock release .................5-16
Shoulder belt height adjustment ........1-19
Spark plug replacement .............8-19
Speedometer ...................2-4
Spotlights

(See map light) ...........2-50
SRS warning label ................1-56
Starting Before starting the engine ..........5-10
Jump starting .................6-8
Precautions when starting and driving . . . .5-2
Push starting .................6-10
Starting the engine .............5-10
Steering Power steering fluid .............8-14
Power steering system ...........5-24
Stop light .....................8-30
Storage ......................2-37
Sunglasses case .................2-38
Sunglasses holder ................2-38
10-5
