2011 NISSAN ALTIMA COUPE Owners Manual

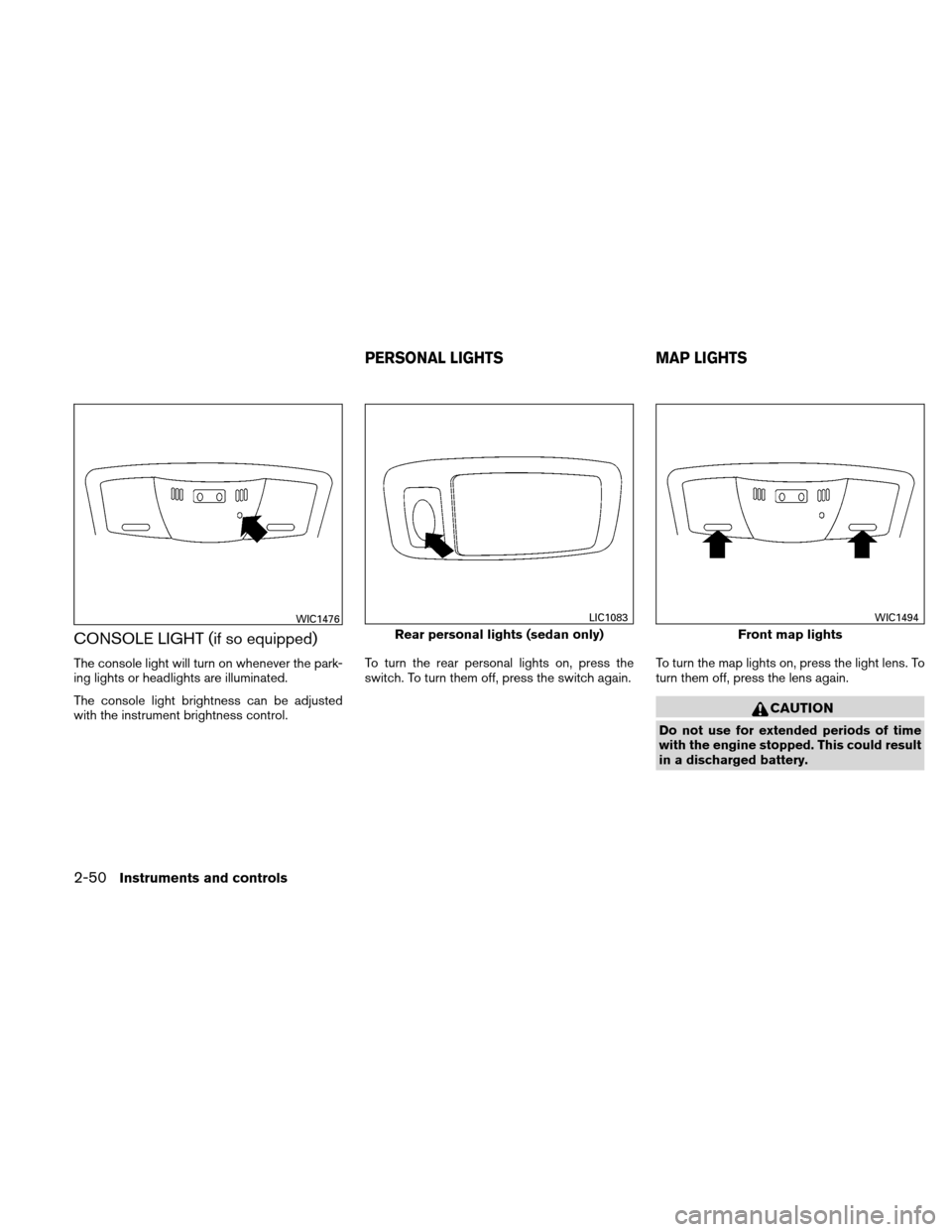

CONSOLE LIGHT (if so equipped)
The console light will turn on whenever the park-
ing lights or headlights are illuminated.
The console light brightness can be adjusted
with the instrument brightness control.To turn the rear personal lights on, press the
switch. To turn them off, press the switch again.
To turn the map lights on, press the light lens. To
turn them off, press the lens again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
WIC1476
Rear personal lights (sedan only)
LIC1083
Front map lights
WIC1494
PERSONAL LIGHTS
MAP LIGHTS
2-50Instruments and controls

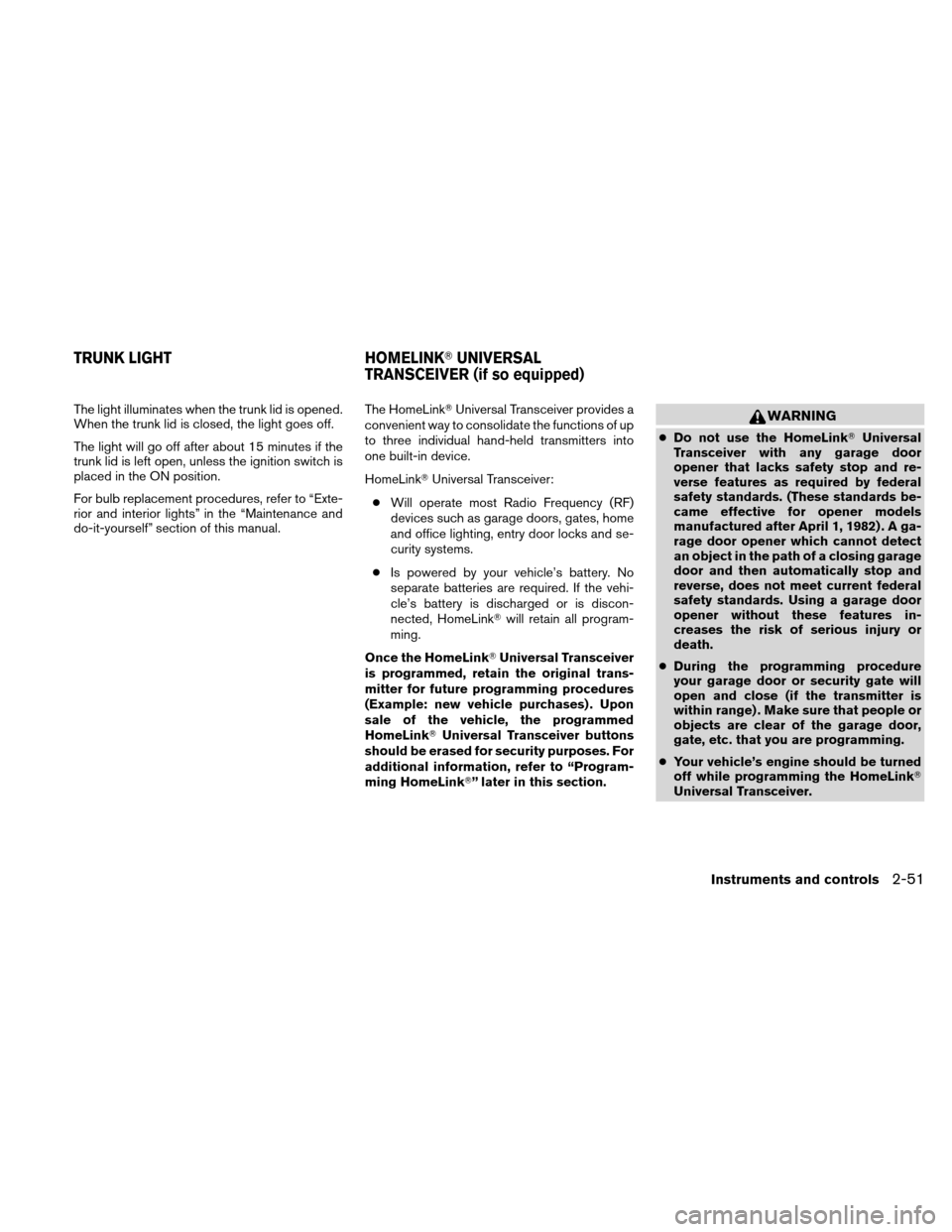

The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
The light will go off after about 15 minutes if the
trunk lid is left open, unless the ignition switch is
placed in the ON position.
For bulb replacement procedures, refer to “Exte-
rior and interior lights” in the “Maintenance and
do-it-yourself” section of this manual.The HomeLink
Universal Transceiver provides a
convenient way to consolidate the functions of up
to three individual hand-held transmitters into
one built-in device.
HomeLink Universal Transceiver:
● Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink will retain all program-
ming.
Once the HomeLink Universal Transceiver
is programmed, retain the original trans-
mitter for future programming procedures
(Example: new vehicle purchases) . Upon
sale of the vehicle, the programmed
HomeLink Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink” later in this section.WARNING
● Do not use the HomeLink Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
● During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
● Your vehicle’s engine should be turned
off while programming the HomeLink
Universal Transceiver.
TRUNK LIGHT HOMELINKUNIVERSAL
TRANSCEIVER (if so equipped)
Instruments and controls2-51

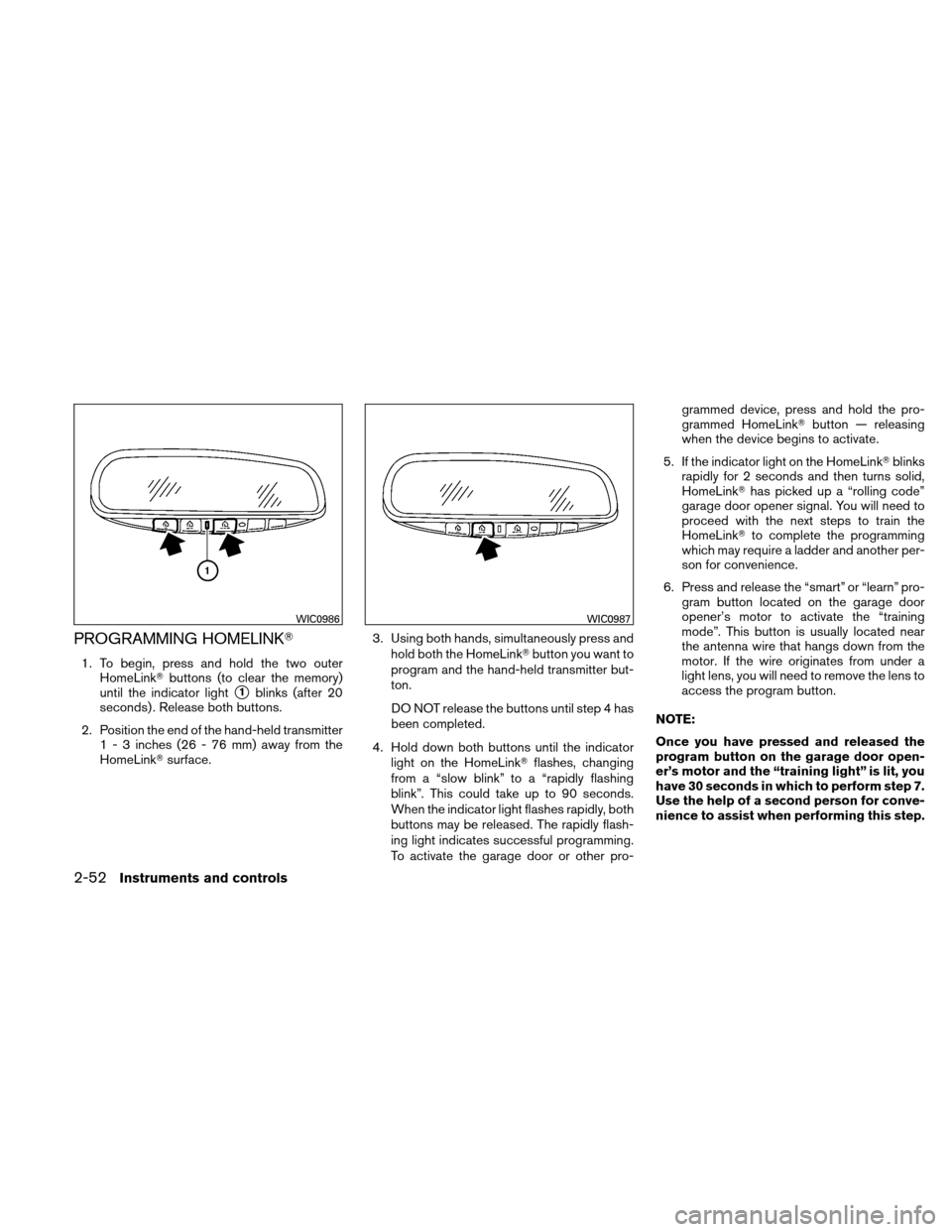

PROGRAMMING HOMELINK
1. To begin, press and hold the two outerHomeLink buttons (to clear the memory)
until the indicator light
1blinks (after 20
seconds) . Release both buttons.
2. Position the end of the hand-held transmitter 1 - 3 inches (26 - 76 mm) away from the
HomeLink surface. 3. Using both hands, simultaneously press and
hold both the HomeLink button you want to
program and the hand-held transmitter but-
ton.
DO NOT release the buttons until step 4 has
been completed.
4. Hold down both buttons until the indicator light on the HomeLink flashes, changing
from a “slow blink” to a “rapidly flashing
blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both
buttons may be released. The rapidly flash-
ing light indicates successful programming.
To activate the garage door or other pro- grammed device, press and hold the pro-
grammed HomeLink
button — releasing
when the device begins to activate.
5. If the indicator light on the HomeLink blinks
rapidly for 2 seconds and then turns solid,
HomeLink has picked up a “rolling code”
garage door opener signal. You will need to
proceed with the next steps to train the
HomeLink to complete the programming
which may require a ladder and another per-
son for convenience.
6. Press and release the “smart” or “learn” pro- gram button located on the garage door
opener’s motor to activate the “training
mode”. This button is usually located near
the antenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the lens to
access the program button.
NOTE:
Once you have pressed and released the
program button on the garage door open-
er’s motor and the “training light” is lit, you
have 30 seconds in which to perform step 7.
Use the help of a second person for conve-
nience to assist when performing this step.
WIC0986WIC0987
2-52Instruments and controls

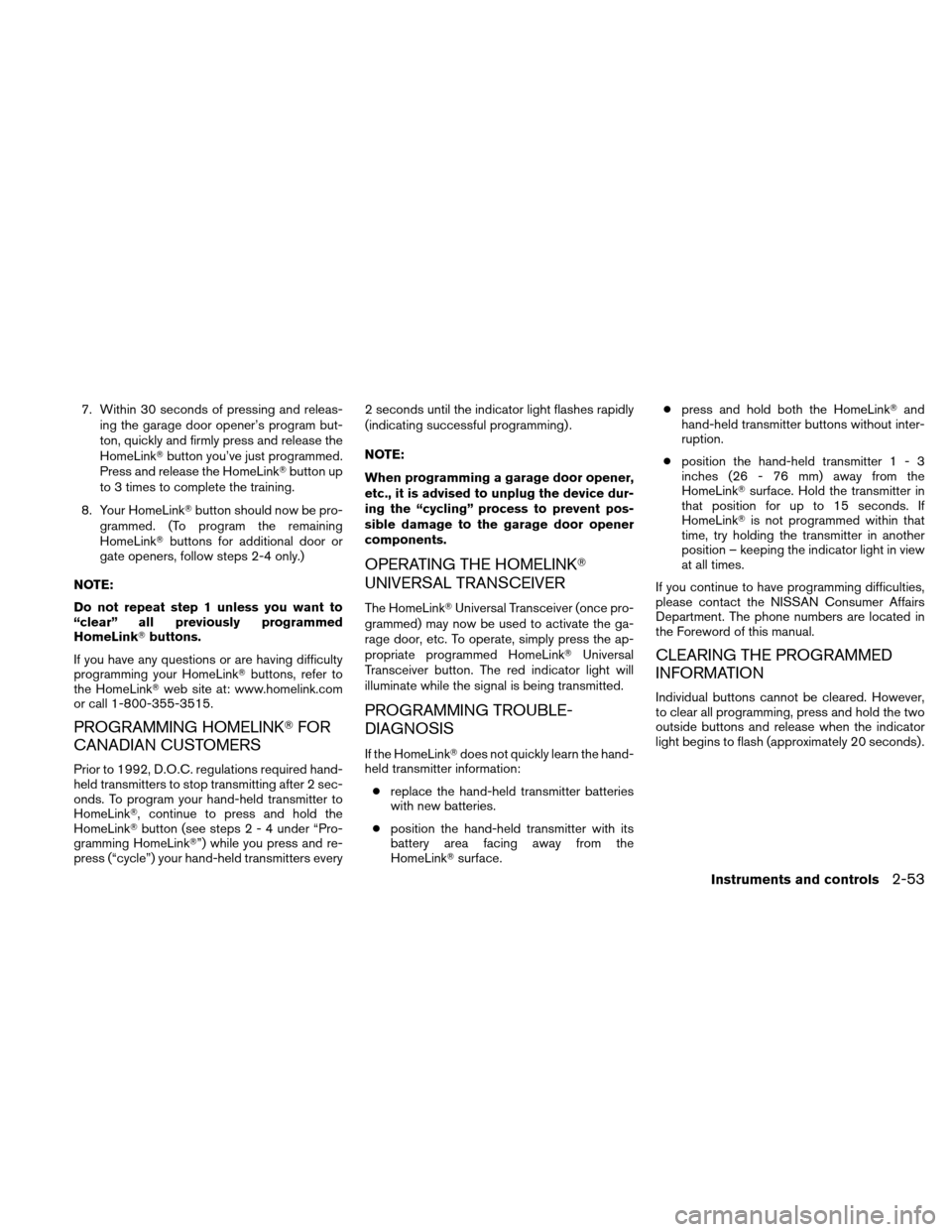

7. Within 30 seconds of pressing and releas-ing the garage door opener’s program but-
ton, quickly and firmly press and release the
HomeLink button you’ve just programmed.
Press and release the HomeLink button up
to 3 times to complete the training.
8. Your HomeLink button should now be pro-
grammed. (To program the remaining
HomeLink buttons for additional door or
gate openers, follow steps 2-4 only.)
NOTE:
Do not repeat step 1 unless you want to
“clear” all previously programmed
HomeLink buttons.
If you have any questions or are having difficulty
programming your HomeLink buttons, refer to
the HomeLink web site at: www.homelink.com
or call 1-800-355-3515.
PROGRAMMING HOMELINK FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2 sec-
onds. To program your hand-held transmitter to
HomeLink, continue to press and hold the
HomeLink button (see steps2-4under “Pro-
gramming HomeLink”) while you press and re-
press (“cycle”) your hand-held transmitters every 2 seconds until the indicator light flashes rapidly
(indicating successful programming) .
NOTE:
When programming a garage door opener,
etc., it is advised to unplug the device dur-
ing the “cycling” process to prevent pos-
sible damage to the garage door opener
components.
OPERATING THE HOMELINK
UNIVERSAL TRANSCEIVER
The HomeLink
Universal Transceiver (once pro-
grammed) may now be used to activate the ga-
rage door, etc. To operate, simply press the ap-
propriate programmed HomeLink Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
PROGRAMMING TROUBLE-
DIAGNOSIS
If the HomeLink does not quickly learn the hand-
held transmitter information:
● replace the hand-held transmitter batteries
with new batteries.
● position the hand-held transmitter with its
battery area facing away from the
HomeLink surface. ●
press and hold both the HomeLink and
hand-held transmitter buttons without inter-
ruption.
● position the hand-held transmitter 1 - 3
inches (26 - 76 mm) away from the
HomeLink surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLink is not programmed within that
time, try holding the transmitter in another
position – keeping the indicator light in view
at all times.
If you continue to have programming difficulties,
please contact the NISSAN Consumer Affairs
Department. The phone numbers are located in
the Foreword of this manual.
CLEARING THE PROGRAMMED
INFORMATION
Individual buttons cannot be cleared. However,
to clear all programming, press and hold the two
outside buttons and release when the indicator
light begins to flash (approximately 20 seconds) .
Instruments and controls2-53

ROLLING CODE PROGRAMMING
Rolling code garage door openers (or other roll-
ing code devices) which are “code protected”
and manufactured after 1996, may be deter-
mined by the following:● Reference the garage door opener Owner’s
Manual for verification.
● The hand-held transmitter appears to pro-
gram the HomeLink Universal Transceiver
but does not activate the garage door.
● Press and hold the trained HomeLink but-
ton. If the garage door opener has the rolling
code feature, the HomeLink indicator light
will flash rapidly, then remain on after 2 sec-
onds.
To program the HomeLink Universal Transceiver
to a garage door opener with the rolling code
feature, follow these instructions after completing
the “Programming HomeLink” (the aid of a sec-
ond person may make the following procedures
quicker and easier) .
1. Locate the training button on the garage door opener motor unit. Exact location and
color of the button may vary by garage door
opener brand. If there is difficulty locating
the training button, reference the garage
door opener Owner’s Manual. 2. Press the training button on the garage door
opener motor unit (which may activate a
training light) .
NOTE:
Following step 2, there are 30 seconds in
which to initiate step 3. 3. Firmly press and release the programmed HomeLink button a second time to com-
plete the training process. (Some garage
door openers may require you to do this
procedure a third time to complete the train-
ing.)
The garage door opener should now recognize
the HomeLink Universal Transceiver and acti-
vate when the HomeLink button is pressed. The
remaining two buttons may now be programmed
(if not yet programmed, follow steps 2 through 4
in the “Programming HomeLink” procedures
earlier in this section) .
REPROGRAMMING A SINGLE
HOMELINK BUTTON
To reprogram a HomeLink Universal Transceiver
button, complete the following.
1. Press and hold the desired HomeLink but-
ton. Do not release the button until step 4
has been completed. 2. When the indicator light begins to flash
slowly (after 20 seconds) , position the
hand-held transmitter1-3inches (26 - 76
mm) away from the HomeLink surface.
3. Press and hold the hand-held transmitter button.
4. The HomeLink indicator light will flash, first
slowly and then rapidly. When the indicator
light begins to flash rapidly, release both
buttons.
The HomeLink Universal Transceiver button has
now been reprogrammed. The new device can
be activated by pushing the HomeLink button
that was just programmed. This procedure will
not affect any other programmed HomeLink
buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink. Consult the
Owner’s Manual of each device or call the manu-
facturer or dealer of those devices for additional
information.
When your vehicle is recovered, you will
need to reprogram the HomeLink Univer-
sal Transceiver with your new transmitter
information.
2-54Instruments and controls

FCC Notice:
This device complies with FCC rules part 15
and RSS-210 of Industry Canada. Opera-
tion is subject to the following two condi-
tions:
(1) This device may not cause harmful in-
terference and (2) This device must accept
any interference that may be received, in-
cluding interference that may cause unde-
sired operation.
This transmitter has been tested and com-
plies with FCC and DOC/MDC rules.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
DOC: ISTC 1763K1313
FCC I.D. CV2V67690
Instruments and controls2-55

MEMO
2-56Instruments and controls

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Intelligent Key™ ........................3-2
NISSAN Vehicle Immobilizer System keys .........3-3
Doors ............................................3-4
Locking with key ................................3-4
Locking with inside lock knob . ...................3-5
Locking with power door lock switch .............3-5
Automatic door locks . . .........................3-5
Child safety rear door lock (Sedan only) ...........3-6
NISSAN Intelligent Key™ With Door and Trunk
Request Switches .................................3-6
Operating range ................................3-8
Door locks/unlocks precaution ...................3-9
NISSAN Intelligent Key™ operation ...............3-9
How to use the remote keyless entry
function ...................................... 3-12
Warning signals ............................... 3-15
Troubleshooting guide ......................... 3-16
NISSAN Intelligent Key™ Without Door and Trunk
Request Switches ................................ 3-17
Operating range ............................... 3-18How to use the remote keyless entry
function
...................................... 3-18
Warning signals ............................... 3-21
Troubleshooting guide ......................... 3-22
Hood ........................................... 3-23
Trunk lid ......................................... 3-23
Opener operation .............................. 3-23
Interior trunk lid release ........................ 3-24
Fuel-filler door ................................... 3-25
Opener operation .............................. 3-25
Fuel-filler cap ................................. 3-25
Tilt/telescopic steering ............................ 3-28
Tilt operation .................................. 3-28
Telescopic operation ........................... 3-28
Sun visors ....................................... 3-28
Vanity mirrors (if so equipped) ...................3-29
Mirrors .......................................... 3-29
Rearview mirror (if so equipped) .................3-29
Automatic anti-glare rearview mirror
(if so equipped) ............................... 3-30
Outside mirrors ............................... 3-31
