2011 NISSAN 370Z ROADSTER immobilizer

Black plate (7,1)
2 Instruments and controls
Model "Z34-D" EDITED: 2010/ 7/ 28
Cockpit............................................................ 2-2
Instrument panel ................................................ 2-3
Meters and gauges ............................................. 2-4
Speedometer and odometer ............................. 2-5
Tachometer ................................................... 2-5
Engine coolant temperature gauge ..................... 2-6
Fuel gauge ................................................... 2-6
Triple meter .................................................. 2-7
Warning/indicator lights and audible reminders ......... 2-8
Checking bulbs ............................................. 2-8
Warning lights ............................................... 2-9
Indicator lights ............................................. 2-12
Audible reminders ........................................ 2-15
Vehicle information display .................................. 2-16
Indicators for operation .................................. 2-16
Warnings and alerts ...................................... 2-18
Indicators for maintenance .............................. 2-19
Trip computer .............................................. 2-20
Security systems .............................................. 2-25
Vehicle Security System. ................................ 2-25
NISSAN Vehicle Immobilizer System ................. 2-26
Windshield wiper and washer switch .................... 2-27
Rear window defroster switch ............................. 2-29
Headlight and turn signal switch .......................... 2-29
Xenon headlights ......................................... 2-29
Headlight switch .......................................... 2-30 Turn signal switch
........................................ 2-33
Fog light switch (if so equipped) ...................... 2-33
Hazard warning flasher switch ............................. 2-33
Horn ............................................................. 2-34
Heated seats (if so equipped) ............................. 2-34
Climate controlled seats (if so equipped) ............... 2-36
Vehicle Dynamic Control (VDC) OFF switch ........... 2-37
Power outlet ................................................... 2-37
Storage ......................................................... 2-38
Instrument pocket (except for navigation system
equipped models) ........................................ 2-38
Cup holders ................................................ 2-38
Glove box .................................................. 2-39
Console box ............................................... 2-40
Rear parcel box ........................................... 2-40
Cargo cover (if so equipped) .......................... 2-41
Windows ....................................................... 2-42
Power windows ........................................... 2-42
Interior lights ................................................... 2-44
Map lights .................................................. 2-44
Interior light control switch ............................. 2-44
Vanity mirror lights ............................................ 2-45
Cargo area courtesy light (Roadster models) .......... 2-46
Cargo light (Coupe models) ............................... 2-46
Trunk light (Roadster models) .............................. 2-46

Black plate (83,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SIC2132
Your vehicle has two types of security systems,
as follows:
.Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood or rear hatch when the system is armed. It
is not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security system1. Close all windows.
The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and rear hatch/trunk. Lock all doors and trunk (Roadster models) .
The doors can be locked with the Intelligent
Key, door handle request switch, power
door lock switch or mechanical key.
5. Confirm that the security indicator light comes on. The security indicator light stays
SECURITY SYSTEMS
Instruments and controls
2-25

Black plate (84,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood and rear hatch locked
withtheignitionswitchintheLOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatica lly turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
The alarm is activated by:
. Unlocking the door or opening the rear hatch without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if the
door is opened by releasing the door inside
lock knob, the alarm will activate.)
. Opening the hood.
How to stop an activated alarmThe alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent Key,
the door handle request switch or using the
mechanical key. The alarm will not stop if the
ignition switch is pushed to the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER SYS-
TEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
2-26
Instruments and controls

Black plate (85,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SIC2045
Security indicator lightThe security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch is in the
LOCK, ACC or OFF position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all Intelligent Keys that you have when
visiting a NISSAN dealer for service.
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.
Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.WINDSHIELD WIPER AND WASHER
SWITCH
Instruments and controls
2-27

Black plate (112,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

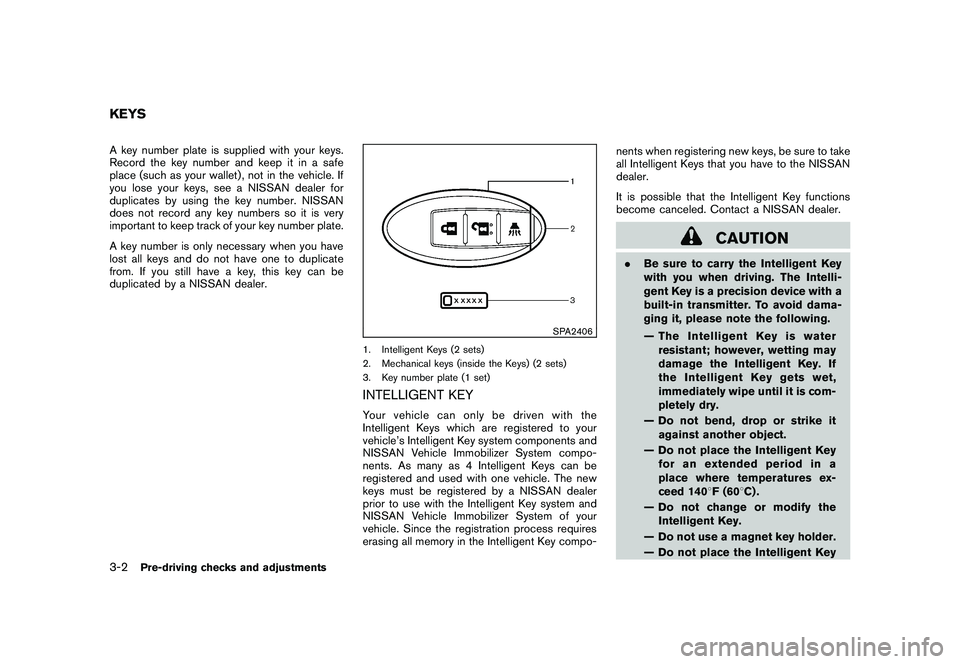

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
1. Intelligent Keys (2 sets)
2. Mechanical keys (inside the Keys) (2 sets)
3. Key number plate (1 set)INTELLIGENT KEYYour vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
It is possible that the Intelligent Key functions
become canceled. Contact a NISSAN dealer.
CAUTION
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against another object.
— Do not place the Intelligent Key foranextendedperiodina
place where temperatures ex-
ceed 140 8F (60 8C) .
— Do not change or modify the Intelligent Key.
— Do not use a magnet key holder.
— Do not place the Intelligent Key
KEYS3-2
Pre-driving checks and adjustments

Black plate (3,1)

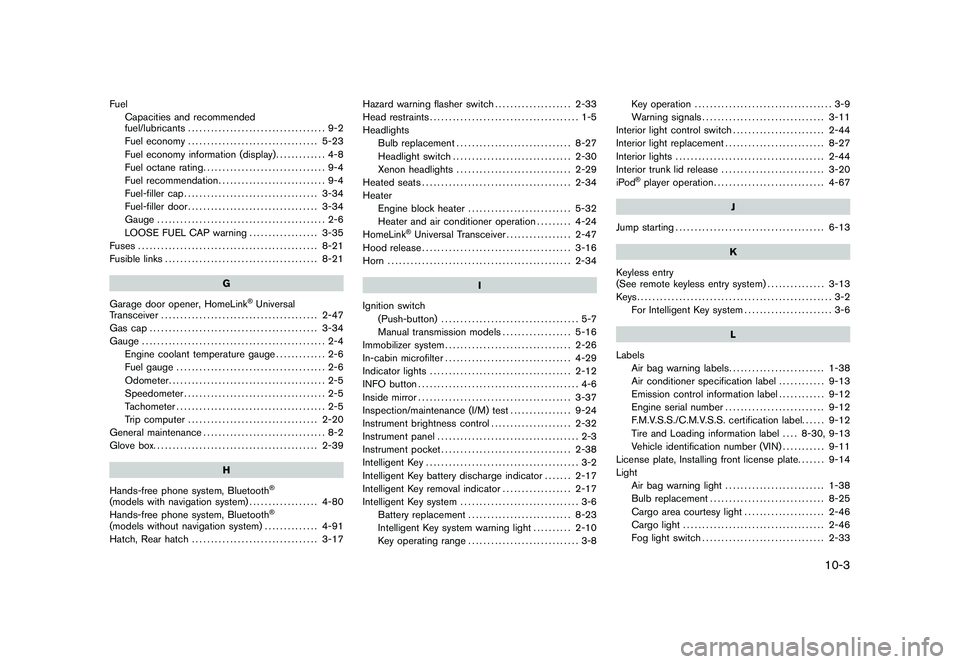

FuelCapacities and recommended
fuel/lubricants .................................... 9-2
Fuel economy .................................. 5-23
Fuel economy information (display) ............. 4-8
Fuel octane rating ................................ 9-4
Fuel recommendation ............................ 9-4
Fuel-filler cap ................................... 3-34
Fuel-filler door .................................. 3-34
Gauge ............................................ 2-6
LOOSE FUEL CAP warning .................. 3-35
Fuses ............................................... 8-21
Fusible links ........................................ 8-21
G
Garage door opener, HomeLink
®Universal
Transceiver ......................................... 2-47
Gas cap ............................................ 3-34
Gauge ................................................ 2-4
Engine coolant temperature gauge ............. 2-6
Fuel gauge ....................................... 2-6
Odometer ......................................... 2-5
Speedometer ..................................... 2-5
Tachometer ....................................... 2-5
Trip computer .................................. 2-20
General maintenance ................................ 8-2
Glove box. .......................................... 2-39
H
Hands-free phone system, Bluetooth®
(models with navigation system) .................. 4-80
Hands-free phone system, Bluetooth
®
(models without navigation system) .............. 4-91
Hatch, Rear hatch ................................. 3-17 Hazard warning flasher switch
.................... 2-33
Head restraints ....................................... 1-5
Headlights Bulb replacement .............................. 8-27
Headlight switch ............................... 2-30
Xenon headlights .............................. 2-29
Heated seats ....................................... 2-34
Heater Engine block heater ........................... 5-32
Heater and air conditioner operation ......... 4-24
HomeLink
®Universal Transceiver ................. 2-47
Hood release ....................................... 3-16
Horn ................................................ 2-34
I
Ignition switch (Push-button) .................................... 5-7
Manual transmission models .................. 5-16
Immobilizer system ................................. 2-26
In-cabin microfilter ................................. 4-29
Indicator lights ..................................... 2-12
INFO button .......................................... 4-6
Inside mirror ........................................ 3-37
Inspection/maintenance (I/M) test ................ 9-24
Instrument brightness control ..................... 2-32
Instrument panel ..................................... 2-3
Instrument pocket .................................. 2-38
Intelligent Key ........................................ 3-2
Intelligent Key battery discharge indicator ....... 2-17
Intelligent Key removal indicator .................. 2-17
Intelligent Key system ............................... 3-6
Battery replacement ........................... 8-23
Intelligent Key system warning light .......... 2-10
Key operating range ............................. 3-8 Key operation
.................................... 3-9
Warning signals ................................ 3-11
Interior light control switch ........................ 2-44
Interior light replacement .......................... 8-27
Interior lights ....................................... 2-44
Interior trunk lid release ........................... 3-20
iPod
®player operation ............................. 4-67
J
Jump starting ....................................... 6-13
K
Keyless entry
(See remote keyless entry system) ............... 3-13
Keys................................................... 3-2 For Intelligent Key system ....................... 3-6
L
Labels Air bag warning labels ......................... 1-38
Air conditioner specification label ............ 9-13
Emission control information label ............ 9-12
Engine serial number .......................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label. ..... 9-12
Tire and Loading information label .... 8-30, 9-13
Vehicle identification number (VIN) ........... 9-11
License plate, Installing front license plate. ...... 9-14
Light Air bag warning light .......................... 1-38
Bulb replacement .............................. 8-25
Cargo area courtesy light ..................... 2-46
Cargo light ..................................... 2-46
Fog light switch ................................ 2-33
10-3
Model "Z34-D" EDITED: 2010/ 7/ 28

Black plate (4,1)
10-4
Headlight switch............................... 2-30
Headlights bulb replacement ................. 8-27
Indicator lights ................................. 2-12
Interior light control switch .................... 2-44
Interior lights ................................... 2-44
Map lights ...................................... 2-44
Replacement ................................... 8-25
Trunk light ...................................... 2-46
Vanity mirror lights ............................. 2-45
Warning/indicator lights and audible
reminders ......................................... 2-9
Xenon headlights .............................. 2-29
Lights, Exterior and interior light replacement . . . 8-27
Loading information
(See vehicle loading information) ................. 9-18
Lock Automatic door locks ............................ 3-5
Door locks ........................................ 3-4
Power door lock ................................. 3-4
Rear hatch lock ................................ 3-17
Trunk lid ........................................ 3-19
Locking with mechanical key ........................ 3-4
Low tire pressure warning light ................... 2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .............. 5-3
M
Maintenance Battery .......................................... 8-14
General maintenance ............................ 8-2
Indicators for maintenance .................... 2-19
Inside the vehicle ................................ 8-3
Maintenance precautions ........................ 8-5
Maintenance requirements ...................... 8-2 Outside the vehicle
.............................. 8-2
Seat belt maintenance ......................... 1-14
Malfunction indicator light (MIL) .................. 2-13
Manual front seat adjustment ....................... 1-4
Map lights .......................................... 2-44
Master warning light ............................... 2-11
Mechanical key (Intelligent Key system) ............ 3-3
Meter Trip computer .................................. 2-20
Meters and gauges .................................. 2-4
Instrument brightness control ................. 2-32
Mirror Inside mirror .................................... 3-37
Outside mirrors ................................ 3-38
Vanity mirror .................................... 3-39
Multi-function controller ............................. 4-3
N
New vehicle break-in .............................. 5-23
NISSAN Vehicle Immobilizer System ............. 2-26
NISSAN voice recognition system ............... 4-104
No key warning .................................... 2-17
O
Odometer ............................................. 2-5
Off-road recovery .................................... 5-6
Oil Capacities and recommended
fuel/lubricants .................................... 9-2
Changing engine oil and filter ................. 8-10
Checking engine oil level ........................ 8-9
Engine oil ......................................... 8-9
Engine oil viscosity .............................. 9-6 Oil filter replacement indicator
................ 2-19
Opening the soft top .............................. 3-21
Operation, Indicators for operation ............... 2-16
Outside mirrors .................................... 3-38
Overheat, If your vehicle overheats ............... 6-15
Owner’s Manual/Service Manual order
information .......................................... 9-25
P
Panic alarm ......................................... 3-14
Parking Brake break-in .................................. 5-26
Parking brake operation ....................... 5-20
Parking on hills ................................. 5-24
Performance dampers ............................. 5-30
Phone Bluetooth
®hands-free phone system
(models with navigation system) .............. 4-80
Bluetooth®hands-free phone system
(models without navigation system) .......... 4-91
Car phone or CB radio ........................ 4-80
Power Front seat adjustment ........................... 1-3
Power door lock ................................. 3-4
Power outlet .................................... 2-37
Power steering fluid ........................... 8-12
Power steering system ........................ 5-25
Power windows ................................ 2-42
Precautions Audio operation ................................ 4-30
Braking precautions ........................... 5-25
Child restraints ................................. 1-17
Cruise control .................................. 5-21
Cruise control operations ..................... 5-17
Model "Z34-D" EDITED: 2010/ 7/ 28

Black plate (5,1)
Maintenance...................................... 8-5
Seat belt usage .................................. 1-8
Supplemental restraint system ................ 1-26
When starting and driving ....................... 5-2
Push starting ....................................... 6-15
Push warning
(Automatic Transmission models) ................. 2-17
Push-button ignition switch ................... 5-7, 5-8
R
Radio ............................................... 4-30
Car phone or CB radio ........................ 4-80
FM-AM radio with Compact Disc (CD)
player ........................................... 4-42
FM-AM-SAT radio with compact disc
(CD) changer (models without navigation
system) ......................................... 4-47
FM-AM-SAT radio with compact disc
(CD) player (models with navigation
system) ......................................... 4-51
Rapid air pressure loss .............................. 5-6
Readiness for inspection/maintenance (I/M)
test .................................................. 9-24
Rear hatch .......................................... 3-17
Rear hatch opener ................................. 3-17
Rear hatch opener switch ......................... 3-17
Rear parcel box .................................... 2-40
Rear window defroster switch .................... 2-29
RearView monitor
(models with navigation system) .................. 4-17
Recorders, Event data ............................. 9-24
Registering your vehicle in another country ...... 9-11
Remote keyless entry system ..................... 3-13
Repairing flat tire
(with emergency tire puncture repair kit) ........... 6-7Reporting safety defects
.......................... 9-23
Rollover ............................................... 5-5
Roof, Soft top ...................................... 3-21
S
Safety, Child seat belts ............................ 1-15
Satellite radio operation .................... 4-47, 4-52
Seat adjustment Front manual seat adjustment. .................. 1-4
Front power seat adjustment ................... 1-3
Front seats ....................................... 1-3
Seat belt(s) Child safety ..................................... 1-15
Infants ........................................... 1-15
Injured persons ................................. 1-11
Larger children ................................. 1-15
Precautions on seat belt usage ................. 1-8
Pregnant women ............................... 1-11
Seat belt cleaning ............................... 7-7
Seat belt extenders ............................ 1-14
Seat belt maintenance ......................... 1-14
Seat belt warning light and chime ............ 2-11
Seat belts ........................................ 1-8
Seat belts with pretensioners ................. 1-37
Three-point type ............................... 1-11
Seat(s) Climate controlled seats. ...................... 2-36
Heated seats ................................... 2-34
Seats .............................................. 1-2
Secondary rear hatch release ..................... 3-18
Secondary trunk lid release ....................... 3-21
Security system, Vehicle security system ........ 2-25
Security system (NISSAN Vehicle Immobilizer
System) , Engine start .............................. 2-26 Selector lever, Shift lock release
................. 5-15
Servicing air conditioner ........................... 4-30
SETTING button ................................... 4-10
Shift “P” warning
(Automatic Transmission models) ................. 2-17
Shift lock release, Transmission .................. 5-15
Shifting Automatic transmission ........................ 5-12
Manual transmission ........................... 5-16
Soft top Care and cleaning ............................... 7-3
If the top does not open or close ............ 3-28
Opening using the Intelligent Key ............ 3-26
Soft top indicator light .................. 2-14, 3-24
Soft top operation ............................. 3-21
Spare tire ............................................. 9-9
Spark plugs ........................................ 8-17
Speedometer ......................................... 2-5
Starting Before starting the engine .................... 5-10
Jump starting ................................... 6-13
Precautions when starting and driving ......... 5-2
Push starting ................................... 6-15
Starting the engine ............................ 5-11
STATUS button ...................................... 4-6
Status light, Front passenger air bag ............ 1-33
Steering Power steering fluid ........................... 8-12
Power steering system ........................ 5-25
Steering lock ..................................... 5-9
Steering lock release malfunction
indicator ........................................ 2-16
Steering-wheel-mounted controls for
audio ............................................ 4-77
Storage ............................................. 2-38
10-5
Model "Z34-D" EDITED: 2010/ 7/ 28
