2011 NISSAN 370Z ROADSTER tire type

Black plate (379,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire
sidewall. Snow tires have better snow traction
than All Season tires and may be more appro-
priate in some areas.Summer tiresNISSAN specifies summer tires on some
models to provide superior performance on dry
roads. Summer tire performance is substantially
reduced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, NISSAN recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.Snow tiresIf snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.If you install snow tires, they must be the same
brand, construction and tread pattern on all four
wheels, and the same sizes as the original tires.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction cap-
abilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
TIRE CHAINS
CAUTION
Tire chains/cables should not be in-
stalled on 19-inch size tires. Doing so
will cause damage to the vehicle. If you
plan to use tire chains/cables, you
should install 18-inch size tires on your
vehicle.
Use of tire chains may be prohibited according
to location. Check the local laws before instal-
ling tire chains. When installing tire chains, make
sure they are the proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions. Use only SAE
Class S chains. Class “S” chains are used on
vehicles with restricted tire to vehicle clearance. Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables) . The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when re-
commended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to the
fenders or underbody. If possible, avoid fully
loading your vehicle when using tire chains. In
addition, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
Never install tire chains on a TEMPORARY USE
ONLY spare tire.
Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.
Maintenance and do-it-yourself
8-35

Black plate (380,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

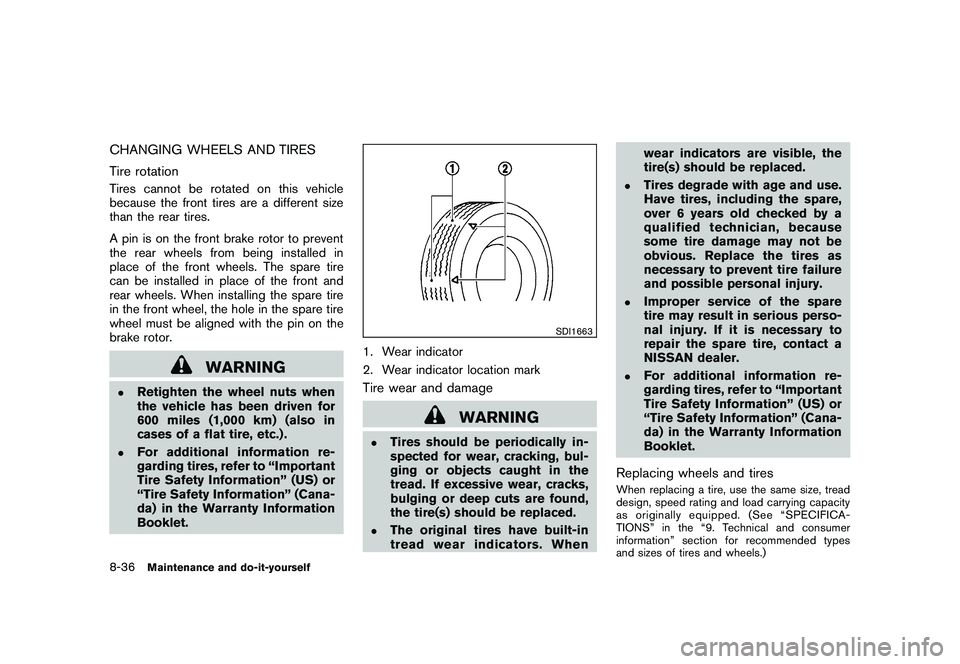

CHANGING WHEELS AND TIRES
Tire rotationTires cannot be rotated on this vehicle
because the front tires are a different size
than the rear tires.
A pin is on the front brake rotor to prevent
the rear wheels from being installed in
place of the front wheels. The spare tire
can be installed in place of the front and
rear wheels. When installing the spare tire
in the front wheel, the hole in the spare tire
wheel must be aligned with the pin on the
brake rotor.
WARNING
.
Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
.
For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
SDI1663
1. Wear indicator
2. Wear indicator location markTire wear and damage
WARNING
.
Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
.
The original tires have built-in
tread wear indicators. Whenwear indicators are visible, the
tire(s) should be replaced.
.
Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
.
Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
.
For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Replacing wheels and tiresWhen replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “SPECIFICA-
TIONS” in the “9. Technical and consumer
information” section for recommended types
and sizes of tires and wheels.)
8-36
Maintenance and do-it-yourself

Black plate (381,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

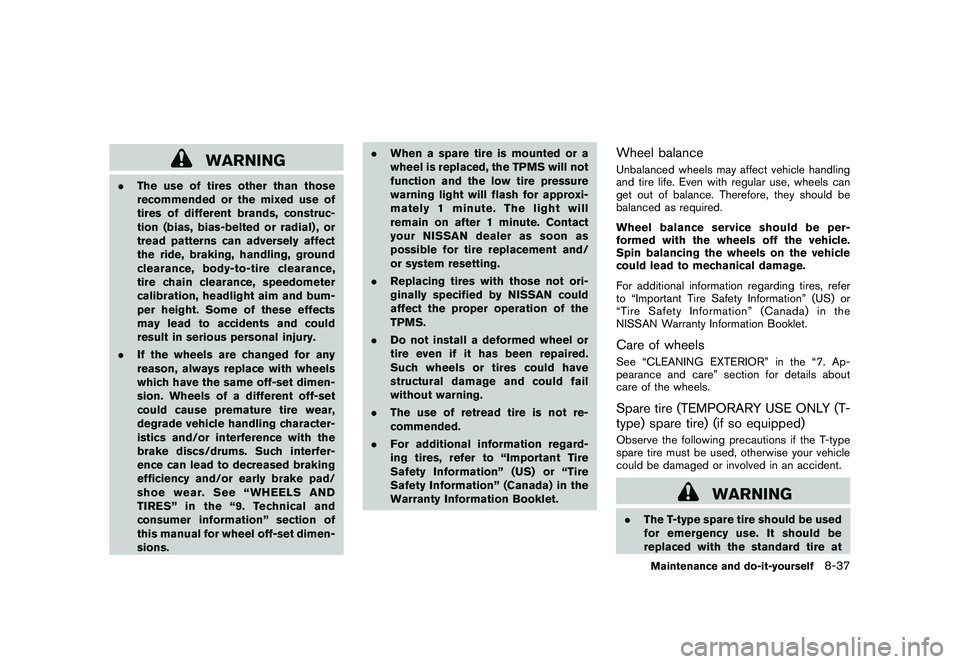

WARNING
.The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and
consumer information” section of
this manual for wheel off-set dimen-
sions. .
When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a deformed wheel or
tire even if it has been repaired.
Such wheels or tires could have
structural damage and could fail
without warning.
. The use of retread tire is not re-
commended.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the
Warranty Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
NISSAN Warranty Information Booklet.Care of wheelsSee “CLEANING EXTERIOR” in the “7. Ap-
pearance and care” section for details about
care of the wheels.Spare tire (TEMPORARY USE ONLY (T-
type) spare tire) (if so equipped)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
WARNING
.The T-type spare tire should be used
for emergency use. It should be
replaced with the standard tire at
Maintenance and do-it-yourself
8-37

Black plate (393,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
WHEELS AND TIRES
Road wheelTypeSizeOffset in (mm)
Conventional Front: 18
68J 1.69 (43)
Rear: 18 69J 0.59 (15)
Front: 19 69J 1.85 (47)
Rear: 19 610J 1.18 (30)
NISMO models Front: 1969.5J 1.57 (40)
Rear: 19 610.5J 0.90 (23)
Spare 17
64T*1 1.18 (30)
18 64T*1 0 (0)
*1: if so equipped
Technical and consumer information
9-9

Black plate (394,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

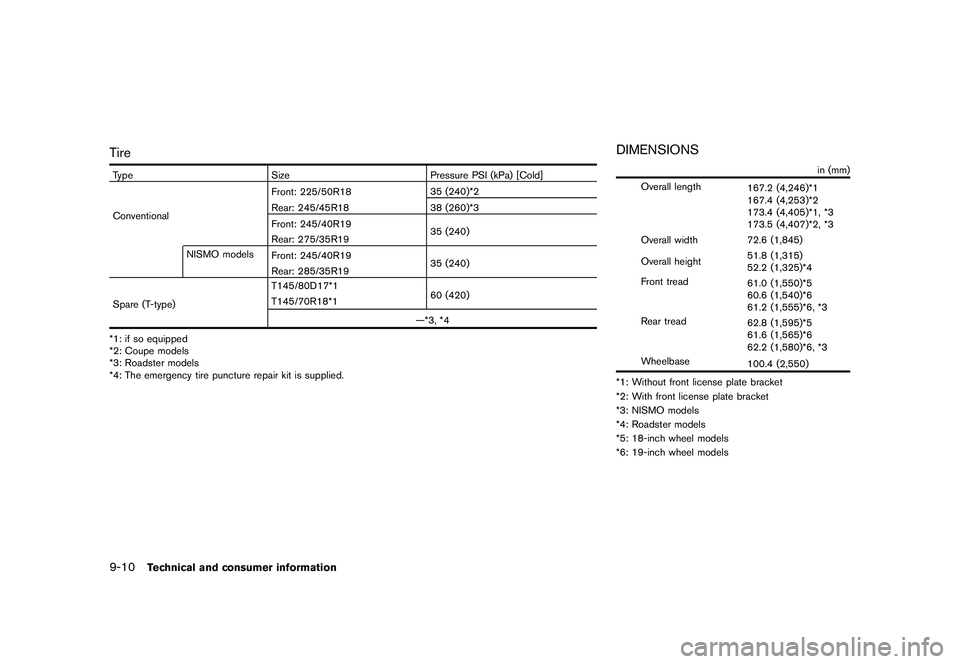

TireTypeSize Pressure PSI (kPa) [Cold]
Conventional Front: 225/50R18
35 (240)*2
Rear: 245/45R18 38 (260)*3
Front: 245/40R19 35 (240)
Rear: 275/35R19
NISMO models Front: 245/40R19
35 (240)
Rear: 285/35R19
Spare (T-type) T145/80D17*1
60 (420)
T145/70R18*1
—*3, *4
*1: if so equipped
*2: Coupe models
*3: Roadster models
*4: The emergency tire puncture repair kit is supplied.
DIMENSIONS
in (mm)
Overall length 167.2 (4,246)*1
167.4 (4,253)*2
173.4 (4,405)*1, *3
173.5 (4,407)*2, *3
Overall width 72.6 (1,845)
Overall height 51.8 (1,315)
52.2 (1,325)*4
Front tread 61.0 (1,550)*5
60.6 (1,540)*6
61.2 (1,555)*6, *3
Rear tread 62.8 (1,595)*5
61.6 (1,565)*6
62.2 (1,580)*6, *3
Wheelbase 100.4 (2,550)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: NISMO models
*4: Roadster models
*5: 18-inch wheel models
*6: 19-inch wheel models
9-10
Technical and consumer information

Black plate (5,1)
Maintenance...................................... 8-5
Seat belt usage .................................. 1-8
Supplemental restraint system ................ 1-26
When starting and driving ....................... 5-2
Push starting ....................................... 6-15
Push warning
(Automatic Transmission models) ................. 2-17
Push-button ignition switch ................... 5-7, 5-8
R
Radio ............................................... 4-30
Car phone or CB radio ........................ 4-80
FM-AM radio with Compact Disc (CD)
player ........................................... 4-42
FM-AM-SAT radio with compact disc
(CD) changer (models without navigation
system) ......................................... 4-47
FM-AM-SAT radio with compact disc
(CD) player (models with navigation
system) ......................................... 4-51
Rapid air pressure loss .............................. 5-6
Readiness for inspection/maintenance (I/M)
test .................................................. 9-24
Rear hatch .......................................... 3-17
Rear hatch opener ................................. 3-17
Rear hatch opener switch ......................... 3-17
Rear parcel box .................................... 2-40
Rear window defroster switch .................... 2-29
RearView monitor
(models with navigation system) .................. 4-17
Recorders, Event data ............................. 9-24
Registering your vehicle in another country ...... 9-11
Remote keyless entry system ..................... 3-13
Repairing flat tire
(with emergency tire puncture repair kit) ........... 6-7Reporting safety defects
.......................... 9-23
Rollover ............................................... 5-5
Roof, Soft top ...................................... 3-21
S
Safety, Child seat belts ............................ 1-15
Satellite radio operation .................... 4-47, 4-52
Seat adjustment Front manual seat adjustment. .................. 1-4
Front power seat adjustment ................... 1-3
Front seats ....................................... 1-3
Seat belt(s) Child safety ..................................... 1-15
Infants ........................................... 1-15
Injured persons ................................. 1-11
Larger children ................................. 1-15
Precautions on seat belt usage ................. 1-8
Pregnant women ............................... 1-11
Seat belt cleaning ............................... 7-7
Seat belt extenders ............................ 1-14
Seat belt maintenance ......................... 1-14
Seat belt warning light and chime ............ 2-11
Seat belts ........................................ 1-8
Seat belts with pretensioners ................. 1-37
Three-point type ............................... 1-11
Seat(s) Climate controlled seats. ...................... 2-36
Heated seats ................................... 2-34
Seats .............................................. 1-2
Secondary rear hatch release ..................... 3-18
Secondary trunk lid release ....................... 3-21
Security system, Vehicle security system ........ 2-25
Security system (NISSAN Vehicle Immobilizer
System) , Engine start .............................. 2-26 Selector lever, Shift lock release
................. 5-15
Servicing air conditioner ........................... 4-30
SETTING button ................................... 4-10
Shift “P” warning
(Automatic Transmission models) ................. 2-17
Shift lock release, Transmission .................. 5-15
Shifting Automatic transmission ........................ 5-12
Manual transmission ........................... 5-16
Soft top Care and cleaning ............................... 7-3
If the top does not open or close ............ 3-28
Opening using the Intelligent Key ............ 3-26
Soft top indicator light .................. 2-14, 3-24
Soft top operation ............................. 3-21
Spare tire ............................................. 9-9
Spark plugs ........................................ 8-17
Speedometer ......................................... 2-5
Starting Before starting the engine .................... 5-10
Jump starting ................................... 6-13
Precautions when starting and driving ......... 5-2
Push starting ................................... 6-15
Starting the engine ............................ 5-11
STATUS button ...................................... 4-6
Status light, Front passenger air bag ............ 1-33
Steering Power steering fluid ........................... 8-12
Power steering system ........................ 5-25
Steering lock ..................................... 5-9
Steering lock release malfunction
indicator ........................................ 2-16
Steering-wheel-mounted controls for
audio ............................................ 4-77
Storage ............................................. 2-38
10-5
Model "Z34-D" EDITED: 2010/ 7/ 28

Black plate (6,1)
10-6Sun visors.......................................... 3-36
Supplemental air bag warning labels ............. 1-38
Supplemental air bag warning light ....... 1-38, 2-12
Supplemental restraint system .................... 1-26
Precautions on supplemental restraint
system .......................................... 1-26
Switch Autolight switch ................................ 2-30
Fog light switch ................................ 2-33
Hazard warning flasher switch ................ 2-33
Headlight switch ............................... 2-30
Ignition switch .................................. 5-12
Ignition switch manual transmission
models .......................................... 5-16
Power door lock switch ......................... 3-5
Rear window defroster switch ................ 2-29
Turn signal switch .............................. 2-33
Vehicle dynamic control (VDC) off switch . . . 2-37
SynchroRev Match mode (S-MODE) ............ 5-17
T
Tachometer ........................................... 2-5
Temperature gauge, Engine coolant
temperature gauge ................................... 2-6
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ........................................ 2-26
Three-way catalyst ................................... 5-2
Tilt steering ......................................... 3-36
Tire Pressure, Low tire pressure warning light . . . 2-10
Sealant ............................................ 6-7
Tire replacement indicator ..................... 2-19
Tires Emergency tire puncture repair kit .............. 6-7Flat tire
............................................ 6-2
Low tire pressure warning system .............. 5-3
Spare tire ....................................... 8-37
Tire and Loading information label .... 8-30, 9-13
Tire chains ...................................... 8-35
Tire dressing ..................................... 7-5
Tire pressure ................................... 8-29
Tire pressure monitoring system
(TPMS) ..................................... 5-3, 6-2
Tire rotation .................................... 8-36
Types of tires ................................... 8-34
Uniform tire quality grading ................... 9-21
Wheel/tire size ................................... 9-9
Wheels and tires ............................... 8-29
Tonneau cover (see cargo cover) ................. 2-41
Top, Soft top ....................................... 3-21
Touch screen ......................................... 4-3
Towing Flat towing ...................................... 9-21
Tow truck towing ............................... 6-16
Towing a trailer ................................. 9-20
TPMS, Tire pressure monitoring system ........... 5-3
TPMS, Tire pressure warning system .............. 6-2
Trailer towing ....................................... 9-20
Transceiver, HomeLink
®Universal
Transceiver ......................................... 2-47
Transmission Automatic transmission fluid (ATF) ........... 8-12
Driving with automatic transmission .......... 5-12
Driving with manual transmission ............. 5-16
Transmission selector lever lock release ..... 5-15
Transmitter (See remote keyless entry
system) ............................................. 3-13
Traveling or registering your vehicle in another
country .............................................. 9-11 Trip computer
...................................... 2-20
Trip odometer ...................................... 2-21
Triple meter ........................................... 2-7
Trunk Interior trunk lid release ....................... 3-20
Light ............................................ 2-46
Secondary trunk lid release ................... 3-21
Trunk lid ........................................ 3-19
Trunk release power cancel switch ........... 3-19
Turn signal switch .................................. 2-33
U
Underbody cleaning ................................. 7-4
Uniform tire quality grading ....................... 9-21
USB memory operation ........................... 4-58
V
Vanity mirror ........................................ 3-39
Vanity mirror lights ................................. 2-45
Variable voltage control system ................... 8-16
Vehicle Dimensions ..................................... 9-10
Identification number (VIN) .................... 9-11
Information and settings
(models with navigation system) ................ 4-6
Information display ............................. 2-16
Loading information ............................ 9-18
Recovery (freeing a stuck vehicle) ............ 6-19
Security system ................................ 2-25
Vehicle dynamic control (VDC) off switch . . . 2-37
Vehicle dynamic control (VDC) system ...... 5-28
Ventilators .......................................... 4-23
Model "Z34-D" EDITED: 2010/ 7/ 28
