2011 MITSUBISHI TRITON gas type

Club cab
1- Door courtesy lamps*: 3.4 W
2- Front room lamp and
personal
lamps*:
7.5 W
3- Rear room lamp: 8 W
4- Glove box lamp: 1.4 W
5- Centre console downlight: 1.4 W
Double cab 1- Door courtesy lamps*: 3.4 W
2- Front room lamp and personal lamps: 7.5 W
3- Rear room lamp*: 8 W
4-

Glove box lamp: 1.4 W
5- Centre console downlight: 1.4 W Headlamps
E01003501375
Type 1 1. Remove the bulb and connector

assembly
(A) by turning it anticlockwise.
High beam
Low beam 2. Depress the tab (B) on the harness connector
and pull the harness
connector (C) to remove
it.
High beam Low beam 3. To install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle halogen lamp bulbs
with
care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Maintenance
8-25 8

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

Type 2
1. Disconnect the connector (A). 2. Remove the sealing cover (B).
3. Unhook the spring (C) which secures the
bulb, and then remove the headlamp bulb. 4. To install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Maintenance
8-26
8

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

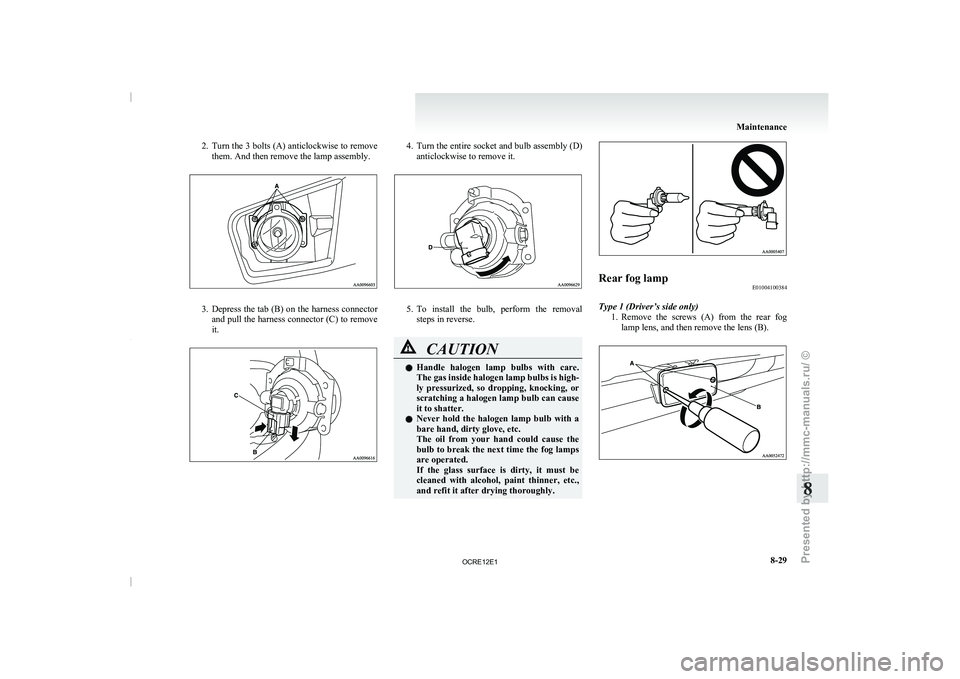

2. Turn the 3 bolts (A) anticlockwise to remove
them. And then remove the lamp assembly. 3. Depress the tab (B) on the harness connector
and pull the harness
connector (C) to remove
it. 4. Turn the entire socket and bulb assembly (D)
anticlockwise to remove it. 5. To install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle halogen lamp bulbs
with
care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying thoroughly. Rear fog lamp
E01004100384
Type 1 (Driver’s side only) 1. Remove the screws (A) from

the rear fog
lamp lens, and then remove the lens (B). Maintenance
