2011 MITSUBISHI TRITON lock

2. Turn the 3 bolts (A) anticlockwise to remove
them. And then remove the lamp assembly. 3. Depress the tab (B) on the harness connector
and pull the harness
connector (C) to remove
it. 4. Turn the entire socket and bulb assembly (D)
anticlockwise to remove it. 5. To install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle halogen lamp bulbs
with
care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying thoroughly. Rear fog lamp
E01004100384
Type 1 (Driver’s side only) 1. Remove the screws (A) from

the rear fog
lamp lens, and then remove the lens (B). Maintenance
8-29 8

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

2. Remove the bulb (C) by turning it anticlock-
wise while pressing it inward. 3. To install the bulb, perform the removal
steps in reverse.
Type 2 (Driver’s side only) 1. Remove the socket
and bulb assemblies by
turning it anticlockwise, and then remove the
bulb by pulling out. 2. To install the bulb, perform the removal
steps in reverse. Rear combination lamps
E01004200763
1. Open the rear gate.
(Refer to “Rear gate” on page 1-13.)
2. Remove the

screws (A) that hold the lamp unit. 3. Move the lamp unit towards the rear of the ve-
hicle and remove the clips (B). 4. Remove each socket and bulb assembly by
turning it anticlockwise. C- Rear turn-signal lamp
Remove the bulb by pulling it out.
D- Tail and stop lamp Remove the bulb from the socket by turn-
ing it anticlockwise while pressing in.
E- Reversing lamp Remove the bulb by pulling it out.
5. To install the bulb, perform the removal
steps in reverse.
NOTE l When mounting the
lamp

unit, align the pins
(F) and clip (G) on the lamp unit with the
holes (H) in the body. Maintenance
8-30
8

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

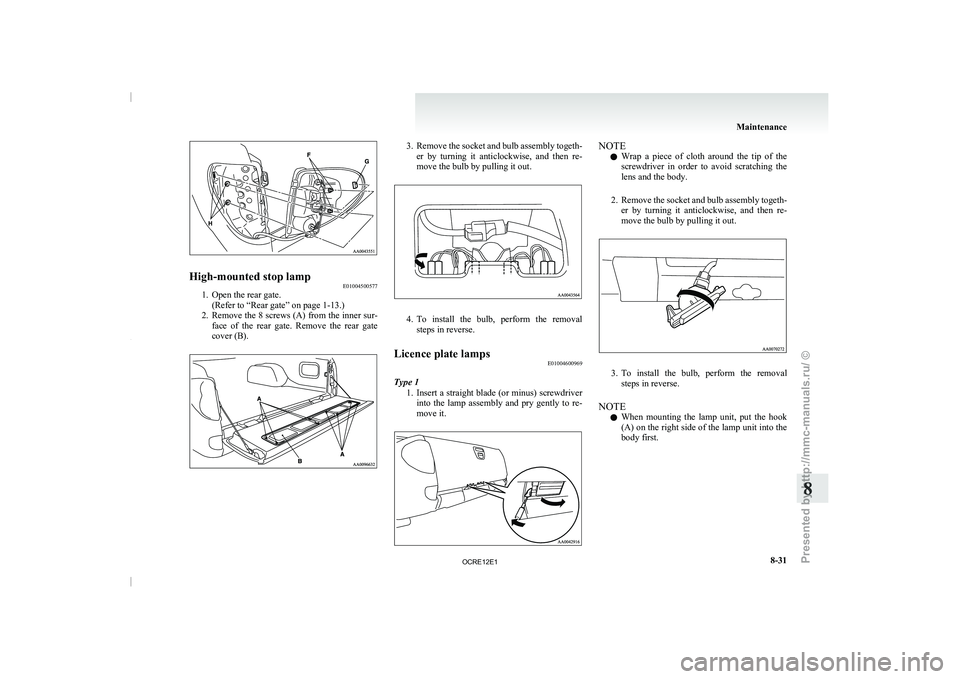

High-mounted stop lamp
E01004500577
1. Open the rear gate.
(Refer to “Rear gate” on page 1-13.)
2. Remove the 8
screws (A) from the inner sur-
face of the rear gate. Remove the rear gate
cover (B). 3. Remove the socket and bulb assembly togeth-
er by turning it
anticlockwise, and then re-
move the bulb by pulling it out. 4. To install the bulb, perform the removal
steps in reverse.
Licence plate lamps E01004600969
Type 1 1. Insert a straight blade
(or

minus) screwdriver
into the lamp assembly and pry gently to re-
move it. NOTE
l Wrap
a piece of cloth

around the tip of the
screwdriver in order to avoid scratching the
lens and the body.
2. Remove the socket and bulb assembly togeth- er by turning it anticlockwise, and then re-
move the bulb by pulling it out. 3. To install the bulb, perform the removal
steps in reverse.
NOTE l When mounting the
lamp

unit, put the hook
(A) on the right side of the lamp unit into the
body first. Maintenance
8-31 8

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

NOTE
l Wrap
a piece of cloth
around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal steps in reverse.
NOTE l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side. Glove box lamp
E01006100069
We recommend you to have the glove box lamp re-
placed by a specialist. Centre console downlight
E01008700144
Type 1Type 2 Type 1
We recommend you to
have

the centre console
downlight replaced by a specialist.
Type 2
1. Insert a straight blade (or minus) screwdriverwith a cloth over its tip at edge of the garnish
(A) and pry gently to remove it. 2. Turn the bulb socket (B) anticlockwise to re-
move it. 3. Remove the bulb by pulling out.
4. To install the bulb, perform the removal
steps in reverse. Maintenance
8-34
8

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

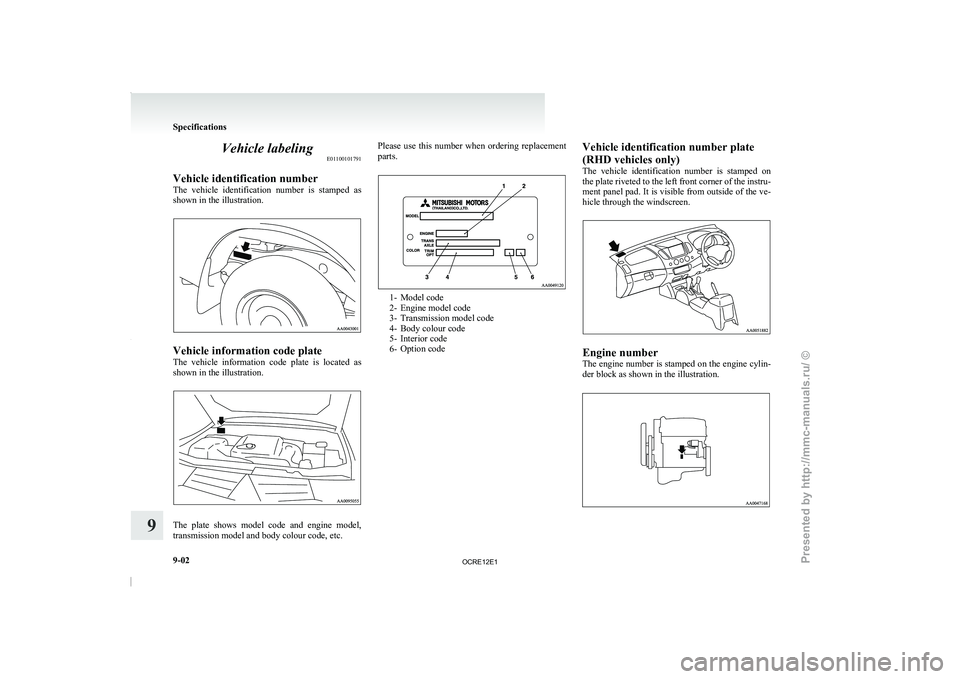

Vehicle labeling
E01100101791
Vehicle identification number
The vehicle identification number is
stamped as
shown in the illustration. Vehicle information code plate
The vehicle information code
plate

is located as
shown in the illustration. The plate shows model code and engine model,
transmission model and body colour code, etc. Please use this number when ordering replacement
parts.
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5-
Interior code
6-

Option code Vehicle identification number plate
(RHD vehicles only)
The vehicle identification number is

stamped on
the plate riveted to the left front corner of the instru-
ment panel pad. It is visible from outside of the ve-
hicle through the windscreen. Engine number
The engine number is
stamped

on the engine cylin-
