Overview
Center panel
N00100700154
Ty p e 1 Ty p e 2
Hazard warning flasher
switch P.3-230
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-31, 5-41
Ashtray P.3-276Front console box
P.3-286 Hazard warning flasher
switch P.3-230
Air conditioning
P.5-31, 5-41
Auxiliary Audio connecter
(RCA) (if so equipped)
P. 5 - 1 3 2
Auxiliary Video connecter
(RCA) (if so equipped)
P. 5 - 1 3 2 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-132
Auxiliary Video connecter (RCA)
(if so equipped) P.5-13212 V power outlet P.3-277 Audio (if so equipped) P.5-52, 5-80
Digital clock (if so equipped) P.5-149
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-52, 5-80
Digital clock (if so equipped) P.5-149
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear win-
dow defogger
switch P.3-240Electric rear
window defog-
ger switch
P. 3 - 2 4 0 Front passenger seat belt
warning light P.2-19 Front passenger seat belt
warning light P.2-19
12 V power outlet
P.3-277 Passenger’s airbag
off indicator P.2-43Passenger’s airbag
off indicator
P.2-43BK0119300US.book 5 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Overview
Interior
N00100301085
Adjustable seat belt shoulder
anchor (for front seats) P.2-20
Seat belts P.2-14
Supplemental restraint system - side airbag
(for front seats, if so equipped) P.2-52Front seats P.2-3Sun visors P.3-274
Vanity mirror P.3-274 Inside rearview mirror P.3-80
Head restraints P.2-10 Window lock switch P.3-73
Power window
switches P.3-69Power door lock
switch P.3-55 Electric remote-
controlled out-
side mirror switch
P. 3 - 8 2Dome light (Front)/Reading lights
(if so equipped) P.3-279, 7-59, 7-86Sunroof switch
(if so equipped)
P. 3 - 7 4
Bluetooth
® 2.0 interface microphone (if so equipped)
P. 3 - 2 4 2
Bottle holder (for front seat) P.3-289
BK0119300US.book 6 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2 Quick index
Anti-lock braking system warning light
When this light comes on, the anti-lock braking system is not func-
tioning and only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-142.

If the light does not go out after the test, or if it comes on again, we
recommend that you have the system checked at an authorized Mit-
subishi Motors dealer or a repair facility of your choice as soon as
possible.P.3-141,
3-142
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend
that you have the airbag and the pre-tensioner seat belt system
checked at an authorized Mitsubishi Motors dealer as soon as possi-
ble.P. 2 - 2 3 ,
2-44
Tire pressure monitoring system warning light
If the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-32.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.

If the warning light blinks for approximately 1 minute and then
remain continuously illuminated, the system is not operating properly.
If the system returns to normal, the warning light will go off. If the
warning light does not go off, have the vehicle inspected at an autho-
rized Mitsubishi Motors dealer.P.3-160
Warning light
Do this
Ref. page
BK0119300US.book 2 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

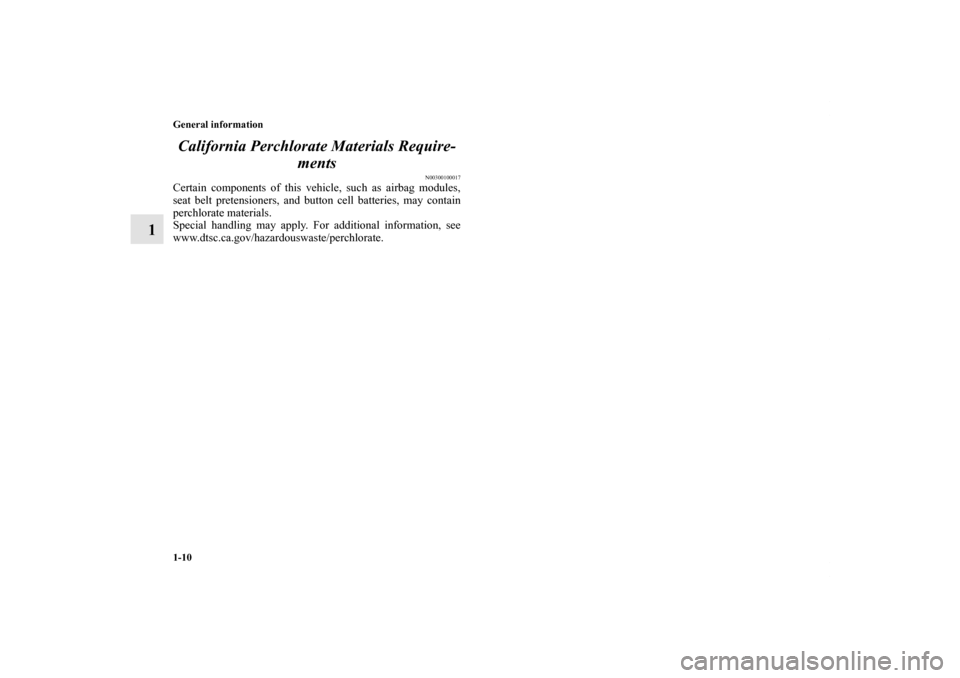

1-10 General information
1California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.BK0119300US.book 10 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2
Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 8
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 10
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 14
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 21
Seat belt pre-tensioner and force limiter systems .2- 22
Child restraint systems . . . . . . . . . . . . . . . . . . . . . .2- 24
Maintenance and inspection of seat belts. . . . . . . .2- 34
Supplemental Restraint System (SRS) - airbag . . .2- 35
BK0119300US.book 1 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600182
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:

That everyone in your vehicle is properly wearing their
seat belt.

That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.

That all doors are fully closed and locked.

That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800315
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.Except for RECARO seat RECARO seat
BK0119300US.book 3 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2-4 Seat and restraint systems
2
WA R N I N G
!
Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident.
After adjusting the seat, make sure that the seat is
securely locked into position.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
To reduce the risk to the front passenger of serious
injury or death during deployment of the passen-
ger’s airbag, always properly wear the seat belt and
adjust the front passenger’s seat as far back as pos-
sible.
Always place children 12 years old and under in the
rear seat and use appropriate child restraint sys-
tems.
CAUTION
!
Make sure that the seat is adjusted by an adult. If it
is adjusted by a child, an unexpected accident might
occur.
Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.
When sliding the seats, be careful not to catch your
hand or leg.
When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
BK0119300US.book 4 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2-6 Seat and restraint systems
2
RECARO seatAdjust the seatback angle by turning the dial. 1- To move to forward direction
2- To recline backward
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
