Page 114 of 700

Features and controls
3-19
3
Operating range of the F.A.S.T.-key
N00503200112
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s or
front passenger’s door lock/unlock switch or the trunk lid
OPEN switch, verification of the ID code is performed.
The F.A.S.T.-key enables the doors to be locked and unlocked,
the trunk lid to be opened and the engine to be started only
when the ID codes of the vehicle and F.A.S.T.-key match.NOTEWhen the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
Operating range for locking and unlocking the doors
and for opening the trunk lidThe operating range is within about 2.3 feet (70 cm) of the
driver’s and front passenger’s door lock/unlock switches, and
the center of the trunk lid.
*: Front of the vehicle
:Operating range
BK0119300US.book 19 ページ 2010年5月21日 金曜日 午前10時13分
Page 115 of 700

3-20 Features and controls
3
NOTEOnly the F.A.S.T.-key that is detectable by the doors and
the trunk lid can lock and unlock the doors and open the
trunk lid.
The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or trunk lid.
Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the driver’s or front passenger’s door lock/unlock
switch and center of the trunk lid, the system may not
operate if the key is close to the ground or in a high posi-
tion.
If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or open the trunk lid by pressing the driver’s or
front passenger’s door lock/unlock switch or the trunk lid
OPEN switch.
Operating range for starting the engine
N00503300025
The operating range is the interior of the vehicle.NOTEEven if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine if the key is in a
storage space such as the glove compartment, on top of
the instrument panel, or in the door pocket or trunk com-
partment.
Even if the F.A.S.T.-key is outside the vehicle, it may be
possible to start the engine if the key is too close to a door
or door window.
*: Front of the vehicle
:Operating range
BK0119300US.book 20 ページ 2010年5月21日 金曜日 午前10時13分
Page 119 of 700

3-24 Features and controls
3
Ignition switch
N00513500059
To prevent vehicle theft, no F.A.S.T.-keys other than those reg-
istered in advance can be used to start the engine. (Electronic
immobilizer function)
While carrying the F.A.S.T.-key, the ignition switch can be
turned to start the engine.LOCK (PUSH OFF)The position where the steering wheel is locked.LOCK (PUSH ON)When the ID code verification inside the vehicle produces a
match, the ignition switch can be turned.ACCAllows operation of electrical accessories with the engine off.
ONThe engine runs and all electrical accessories can be used.STARTEngages the starter. Release the ignition switch when the
engine starts. The ignition switch returns automatically to the
“ON” position.NOTEYour vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-41.)
If the ignition switch is not turned to the “LOCK (PUSH
OFF)” position when the engine is not running, the ID
code cannot be verified and the engine will not start even
if the ignition switch is turned to the “START” position. If
this happens, fully return the ignition switch to the
“LOCK (PUSH OFF)” position, and start the engine
again.
BK0119300US.book 24 ページ 2010年5月21日 金曜日 午前10時13分
Page 120 of 700

Features and controls
3-25
3
To turn from “LOCK (PUSH OFF)” to “ACC”
N00513600021
Turn slowly after pressing the ignition switch.NOTETo turn the ignition switch from the “LOCK (PUSH
OFF)” position to the “ACC” position, push the ignition
switch again, turn the steering wheel in both directions
and then turn the ignition switch.
The ignition switch cannot be turned unless the F.A.S.T.-
key is inside the vehicle.
Refer to “Operating range for starting the engine” on page
3-20.
To turn from “ACC” to “LOCK”
N00513700051
For vehicles with manual transaxle
Slowly turn the ignition switch to the “LOCK” position while
pressing it.
For vehicles with continuously variable transmission
(CVT) or Twin Clutch SST (sportronic shift transmission)
First, set the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) to the “P” (PARK) position, and then slowly turn
the ignition switch to the “LOCK” position while pressing it.NOTEFor vehicle with CVT or Twin Clutch SST, the ignition
switch cannot be turned to the “LOCK” position unless
the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) is in the “P” (PARK) position.
A- Steering wheel locked
B- Steering wheel lock released
BK0119300US.book 25 ページ 2010年5月21日 金曜日 午前10時13分
Page 121 of 700

3-26 Features and controls
3
Warning activation
N00503500160
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized Mit-
subishi Motors dealer.
CAUTION
!If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.Do not leave the ignition switch in the “ON” position
for a long time when the engine is not running.
Doing so could lead to a dead battery.Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
Ty p e 1
Ty p e 2There is a problem in the F.A.S.T.-key
BK0119300US.book 26 ページ 2010年5月21日 金曜日 午前10時13分
Page 123 of 700

3-28 Features and controls
3

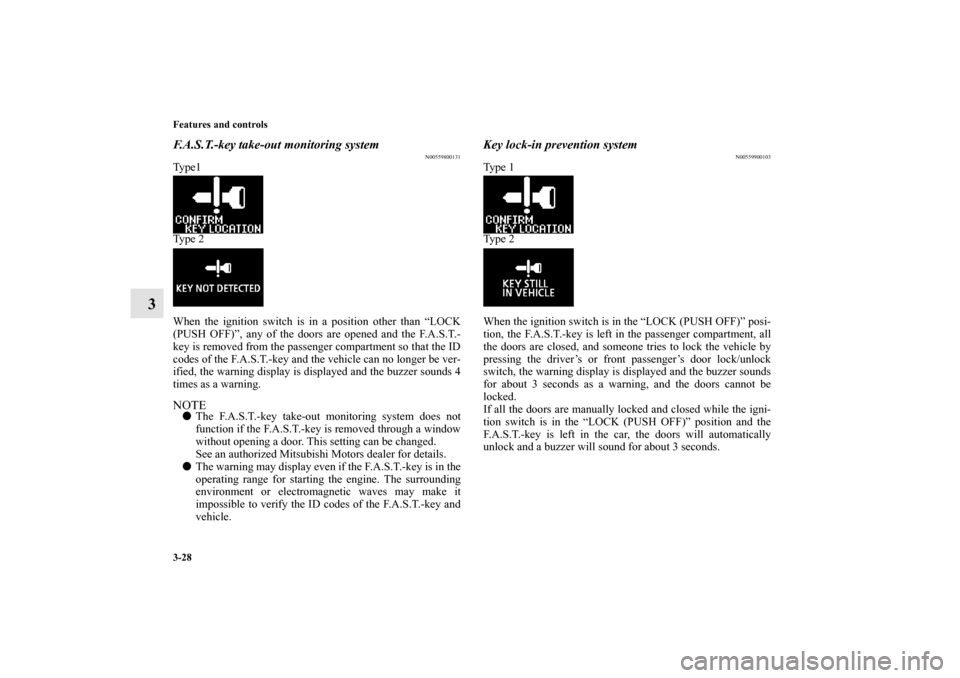

F.A.S.T.-key take-out monitoring system
N00559800131
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, any of the doors are opened and the F.A.S.T.-
key is removed from the passenger compartment so that the ID
codes of the F.A.S.T.-key and the vehicle can no longer be ver-
ified, the warning display is displayed and the buzzer sounds 4
times as a warning.NOTEThe F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door. This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900103
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors are closed, and someone tries to lock the vehicle by
pressing the driver’s or front passenger’s door lock/unlock
switch, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors cannot be
locked.
If all the doors are manually locked and closed while the igni-
tion switch is in the “LOCK (PUSH OFF)” position and the
F.A.S.T.-key is left in the car, the doors will automatically
unlock and a buzzer will sound for about 3 seconds.
BK0119300US.book 28 ページ 2010年5月21日 金曜日 午前10時13分
Page 125 of 700

3-30 Features and controls
3
Steering wheel lock
N00514300025
To l o c kTurn the ignition switch to the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the ignition switch to the “ACC” position while moving
the steering wheel slightly.
NOTEIf the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the ignition switch
from “LOCK” to “ACC” position. Firmly turn the steer-
ing wheel to the left or to the right as you turn the ignition
switch.Starting
N00514600174
Tips for startingDo not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.
A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of the engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch in the “ON” position)” on page 3-180.
On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
• You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
CAUTION
!Carry the key with you when leaving the vehicle.If your vehicle needs to be towed, turn the ignition
switch to the “ACC” position to unlock the steering
wheel.
BK0119300US.book 30 ページ 2010年5月21日 金曜日 午前10時13分
Page 126 of 700

Features and controls
3-31
3
• If you shift the gearshift lever into the “N” (NEUTRAL)
position and depress the accelerator pedal, increases in
the engine speed will be limited.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Press and hold the brake pedal down with your right foot.
3. Press and hold the clutch pedal all the way down (manual
transaxle).NOTEFor models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.
WA R N I N G
!Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!Do not push-start the vehicle.Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0119300US.book 31 ページ 2010年5月21日 金曜日 午前10時13分
