2011 MITSUBISHI GALANT Back up light

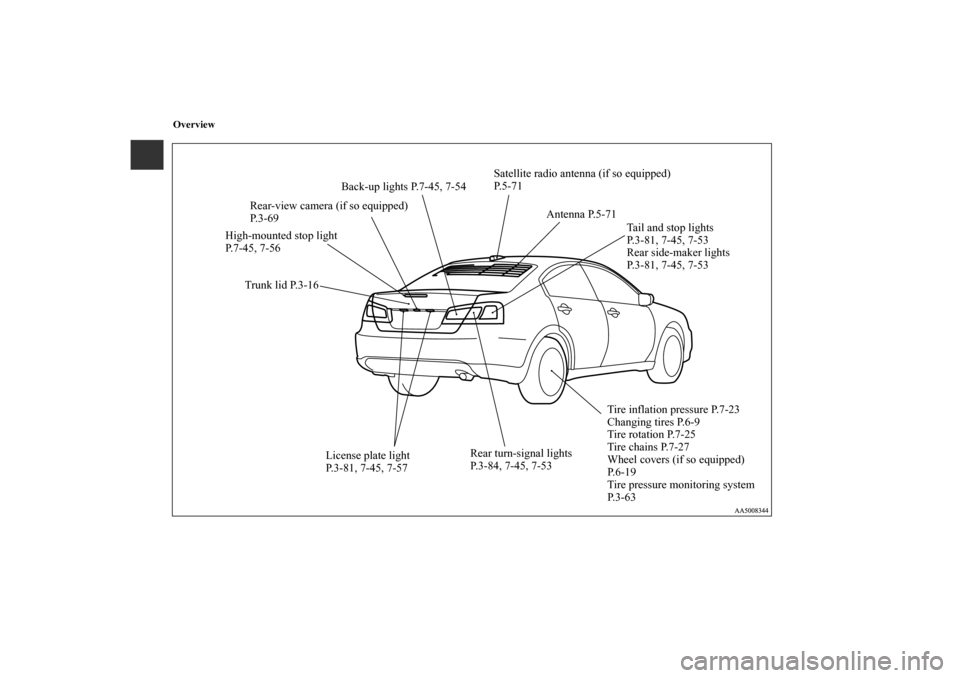

Overview
License plate light
P.3-81, 7-45, 7-57 Trunk lid P.3-16Tail and stop lights
P.3-81, 7-45, 7-53
Rear side-maker lights
P.3-81, 7-45, 7-53
Rear turn-signal lights
P.3-84, 7-45, 7-53Tire inflation pressure P.7-23
Changing tires P.6-9
Tire rotation P.7-25
Tire chains P.7-27
Wheel covers (if so equipped)
P. 6 - 1 9
Tire pressure monitoring system
P. 3 - 6 3 Back-up lights P.7-45, 7-54
High-mounted stop light
P.7-45, 7-56Antenna P.5-71 Satellite radio antenna (if so equipped)
P. 5 - 7 1
Rear-view camera (if so equipped)
P. 3 - 6 9
BK0121200US.book 7 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

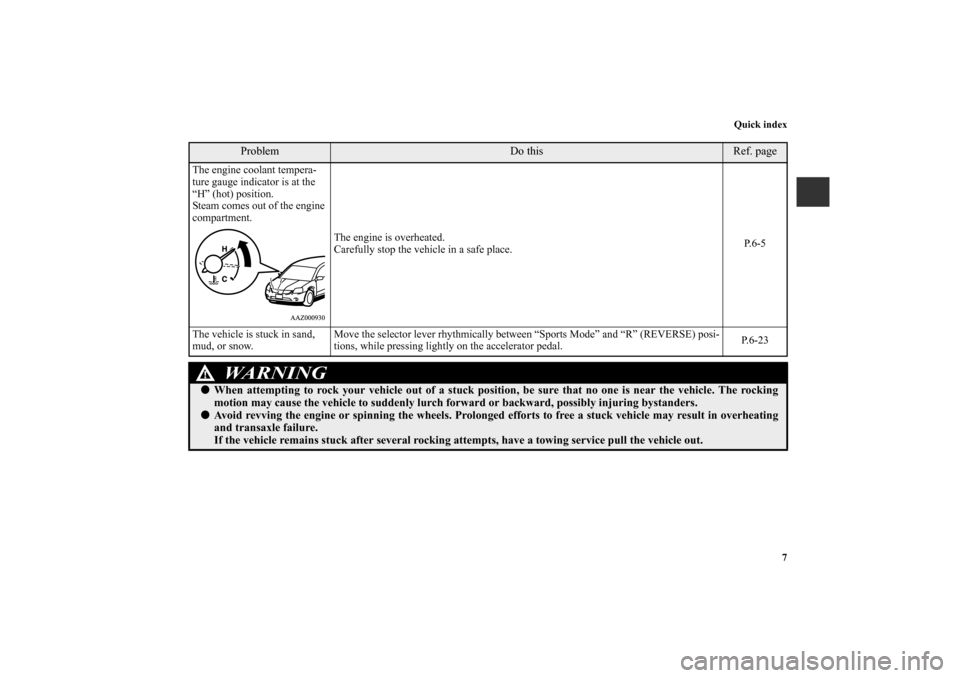

Quick index
7
Problem
Do this
Ref. page
The engine coolant tempera-
ture gauge indicator is at the
“H” (hot) position.
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
The vehicle is stuck in sand,
mud, or snow.Move the selector lever rhythmically between “Sports Mode” and “R” (REVERSE) posi-
tions, while pressing lightly on the accelerator pedal.P.6-23
WA R N I N G
!
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
BK0121200US.book 7 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

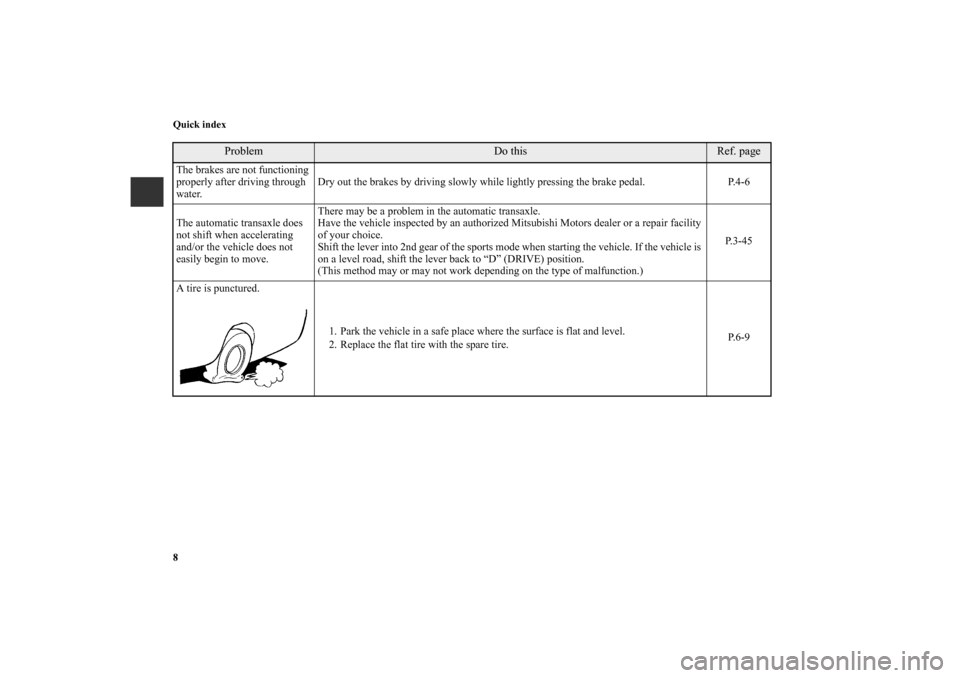

8 Quick index
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-6
The automatic transaxle does
not shift when accelerating
and/or the vehicle does not
easily begin to move. There may be a problem in the automatic transaxle.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Shift the lever into 2nd gear of the sports mode when starting the vehicle. If the vehicle is
on a level road, shift the lever back to “D” (DRIVE) position.
(This method may or may not work depending on the type of malfunction.)P.3-45
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6 - 9BK0121200US.book 8 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

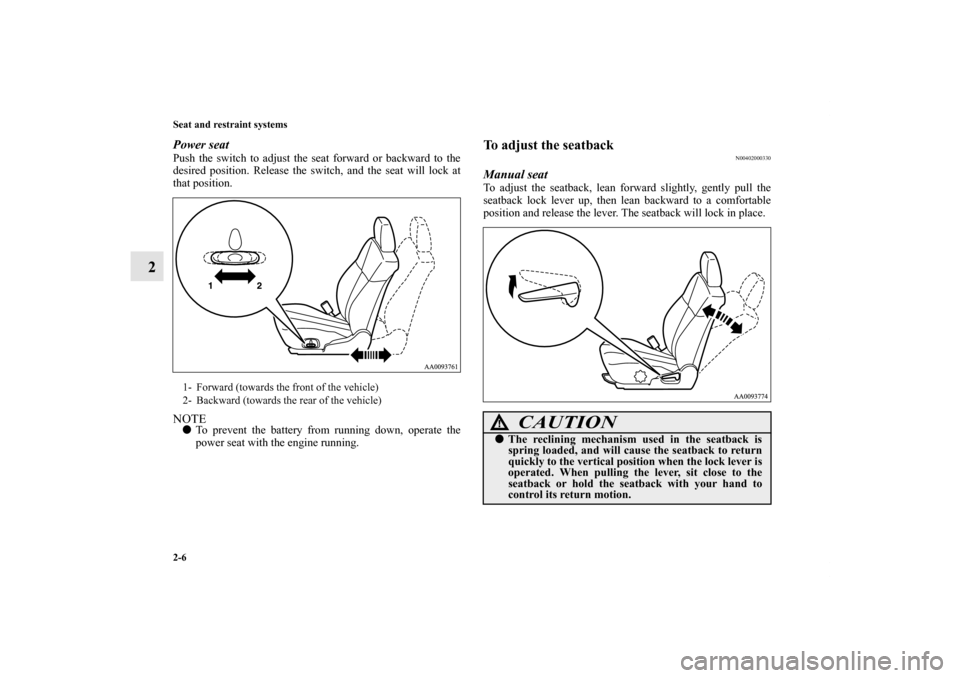

2-6 Seat and restraint systems
2
Power seatPush the switch to adjust the seat forward or backward to the
desired position. Release the switch, and the seat will lock at
that position.NOTE
To prevent the battery from running down, operate the
power seat with the engine running.
To adjust the seatback
N00402000330
Manual seatTo adjust the seatback, lean forward slightly, gently pull the
seatback lock lever up, then lean backward to a comfortable
position and release the lever. The seatback will lock in place.
1- Forward (towards the front of the vehicle)
2- Backward (towards the rear of the vehicle)
CAUTION
!
The reclining mechanism used in the seatback is
spring loaded, and will cause the seatback to return
quickly to the vertical position when the lock lever is
operated. When pulling the lever, sit close to the
seatback or hold the seatback with your hand to
control its return motion.
BK0121200US.book 6 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

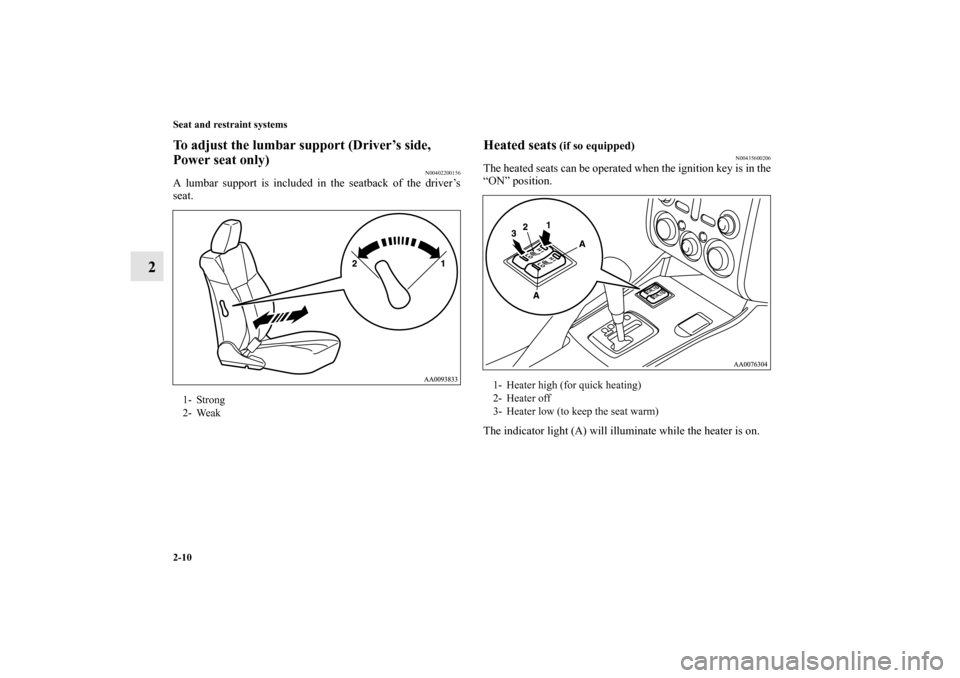

2-10 Seat and restraint systems
2
To adjust the lumbar support (Driver’s side,
Power seat only)
N00402200156
A lumbar support is included in the seatback of the driver’s
seat.
Heated seats
(if so equipped)
N00435600206
The heated seats can be operated when the ignition key is in the
“ON” position.
The indicator light (A) will illuminate while the heater is on.
1- Strong
2- Weak
1- Heater high (for quick heating)
2- Heater off
3- Heater low (to keep the seat warm)
BK0121200US.book 10 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

2-20 Seat and restraint systems
2
NOTE
With the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-34). When the ALR function has been activated,
the seat belt will only retract. If this happens, let the belt
fully retract, then pull the seat belt back out, repeating
steps 1 through 4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
Driver’s seat belt reminder/warning light
N00418400153
A tone and warning light are used to remind the driver to fasten
the seat belt.
When the ignition key is turned to the “ON” position, the warn-
ing light will come on and a tone will sound for about 6 sec-
onds. If the driver’s seat belt remains unfastened
approximately 1 minute later, the warning light will flash and
the tone will sound intermittently (12 times each) when the
vehicle is driven. If the driver subsequently unfastens the seat
belt while driving, the warning light and tone will issue further
warnings. And if the seat belt remains unfastened, the warning
light and tone will issue further warnings each time the vehicle
starts moving from a stop. When the seat belt is fastened, the
warnings will stop.
WA R N I N G
!
Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.
Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0121200US.book 20 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

2-26 Seat and restraint systems
2Seat belt pre-tensioner and force limiter
systems
N00417700175
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner system The driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In moderate-to-severe frontal
collisions, this system operates simultaneously with the
deployment of the front air bags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.The seat belt pre-tensioner system includes the following com-
ponents:
The air bag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The pre-tensioner seat belts will operate only when the ignition
switch is in the “ON” or “START” position.
1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioners
4- Seat belt buckle switches
5- Air bag control unit
BK0121200US.book 26 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

2-44 Seat and restraint systems
2
Driver’s seat position sensor
N00417900092
The driver’s seat position sensor is attached to the seat rail and
provides the air bag control unit with information on the seat’s
fore-aft position. The air bag control unit controls deployment
of the driver’s front air bag in accordance with the information
it receives from this sensor.
If there is a problem involving the driver’s seat position sensor,
the SRS warning light in the instrument panel will come on.
Refer to “SRS warning light” on page 2-47.
Passenger’s seat weight sensors
N00418000087
The passenger’s seat weight sensors are attached to the seat
rails and provide the air bag control unit with information
regarding the weight on the front passenger seat. The air bag
control unit controls deployment of the passenger’s front air
bag in accordance with the information it receives from this
sensor.
The passenger’s front air bag will not deploy in an impact
when the weight on the seat is sensed to be less than approxi-
mately 66 pounds (30 kg). In this case, the passenger’s air bag
off indicator will come on.
Refer to “Passenger’s air bag off indicator” on page 2-46.
If there is a problem involving the passenger’s seat weight sen-
sors, the SRS warning light in the instrument panel will come
on. Refer to “SRS warning light” page 2-47.
WA R N I N G
!
If the SRS warning light comes on, have the vehicle
inspected by an authorized Mitsubishi Motors
dealer as soon as possible.
Please observe the following instructions to ensure
that the driver’s seat position sensor can operate
correctly.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seat” on page 2-4.
• Do not recline the seatback more than necessary
when driving.
• Do not place metallic objects or luggage under the
front seat.

If the vehicle is involved in a severe impact, have the
sensor inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
WA R N I N G
!
If any of the following conditions occur, you should
immediately have your vehicle inspected by an
authorized Mitsubishi Motors dealer as soon as pos-
sible:
• The SRS warning light does not initially come on
when the ignition key is turned to the “ON” or
“START” position.
• The SRS warning light does not go out after sev-
eral seconds.
• The SRS warning light comes on while you are
driving.
BK0121200US.book 44 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
