7-52 Vehicle care and maintenance
7

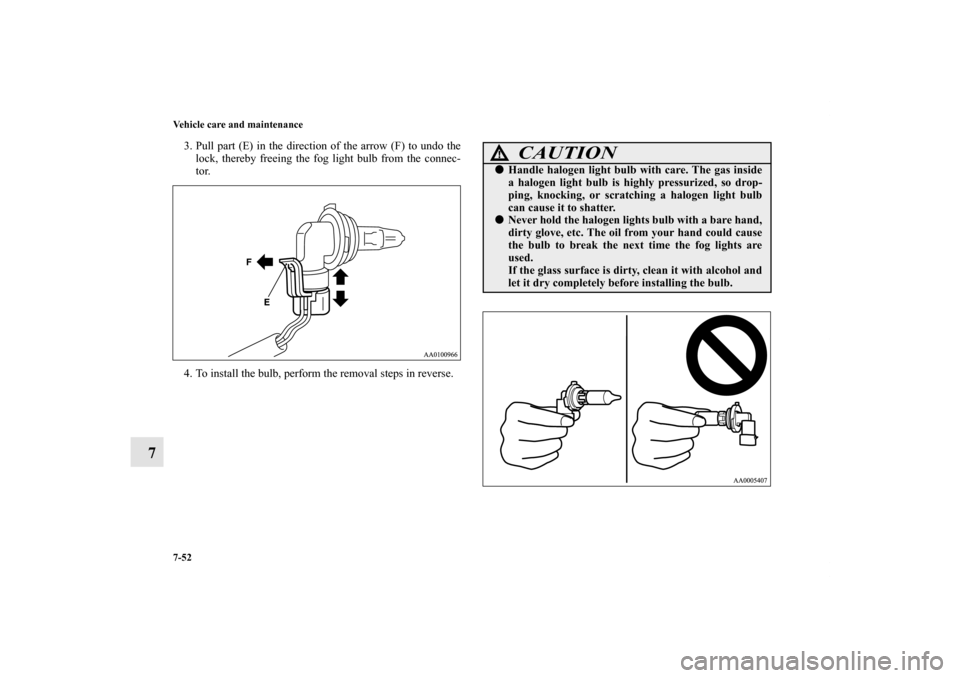

3. Pull part (E) in the direction of the arrow (F) to undo the
lock, thereby freeing the fog light bulb from the connec-
tor.
4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0121200US.book 52 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-53
7

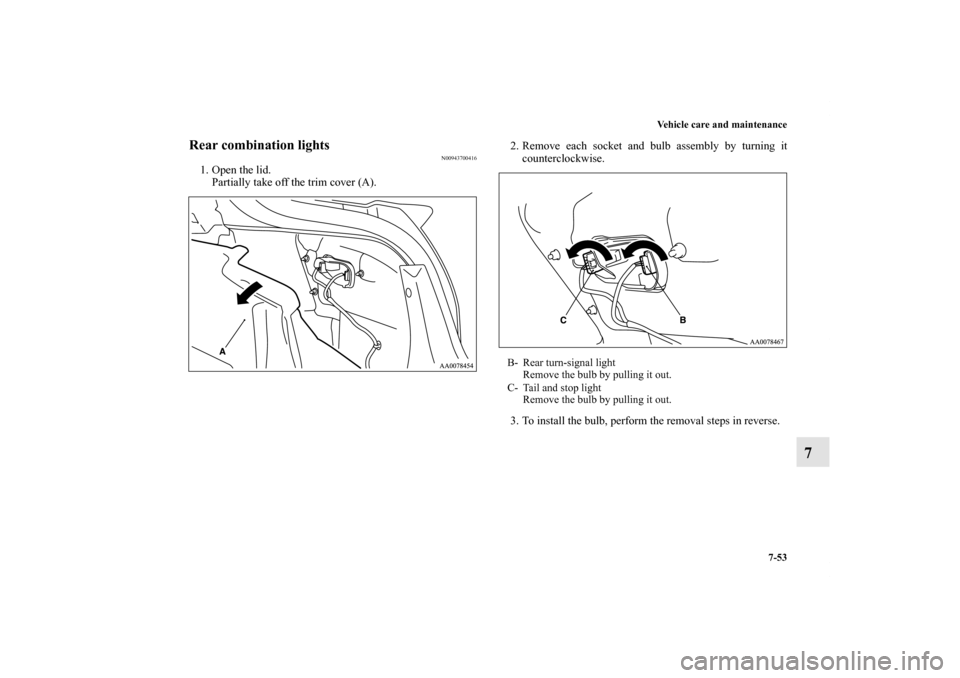

Rear combination lights
N00943700416
1. Open the lid.
Partially take off the trim cover (A).2. Remove each socket and bulb assembly by turning it
counterclockwise.
3. To install the bulb, perform the removal steps in reverse.
B- Rear turn-signal light
Remove the bulb by pulling it out.
C- Tail and stop light
Remove the bulb by pulling it out.
BK0121200US.book 53 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-54 Vehicle care and maintenance
7

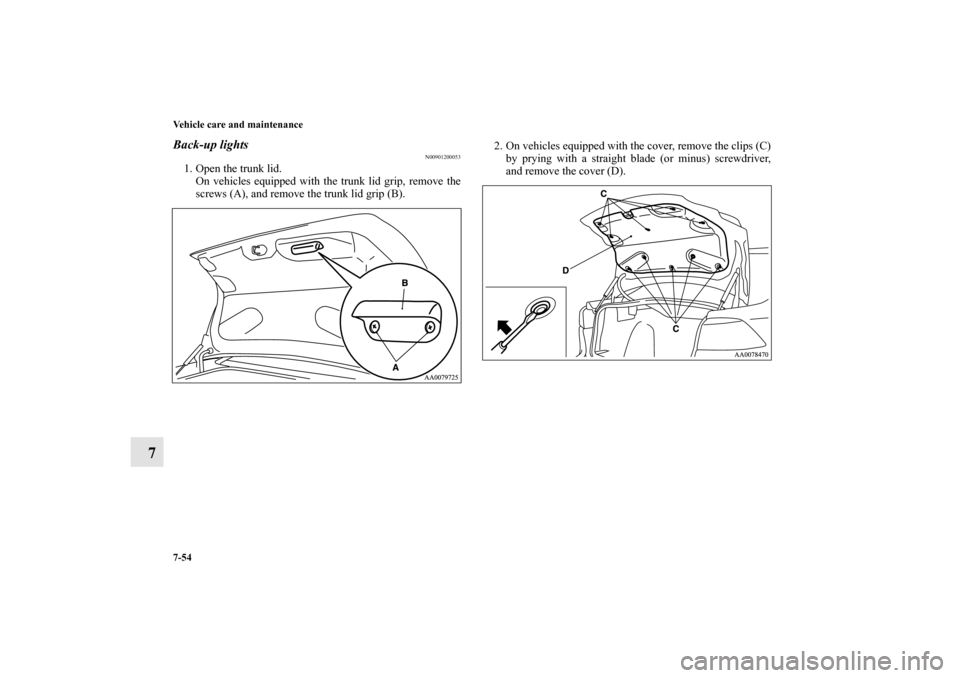

Back-up lights
N00901200053
1. Open the trunk lid.
On vehicles equipped with the trunk lid grip, remove the
screws (A), and remove the trunk lid grip (B).2. On vehicles equipped with the cover, remove the clips (C)
by prying with a straight blade (or minus) screwdriver,
and remove the cover (D).
BK0121200US.book 54 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-55
7

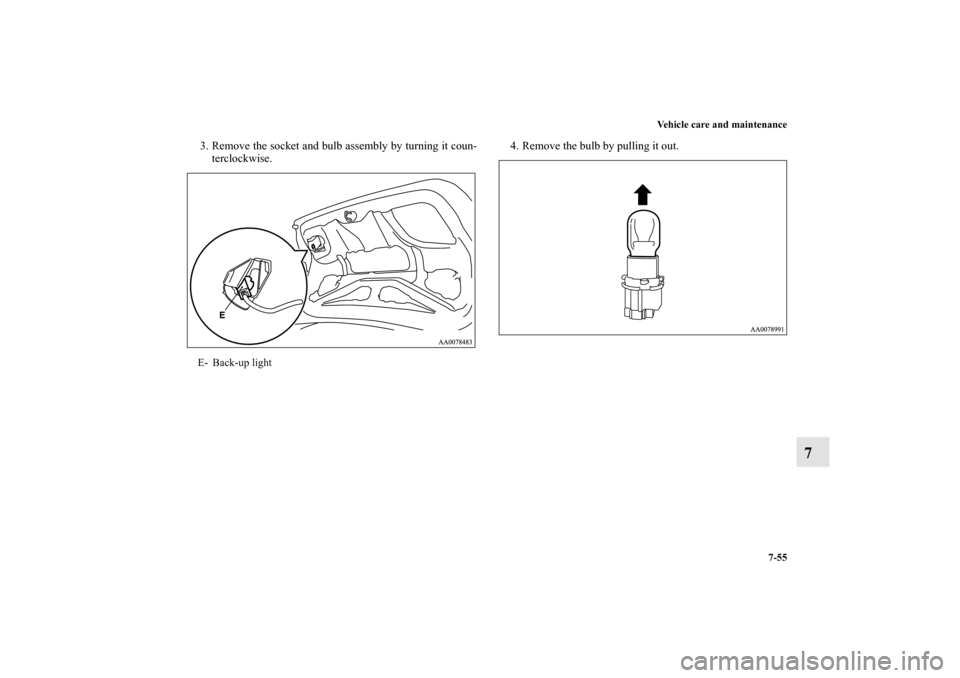

3. Remove the socket and bulb assembly by turning it coun-
terclockwise.4. Remove the bulb by pulling it out.E- Back-up light
BK0121200US.book 55 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-56 Vehicle care and maintenance
7

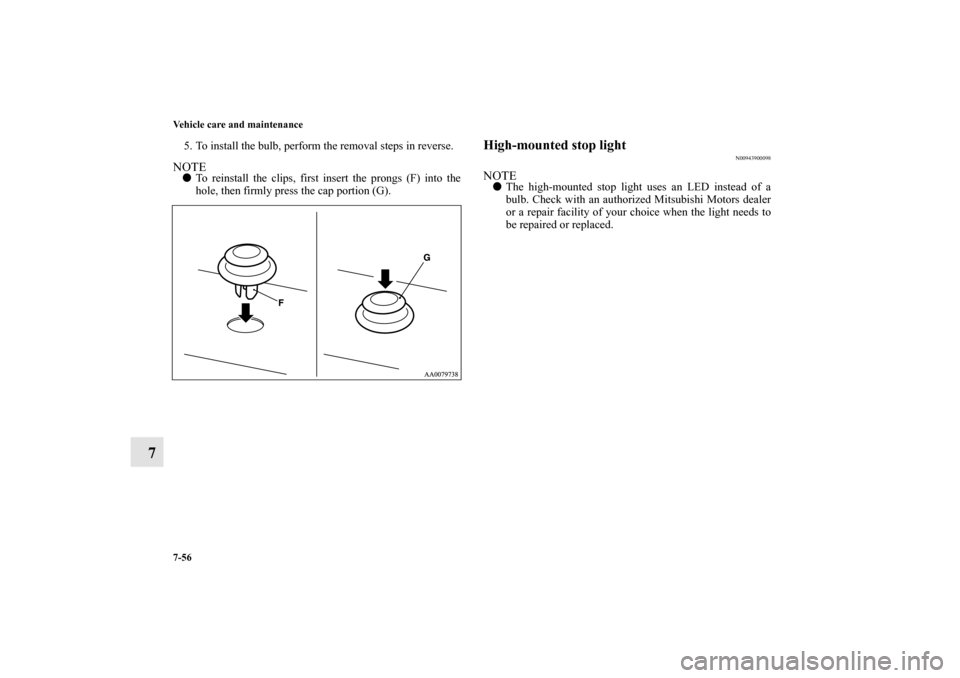

5. To install the bulb, perform the removal steps in reverse.NOTE
To reinstall the clips, first insert the prongs (F) into the
hole, then firmly press the cap portion (G).
High-mounted stop light
N00943900098
NOTE
The high-mounted stop light uses an LED instead of a
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
BK0121200US.book 56 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-57
7

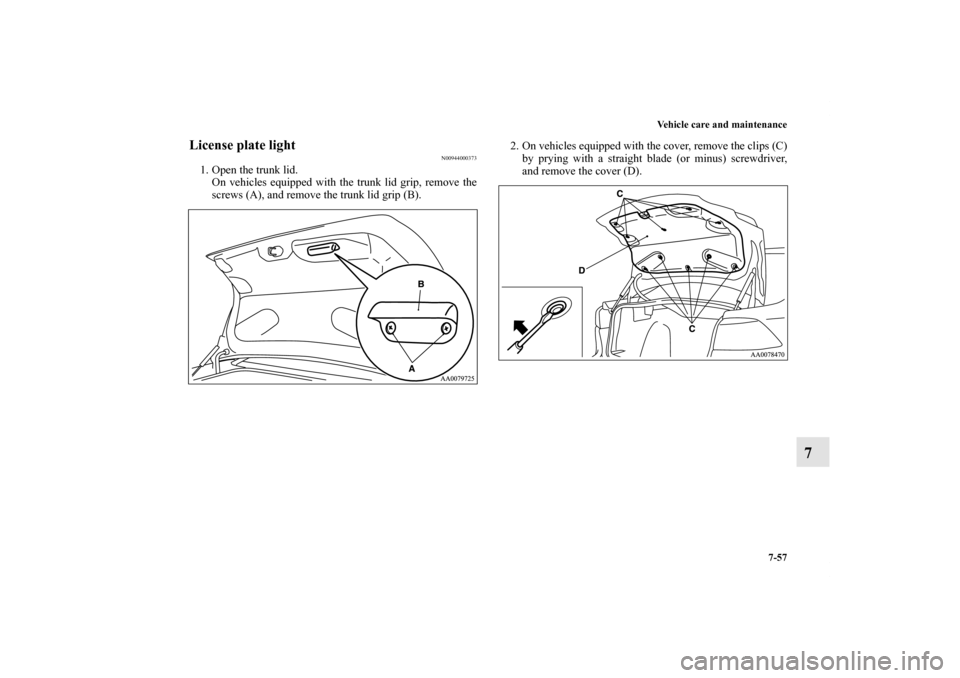

License plate light
N00944000373
1. Open the trunk lid.
On vehicles equipped with the trunk lid grip, remove the
screws (A), and remove the trunk lid grip (B).2. On vehicles equipped with the cover, remove the clips (C)
by prying with a straight blade (or minus) screwdriver,
and remove the cover (D).
BK0121200US.book 57 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-59
7
Dome light
N00944100231
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.Reading lights
N00944400104
Have the reading light bulbs replaced at an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
Glove compartment light
(if so equipped)
N00954200020
Have the glove compartment light bulbs replaced at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
Front
BK0121200US.book 59 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-60 Vehicle care and maintenance
7
Trunk room light
N00944800081
1. Pull both clips (A) away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.
2. To install the bulb, perform the removal steps in reverse.
Vanity mirror lights
(if so equipped)
N00952800064
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
