2011 MITSUBISHI GALANT engine

9-6 Specifications
9Engine specifications
N01147700484
Engine model 4G69Engine displacement 145.1 CID (2,378 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore3.43 in (87.0 mm)Stroke3.9 in (100.0 mm)Compression ratio 9.5Thermostat valve opening temperature 188.6 °F (87.0 °C)Spark plugs
NGK LZFR6AI
Spark plug gap .028 to .031 in (0.7 to 0.8 mm)Firing order1-3-4-2BK0121200US.book 6 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Specifications
9-7
9 Battery
N01147800238
Battery is a 12 volt type.NOTE
There are various size of batteries in BCI Groups No.86.
When you replace the battery, confirm the size of the
replacement battery will not interfere with other compo-
nents in the engine compartment.
Tires and wheels
N01147900620
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
BCI Group No.86
Tire P215/60R16 94T P235/45R18 94VWheel
Size 16 x 6 1/2JJ 18 x 8JPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0121200US.book 7 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

9-8 Specifications
9Capacities
N01148000859
Item
Capacity
Lubricants
Fuel (approximate) 17.7 gal (67.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying ILSAC certification mark (“starburst”
symbol) on the container.
If these oils are not available, an API classification SM can
be used.Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Automatic transaxle 8.1 qt (7.7 L) DIAMOND ATF SP III Brake As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.6 L) in reserve tank}8.5 qt (8.0 L) Long Life Antifreeze Coolant or an equivalentWindshield washer fluid 4.2 qt (4.0 L) — Refrigerant (air conditioning)Refer to the air
conditioning label
on page 9-2.HFC-134a BK0121200US.book 8 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Alphabetical index
2Parking brake lever stroke 7-28
Pedal 3-47
Pedal free play 7-28
Power brakes 3-48
Service brake 3-47
Warning light 3-78
Break-in recommendations 3-2
Bulb capacity 7-45
C
California Perchlorate Materials Requirements 1-9
Capacities 9-8
Cargo loads 4-12
Catalytic converter 7-3
Certification label 9-4
Charging system warning light 3-80
Child restraints 2-28
Child safety locks for rear door 3-15
Cleaning
Inside of your vehicle 7-62
Outside of your vehicle 7-63
Clock 3-123
Coat hooks 3-134
Combination headlights and dimmer switch 3-81
Consumer information 8-2
Coolant (engine) 7-9
,9-8
Cruise control 3-57
Indicator light 3-58
Cup holder 3-133
D
Defogger (rear window) 3-90
Digital clock 3-123
Dimensions 9-4
Dimmer (high/low beam change) 3-83
Disc brake pads 7-31
Dome light 3-129
Capacity 7-46
Replacement 7-59
Door-ajar warning buzzer 3-80
Door-ajar warning light 3-80
Doors
Lock 3-12
Power door locks 3-14
Drive belt 7-32
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
E
Electric rear window defogger switch 3-90
Electronic immobilizer (Anti-theft starting system) 3-3
Emission-control system maintenance 7-29
Engine
Compartment 7-6
Coolant 7-9
,9-8
Coolant temperature gauge 3-76
Hood 7-4
Malfunction indicator light 3-79
BK0121200US.book 2 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Alphabetical index
3
Oil and oil filter 7-6
,9-8
Overheating 6-5
Serial number 9-2
Specifications 9-6
Error codes 5-64
,5-66
Exhaust system 7-33
F
Filling the fuel tank 1-4
Floor console box 3-132
Fluid
Automatic transaxle fluid 7-12
,9-8
Brake fluid 7-14
,9-8
Engine coolant 7-9,9-8
Power steering fluid 7-15
,9-8
Washer fluid 7-13
,9-8
Fluid capacities and lubricants 9-8
Fog lights
Indicator 3-78
Switch 3-86
For cold and snowy weather 7-34
Front fog light
Capacity 7-45
Front fog lights
Replacement 7-51
Front seats 2-4
Front side-marker lights
Capacity 7-45
Front turn-signal lightsCapacity 7-45
Fuel
Fuel economy 4-2
Fuel gauge 3-75
Fuel hoses 7-30
Low-fuel warning light 3-75
Modification/alterations to the electrical or fuel systems 1-8
Tank capacity 9-8
Fuel selection 1-2
Fuse links 7-34
Fuses 7-35
Block location 7-35
Identification 7-42
Load capacities 7-37
Replacement 7-42
G
Gauges 3-72
General maintenance 7-31
General vehicle data 9-4
Genuine parts 1-8
Glove compartment 3-131
Glove compartment light
Replacement 7-59
H
Hands-free Bluetooth
® cellular phone interface system with
voice recognition 3-92
Hazard warning flasher switch 3-85
BK0121200US.book 3 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

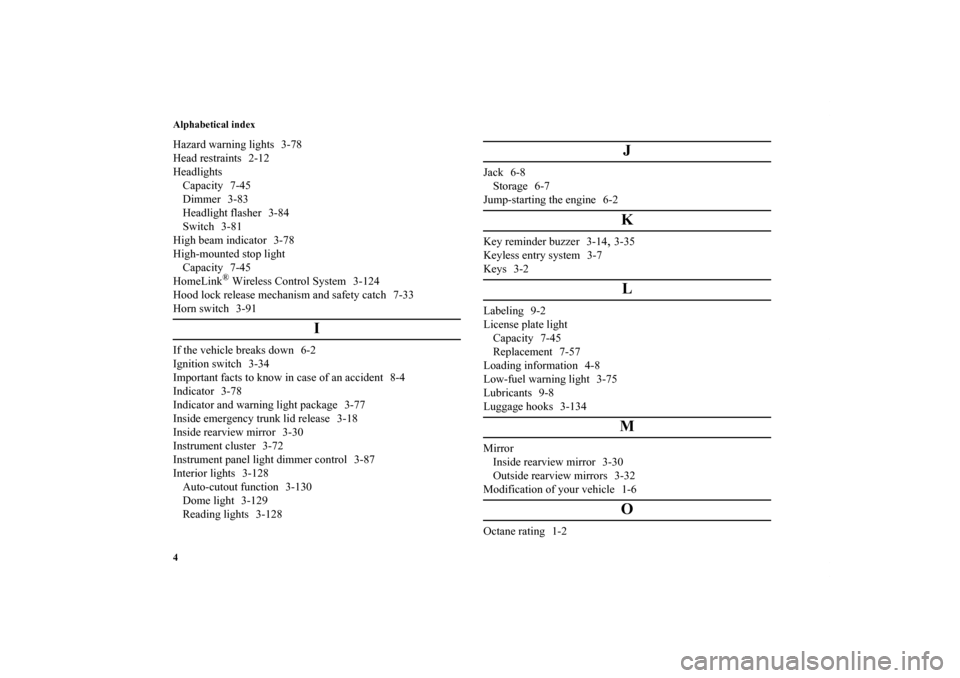

Alphabetical index
4Hazard warning lights 3-78
Head restraints 2-12
Headlights
Capacity 7-45
Dimmer 3-83
Headlight flasher 3-84
Switch 3-81
High beam indicator 3-78
High-mounted stop light
Capacity 7-45
HomeLink
® Wireless Control System 3-124
Hood lock release mechanism and safety catch 7-33
Horn switch 3-91
I
If the vehicle breaks down 6-2
Ignition switch 3-34
Important facts to know in case of an accident 8-4
Indicator 3-78
Indicator and warning light package 3-77
Inside emergency trunk lid release 3-18
Inside rearview mirror 3-30
Instrument cluster 3-72
Instrument panel light dimmer control 3-87
Interior lights 3-128
Auto-cutout function 3-130
Dome light 3-129
Reading lights 3-128
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-14
,3-35
Keyless entry system 3-7
Keys 3-2L
Labeling 9-2
License plate light
Capacity 7-45
Replacement 7-57
Loading information 4-8
Low-fuel warning light 3-75
Lubricants 9-8
Luggage hooks 3-134
M
Mirror
Inside rearview mirror 3-30
Outside rearview mirrors 3-32
Modification of your vehicle 1-6
O
Octane rating 1-2
BK0121200US.book 4 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

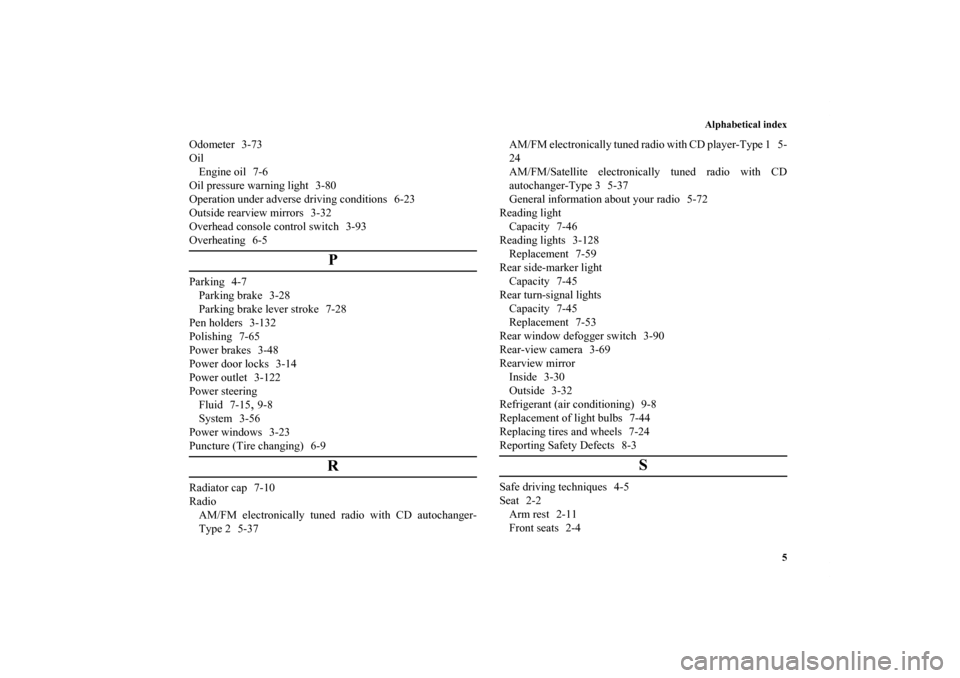

Alphabetical index
5
Odometer 3-73
Oil
Engine oil 7-6
Oil pressure warning light 3-80
Operation under adverse driving conditions 6-23
Outside rearview mirrors 3-32
Overhead console control switch 3-93
Overheating 6-5
P
Parking 4-7
Parking brake 3-28
Parking brake lever stroke 7-28
Pen holders 3-132
Polishing 7-65
Power brakes 3-48
Power door locks 3-14
Power outlet 3-122
Power steering
Fluid 7-15
,9-8
System 3-56
Power windows 3-23
Puncture (Tire changing) 6-9
R
Radiator cap 7-10
Radio
AM/FM electronically tuned radio with CD autochanger-
Type 2 5-37AM/FM electronically tuned radio with CD player-Type 1 5-
24
AM/FM/Satellite electronically tuned radio with CD
autochanger-Type 3 5-37
General information about your radio 5-72
Reading light
Capacity 7-46
Reading lights 3-128
Replacement 7-59
Rear side-marker light
Capacity 7-45
Rear turn-signal lights
Capacity 7-45
Replacement 7-53
Rear window defogger switch 3-90
Rear-view camera 3-69
Rearview mirror
Inside 3-30
Outside 3-32
Refrigerant (air conditioning) 9-8
Replacement of light bulbs 7-44
Replacing tires and wheels 7-24
Reporting Safety Defects 8-3
S
Safe driving techniques 4-5
Seat 2-2
Arm rest 2-11
Front seats 2-4
BK0121200US.book 5 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
