2011 MERCEDES-BENZ SPRINTER tow

CockpitiThis Operator's Manual describes all the
standard and optional equipment available
for your vehicle at the time of purchase.
Country specific differences are possible.
Please note that your vehicle might not be
equipped with all the functions described
here. This also includes safety relevant
systems and functions.Function0046Door control panel0047Light switch008ACombination switch:• turn signals• high-beam headlamps• windshield wipers• rear window wiper0088Cruise control lever0086Horn0087Steering wheel without/with
buttonsFunction006EInstrument cluster006FStowage compartment0070• Stowage compartment with
interior light• Overhead control panel0071Rear-view mirror0072Rear-view camera monitor0073PARKTRONIC warning display0074Opens/closes the right-hand side
window0075Jack and vehicle tool kit0076Glove box0077Center console0078Ignition lock0079Additional switch unit007ASteering wheel adjustment2CockpitAt a glanceGWarning!Make sure that you read the Operator’s Manual. You may
otherwise fail to recognize hazards.

Steering wheel with buttonsFunction0046DisplayControls the on-board computer0047Selects a submenu or adjusts the
volume005A Up/increases the volume005B Down/reduces the volume008AUsing the telephone006A Accepts a call/starts dialing007F Ends a call/rejects an
incoming call0088Scrolling from one menu to another0059 Forwards0058 Back0086Scrolling from one submenu to
another0029 Forwards002D BackCenter consoleFunction0046Stowage compartment0047Radio; see the separate operating
instructions008AAir-conditioning control panel0088Center console switch unit0086• Stowage compartment or• CD changer; see the separate
operating instructions0087Cup holder with:• ashtray• cigarette lighter006E12 V socket6Center consoleAt a glanceGWarning!Make sure that you read the Operator’s Manual. You may
otherwise fail to recognize hazards.

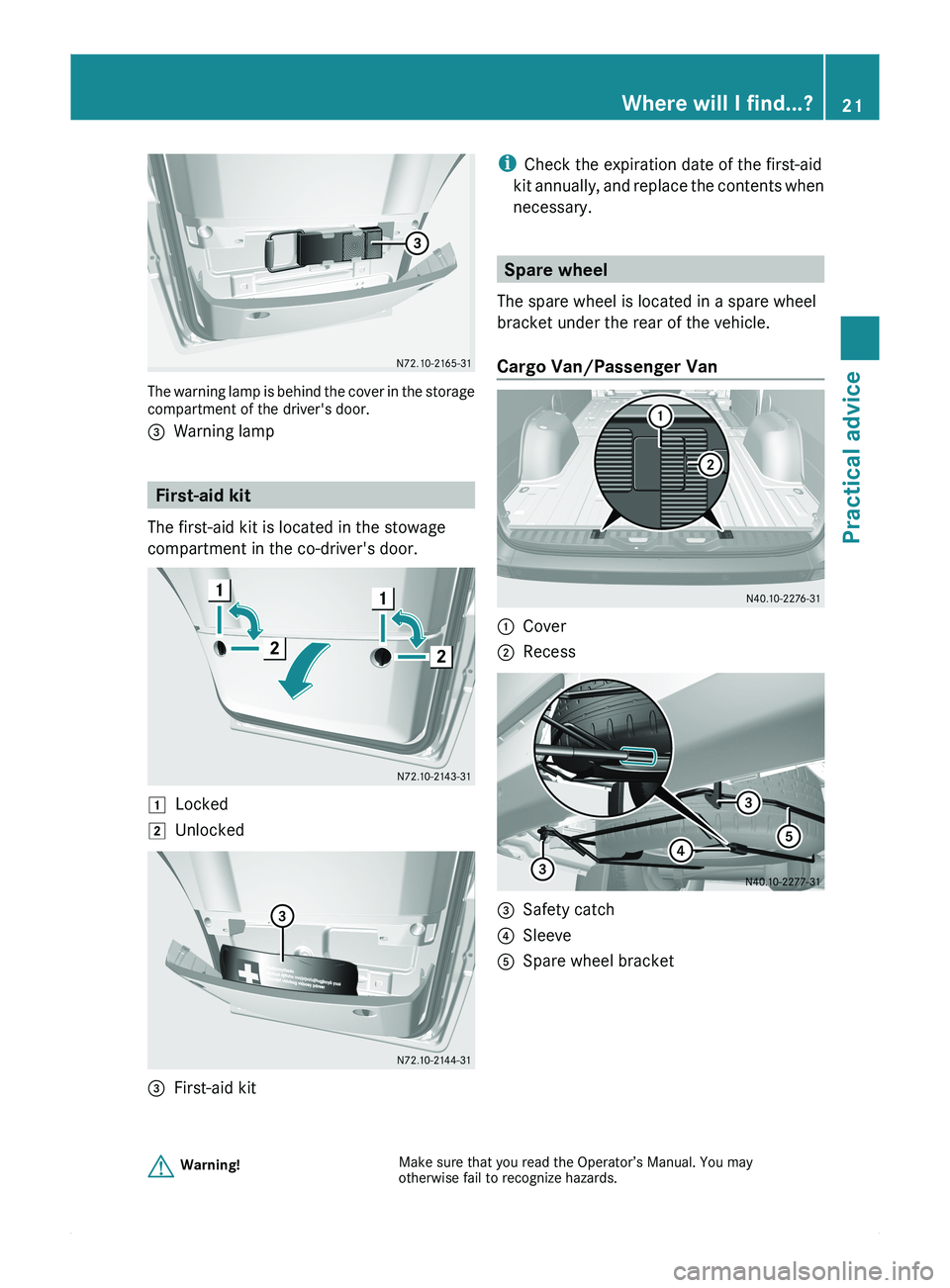

The warning lamp is behind the cover in the storage
compartment of the driver's door.
008AWarning lamp
First-aid kit
The first-aid kit is located in the stowage
compartment in the co-driver's door.
004ALocked004BUnlocked008AFirst-aid kiti Check the expiration date of the first-aid
kit annually, and replace the contents when
necessary.
Spare wheel
The spare wheel is located in a spare wheel
bracket under the rear of the vehicle.
Cargo Van/Passenger Van
0046Cover0047Recess008ASafety catch0088Sleeve0086Spare wheel bracketWhere will I find...?21Practical adviceGWarning!Make sure that you read the Operator’s Manual. You may
otherwise fail to recognize hazards.

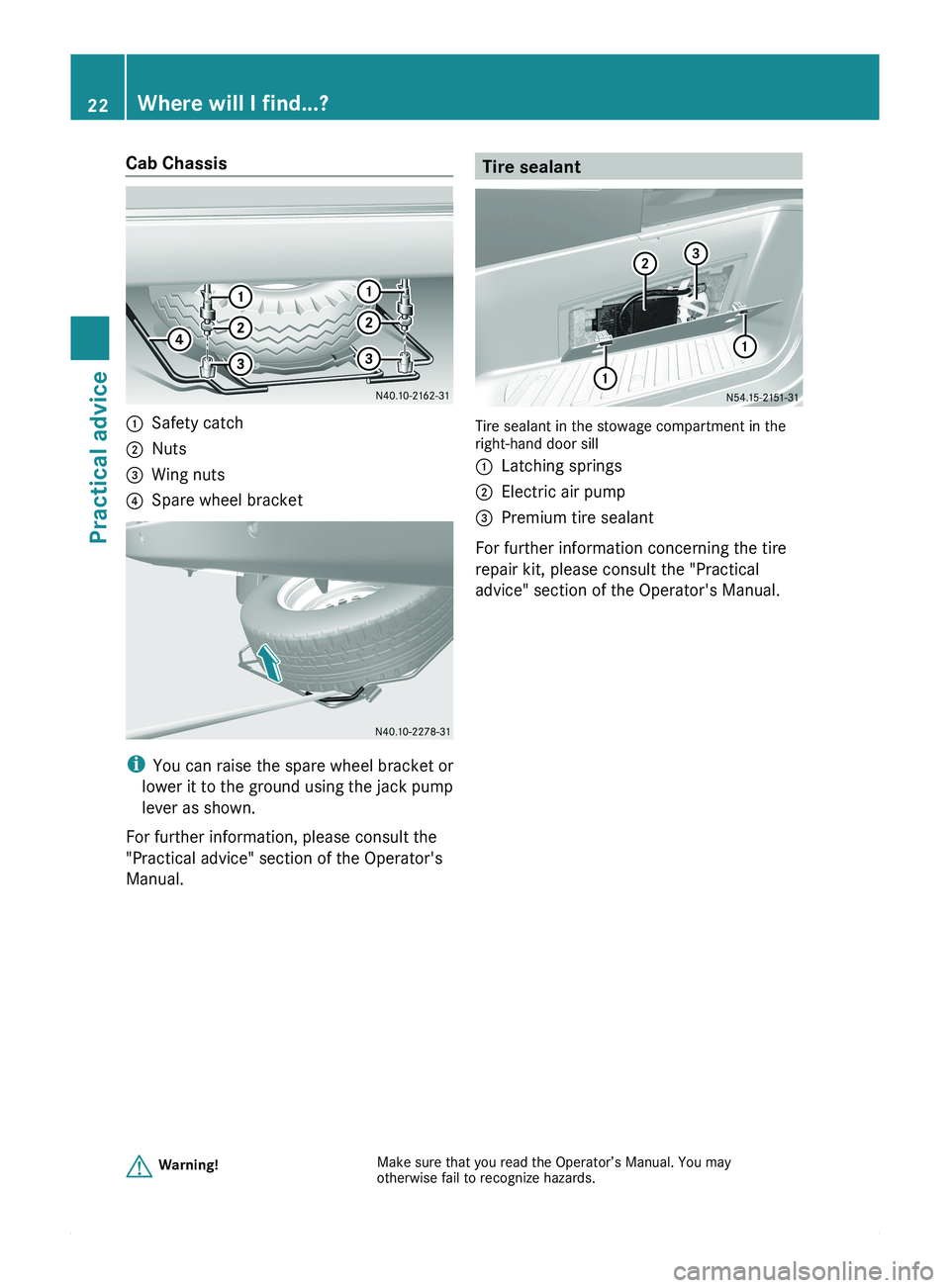

Cab Chassis0046Safety catch0047Nuts008AWing nuts0088Spare wheel bracket
iYou can raise the spare wheel bracket or
lower it to the ground using the jack pump
lever as shown.
For further information, please consult the
"Practical advice" section of the Operator's
Manual.
Tire sealant
Tire sealant in the stowage compartment in the
right-hand door sill
0046Latching springs0047Electric air pump008APremium tire sealant
For further information concerning the tire
repair kit, please consult the "Practical
advice" section of the Operator's Manual.
22Where will I find...?Practical adviceGWarning!Make sure that you read the Operator’s Manual. You may
otherwise fail to recognize hazards.
