2011 MAZDA MODEL TRIBUTE headlamp

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Entertainment Systems 19
AM/FM stereo with CD/MP3 19
Auxiliary input jack (Line in) 27
Satellite radio information 32
Climate Controls 36
Manual heating and air conditioning 36
Rear window defroster 38
Lights 40
Headlamps 40
Turn signal control 44
Bulb replacement 45
Driver Controls 51
Windshield wiper/washer control 51
Steering wheel adjustment 52
Power windows 56
Mirrors 57
Cruise control 59
Moon roof 61
Locks and Security 75
Keys 75
Locks 76
Anti-theft system 83
Table of Contents
1
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

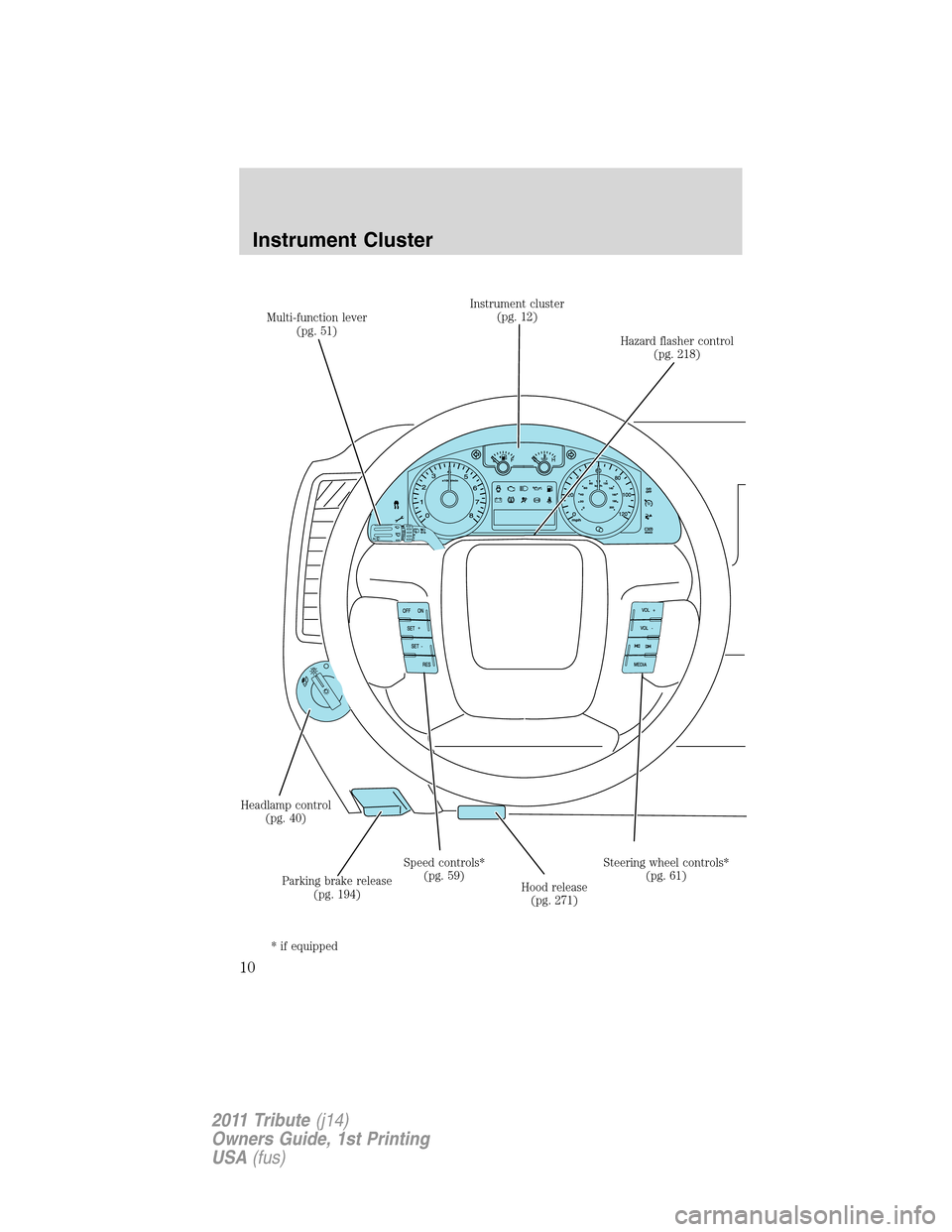

Multi-function lever
(pg. 51)Instrument cluster
(pg. 12)
Hazard flasher control
(pg. 218)
Headlamp control
(pg. 40)
Parking brake release
(pg. 194)Speed controls*
(pg. 59)
Hood release
(pg. 271)Steering wheel controls*
(pg. 61)
* if equipped
Instrument Cluster
10
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Anti-theft system:Flashes when
the SecuriLockPassive Anti-theft
System has been activated.
Throttle control/Powertrain:
Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as
possible.
Door ajar:Illuminates when the
ignition is in the on position and any
door is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
Instrument Cluster
16
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

HEADLAMP CONTROL
Rotate the headlamp control to the
first position
to turn on the
parking lamps.
Rotate to the second position
to
turn on the headlamps.
Rotate back to
to turn the
headlamps off.
Autolamp control
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system is factory
programmed to keep the lights on
for 20 seconds after the ignition
switch is turned to off. This delay
can be programmed, using the
procedure listed below, to any value
up to 180 seconds. It can also be
programmed through the message center.
•To turn autolamps on, rotate the control counterclockwise.
•To turn autolamps off, rotate the control clockwise to the off position.
Note:Your vehicle has aheadlamps on with windshield wipers
feature. If the windshield wipers are turned on for a brief period of time,
the exterior lamps will turn on with the headlamp control in the
autolamp position.
Autolamp delay system
With autolamps, you can set the delay time to keep the headlights on for
up to three minutes after the key is turned off. The delay time is set to
20 seconds at the factory, but the delay time may be changed by
following the steps below (Steps 1 through 6 must be done within
10 seconds).
1. Turn the key to the off position.
Lights
40
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

2. Rotate the headlamp control to the autolamp position.
3. Rotate the headlamp control to the off position.
4. Turn the key to the on position.
5. Turn the key back to the off position.
6. Turn the headlamp control to the autolamp position (the headlights
should turn on).
7. Turn the headlamp control to the off position when the desired delay
time (up to 3 minutes) has been reached.
Fog lamp control (if equipped)
The headlamp control also operates
the fog lamps. The fog lamps can be
turned on when the headlamp
control is in the
,or
positions and the high beams are
not turned on.
Pull the headlamp control towards
you to turn the fog lamps on. The
fog lamp indicator light will
illuminate.
High beams
After turning the headlamps on,
push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Lights
41
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Flash-to-pass
Pull toward you slightly to activate
and release to deactivate.
Daytime running lamps (DRL) (if equipped)
Turns the low beam headlamps on with a reduced output.
To activate:
•the ignition must be in the on position.
•the headlamp control must be in the off, parking lamps or autolamp
position.
•with automatic transmission, the transmission is not in P (Park),
•with manual transmission, the parking brake must be released.
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
INSTRUMENT PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parking lamp
operation.
Move the control to the full upright
position, past detent, to turn on the
interior lamps.
Rotate to full down position (past
detent) to prevent interior lamps
from illuminating when the doors are opened.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer switch requires re-calibration. Rotate the dimmer
Lights
42
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

switch from the full dim position to the full dome/on position to reset.
This will ensure that your displays are visible under all lighting
conditions.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level
surface, approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot
(2.4 meter) horizontal reference
line on the vertical wall or
screen at this height (a piece of masking tape works well). The
center of the lamp is marked bya3mmcircleontheheadlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen
and open the hood. Cover the left-hand headlamp with an opaque
cloth.
4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge of high
intensity light towards the right.
If this edge is not at the
horizontal reference line, the
beam will need to be adjusted.
Lights
43
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

5. Locate the vertical adjuster on
the headlamp, then usea4mm
socket to turn the adjuster
either counterclockwise (to
adjust up) or clockwise (to
adjust down) aligning the upper
edge of the light pattern to the
horizontal line.
6. Move the opaque cloth to cover
the right-hand headlamp and
repeat Steps 4 and 5 for the
left-hand headlamp.
7. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
The dome lamp is preset to
illuminate when a door is opened
and will remain on for 25 seconds
after the door is closed. To manually
turn on the dome lamp, rotate the
panel dimmer control, located on
the instrument panel, to the full
upright position past the detent.
To turn off the dome lamp, rotate the panel dimmer control to the full
down position past the detent.Note:When manually in the off position,
the dome lamp will not illuminate when the door(s) are opened.
Lights
44
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
