RECREATIONAL TOWING
Follow these guidelines for your specific powertrain combination to tow
your vehicle for personal travel (such as behind a motor home or a
truck).
Note:Put your climate control system in recirculated air mode to
prevent exhaust fumes from entering the vehicle. Refer to theClimate
Controlschapter for more information.
In case of roadside emergency with a disabled vehicle, please refer to
Wrecker towingin theRoadside Emergencieschapter.
These guidelines are designed to prevent damage to your vehicle.
Front-wheel drive (FWD) vehicles:
Tow your FWD vehicle with all four wheels on the ground or with the
front wheels off the ground by using a tow dolly. If you are using a tow
dolly follow the instructions specified by the equipment provider.
Note:If you tow your vehicle with all four wheels on the ground, follow
these instructions:
•For vehicles equipped with an automatic transmission, have
your transmission fluid level checked by an authorized dealer.
For the correct transmission fluid level when flat towing (all four
wheels on the ground), refer toTransmission fluidin the
Maintenance and Specificationschapter.
•Tow only in the forward direction.
•Release the parking brake.
•Place the transmission shift lever in N (Neutral).
•Place the ignition to the accessory position (refer toStartingin the
Drivingchapter).
•Do not exceed 65 mph (105 km/h) if the vehicle is equipped with an
automatic transmission or 70 mph (113 km/h) if equipped with a
manual transmission.
•For vehicles equipped with an automatic transmission, start the engine
and allow it to run for five minutes at the beginning of each day and
every six hours thereafter. With the engine running and your foot on
the brake, shift into D (Drive) and then into R (Reverse) before
shifting back into N (Neutral).
Tires, Wheels and Loading
184
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Four-wheel drive (4WD) vehicles:
Tow your 4WD vehicle with all four wheels on the ground or with all four
wheels off the ground using a vehicle transport trailer.Do not tow your
4WD vehicle with the front wheels off the ground (by using a tow
dolly) and the rear wheels on the ground.This will cause damage to
your 4WD system. If you are using a vehicle transport trailer, follow the
instruction specified by the equipment provider.
Note:If you tow your vehicle with all four wheels on the ground, follow
these instructions:
•For vehicles equipped with an automatic transmission, have
your transmission fluid level checked by an authorized dealer.
For the correct transmission fluid level when flat towing (all four
wheels on the ground), refer toTransmission fluidin the
Maintenance and Specificationschapter.
•Tow only in the forward direction.
•Release the parking brake.
•Place the transmission shift lever in N (Neutral).
•Place the ignition to the accessory position (refer toStartingin the
Drivingchapter).
•Do not exceed 65 mph (105 km/h) if the vehicle is equipped with an
automatic transmission or 70 mph (113 km/h) if equipped with a
manual transmission.
•For vehicles equipped with an automatic transmission, start the engine
and allow it to run for five minutes at the beginning of each day and
every six hours thereafter. With the engine running and your foot on
the brake, shift into D (Drive) and then into R (Reverse) before
shifting back into N (Neutral).
Tires, Wheels and Loading
185
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

•If the vehicle goes from one type of surface to another (i.e., from
concrete to gravel) there will be a change in the way the vehicle
responds to a maneuver (steering, acceleration or braking). Again,
avoid these abrupt inputs.
Sand
When driving over sand, try to keep all four wheels on the most solid
area of the trail. Avoid reducing the tire pressures but shift to a lower
gear and drive steadily through the terrain. Apply the accelerator slowly
and avoid spinning the wheels.
Avoid excessive speed because vehicle momentum can work against you
and cause the vehicle to become stuck to the point that assistance may
be required from another vehicle. Remember, you may be able to back
out the way you came if you proceed with caution.
Mud and water
NOTE:
•If you must drive through high
water, drive slowly. Traction or
brake capability may be limited.
•When driving through water,
determine the depth; avoid water
higher than the bottom of the
hubs (if possible) and proceed
slowly. If the ignition system gets wet, the vehicle may stall.
•Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even 4WD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
After driving through mud, clean off residue stuck to rotating
driveshafts, halfshafts and tires. Excess mud on tires and rotating
driveshafts causes an imbalance that could damage drive
components.
NOTE:
If the transmission Power Take Off unit or rear axle are submerged in
water, their fluids should be checked and changed, if necessary.
Driving
213
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Miles x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Km x 1,000) (12) (24) (36) (48) (60) (72) (84) (96) (108) (120) (132) (144)
CHASSIS AND BODY
Brake lines, hoses and
connectionII I
Disc brakes I I I I I I
Drum brakes I I I
Rear differential fluid (4WD
only)
3Replace every 150,000 miles (240,000 km)
Rotate tires, check wheel lug
nut torque
4Rotate tires every 7,500 miles (12,000 km)
Tire inflation and wear I I I I I I I IIIII
Steering operation and linkages I I I
Power steering fluid level I I I I I I I IIIII
Manual transmission fluid Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 150,000 miles (240,000 km)
Front and rear suspension ball
jointsII I
Driveshaft dust boots I I I
Bolts and nuts on chassis and
bodyII I
Exhaust system heat shields I I I
Locks and hingesLLLLLLLLLLLL
Washer fluid level I I I I I I I IIIII
1Change engine oil and replace oil filter every 5,000 miles (8,000 km) or
6 months when use of E85 is 50% of the time or greater.
2According to state and federal regulations, failure to perform
maintenance on these items will not void your emissions warranties.
However, Mazda recommends that all maintenance services be performed
at the recommended time or miles (kilometers) period to ensure
long-term reliability.
3If this component has been submerged in water, the oil should be
changed.
Maintenance and Specifications
266
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
Miles x 1,000 5 10 15 20 25 30 35 40 45 50 55 60
(Km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
ENGINE COOLING SYSTEM
Engine coolant level IIIIIIIIIIII
Engine cooling system and hoses I I
Engine coolant Replace at 100,000 miles (160,000 km) or 72 months; every 50,000 miles (80,000 km) or36 months thereafter
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS AND BODY
Brake lines, hoses and connection II
Disc brakes IIII
Drum brakes II
Rear differential fluid (4WD only)
4Replace every 100,000 miles (160,000 km)
Rotate tires, check wheel lug nut
torque
5Rotate tires every 5,000 miles (8,000 km)
Tire inflation and wear IIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid level IIIIIIIIIIII
Manual transmission fluid Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 30,000 miles (48,000 km)
Front and rear suspension ball joints I I
Driveshaft dust boots I I
Bolts and nuts on chassis and body I I I I
Exhaust system heat shields I I
Locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
Maintenance and Specifications
268
2011 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)

Retightening lug nuts
•Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
•Refer toWheel lug nut torque specificationsin theTires, Wheels
and Loadingchapter for the proper lug nut torque specification.
SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide necessary parts and service. Check your Warranty Information to
find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Genuine Mazda parts are designed and built
to provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
WARNING:A hot engine is dangerous. If the engine has been
running, parts of the engine compartment can become very hot.
You could be burned. Don’t inspect the coolant system or add coolant
when the engine is hot.
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
1. For vehicles equipped with an automatic transmission, set the
parking brake and shift to P (Park). For vehicles equipped with a
manual transmission, set the parking brake, press and hold the
clutch pedal, place the gearshift in 1 (First), and release the clutch
pedal.
2. Turn off the engine and remove the key.
3. Block the wheels.
Maintenance and Specifications
270
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
BRAKE/CLUTCH FLUID
Brake and clutch (if equipped) systems are supplied from the same
reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to your scheduled maintenance section for scheduled intervals for
fluid checks and changes. Your transmission does not consume fluid.
However, the fluid level should be checked if the transmission is not
working properly, i.e., if the transmission slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
Maintenance and Specifications
301
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

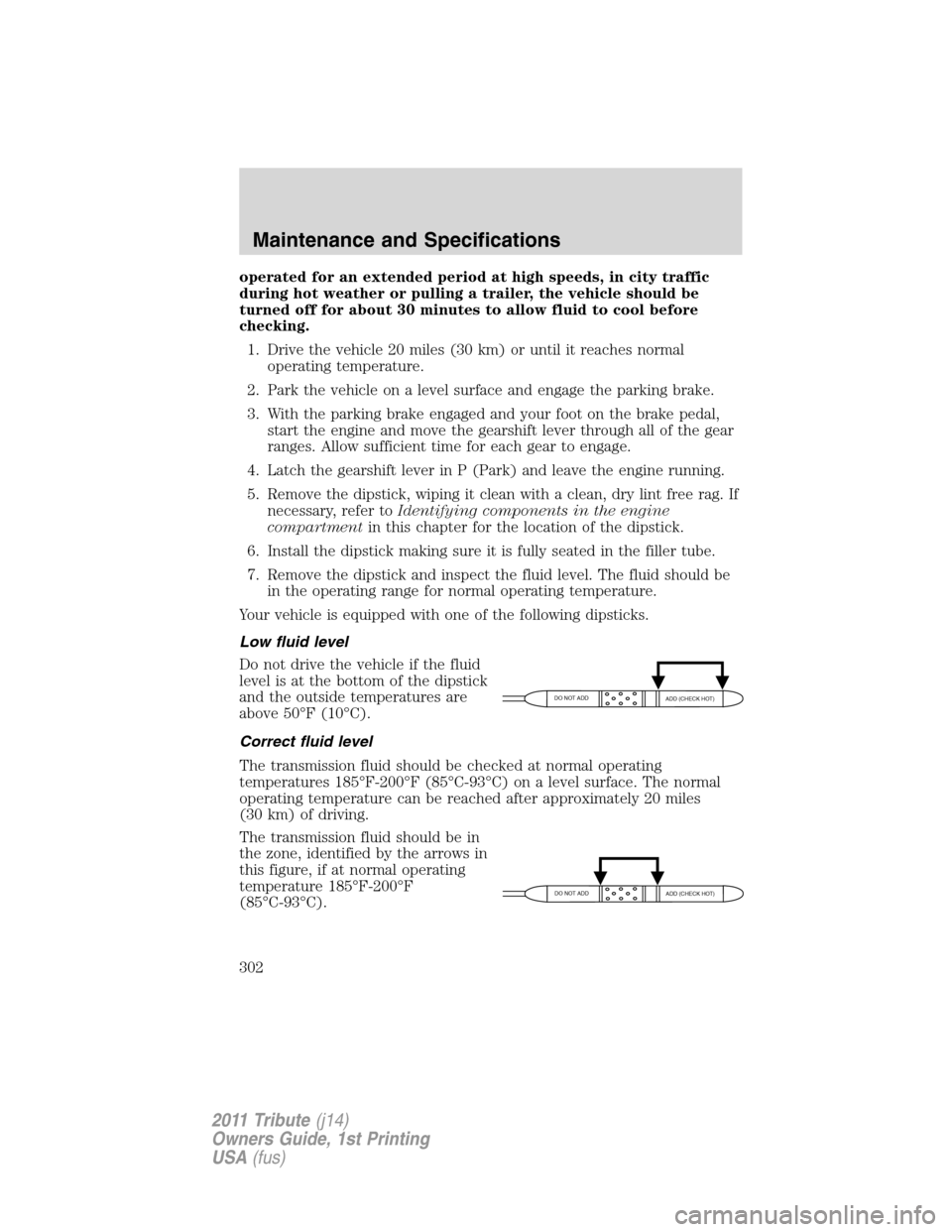

operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal
operating temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine
compartmentin this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be
in the operating range for normal operating temperature.
Your vehicle is equipped with one of the following dipsticks.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 185°F-200°F (85°C-93°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
The transmission fluid should be in
the zone, identified by the arrows in
this figure, if at normal operating
temperature 185°F-200°F
(85°C-93°C).
DO NOT ADD
ADD (CHECK HOT)
DO NOT ADD
ADD (CHECK HOT)
Maintenance and Specifications
302
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
