2011 MAZDA MODEL MX-5 MIATA PRHT Owners Manual

Black plate (385,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel. NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
Maintenance and Care
Appearance Care
8-51
MX-5_8BR3-EA-10F_Edition3 Page385
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (386,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
CAUTION
Ø Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may damage the protective
coating; also, cleaners and
detergents may discolor or
deteriorate the paint.
Ø To prevent damaging the antenna,
remove it before entering a car
wash facility or passing beneath a
low overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.
8-52
Maintenance and Care
Appearance Care
MX-5_8BR3-EA-10F_Edition3 Page386
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (387,1)
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish. Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle does not need it.
q Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
Maintenance and Care
Appearance Care
8-53
MX-5_8BR3-EA-10F_Edition3 Page387
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (388,1)
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
8-54
Maintenance and Care
Appearance Care
MX-5_8BR3-EA-10F_Edition3 Page388
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (389,1)
NOTElDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-35.
q Convertible Top Maintenanceí
The convertible top is made of a special
high-grade material, but if it's not taken
good care of, hardening, staining, and loss
of luster will result. Maintain it under
these guidelines.
Washing
Do not wait until the convertible top gets
really dirty before cleaning it. Dirt that's
there too long will cause deterioration.
1. Before washing, remove dust and
coarse particulate with a soft brush.
2. Gently clean the convertible top with a synthetic neutral detergent, lots of
water, and a soft brush.
3. Rinse it thoroughly with clean water to remove all the soap.
4. Wipe it as dry as you can before the water dries on it. 5. Then allow it to dry completely before
lowering it.
CAUTION
ØAutomatic and high-pressure car
washes are harmful to a
convertible top. Avoid them.
Ø Do not spray water directly on the
area where the window glass and
the convertible top meet. This
would probably cause water to
enter the cabin.
Ø Do not spray water with a hose or
a car washing device directly on
the seam area of the body and the
convertible top as it could result in
water penetrating the trunk.
Appearance (Polyvinyl only)
Dress the convertible top once a month
after washing and drying it well. For best
results, use a water-based leather
treatment or vinyl top dressing. This will
help maintain good appearance and
material condition of the convertible top.
Maintenance and Care
Appearance Care
8-55íSome models.
MX-5_8BR3-EA-10F_Edition3 Page389
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (390,1)
CAUTION
ØSome leather treatment products
can ruin the convertible top's
gloss. Be careful of the one you
choose.
Ø Test on an inconspicuous, small
corner of the convertible top if you
are not sure.
Ø Do not get any car wax on the
convertible top.
If you do, remove it with a good
leather cleaner.
Ø Too much treatment on the
convertible top can be as
damaging as too little. Follow the
manufacturer's directions.
Do not overdo it!
Ø Let the convertible top dry
completely before lowering after
applying treatment or dressing.
qHardtop Maintenanceí
Washing
To help protect the hardtop's finish, use a
soft cloth or sponge to wash it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
CAUTION
Ø Don't use an automatic car wash.
Ø Don't use strong soap, chemical
detergents, or hot water, and don't
wash the hardtop in direct
sunlight or when the surface is
warm. Thoroughly rinse with lukewarm or cold
water. Don't allow soap to dry on the
finish.
Waxing
Wax the hardtop when water no longer
beads on the paint. Always wash and dry
it before waxing.
CAUTION
Ø
Wiping off dust or dirt with a dry
cloth will scratch the finish.
Ø Don't use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
8-56
Maintenance and Care
íSome models.
Appearance Care
MX-5_8BR3-EA-10F_Edition3 Page390
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (391,1)
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Remove dust and sand first using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild
soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
Maintenance and Care
Appearance Care
8-57íSome models.
MX-5_8BR3-EA-10F_Edition3 Page391
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F

Black plate (392,1)

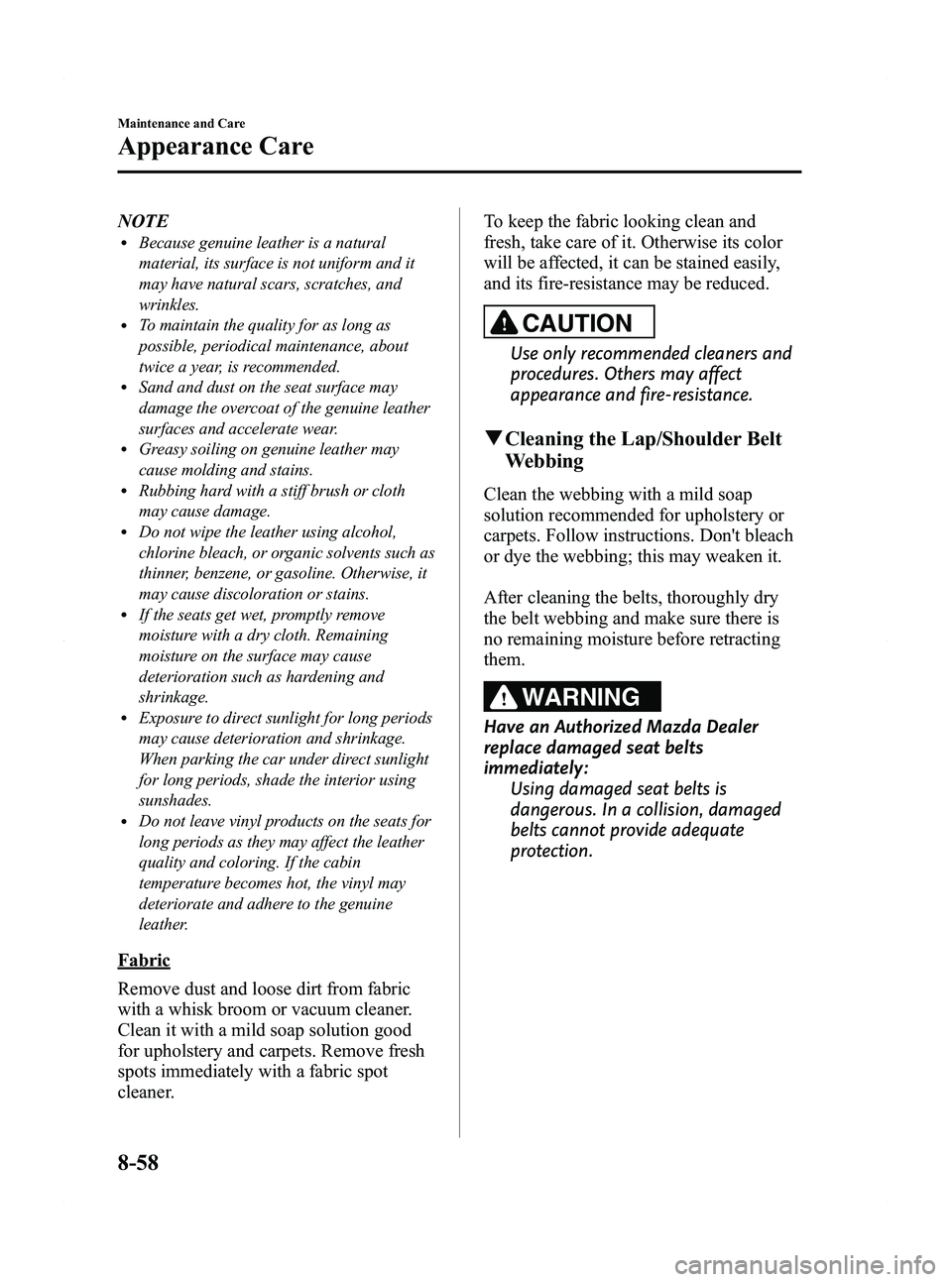

NOTElBecause genuine leather is a natural
material, its surface is not uniform and it
may have natural scars, scratches, and
wrinkles.
lTo maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
lSand and dust on the seat surface may
damage the overcoat of the genuine leather
surfaces and accelerate wear.
lGreasy soiling on genuine leather may
cause molding and stains.
lRubbing hard with a stiff brush or cloth
may cause damage.
lDo not wipe the leather using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lIf the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.
lExposure to direct sunlight for long periods
may cause deterioration and shrinkage.
When parking the car under direct sunlight
for long periods, shade the interior using
sunshades.
lDo not leave vinyl products on the seats for
long periods as they may affect the leather
quality and coloring. If the cabin
temperature becomes hot, the vinyl may
deteriorate and adhere to the genuine
leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
q
Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
8-58
Maintenance and Care
Appearance Care
MX-5_8BR3-EA-10F_Edition3 Page392
Wednesday, March 2 2011 5:27 PM
Form No.8BR3-EA-10F
