2011 MAZDA MODEL CX-7 Owners Manual (in English)

Black plate (201,1)

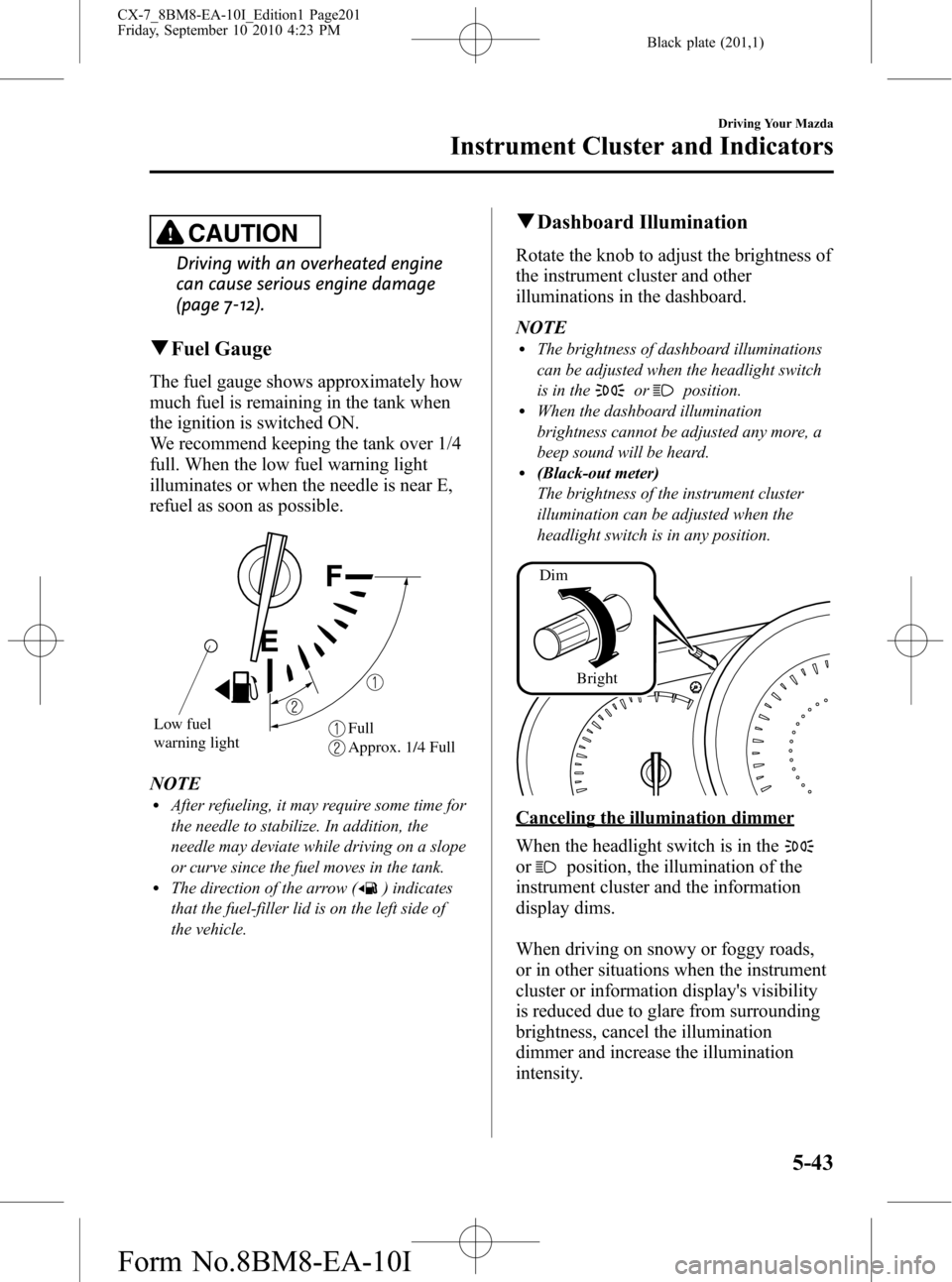

CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-12).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel
warning lightFull
Approx. 1/4 Full
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () indicates
that the fuel-filler lid is on the left side of
the vehicle.
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Dim
Bright
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
Driving Your Mazda
Instrument Cluster and Indicators
5-43
CX-7_8BM8-EA-10I_Edition1 Page201
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (202,1)
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the illumination dimmer is cancelled, the
instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again. Press the dashboard illumination
knob to activate the illumination dimmer.
5-44
Driving Your Mazda
Instrument Cluster and Indicators
CX-7_8BM8-EA-10I_Edition1 Page202
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (203,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas Warning/Indicator lights will appear in any of the highlighted areas With Black-out meter With Black-out meter
Without Black-out meter Without Black-out meter
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-45
CX-7_8BM8-EA-10I_Edition1 Page203
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (204,1)
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-47
Charging System Warning Light 5-49
Engine Oil Pressure Warning Light 5-49
Check Engine Light 5-50
ABS Warning Light 5-48
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-50
Low Fuel Warning Light 5-51
Check Fuel Cap Warning Light 5-51
Seat Belt Warning Light/Beep 5-51
Door-Ajar Warning Light 5-53
Low Washer Fluid Level Warning Light 5-53
Automatic Transaxle Warning Light 5-53
AWD Warning Light 5-53
Tire Pressure Monitoring System Warning Light 5-54
KEY Warning Light (Red)/KEY Indicator Light (Green) 5-56
Security Indicator Light 5-57
5-46
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
CX-7_8BM8-EA-10I_Edition1 Page204
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (205,1)
Signal Warning/Indicator Lights Page
Headlight High-Beam Indicator Light 5-58
Shift Position Indicator Light 5-58
TCS/DSC Indicator Light 5-58
TCS OFF Indicator Light 5-58
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-59
BSM OFF Indicator Light 5-59
Lights-On Indicator Light 5-59
Turn Signal/Hazard Warning Indicator Lights 5-60
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light illuminates when the parking
brake is applied with the ignition switched
to START or ON. It turns off when the
parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Brake system warning
Illuminates when there is a malfunction in
the brake switch.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
depress or that it may go closer to the
floor. In either case, it will take longer to
stop the vehicle.
1. With the engine stopped, open the
hood and check the brake fluid level
immediately, and then add fluid if
required (page 8-25).
2. After adding fluid, check the light
again.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47
CX-7_8BM8-EA-10I_Edition1 Page205
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (206,1)
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light turns off have your brake
system inspected as soon as possible by
an Authorized Mazda Dealer.
NOTE
Having to add brake fluid is sometimes an
indicator of leakage. Consult an Authorized
Mazda Dealer as soon as possible even if the
brake light is no longer illuminated.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
5-48
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
CX-7_8BM8-EA-10I_Edition1 Page206
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (207,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qCharging System Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Pressure Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
This warning light indicates low engine
oil pressure.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 8-21).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
4. Start the engine and check the warning
light.
If the light remains illuminated even after
you add oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
CAUTION
Do not run the engine if the oil
pressure is low. It could result in
extensive engine damage.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-49
CX-7_8BM8-EA-10I_Edition1 Page207
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I

Black plate (208,1)
qCheck Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
5-50
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
CX-7_8BM8-EA-10I_Edition1 Page208
Friday, September 10 2010 4:23 PM
Form No.8BM8-EA-10I
