2011 LINCOLN MKZ HYBRID Owners Manual

Additional Tips:
•Do not carry extra loads
•Be mindful of adding external accessories that may increase
aerodynamic drag
•Observe posted speed limits
•Perform all scheduled maintenance
•There is no need to wait for your engine to “warm up”. The vehicle is
ready to drive immediately after starting
Refer toEssentials of good fuel economyinMaintenance and
Specificationschapter for more fuel saving tips.
Frequently asked questions
Question Answer
What are the series
of clicks from the
cargo area when I
first turn the key in
the ignition?The high voltage battery is electrically isolated
from the rest of the vehicle when the key is off.
When the key is turned to on, high voltage
contactors inside the battery are closed to make
the electricity available to the motor/generator
and enable the vehicle to drive. The clicks are
the sound of these contactors as they close and
open during start up and shut down.
Why does the engine
sometimes start at
key-on?The vehicle’s computer will determine if an
engine start is required at key-on. Silent Key
Start (SKS) will start the engine if it is
necessary for cabin heating, windshield defrost,
or if the outside temperature is low.
Why does it take a
long time before the
engine shuts down?There are several reasons the engine stays on for
an extended amount of time when it is first
started. One common reason is to ensure that
the emissions components are warm enough to
minimize tailpipe emissions. As the climate gets
cooler, this “engine-ON” time is extended.
Why does my engine
never shut down
above 47 mph
(75 km/h)?The engine is required to turn on above this
speed to protect the transmission hardware.
Introduction
9
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Question Answer
Why does my engine
stay ON when it’s
extremely cold
outside?In order to ensure that the climate control
system can begin heating the cabin and/or
defrosting the windshield as soon as a driver
requests it, the engine coolant temperature has
to be kept sufficiently hot. Keeping the engine
on is required to maintain the correct minimum
temperature.
Why does my engine
revupsohigh
sometimes when I
accelerate?Your vehicle’s engine and transmission are
designed to deliver the power you need at the
most efficient engine speed. This may be higher
than expected during heavy accelerations, and
may fluctuate during steady state driving. These
are characteristics of the Atkinson engine cycle
and the eCVT transmission technology that help
maximize your hybrid’s fuel economy.
What is the fan noise
I hear from the rear
of my hybrid?The fan noise comes from a fan located inside
the high voltage battery. This fan turns on when
the battery requires cooling air. The fan speed,
and associated noise level, will change according
to the amount of cooling required to maintain
good performance. Maintaining the battery
temperature at optimal conditions also prolongs
the useful life of the battery and helps to
achieve better fuel economy.
HowfarcanIgoin
Electric Drive if I
run out of gas?Running out of gas is not recommended.
However, you may be able to go about one mile,
driving at 30 mph (48 km/h), if the battery has a
normal state of charge.
What is the engine
oil change service
interval?The engine oil should be changed every
10,000 miles (16,000 km) under normal
operating conditions. See theScheduled
Maintenance Guidechapter.
Introduction
10
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

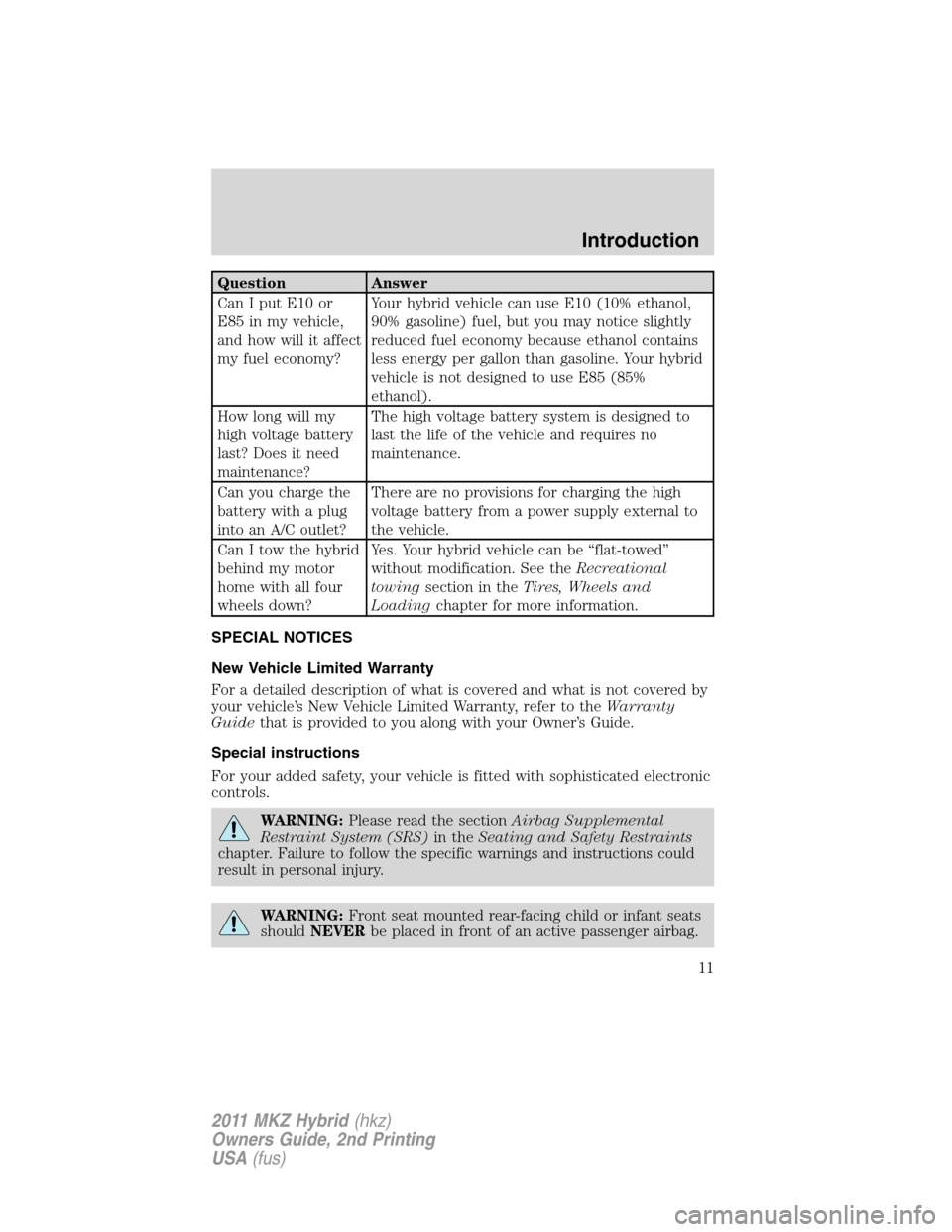

Question Answer
Can I put E10 or
E85 in my vehicle,
and how will it affect
my fuel economy?Your hybrid vehicle can use E10 (10% ethanol,
90% gasoline) fuel, but you may notice slightly
reduced fuel economy because ethanol contains
less energy per gallon than gasoline. Your hybrid
vehicle is not designed to use E85 (85%
ethanol).
How long will my
high voltage battery
last? Does it need
maintenance?The high voltage battery system is designed to
last the life of the vehicle and requires no
maintenance.
Can you charge the
battery with a plug
into an A/C outlet?There are no provisions for charging the high
voltage battery from a power supply external to
the vehicle.
Can I tow the hybrid
behind my motor
home with all four
wheels down?Yes. Your hybrid vehicle can be “flat-towed”
without modification. See theRecreational
towingsection in theTires, Wheels and
Loadingchapter for more information.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to theWarranty
Guidethat is provided to you along with your Owner’s Guide.
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
WARNING:Please read the sectionAirbag Supplemental
Restraint System (SRS)in theSeating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could
result in personal injury.
WARNING:Front seat mounted rear-facing child or infant seats
shouldNEVERbe placed in front of an active passenger airbag.
Introduction
11
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. For U.S. only (if equipped), if you choose to use the SYNC
Vehicle Health Report, you consent that certain diagnostic information
may also be accessed electronically by Ford Motor Company and Ford
authorized service facilities, and that the diagnostic information may be
used for any purpose. See yourSYNCsupplement for more information.
Event Data Recording
This vehicle is equipped with an event data recorder (EDR). The
main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger seatbelts were
buckled/fastened;
•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
•How fast the vehicle was travelling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
Introduction
12
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have such special equipment, can read the information if
they have access to the vehicle or the EDR. Ford Motor Company
and Ford of Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Ford Motor Company and Ford of Canada.
Note: Including to the extent that any law pertaining to Event
Data Recorders applies to SYNCor its features, please note the
following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose
to emergency services that the vehicle has been in a crash
involving the deployment of an airbag or, in certain vehicles, the
activation of the fuel pump shut-off. Certain versions or updates
to 911 Assist may also be capable of being used to electronically
or verbally provide to 911 operators the vehicle location (such as
latitude and longitude), and/or other details about the vehicle or
crash or personal information about the occupants to assist 911
operators to provide the most appropriate emergency services. If
you do not want to disclose this information, do not activate the
911 Assist feature. See your SYNCsupplement for more
information.
Additionally, when you connect to Traffic, Directions and
Information (if equipped, U.S. only) the service uses GPS
technology and advanced vehicle sensors to collect the vehicle’s
current location, travel direction, and speed (“vehicle travel
information”) only to help provide you with the directions, traffic
reports, or business searches your request. If you do not want
Ford or its vendors to receive this information, do not activate
the service. Ford Motor Company and the vendors it uses to
provide you with this information do not store your vehicle travel
information. For more information, see Traffic, Directions and
Information, Terms and Conditions. See your SYNCsupplement
for more information.
Introduction
13
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

CELL PHONE USE
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to, cellular
phones, pagers, portable email devices, text messaging devices and
portable two-way radios.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of your vehicle.
We recommend against the use of any handheld device while driving
and that you comply with all applicable laws.
Introduction
14
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

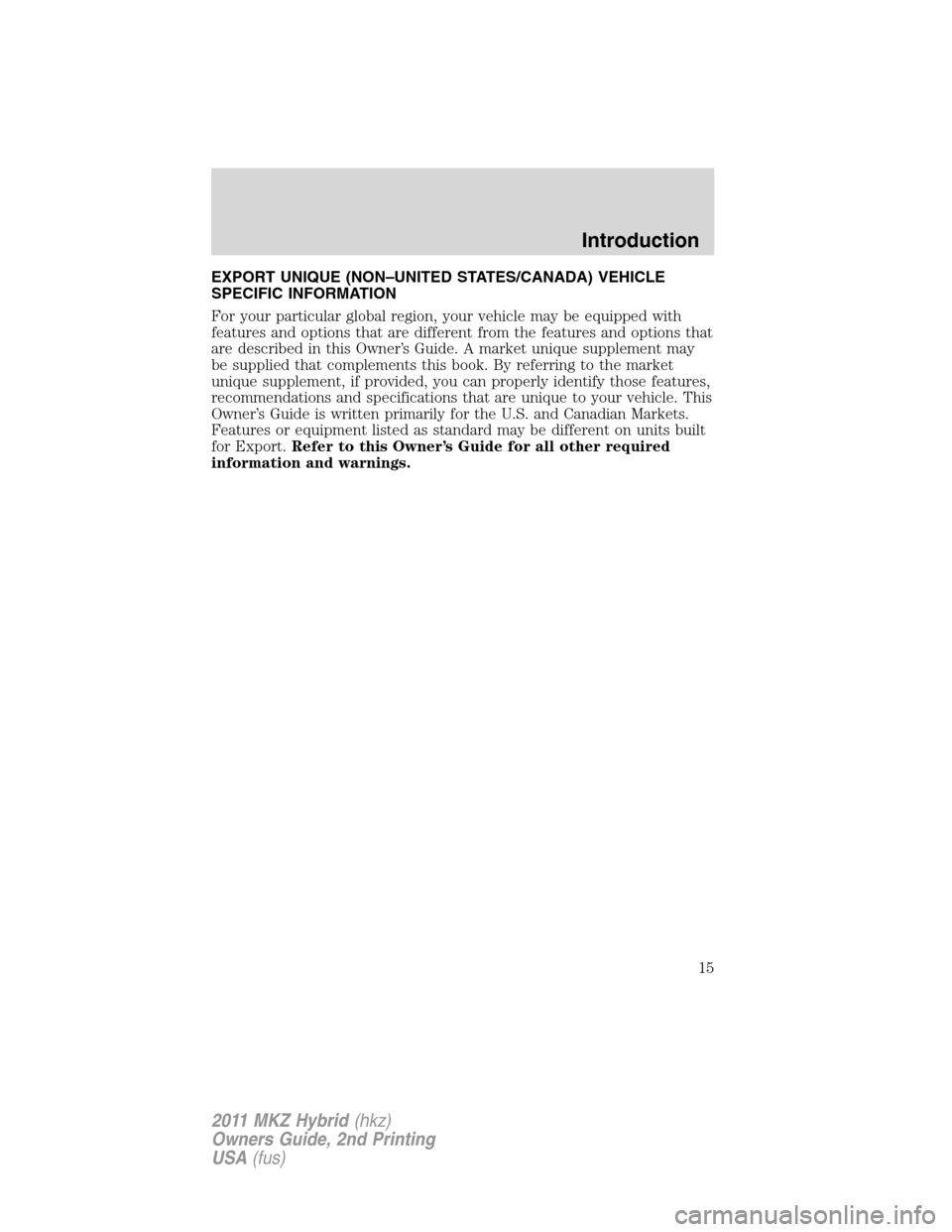

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this Owner’s Guide. A market unique supplement may
be supplied that complements this book. By referring to the market
unique supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export.Refer to this Owner’s Guide for all other required
information and warnings.
Introduction
15
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
16
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
