2011 LEXUS RX350 mirror

69
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving

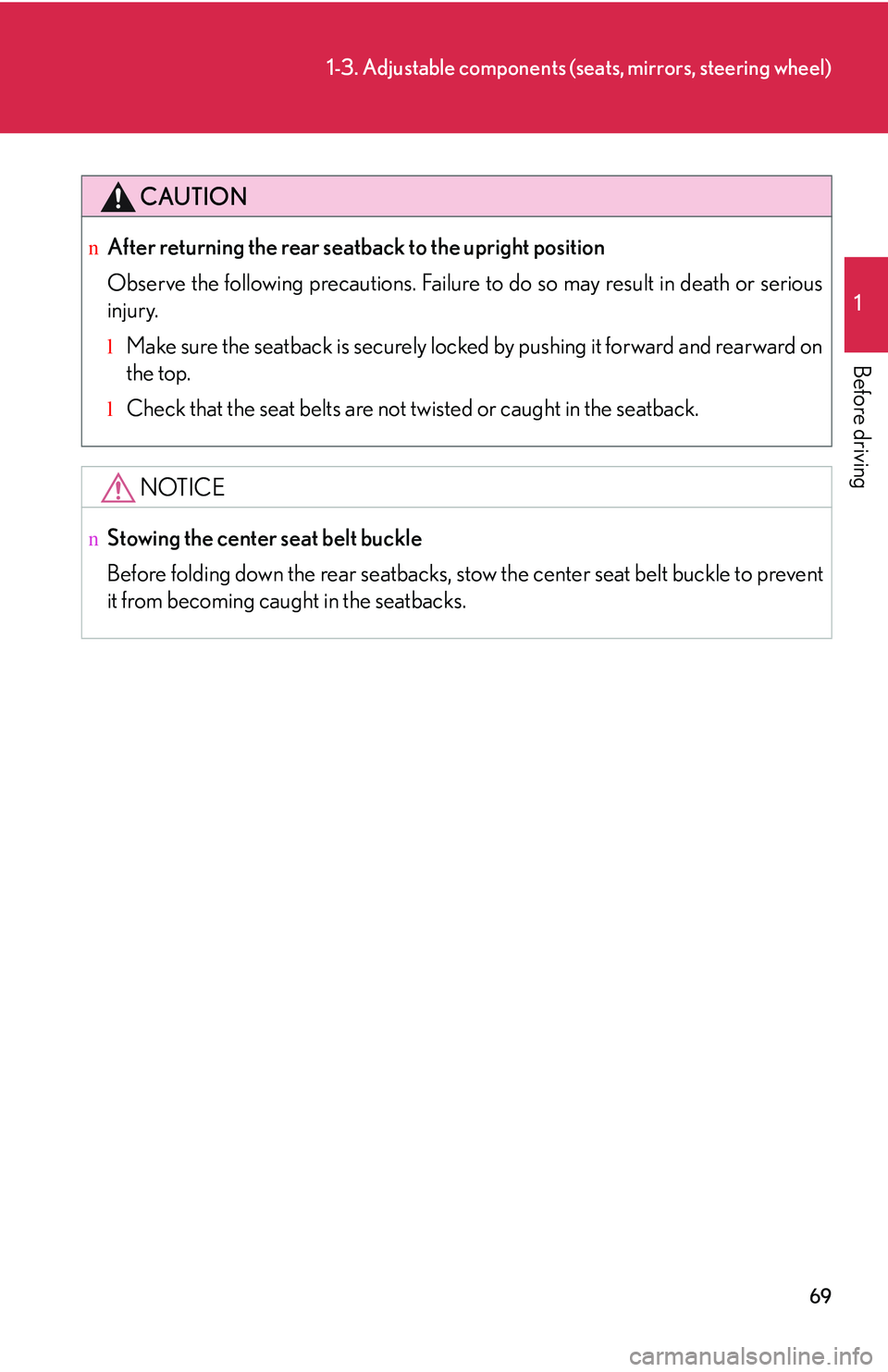

CAUTION
nAfter returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
lMake sure the seatback is securely locked by pushing it forward and rearward on
the top.
lCheck that the seat belts are not twisted or caught in the seatback.
NOTICE
nStowing the center seat belt buckle
Before folding down the rear seatbacks, stow the center seat belt buckle to prevent
it from becoming caught in the seatbacks.

70
1-3. Adjustable components (seats, mirrors, steering wheel)
Driving position memory∗
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
nEntering a position to memory
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel and outside rear view
mirrors to the desired positions.
Press the “SET” button, then
within 3 seconds press button
“1”, “2” or “3” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
nRecalling the memorized position
Check that the shift lever is set in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button “1”, “2” or “3” until
the signal beeps to recall the
desired position.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
∗: If equipped

71
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key (including the card key) to which you want to link the
driving position. If 2 or more keys are in the vehicle, the driving position
cannot be linked properly.
Shift the shift lever to P and close the driver's door. Turn the
“ENGINE START STOP” switch to IGNITION ON mode.
Press the desired button (“1”, “2” or
“3”) to recall the position. Then,
while keep pressing the button,
press the driver's door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
STEP1
STEP2

72
1-3. Adjustable components (seats, mirrors, steering wheel)
nOperating the driving position memory after turning the “ENGINE START
STOP” switch off
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch off.
nCanceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to IGNITION ON mode and
close the driver's door.
While pressing the “SET” button, press the driver’s door lock switches
(either lock or unlock) until the signal beeps.
nStopping seat position operation part-way through
Perform any of the following operations:
lPress the “SET” button.
lPress button “1”, “2” or “3”.
lAdjust the seat using the switches (only cancels seat position recall).
lAdjust the steering wheel using the tilt and telescopic steering control switch
(only cancels steering wheel position recall).
nCorrect seat position
When the seat is in the most forward or most backward position, and the seat is
being moved in those directions, the system may not correctly recognize the cur-
rent position and the memorized position will not be correctly recalled.
nWhen the power easy access system (→P. 63) is activated
If a seat position is memorized, the driver seat will move back the set distance
(→P. 621) from that memorized position.
CAUTION
nSeat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger
or squeeze your body against the steering wheel.
STEP1
STEP2

73
1
1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving
Head restraints
nRemoving the head restraints
nInstalling the head restraints
Head restraints are provided for all seats.
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Lock release button
Pull the head restraint up while pressing the
lock release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.

74
1-3. Adjustable components (seats, mirrors, steering wheel)
nAdjusting the height of the head restraints (front seats)
nAdjusting the rear seat head restraints
Always raise the head restraints to the uppermost lock position during use.
CAUTION
nHead restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
lUse the head restraints designed for each respective seat.
lAdjust the head restraints to the correct position at all times.
lAfter adjusting the head restraints, push down on them and make sure they are
locked in position.
lDo not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

75
1
1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
nCorrect use of the seat belts
lExtend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
lPosition the lap belt as low as
possible over the hips.
lAdjust the position of the
seatback. Sit up straight and
well back in the seat.
lDo not twist the seat belt.
nFastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle until
a click sound is heard.
To release the seat belt, press
the release button.
Release button

76
1-3. Adjustable components (seats, mirrors, steering wheel)
Seat belt comfort guide (outside rear seats)
If the shoulder belt sits close to a person's neck, use the seat belt comfort
guide.
Pull the comfort guide from the
pocket.
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
nAdjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
STEP1
STEP2
