When trouble arises
473
5-2. Steps to take in an emergency
Follow the correction procedures.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Comes on for 10 sec- onds.)
Indicates that an
attempt was
made to start the
engine without
the electronic
key being
present, or the
electronic key
was not function-
ing normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the “ENGINE
START STOP”
switch in any
mode other than
OFF and the
electronic key
has been taken
out of the detec-
tion area.
Confirm the loca-
tion of the elec-
tronic key.

474
5-2. Steps to take in an emergency
Once3 times
Indicates that the
driver’s door has
been opened and
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
has been taken
out of the detec-
tion area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
Con-
tinuousCon-
tinuous
(Displayed alternately)(Flashing)
Indicates that the
driver’s door has
been opened and
closed with the
shift lever out of
in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
has been taken
out of the detec-
tion area.
• Shift the shift lever to P.
•Confirm the location of the
electronic key.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

5
When trouble arises
475
5-2. Steps to take in an emergency

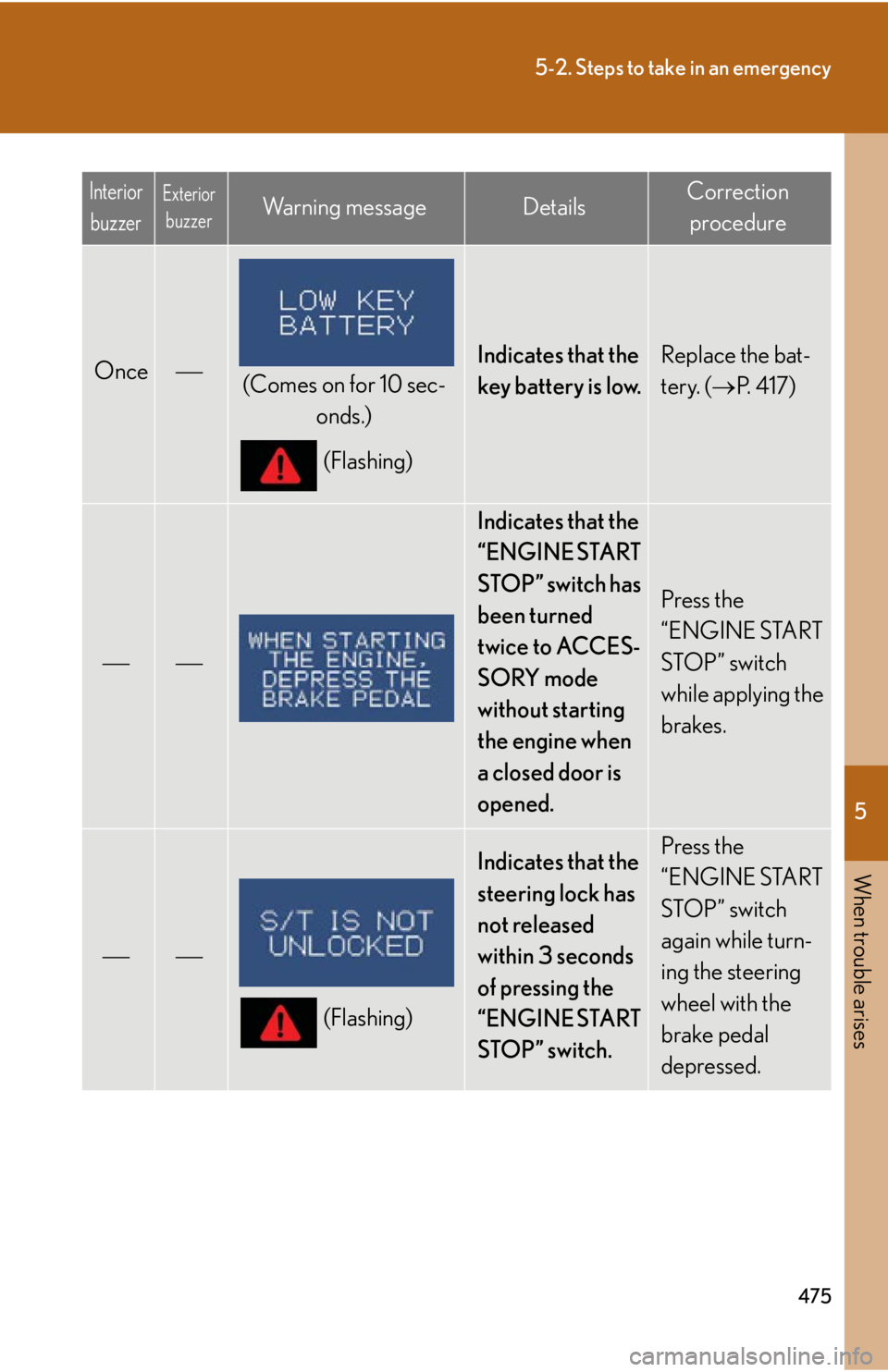

Once(Comes on for 10 sec-onds.)
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( P. 4 1 7 )

Indicates that the
“ENGINE START
STOP” switch has
been turned
twice to ACCES-
SORY mode
without starting
the engine when
a closed door is
opened.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.

(Flashing)
Indicates that the
steering lock has
not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

476
5-2. Steps to take in an emergency
*: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving the
signal from the key. ( P. 3 2 )
OnceIndicates that the
electronic key
does not operate
properly.
P. 4 9 0
Once
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

5
When trouble arises
477
5-2. Steps to take in an emergency
If you have a flat tire
Remove the flat tire and replace it with the spare tire provided. The spare
tire can only be used on the front wheels.
■ Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Tool bag
(including towing eyelet) Jack
Spare tireJack handle
Tighten Loosen

478
5-2. Steps to take in an emergency
Taking out the spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided.
Loosen the center fastener that
secures the spare tire.
STEP1
STEP2
STEP3

5
When trouble arises
479
5-2. Steps to take in an emergency
Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is in
contact with the jack point.
STEP1
Flat tireWheel chock positions
Front
Left-hand
sideBehind the
rear right-
hand side tire
Right-
hand sideBehind the
rear left-
hand side tire
Rear
Left-hand
sideIn front of the
front right-
hand side tire
Right-
hand sideIn front of the
front left-
hand side tire
STEP2
STEP3

480
5-2. Steps to take in an emergency
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tireRemove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
STEP4
STEP5
STEP1
