6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.

590
6-1. Specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
GS350
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil capacity
(Drain and refill —
reference)
Wi th f il ter
Without filter
2WD4WD
6.6 qt. (6.3 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)6.7 qt. (6.4 L, 5.6 Imp.qt.)
6.3 qt. (6.0 L, 5.3 Imp.qt.)
Outside temperature

591
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
The 5W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.

592
6-1. Specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Cooling system
Ignition system
CapacityGS46012.3 qt. (11.6 L, 10.2 Imp.qt.)
GS3509.6 qt. (9.1 L, 8.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

593
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Electrical system
Differential
Rear differential: Your Lexus vehicle is filled with “Toyota Genuine Differen-
tial Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differ-
ential Gear Oil” or an equivalent of matching quality to satisfy the above
specification. Please contact your Lexus dealer for further details.
12 volt battery
Open voltage at
68 °F (20 °C):12.6  12.8V Fully charged
12.2  12.4V Half charged
11.8  12.0V Discharged
(Voltage is checked 20 minutes after the
engine and all lights are turned off.)
Charging rates5A max.
GS460/
GS350 (2WD)GS350 (4WD)
FrontRear
Oil capacity1.42 qt.
(1.35 L, 1.19 Imp.qt.)0.74 qt.
(0.70 L, 0.61 Imp.qt.)1.42 qt.
(1.35 L, 1.19 Imp.qt.)
Oil type and
viscosity
To y o t a G e n u i n e D i f -
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
Hypoid gear oil API
GL-5
Above 0°F (-18°C):
SAE 90
Below 0°F (-18°C):
SAE 80W or SAE
80W-90
To y o t a G e n u i n e D i f -
ferential Gear Oil LT
75W-85 GL-5 or
equivalent

595
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

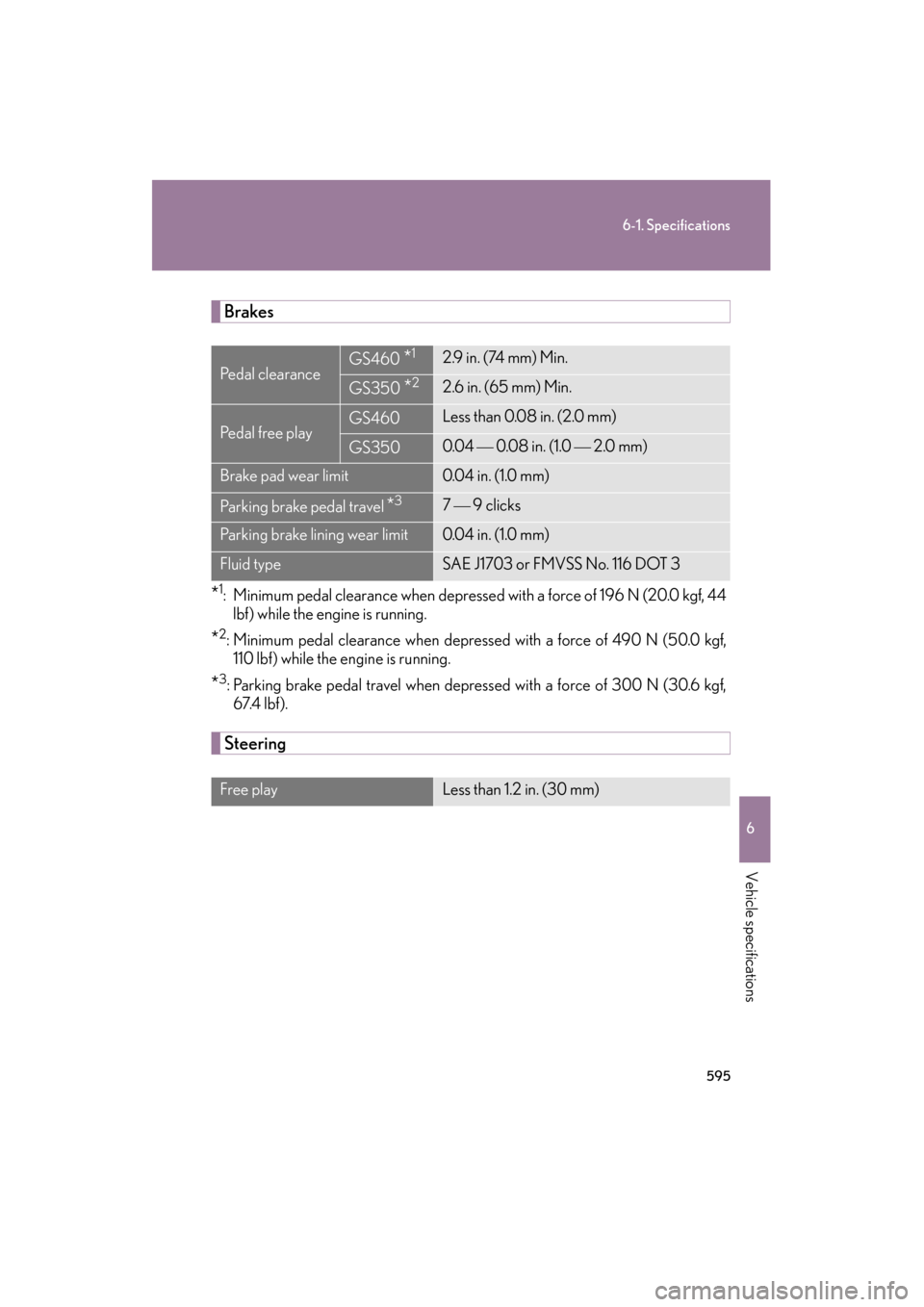

Brakes
*1: Minimum pedal clearance when depressed with a force of 196 N (20.0 kgf, 44lbf) while the engine is running.
*2: Minimum pedal clearance when depressed with a force of 490 N (50.0 kgf,110 lbf) while the engine is running.
*3: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,67.4 l bf ).
Steering
Pe d a l c l e a r a n c e GS460 *12.9 in. (74 mm) Min.
GS350 *22.6 in. (65 mm) Min.
Pedal free play GS460Less than 0.08 in. (2.0 mm)
GS3500.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *37  9 clicks
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)

599
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an significantly reduced pe rformance. Persistent knocking can
lead to engine damage and should be corrected by refueling with higher
octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

600
6-1. Specifications
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
