2011 Lexus ES350 turn signal bulb

133
2-1. Driving procedures
2
When driving
ES350_U
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Right turn
Left turn
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.

424
4-3. Do-it-yourself maintenance
ES350_U
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 501)
■ Front bulb locations
■ Rear bulb locations
Headlight high beam
and daytime running
light Headlight
low beam
(halogen
bulb)
Front turn signal light
Front side
marker light
Rear turn signal lightStop/tail light
Rear side marker light
Back-up light
Tail light

426
4-3. Do-it-yourself maintenance
ES350_U■
Front side marker lights and front turn signal lights
Remove the access hole cover.
Front side marker light
Front turn signal light
Turn the bulb base counterclock-
wise.
Front side marker light Remove the light bulb.
STEP1
STEP2
STEP3

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_UFront turn signal light
Remove the light bulb.
STEP3

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■
Stop/tail, rear turn signal and rear side marker lights
Open the trunk lid and remove the
access hole cover.
Stop/tail light
Rear turn signal light
Rear side marker light
Turn the bulb base counterclock-
wise.
Stop/tail light Remove the light bulb.
STEP1
STEP2
STEP3

430
4-3. Do-it-yourself maintenance

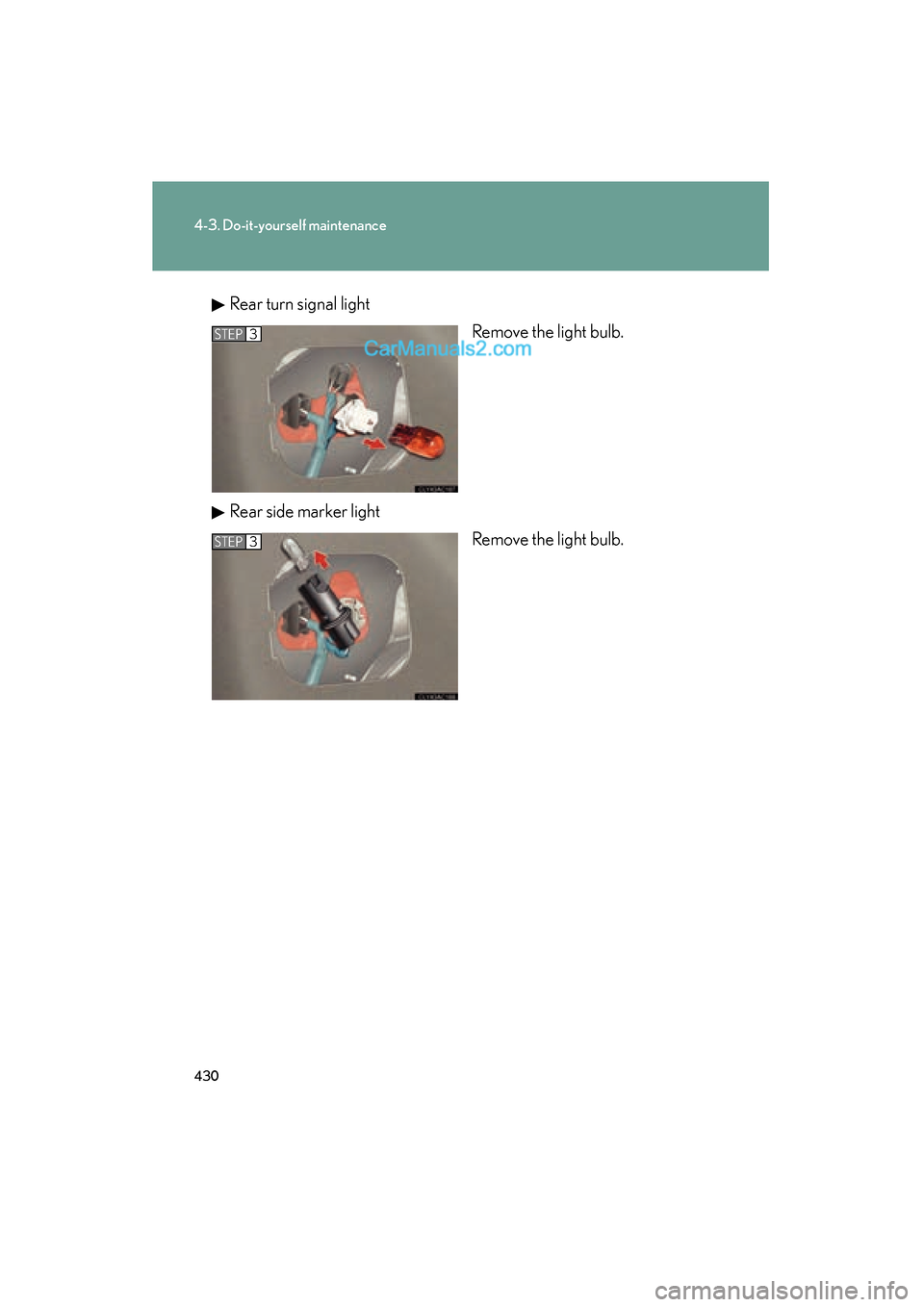

ES350_URear turn signal light
Remove the light bulb.
Rear side marker light Remove the light bulb.
STEP3
STEP3

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (discharge bulbs)
● Parking lights
● Front fog lights
● Side turn signal lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED light bulbs
The parking lights, side turn signal lights, high mounted stoplight and license plate
lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to
your Lexus dealer to have the light replaced.

501
6-1. Specifications
6
Vehicle specifications
ES350_U
Light bulbs
*: If equipped
A: D4R discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: HB4 halogen bulbs
E: Wedge base bulbs (amber)
F: Wedge base bulbs (clear)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam) Discharge bulbs
*
Halogen bulbs*
D4RH1135
55AB
Headlights (high beam)900560C
Front fog lights900651D
Front turn signal lights21E
Front side marker lights5F
Tr u n k l i g h t5G
Rear side marker lights5F
Stop/tail lights744321 /5F
Tail lights74435F
Rear turn signal lights21E
Back-up lights92116F
Outer foot lights5F
Interior
Vanity lights8F
Door courtesy lights5F
Front interior/personal lights5F
Rear interior light5G
