3-6. Using the storage features
CT200h_EE (OM76041E)
Glove box
The glove box can be opened by pressing the lock release button
and locked and unlocked using the mechanical key.
Open
Lock
Unlock
CAUTION
Caution while driving
Keep the glove box closed when not in use. In the event of sudden braking,
an accident may occur due to an occupant being struck by the open glove
box or the items stored inside.
Glove box

4Maintenance and care
465
CT200h_EE (OM76041E)
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........ 466
Cleaning and protecting
the vehicle interior ......... 471
4-2. Maintenance
Maintenance
requirements .................. 474
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions..................... 477
Hood ................................ 481
Positioning a floor jack .... 483
Engine compartment ........ 485
12-volt battery.................. 496
Tires ................................. 503
Tire inflation pressure ...... 507
Wheels ............................. 509
Air conditioning filter ....... 511
Electronic key battery ...... 515
Checking and replacing
fuses ............................... 520
Light bulbs ....................... 534

467
4-1. Maintenance and care
4
Maintenance and care
CT200h_EE (OM76041E)
When using a car wash
If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
Touch-up paint (if equipped)
Touch-up paint may be used to cover small chips or scratches.
Apply the paint soon after the damage occurs or corrosion may set in. To
apply the touch-up paint so it is hardly noticeable, the trick is to apply it
only to the bare spots. Apply only the smallest amount possible and do not
paint the surface around the scratch or chip.
Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
Front side windows water-repellent coating
The following precautions can extend the effectiveness of the water-
repellent coating.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long
period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning
the windows.
• Do not use any metallic objects to remove condensation build up.
When the water-repellent performance has become insufficient, the coat-
ing can be repaired. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to
disconnect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
Unlocking the doors using the smart entry & start system may not be
possible immediately after reconnecting the 12-volt battery. If this hap-
pens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
Start the hybrid system with the “POWER” switch in ACCESSORY
mode. The hybrid system may not start with the “POWER” switch
turned OFF. However, the hybrid system will operate normally from the
second attempt.
The “POWER” switch mode is recorded by the vehicle. If the battery is
reconnected, the vehicle will return the “POWER” switch mode to the
status it was in before the battery was disconnected. Make sure to turn
off the power before disconnect the battery. Take extra care when con-
necting the battery if the “POWER” switch mode prior to discharge is
unknown.
Restart the hybrid system, depress the brake pedal, and confirm that it is
possible to shift into each shift position.
If the system will not start even after multiple attempts at all methods above,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.

515
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)

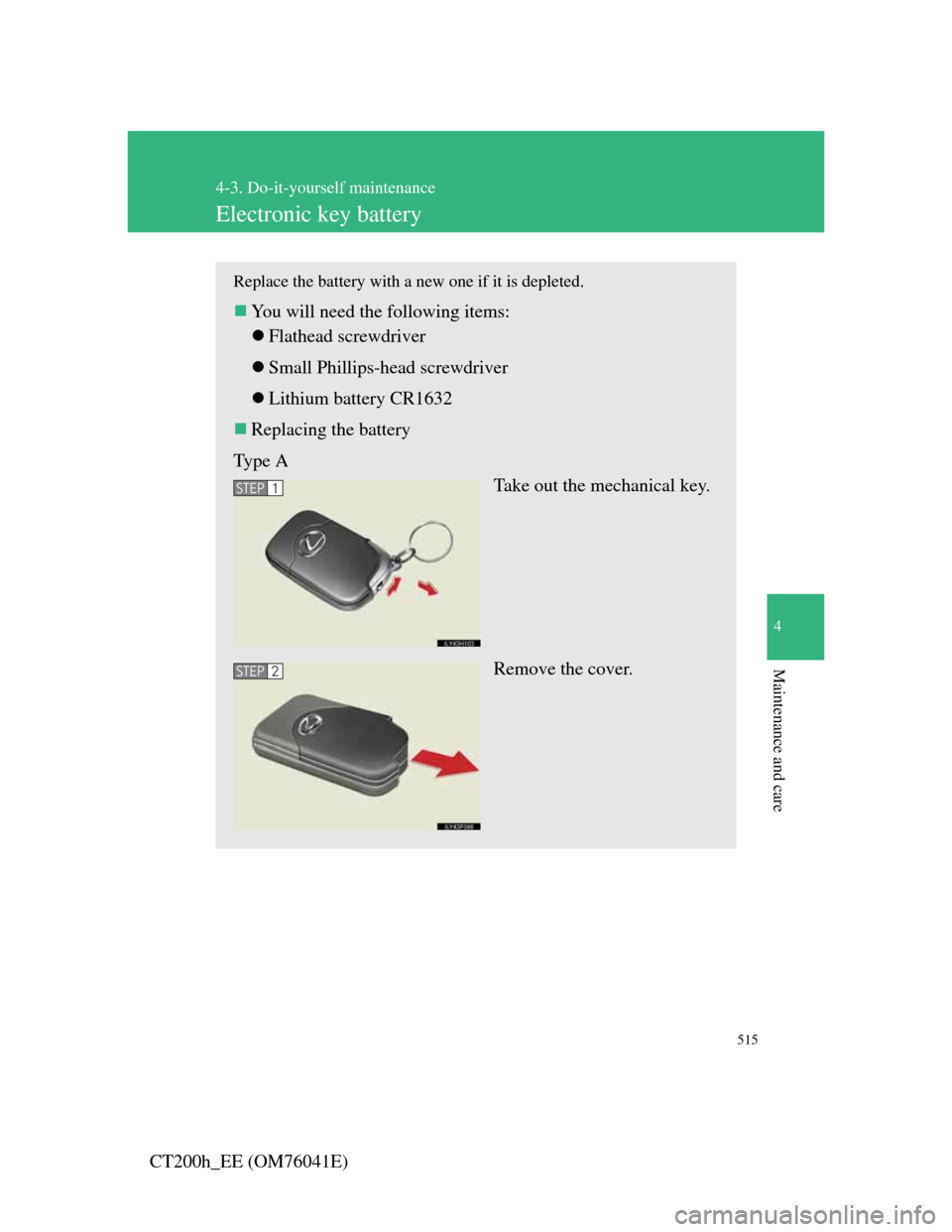

Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Flathead screwdriver
Small Phillips-head screwdriver
Lithium battery CR1632
Replacing the battery
Type A
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

517
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Type B
Take out the mechanical key.
Remove the cover.
To prevent damage to the
key, cover the tip of the
screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3

518
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Use a CR1632 lithium battery
Batteries can be purchased at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, local electrical appli-
ance shops or camera stores.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to local laws.
When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealer. Your Lexus
dealer can replace the battery for you.
If the electronic key battery is depleted
The following symptoms may occur:
The smart entry & start system, push-button start system and wireless
remote control will not function properly.
The operational range will be reduced.

527
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
38EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection
system, exhaust system, key off
pump module, electric cooling
fans
39M-HTR10 AOutside rear view mirror defoggers
40SPARE30 ASpare fuse
41SPARE10 ASpare fuse
42SPARE7.5 ASpare fuse
43EFI MAIN20 A
Multiport fuel injection system/
sequential multiport fuel injection
system, cooling system, EFI NO.2
44BATT FAN10 ABattery cooling fan
45IG220 A
Hybrid system, multiport fuel
injection system/sequential multi-
port fuel injection system, MET,
IGN, power management system
FuseAmpereCircuit
