DISPLAYThe car may be provided with a multifunction/
reconfigurable multifunction display that shows
useful information, according to the previous
settings, when driving.
With the ignition key removed, the display
activates and shows the time and total milometer
reading (in km or miles) for a few seconds when
a door is opened/closed.MULTIFUNCTION DISPLAY "STANDARD"
SCREEN
The following information is shown on the display
fig. 5 :
ADateBGear Shift Indicator (for versions/markets,
where provided)CStart&Stop function indication (for versions/
markets, where provided)D
Time (always displayed, even with key removed
and doors closed)
EMilometer (display of distance travelled in
kilometres/miles)FOutside temperatureG
Headlamp alignment position (only with dipped
headlights on)
H
Activation of Dualdrive electric power steering
(CITY indication) or of ECO driving mode
(ECO indication)
fig. 5
L0F1008
9GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RECONFIGURABLE MULTIFUNCTION
DISPLAY "STANDARD" SCREEN
The following information is shown on the display
fig. 6 :ATimeBDate or trip distance display in kilometres (or
miles)CGear Shift Indicator (for versions/markets,
where provided)D
Start&Stop function indication (for versions/
markets, where provided)
EMilometer (display of distance travelled in
kilometres/miles)FHeadlamp alignment position (only with dipped
headlights on)G
Outside temperature
H
Car status indications (e.g. doors open, possible
ice on road, etc.)On some versions the display shows the turbine
pressure.
GEAR SHIFT INDICATOR
The GSI (Gear Shift Indicator) system advises the
driver to change gear through a specific indication
on the control panel fig. 7. Through the GSI, the
driver is notified that changing gear will allow
a reduction in fuel consumption.
When the SHIFT UP icon (
SHIFT) is shown on
the display, the GSI is advising the driver to
engage a higher gear, while the SHIFT DOWN (
SHIFT) icon advises the driver to engage a
lower gear.
The indication in the instrument panel remains on
until the driver changes gear or the driving
conditions return to a situation where changing
gear is not required to improve consumption.
fig. 6
L0F1007
fig. 7
L0F1010
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Evenly distribute the load and take
into account, when
driving, the
increased effect of side wind on the car.Fully comply with the regulations in
force concerning maximum clearance.
HEADLIGHTSLIGHT BEAM DIRECTION
The correct alignment of the headlights is
important for the comfort and safety of not only
the driver but all other road users. This is also
covered by a specific rule of the highway code.
The headlights must be correctly aimed to
guarantee the best visibility conditions for all
drivers while travelling with headlights on.
Contact a Lancia Dealership to have the
headlights properly adjusted.
Check beam alignment every time the load or its
distribution changes.
IMPORTANT When the gas discharge (Xenon)
headlamps (for versions/markets, where provided)
are switched on, normally parabolas and light
beam move vertically for about 2 seconds until
headlamp alignment has stabilised.
77GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

HEADLAMP ALIGNMENT CORRECTOR
This device works with the ignition key in the
MAR position and the dipped headlights on.
Headlight alignment adjustment
To adjust press
buttons or
fig. 67. The
instrument panel display shows the position in
relation to the adjustment set.
Position 0 - one or two persons on the front seats
Position1-4persons
Position2-4persons + load in the luggage
compartment
Position 3 - driver + maximum admissible load all
stored in the luggage compartment.
IMPORTANT Check alignment every time the
load carried changes.IMPORTANT If the car is equipped with (Xenon)
gas discharge headlights, the headlight alignment
is controlled electronically, as a consequence the
and
buttons are not present.
FOG LIGHT ALIGNMENT
(for versions/markets, where provided)
Contact a Lancia Dealership to have the
headlights properly adjusted.
ADJUSTING THE HEADLIGHTS WHEN
ABROAD
Dipped headlights are adjusted to drive in the
country where the vehicle was originally
purchased. When travelling in countries with
opposite driving direction, to avoid dazzling the
drivers on the other side of the road, you need
to cover areas of the headlight according to the
Highway code of the country you are travelling in.
fig. 67
L0F0224
78GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SIDE LIGHTS AND DIPPED
HEADLAMPS (green)/FOLLOW ME
HOME (green)
SIDE LIGHTS AND DIPPED HEADLAMPS
The warning light comes on when side/tail lights
or dipped headlamps are turned on.
FOLLOW ME HOME
This warning light switches on (on some versions
together with a message and a symbol in the
display) when this device is used (see the
paragraph "Follow me home" in the chapter
"Knowing your car").MAIN BEAMS (blue)
The warning light switches on when the main
beams are turned on.LEFT-HAND DIRECTION
INDICATOR (green) (intermittent)
The light comes on when the direction indicator
control stalk is moved downwards or, together
with the right-hand indicator, when the hazard
warning light button is pressed.
RIGHT-HAND DIRECTION
INDICATOR (green) (intermittent)
The warning light turns on when the direction
indicator control lever is moved upwards or,
together with the left indicator, when the hazard
warning light button is pressed.“DUALDRIVE” ELECTRIC POWER
STEERING ON (green)
The CITY indication appears (an icon appears on
the display on some versions ) when "Dualdrive"
electric power steering is activated by pressing
the corresponding button (see the paragraph
"Dualdrive electric power steering" in the chapter
"Knowing your car"). Press the button again to
switch off the CITY indication (or the icon on the
display).DOORS/BONNET/LUGGAGE
COMPARTMENT OPEN
The warning light switches on (on some versions
together with a message and a symbol in the
display) when one or more doors, the boot or the
bonnet or the tailgate are not properly closed.
An acoustic signal is activated with the doors open
and the car moving.
153GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGESIN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

BulbsUse Type Power Re. Figure
Dipped headlights\Main Beam Headlights H4 55W D
Dipped headlamps with gas discharge
bulbs (Xenon) (for versions/markets where
provided)D1S 35W F
Front side lights W5W 5W A
Daytime Running Lights (DRL) W21W 21W B
Rear side lights LEDs - -
Front direction indicators PY24W 24W B
Side direction indicators W5W 5W A
Rear direction indicators PY21W 21W B
Stop W16W 16W B
3rd brake light LEDs - -
Fog light H1 55W E
Reverse P21W 21W B
Rear fog lamp P21W 21W B
Number plate W5W 5W C
Front roof light C5W 5W C
Luggage compartment roof light W5W 5W A
Glove compartment light C5W 5W C
171GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

FUSE SUMMARY TABLEEngine compartment fuse box FUSE AMPS
BCM F01 60
RDU F02 50
Ignition switch F03 20
BSM1 (pump) F04 40
EPS F05 70
Engine single speed cooling fan (heated engines) F06 20
Engine dual speed cooling fan solenoid valve/Engine
cooling fan low speed (conditioned engines)F06 30
Engine cooling electric fan high speed F07 40
Fog lights F08 30
Headlamp washer pump F09 20
Horns F10 15
Engine management system (secondary loads) F11 10
Main beam headlights F14 15
Sunroof motor F15 20
+15 ECM/coil T10 F16 7,5
ECM main loads (versions 0.9 TwinAir 85 HP/
F17 10
'+30 ECM/coil T09 F18 5
Fuel pump F19 15
188
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
1.2 8V 69 HP)

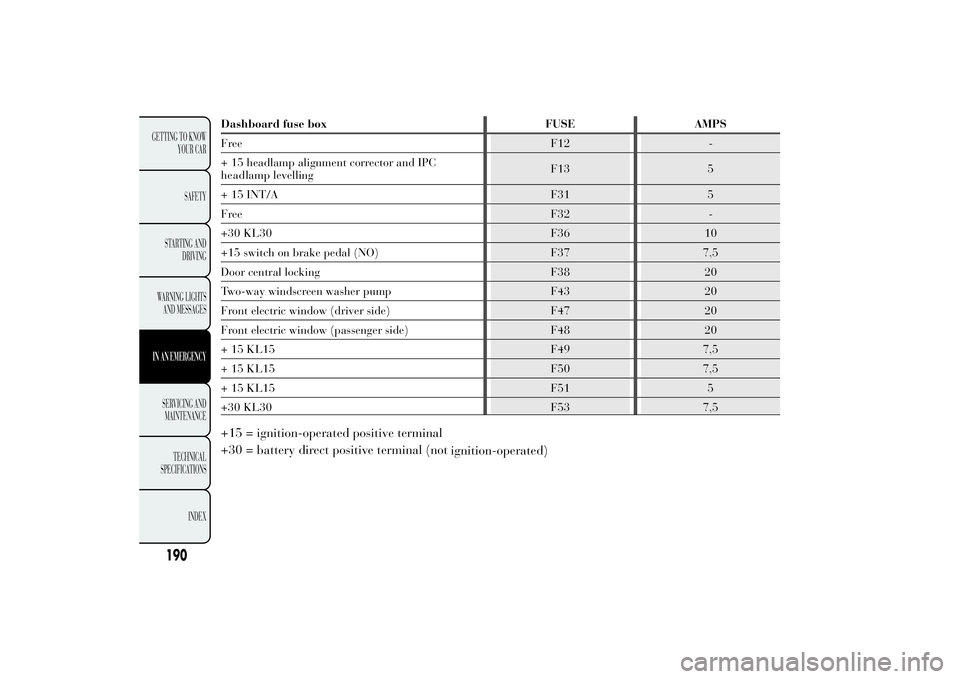

Dashboard fuse box FUSE AMPS
Free F12 -
+ 15 headlamp alignment corrector and IPC
F13 5
+ 15 INT/A F31 5
Free F32 -
+30 KL30 F36 10
+15 switch on brake pedal (NO) F37 7,5
Door central locking F38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
+ 15 KL15 F49 7,5
+ 15 KL15 F50 7,5
+ 15 KL15 F51 5
+30 KL30 F53 7,5+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (not
ignition-operated)
190
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
headlamp levelling
