START&STOP SYSTEM ACTIVATION/
DEACTIVATION
START&STOP SYSTEM FAILURE
Start&Stop system activation
A message will be displayed when the Start&Stop
system is on. In this condition the LED on the
button on the dashboard control panel (see
“Start&Stop” in the chapter "Knowing your car")
is off.
Turning the Start&Stop off
❒Versions with reconfigurable multifunction
display:a message appears on the display when
the Start&Stop system is deactivated.
❒Versions with reconfigurable multifunction
display:the
symbol and a message appear on
the display when the Start&Stop system is
deactivated.
The LED on the
button is on when the system
is deactivated.
START&STOP SYSTEM FAILURE
Versions with multifunction display:a
Start&Stop system failure is indicated by the
switching on of the
warning light on the
instrument panel and a message on the display.
Versions with reconfigurable multifunction
display:the
icon switches on and a message
appears on the display in the event of a
Start&Stop system failure.
In the event of a Start&Stop system failure,
contact a Lancia Dealership.
POSSIBLE ICE ON ROAD
(for versions/markets where provided)
On the versions equipped with reconfigurable
multifunction display, a message + symbol appear
on the display when the outdoor temperature
falls to or below 3°C.
IMPORTANT In the event of outdoor temperature
sensor failure, dashes are shown on the display
instead of the value.
ECO FUNCTION ACTIVATION/
DEACTIVATION (0.9 TwinAir 85 HP versions)
The ECO function activation/deactivation by
pressing the corresponding button (see the
paragraph "Controls" in the chapter "Knowing
your car") is indicated by a message on the
display.
154
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGESIN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

ASR SYSTEM
ASR system deactivation
The ASR system can be deactivated by pressing
the button ASR OFF (see the paragraph "ASR
system" in the chapter "Knowing your car") . On
versions equipped with reconfigurable
multifunction display, the system deactivation is
indicated by the displaying of a message and a
symbol; at the same time the LED on the ASR
OFF switches on.SERVICE (SCHEDULED SERVICING)
EXPIRED
When the next scheduled service is approaching
and the key is turned to MAR, the word Service
appears on the reconfigurable multifunction
display, followed by the number of kilometres or
miles left. Contact a Lancia Dealership where
the operations of the "Scheduled Servicing Plan"
will be performed and the message will be reset.
155GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGESIN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

SERVICING AND MAINTENANCE
SCHEDULED SERVICINGCorrect servicing is essential in guaranteeing a
long life for the car under the best conditions.
Lancia has prepared a series of checks and service
operations to be carried out every 30,000
kilometres (for petrol versions) or every 35,000
kilometres (for diesel versions).
Check the items on the Scheduled Servicing Plan
(e.g. periodically check level of liquids, tyre
pressure, etc.) before 30,000/35,000 km and
between these services deadlines.
Scheduled Services are offered by all Lancia
Dealerships according to a set time schedule. If,
during each operation, in addition to the ones
scheduled, the need arises for further
replacements or repairs, these may be carried out
only with the explicit agreement of the Customer.
If your car is used frequently for towing, the
interval between one service operation and the
next should be reduced.WARNING
At 2000 km from the next service operation the
display will show a message.
The Scheduled Services are set out by the
Manufacturer. Failure to have them carried out
may invalidate the warranty.
It is advisable to inform the Lancia Dealership of
any small operating irregularities without waiting
for the next service.
197GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICA
TIONS
INDEX

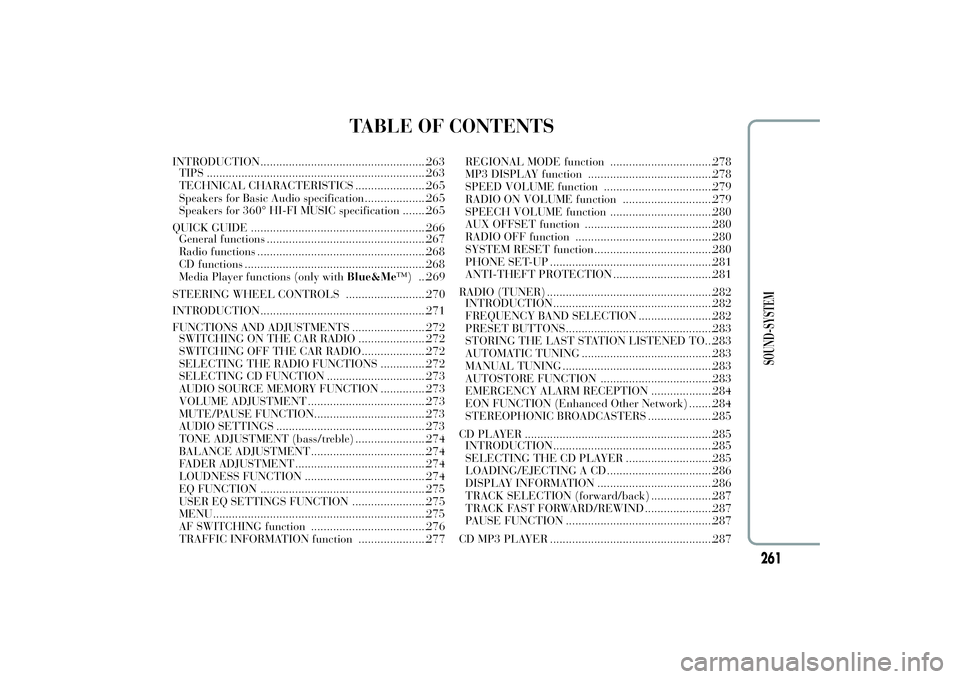

TABLE OF CONTENTS

INTRODUCTION.....................................................263
TIPS ......................................................................263
TECHNICAL CHARACTERISTICS .......................26
Speakers for Basic Audio specification....................265
Speakers for 360° HI-FI MUSIC specification ........265
QUICK GUIDE ........................................................266
General functions ...................................................267
Radio functions ......................................................268
CD functions ..........................................................268
Media Player functions (only withBlue&Me™) ...269
STEERING WHEEL CONTROLS ..........................270
INTRODUCTION.....................................................271
FUNCTIONS AND ADJUSTMENTS ........................272
SWITCHING ON THE CAR RADIO ......................272
SWITCHING OFF THE CAR RADIO.....................272
SELECTING THE RADIO FUNCTIONS ...............272
SELECTING CD FUNCTION ................................273
AUDIO SOURCE MEMORY FUNCTION ...............273
VOLUME ADJUSTMENT ......................................273
MUTE/PAUSE FUNCTION....................................273
AUDIO SETTINGS ................................................273
TONE ADJUSTMENT (bass/treble) .......................274
BALANCE ADJUSTMENT.....................................274
FADER ADJUSTMENT ..........................................274
LOUDNESS FUNCTION .......................................274
EQ FUNCTION .....................................................275
USER EQ SETTINGS FUNCTION ........................275
MENU....................................................................275
AF SWITCHING function .....................................276
TRAFFIC INFORMATION function ......................277REGIONAL MODE function .................................278
MP3 DISPLAY function ........................................278
SPEED VOLUME function ...................................279
RADIO ON VOLUME function .............................279
SPEECH VOLUME function .................................280
AUX OFFSET function .........................................280
RADIO OFF function ............................................280
SYSTEM RESET function......................................280
PHONE SET-UP ....................................................281
ANTI-THEFT PROTECTION ................................281
RADIO (TUNER) .....................................................282
INTRODUCTION...................................................282
FREQUENCY BAND SELECTION ........................282
PRESET BUTTONS...............................................283
STORING THE LAST STATION LISTENED TO...283
AUTOMATIC TUNING ..........................................283
MANUAL TUNING ................................................283
AUTOSTORE FUNCTION ....................................283
EMERGENCY ALARM RECEPTION ....................284
EON FUNCTION (Enhanced Other Network) ........284
STEREOPHONIC BROADCASTERS .....................285
CD PLAYER ............................................................285
INTRODUCTION...................................................285
SELECTING THE CD PLAYER ............................285
LOADING/EJECTING A CD..................................286
DISPLAY INFORMATION .....................................286
TRACK SELECTION (forward/back) ....................287
TRACK FAST FORWARD/REWIND ......................287
PAUSE FUNCTION ...............................................287
CD MP3 PLAYER ....................................................287
261
SOUND-SYSTEM
5

INTRODUCTION...................................................287
MP3 MODE ...........................................................287
SELECTING MP3 SESSIONS ON HYBRID
DISCS ....................................................................288
DISPLAY INFORMATION .....................................288
SELECTING NEXT/PREVIOUS FOLDER ............289
STRUCTURE OF THE FOLDERS.........................289
AUX (only with theBlue&Me™ system) ................289INTRODUCTION...................................................289
AUX MODE ...........................................................289
TROUBLESHOOTING ...........................................290
GENERAL .............................................................290
CD PLAYER ..........................................................290
MP3 FILE READING.............................................290
262
SOUND-SYSTEM

INTRODUCTIONThe radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequency bands;
❒RDS (Radio Data System) with TA (traffic
alerts) function - TP (traffic programmes) -
EON (Enhanced Other Network) - REG
(regional programmes);
❒AF: search selection for alternative frequencies
in RDS mode;
❒provision for emergency alarm;
❒automatic/manual tuning into stations;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM band
(6 on FM1, 6 on FM2, 6 on FMT), 12 on MW
band (6 on MW1, 6 on MW2);
❒automatic programming (Autostore function) of
6 stations on dedicated FM band;
❒SPEED VOLUME function (excluding versions
with 360° HI-FI MUSIC system): speed-
dependent automatic volume adjustment;
❒automatic Stereo/Mono selection.CD section
❒Direct selection of the disc;
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒CD Display function: display of disc name and
time elapsed since the start of the track;
❒Playing of audio CD, CD-R and CD-RW.
Multimedia CDs include data tracks in
addition to the audio tracks. Playing
this type of CD can cause hissing at a
volume that may jeopardise road safety as well
as causing damage to the final stages and the
speakers.
MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒MP3 Display function: display of name of folder,
ID3-TAG information, time elapsed since the
start of the track, name of the file);
❒Playing of audio or data CD, CD-R and CD-RW.
271
SOUND-SYSTEM

SELECTING CD FUNCTION
By pressing the MEDIA button briefly it is possible
to select the CD function.
AUDIO SOURCE MEMORY FUNCTION
If another function (e.g. the radio) is selected
whilst listening to a CD, playback is interrupted
and is resumed from the same point when
returning to the CD source.
If another function is selected whilst listening to
the radio, the last station selected is tuned into
when returning to the Radio mode.
VOLUME ADJUSTMENT
Turn the
(ON/OFF) button/knob to adjust the
volume.
If the volume level is changed during the
transmission of traffic news, the new setting will
only be maintained until the update is finished.
MUTE/PAUSE FUNCTION
(volume reset)
Press thebutton briefly to activate the Mute
function. The volume will gradually decrease and
the words "RADIO Mute" (in radio mode) or
"PAUSE" (in CD mode) will appear on the
display.
Press thebutton again to deactivate the Mute
function. The volume will gradually increase until
it reaches the level previously set.When the volume level is changed using the
dedicated controls, the Mute function is
deactivated and the volume is adjusted to the new
level selected.
With the Mute function activated, it will be
ignored when there is an incoming traffic alert (if
the TA function is activated), or if an emergency
alarm is received. The function will be reactivated
when the alert is over.
AUDIO SETTINGS
The functions in the audio menu differ according
to the activated source: AM/FM/CD/Media Player
(only withBlue&Me™) /AUX (only with
Blue&Me™, for versions/markets, where
provided).
Press the
button briefly to change the Audio
functions.
After thebutton is first pressed, the display will
show the bass level value for the source activated
at that time (e.g. in FM mode the display will
show the wording "FM Bass +2").
Use theor
buttons to scroll the menu
functions. To change the setting of the function
selected use the
or
buttons. The current status
of the selected function appears on the display.
The functions managed by the Menu are:
❒BASS (adjustment of bass tones);
❒TREBLE (adjustment high tones);
❒BALANCE (right/left balance adjustment);
273
SOUND-SYSTEM

The condition of the function (on or off) is shown
on the display for a few seconds by the wording
“Loudness On” or “Loudness off”.
EQ FUNCTION
(equaliser activation/deactivation)
(excluding versions with 360° HI-FI MUSIC
system)
The built-in equaliser can be
activated/deactivated. When the equaliser function
is off, the audio settings can only be changed by
adjusting the “Bass” and “Treble” settings,
whereas when the function is on, the acoustic
curves can be adjusted. To turn off the equaliser,
select the "EQ OFF" function using the
or
buttons.
To turn the equaliser on, use the
or
buttons to
select one of the adjustments:
❒"FM/AM/CD...EQ User" (adjustment of 7
equaliser bands that can be changed by the
user);
❒"Classic" (equaliser preset for optimal classical
music sound);
❒"Rock" (equaliser preset for optimal rock and
pop music sound);
❒"Jazz" (equaliser preset for optimal jazz music
sound).
When one of the equaliser settings is activated the
letters "EQ" light up.USER EQ SETTINGS FUNCTION
(equaliser settings only if the USER setting is
selected)
(excluding versions with 360° HI-FI MUSIC
system)
To set a customised equaliser adjustment, set to
"User" using the
or
buttons and press the
MENU button.
A 7-bar graph appears on the display, in which
each bar represents a frequency.
Select the bar to adjust using the
or
buttons;
the selected bar will start to flash and it can be
adjusted using the
or
buttons.
To store the setting, press the
button again. The
display will show the source activated at the time
followed by the word "User". If the mode is, for
example, FM, then the display will show "FM EQ
User".
MENU
Menu button functions
Press the Menu function briefly to activate the
MENU function. The display will show the first
menu item that can be adjusted (AF) ("AF
Switching On" on the display).
Use the
or
buttons to scroll the menu
functions. To change the setting of the function
selected use the
or
buttons.
The current status of the function selected will be
shown on the display.
275
SOUND-SYSTEM
