2011 Lancia Musa Owner handbook (in English)

48
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS

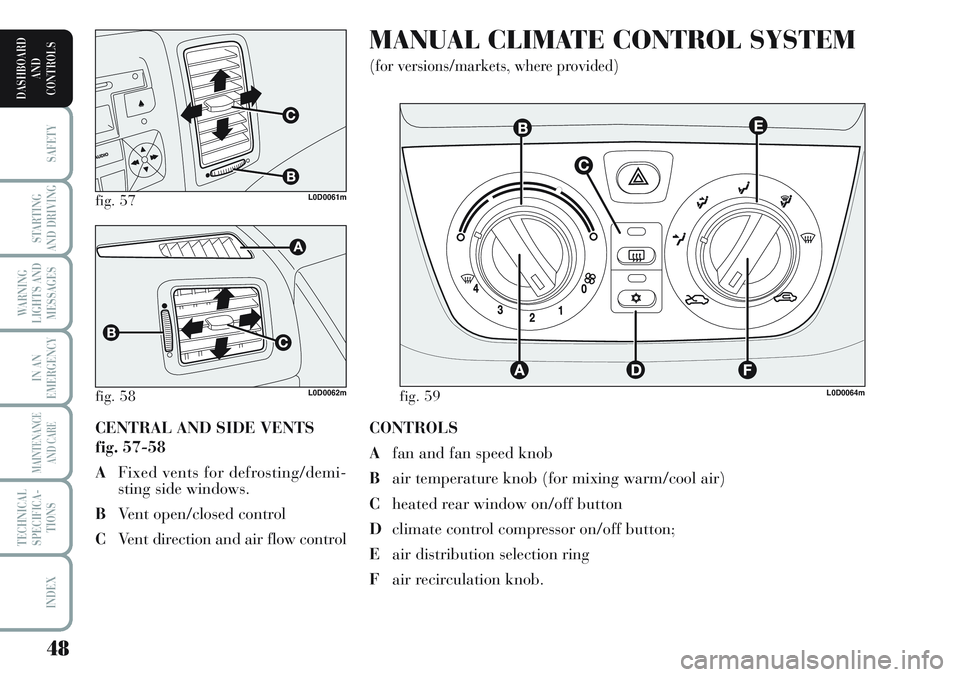

CONTROLS
Afan and fan speed knob
Bair temperature knob (for mixing warm/cool air)
Cheated rear window on/off button
Dclimate control compressor on/off button;
Eair distribution selection ring
Fair recirculation knob.
MANUAL CLIMATE CONTROL SYSTEM
(for versions/markets, where provided)
CENTRAL AND SIDE VENTS
fig. 57-58
AFixed vents for defrosting/demi-
sting side windows.
BVent open/closed control
CVent direction and air flow control
fig. 57L0D0061m
fig. 58 fig. 59L0D0062mL0D0064m

49
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
AIR DISTRIBUTION
The ring Eis used to make fresh air
reach the entire passenger compart-
ment. There are five selections:
«air from central vents and side
vents 2 and 4;
Δair from central side vents 2 and
4 and downward vents 5 and 6
(bi-level function);
≈air downwards 5 and 6;
ƒair downwards 5 and 6 and to the
windscreen 3;
-for demisting and defrosting the
windscreen 3 and the front side
windows 1.ACTIVATING THE INTERNAL
AIR RECIRCULATION
Position the knob F-fig. 59to
….
It is advisable to switch internal air
recirculation on while standing in
queues or in tunnels to prevent the in-
troduction of polluted air. Do not use
the function for a long time, particu-
larly if there are many occupants on
board, to prevent the windows from
misting up.
IMPORTANT The air recirculation
system makes it possible to reach the
required heating or cooling condi-
tions faster. Do not use the air recir-
culation function on rainy/cold days
as it would considerably increase the
possibility of the windows misting in-
side. SETTING THE TEMPERATURE
Proceed as follows:
Turn the ring B-fig. 59(indicator
pointing to the red sector) rightwards
to turn the temperature up or left-
wards to turn it down;
ADJUSTING THE FAN SPEED
To ventilate the passenger compart-
ment properly proceed as follows:
❒fully open the central 4 and side
2 air vents;
❒turn the ring B-fig. 59to the blue
sector;
❒turn knob Ato the required speed;
❒turn the ring Eto«;
❒stop internal air recirculation by
turning knob Fto
Ú.

50
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
Window demisting
In the event of considerable outside
moisture and/or rain and/or consid-
erable differences in temperature in-
side and outside the passenger com-
partment, perform the following pre-
ventive demisting procedure:
❒stop internal air recirculation by
turning knob F-fig. 59to
Ú.
❒turn knob Bto the red section;
❒turn knob Ato 2;
❒turn ring Eto
-or to positionƒif the windows are not
demisted.
IMPORTANT The climate control sys-
tem is very useful for demisting the
windows: simply press Dto operate
the system and demist the windows. FRONT WINDOW FAST
DEMISTING/
DEFROSTING (WINDSCREEN
AND SIDE WINDOWS)
Proceed as follows:
❒turn knob Bto the red section;
❒turn knob Ato 4
-;
❒turn ring Eto
-;
❒stop air recirculation by turning
knobFto
Ú.
After demisting/defrosting, operate
the controls normally used to restore
the required comfort. QUICK HEATING
Proceed as follows:
❒close all the vents on the dash-
board;
❒turn the ring B-fig. 59to the red
sector;
❒turn knob Ato 4
-;
❒turn ring Eto
≈.

51
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
HEATED REAR WINDOW AND
DOOR MIRROR
DEMISTING/DEFROSTING
(for versions/markets, where provided)
Press button C-fig. 59to activate the
function. The LED in the button will
light up when the function is on.
The function is timed and automati-
cally deactivated by the system after
a given time. Press Cagain to switch
it off before.
IMPORTANT Do not apply stickers
on the inside of the rear window over
the heating filaments to avoid dam-
age that might cause it to stop work-
ing properly.Cooling
Proceed as follows:
❒stop internal air recirculation by
turning knob F-fig. 59to
Ú.
❒turn ring Bclockwise to increase
the temperature;
❒turn knob Aanticlockwise to re-
duce the fan speed.
LOOKING AFTER THE SYSTEM
Run the climate control system for at
least 10 minutes every month during
the winter. Have the system inspected
at a Lancia Dealership before the
summer. AIR CONDITIONING
(cooling and dehumidifying)
Proceed as follows:
❒turn the ring B-fig. 59to the blue
sector to select the temperature;
❒turn knob Ato the required speed;
❒turn the ring Eto
«;
❒turn the knob Fto
….
❒press button D
√(the LED on the
button will light up).

52
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
The temperature of the air taken in is
always controlled automatically de-
pending on the temperature set on the
display (except when the system is
turned off or under certain conditions
when the compressor is off. The fol-
lowing parameters and functions can
be manually set:
❒air temperature on driver/front
passenger side;
❒fan speed (continuous variation);
❒air distribution to five positions
(driver/front passenger side);
❒compressor on;
❒one-zone/two-zone distribution pri-
ority;
❒fast demist/defrost function;
❒air recirculation;
❒heated rear window;
❒system off. ❒compressor activation (to cool/
dehumidify air);
❒air recirculation.
All functions may be manually
changed. In order words, you may se-
lect one or more functions and change
the parameters as required. Auto-
matic control of the manually
changed functions will be suspended:
the system will change override your
settings only for safety related reasons
(e.g. risk of misting up).
Manual selections will always have
higher priority over automatic settings
and will be stored until the user
switches the system back to automatic
mode, except for the cases in which
the system will intervene for particu-
lar, safety-related reasons.
You can adjust one function automat-
ically and have the automatic system
control all the others.
The amount of air introduced into the
passenger compartment is indepen-
dent from speed of the car because the
fan is controlled by the electronic sys-
tem.AUTOMATIC TWO-
ZONE CLIMATE
CONTROL SYSTEM
(for versions/markets, where provided)
GENERAL INFORMATION
The two-zone automatic climate con-
trol system distributes air in the pas-
senger compartment in two zones:
driver’s and passenger’s side. Tem-
perature is controlled on the basis of
an “equivalent temperature” princi-
ple; in other words, the system con-
tinuously works to keep the comfort
level inside the car constant and to
compensate for possible variations of
external conditions, including sun ra-
diation detected by a specific sensor.
The automatically controlled para-
meters and functions are:
❒air temperature at the vents on dri-
ver/front passenger side;
❒air at vents on driver/front passen-
ger side;
❒fan speed (continuous air flow vari-
ation);

53
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
CONTROLS
A: MONOfunction button (set tem-
perature alignment)
B:climate control compressor on/off
button;
C:air recirculation on/of button
D:climate control system information
display
L:fan speed up/down
M:driver side air distribution buttons
N: AUTOfunction button (automatic
operation) and temperature set-
ting knob driver side E:climate control system off button
F: MAX-DEFbutton (windscreen
quick defrosting/demisting)
C:heated rear window on/off button
H: AUTObutton (automatic opera-
tion) and passenger side tempera-
ture knob
I:passenger side air distribution but-
tons
fig. 60L0D0065m

54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
During completely automatic system
operation, you can vary the set tem-
perature, the air distribution and the
fan speed using the corresponding
buttons or knobs at any time: the sys-
tem will automatically change settings
to adapt to the new request.
During fully automatic operation
(FULL AUTO), the wordFULLwill
diasspear if the air distribution, air
speed, compressor and/or recircula-
tion settings are changed. In this way,
the functions will switch from auto-
matic to manual control until AUTO
is pressed again. The fan speed is the
same in all the zones of the passenger
compartment.
With on or more manually set func-
tions, the introduced air temperature
is still managed automatically by the
system, except for when the compres-
sor is off: in the case, the air intro-
duced into the passenger compart-
ment cannot be cooler than the out-
side air. During fully automatic operation, the
only functions that are enabled man-
ually are:
❒MONOto uniform the tempera-
ture and the air distribution on
front passenger or rear passenger
zones to the driver’s zone;
❒
…air recirculation, to keep it
always on or off;
❒
-to speed up demisting/defro-
sting of windscreen, side windows,
rear window and door mirrors;
❒
(to demist/defrost the heated
rear window and the external
rearview mirrors. USING THE CLIMATE
CONTROL SYSTEM
The system can be started in different
ways, but it is advisable to press one
of the AUTObuttons and then to turn
the knobs to set the temperatures re-
quired on the display.
The system manages two passenger
compartment zones: the driver and
passenger can therefore select different
temperatures. The maximum differ-
ence between the two zones is 7°C.
The system will start running auto-
matically in this way and the set com-
fortable temperature will be reached
as quickly as possible. The system ad-
justs the temperature, amount and
distribution of air delivered to the
passenger compartment. In addition,
it manages the recirculation function
to engage the climate control system
compressor.

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
This function may be used to heat up
the passenger compartment as fast as
possible and exploit the system po-
tential to the maximum. The function
uses the maximum coolant tempera-
ture while air and fan speed distribu-
tion are managed by the system ac-
cording to conditions.
Specifically, if the heating fluid is not
warm enough, the fan will not start
up at the maximum speed immedi-
ately to limit introducing excessively
cool air into the passenger compart-
ment.
All manual settings will be allowed
when this function is on.
To switch the function off, simply turn
the temperature knob anticlockwise
and set the required temperature.
❒LOfunction (maximum cooling):
select by turning the temperature
knob anticlockwise under the mini-
mum value (16 °C). It can be oper-
ated from either by the driver or by
the front passenger (by selecting the
MONOfunction). This function is used to adjust the
temperature in the passenger com-
partment when the driver only is in
the car.
To go back to separate air and tem-
perature distribution in the two zones
of the passenger compartment, sim-
ply turn the knobs Hor press (A-
MONO) when the LED on the button
is on.
Turn the knobs either all to the right
or all to the left to the extreme HIor
LOpositions to use the maximum
heating or maximum cooling func-
tions:
❒HIfunction (maximum heating):
select by turning the temperature
knob clockwise over the maximum
value (32 °C). It can be operated from
either by the driver or by the front
passenger (by selecting the MONO
function). CONTROLS
H-N air
temperature setting
knobs
Turn the knobs clock-
wise or anticlockwise
to turn the tempera-
ture up or down in the
front left zone (knob
N) and the right zone
(knobH) of the pas-
senger compartment
respectively.
The system manages two passenger
compartment zones: the driver and
passenger can therefore select different
temperatures. The maximum differ-
ence between the two zones is 7°C.
The set temperature is shown on the
display near the knobs.
Press A(MONO) to automatically
align the temperature in the front pas-
senger zone to the driver’s side tem-
perature. The same temperature can
be set in both zones by turning knob
Non driver’s side.
