KNOWING YOUR CAR143
If the obstacle is located at the side, it is detected at dis-
tances of less than 0.6 m.
OPERATION WITH TRAILER
The operation of the sensors is automatically deactivated
when the trailer’s electric plug is inserted in the car’s tow
hook socket. The sensors are automatically enabled again
when the trailer’s cable plug is removed.
IMPORTANT If you wish to leave the tow hook fitted when
there is no trailer, it is advisable to go to a Lancia Dealer-
ship to have the system updated because the tow hook
could be detected as an obstacle by the centre sensors.
FAILURE INDICATIONS
Either symbol
S(if the Magic Parking system is fitted),
or symbol
t(if the Magic Parking is not fitted) will light
up on the display in combination with a message or with
instrument panel warning light
èif parking sensor faults
are detected while reverse is engaged.
GENERAL WARNINGS
During parking manoeuvres, pay the utmost attention to
any obstacles that could be located above or below the
sensors.
Under certain circumstances close objects located in front
of or behind the vehicle may not be detected and could
therefore cause damage to the vehicle or be damaged
themselves.The following conditions may influence the performance
of the parking sensor system:
❍Reduced sensor sensitivity and a reduction in the
parking assistance system performance could be due to
the presence on the surface of the sensors of: ice, snow,
mud, thick paint.
❍The sensors detect a non-existent obstacle (echo in-
terference) due to mechanical interference, for example
when washing the vehicle, rain (strong wind), hail.
❍The indications sent by the sensors can also be altered
by the presence of ultrasonic devices (e.g. pneumatic
brake systems or pneumatic drills) near the car.
❍The performance of the parking assistance system
may also be affected by the position of the sensors. For
example, if the geometry is altered (as a result of wear
of the shock absorbers, suspension) or the tyres are
changed, the vehicle is too heavily laden, specific tuning
is carried out that lowers the vehicle.
❍The detection of obstacles to the upper part of the ve-
hicle is not guaranteed as the system is designed to detect
obstacles that could impact the lower part of the vehicle.

148KNOWING YOUR CAR
PROTECTING THE ENVIRONMENT
The following devices are used for reducing petrol fuel
engine emissions:
❍three-way catalytic converter;
❍oxygen sensors;
❍fuel evaporation control system.
In addition, do not let the engine run, even for a test, with
one or more spark plugs disconnected.
The following devices are used for reducing diesel fuel en-
gine emissions:
❍oxidizing catalytic converter;
❍exhaust gas recirculation system (E.G.R.)
❍diesel particulate filter (DPF) (for versions/markets
where provided).DIESEL PARTICULATE FILTER (DPF)
(for versions/markets where provided)
The Diesel Particulate Filter is a mechanical filter, inte-
gral with the exhaust system, that physically traps par-
ticulates present in the exhaust gases of diesel engines. The
diesel particulate filter has been adopted to eliminate al-
most all particulates in compliance with current/future le-
gal regulations. During normal use of the vehicle, the en-
gine control unit records a set of data (e.g.: travel time,
type of route, temperatures, etc.) and it will then calculate
how much particulate has been trapped by the filter.
Since this filter physically traps particulate, it should be
regenerated (cleaned) at regular intervals by burning car-
bon particles. The regeneration procedure is controlled
automatically by the engine management control unit ac-
cording to the filter conditions and vehicle use conditions.
There may be a limited increase in the engine idle speed
during the regeneration, a limited increase in fumes and
high temperatures at the exhaust. These are not faults;
they do not impair vehicle performance or damage the en-
vironment. If the dedicated message is displayed, refer
to the “Panel warning lights” paragraph in this chapter.
The catalytic converter develops high tem-
perature during operation. Do not park the
car on grass, dry leaves, pine needles or other
flammable material: fire hazard.

2
SAFETY165
KNEE BAG ON DRIVER’S SIDE fig. 9
(for versions/markets where provided)
It consists of an instantly cushion housed into a special
compartment provided for the purpose under the lower
post guard at driver’s knee level, designed to give fur-
ther protection in the event of frontal impact.MANUAL DEACTIVATION OF PASSENGER FRONT
AIR BAG AND SIDE BAG
Should it be absolutely necessary to carry a child on the
front seat, the passenger front and side airbags can be de-
activated.
The instrument panel warning light
“will stay on con-
stantly until the passenger front air bag and the Side Bag
are reactivated.
IMPORTANT To deactivate the passenger’s front air bag
and the Side Bag (for versions/markets where provided),
refer to paragraphs “Multifunction display” and “Recon-
figurable multifunction display” in chapter “1”.
SERIOUS DANGER: never place cradle
child seats facing backwards on the front
passenger’s seat of cars with active passen-
ger’s air bag. Deployment of the airbag in an
accident could cause fatal injuries to the
child. Always deactivate the passenger air bag
when placing a child seat on the front seat. Move
the passenger’s seat as far back as possible to avoid
contact between the child seat and the dashboard.
Even when this is not mandatory by law, the air
bag should be immediately reactivated when chil-
dren are no longer carried to ensure better protec-
tion for the adults.
fig. 9L0E0069m

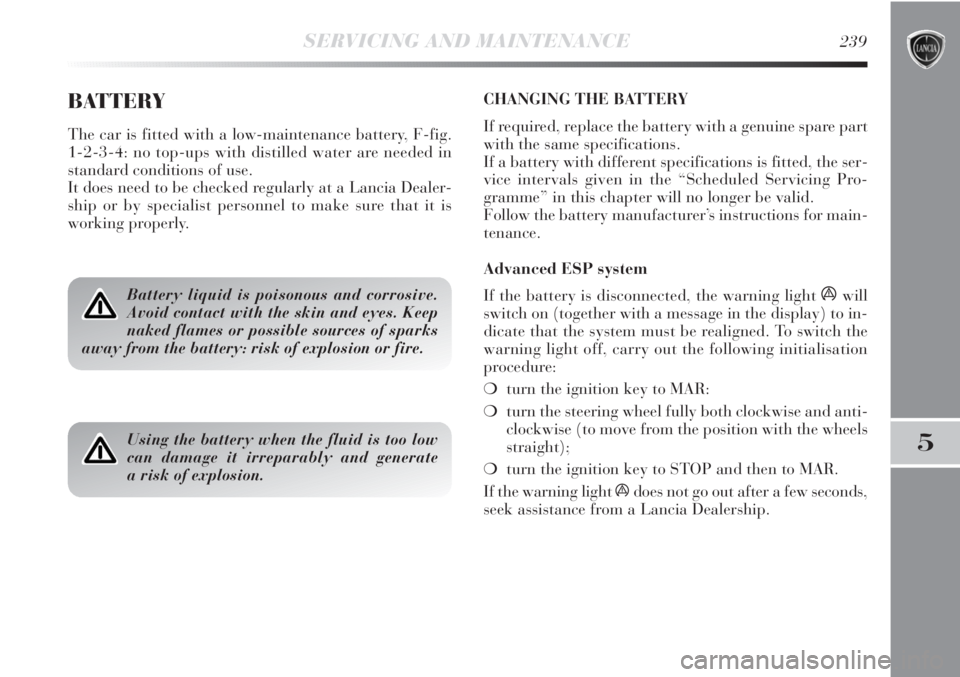

SERVICING AND MAINTENANCE239
5
BATTERY
The car is fitted with a low-maintenance battery, F-fig.
1-2-3-4: no top-ups with distilled water are needed in
standard conditions of use.
It does need to be checked regularly at a Lancia Dealer-
ship or by specialist personnel to make sure that it is
working properly.
Battery liquid is poisonous and corrosive.
Avoid contact with the skin and eyes. Keep
naked flames or possible sources of sparks
away from the battery: risk of explosion or fire.
Using the battery when the fluid is too low
can damage it irreparably and generate
a risk of explosion.
CHANGING THE BATTERY
If required, replace the battery with a genuine spare part
with the same specifications.
If a battery with different specifications is fitted, the ser-
vice intervals given in the “Scheduled Servicing Pro-
gramme” in this chapter will no longer be valid.
Follow the battery manufacturer’s instructions for main-
tenance.
Advanced ESP system
If the battery is disconnected, the warning light
áwill
switch on (together with a message in the display) to in-
dicate that the system must be realigned. To switch the
warning light off, carry out the following initialisation
procedure:
❍turn the ignition key to MAR:
❍turn the steering wheel fully both clockwise and anti-
clockwise (to move from the position with the wheels
straight);
❍turn the ignition key to STOP and then to MAR.
If the warning light ádoes not go out after a few seconds,
seek assistance from a Lancia Dealership.
