2011 KIA Sedona Owner's Manual

Page 345 of 370

KIA Sedona 2011 2.G Owners Manual 629
Maintenance
Description Fuse rating Protected component
IPM 150A Instrument panel module
IPM 2 50A Instrument panel module
IPM 3 50A Instrument panel module
FRT BLOWER 40A Inside relay box(Front b

Page 346 of 370

KIA Sedona 2011 2.G Owners Manual Maintenance
30
6
OVQ066018N
Shunt connector
Your vehicle is equipped with a shunt
connector to prevent battery discharge if
your vehicle is parked without being
operated for prolonged periods. Use th

Page 347 of 370

KIA Sedona 2011 2.G Owners Manual 631
Maintenance

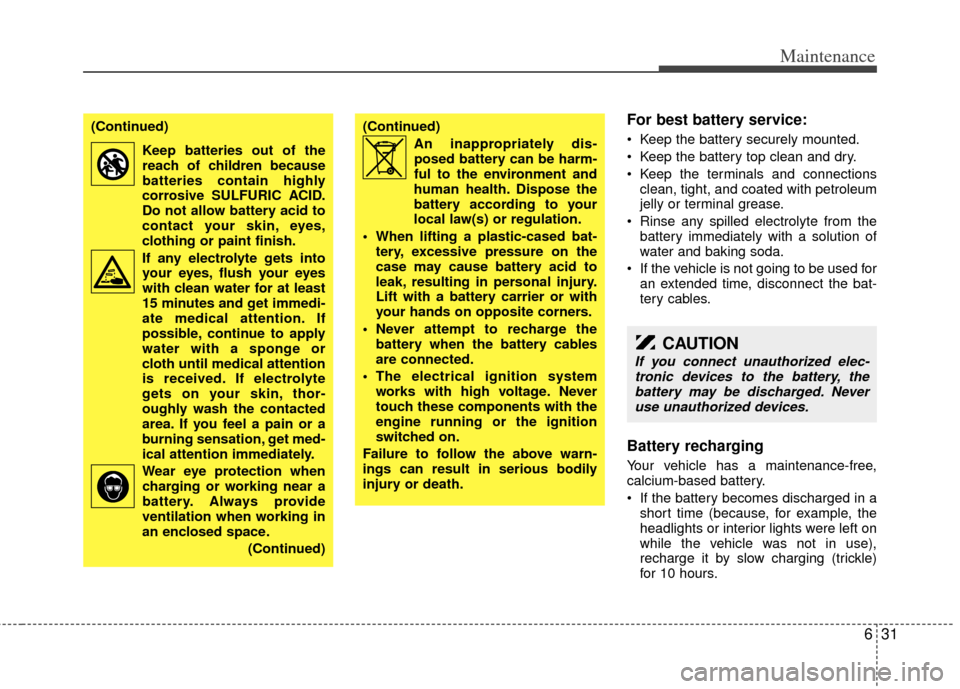

For best battery service:
 Keep the battery securely mounted.
 Keep the battery top clean and dry.
 Keep the terminals and connectionsclean, tight, and coated with petroleum
jelly or t

Page 348 of 370

KIA Sedona 2011 2.G Owners Manual Maintenance
32
6
 If the battery gradually discharges
because of high electric load while the
vehicle is being used, recharge it at 20-
30A for two hours.
Items to be reset after the battery
has been

Page 349 of 370

KIA Sedona 2011 2.G Owners Manual 633
Maintenance

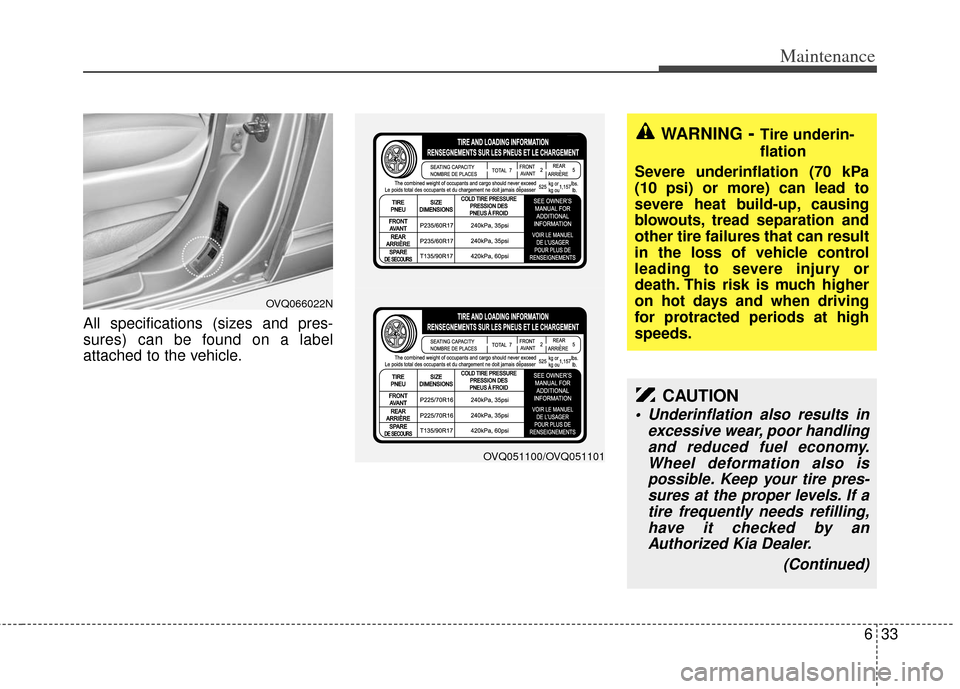

All specifications (sizes and pres-
sures) can be found on a label
attached to the vehicle.
WARNING- Tire underin-
flation
Severe underinflation (70 kPa
(10 psi) or more) can lead to
s

Page 350 of 370

KIA Sedona 2011 2.G Owners Manual Maintenance
34
6

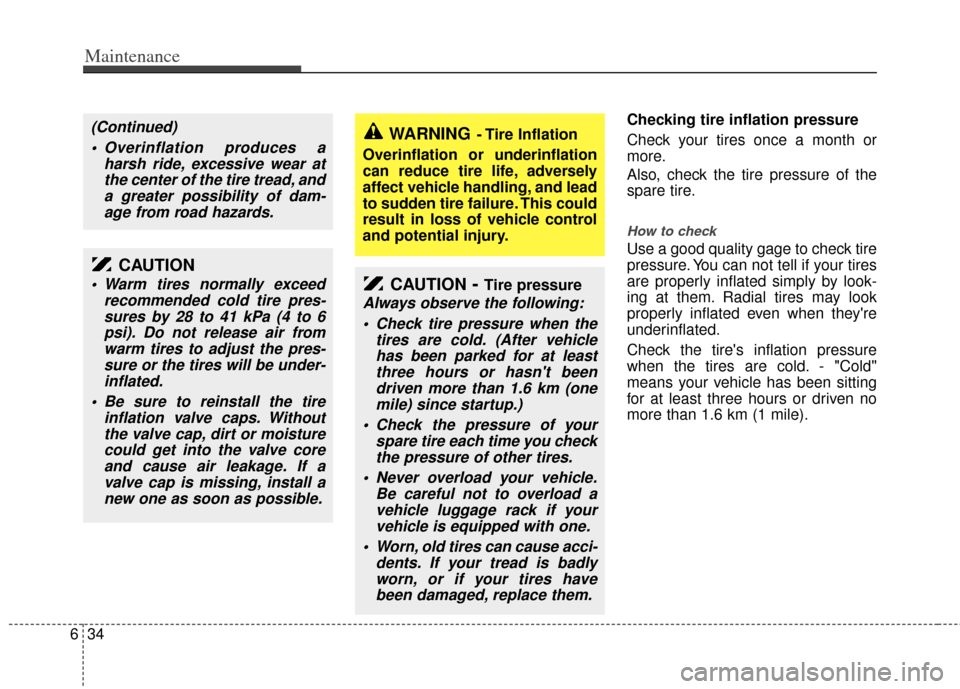

Checking tire inflation pressure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.
How to check
Use a good quality gage to check tire
pressure. Y

Page 351 of 370

KIA Sedona 2011 2.G Owners Manual 635
Maintenance

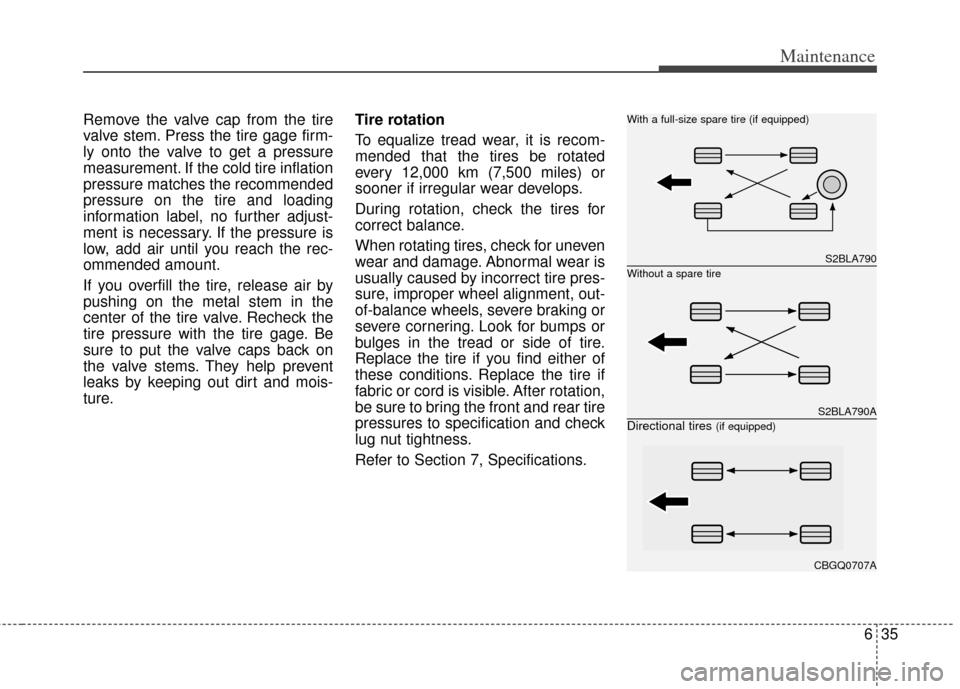

Remove the valve cap from the tire
valve stem. Press the tire gage firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
pr

Page 352 of 370

KIA Sedona 2011 2.G Owners Manual Maintenance
36
6

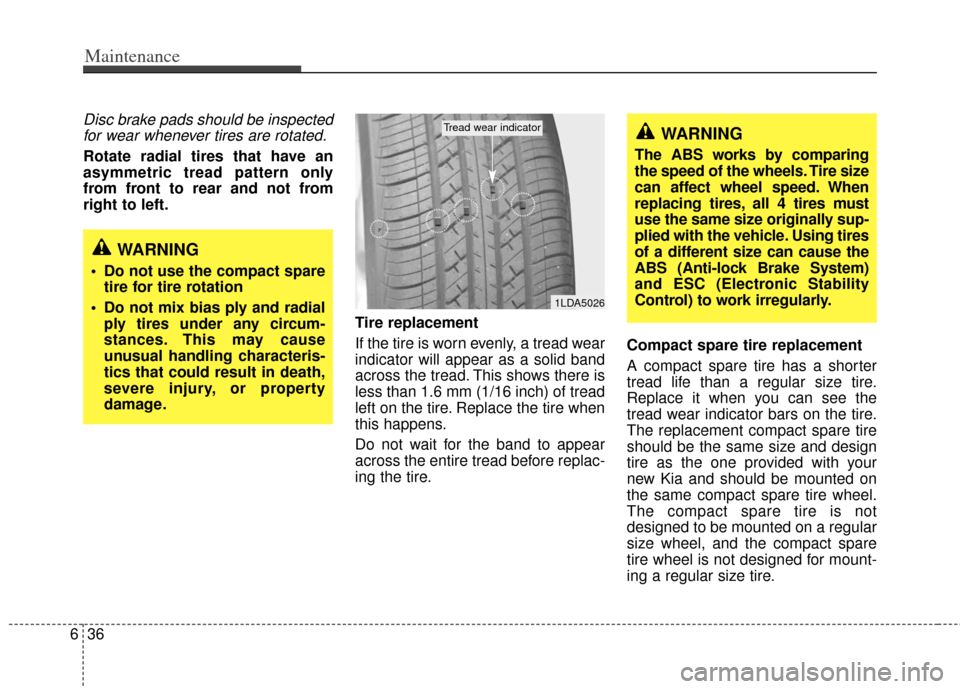

Disc brake pads should be inspected
for wear whenever tires are rotated.
Rotate radial tires that have an
asymmetric tread pattern only
from front to rear and not from
right to left.
