2011 KIA CADENZA set clock

Features of your vehicle
116
4
Digital clock
Whenever the battery terminals or relat-
ed fuses are disconnected, you must
reset the time.
When the ignition switch is in the ACC or
ON position, the clock buttons operate as
follows:
■
■Type A
Hour (1)
Pressing the H button will advance the
time displayed by one hour. If the R but-ton is pressed while adjusting, the hourwill reset.
Minute (2)
Pressing the M button will advance the
time displayed by one minute. If the R
button is pressed while adjusting, the
minute will reset as follows. 9:00 ~ 9:29 ➔9:00
9:30 ~ 9:59 ➔10:00
Reset (3)
12 hour format : Pressing the R button
will reset the time to 12:00 AM.
24 hour format : Pressing the R button will reset the time to 0:00.
Display conversion
To change the 12 hour format to the 24
hour format follow the direction below.
1. Turn the audio system on.
2. Press the setup button and select the CLOCK menu by using the File/Tune
button.
3. Press the OK button.
4. Select the Time Format you desire using the File/Tune button.
5. Press the OK button.
WARNING
Do not adjust the clock while driv-
ing. You may lose your steering
control and cause an accident that
results in severe personal injury ordeath.
OVG049160
OVG049161L
■ Type A
■Type B

4125
Features of your vehicle
1. AM Button
2. FM Button
3. SEEK Button
4. POWER ON/OFF Button
5. PRESET Buttons6. AST(AUTO STORE) Button
7. SETUP Button
8. TUNE Button
9. OK Button
10. MUTE Button11. VOLUME Knob
12. Display ON/OFF Button
13. Clock Setting Button
(H:Hour M:Minute R:Reset)
RADIO, SETUP, VOLUME and AUDIO CONTROL (CDP : PA710VG, CDC : PA760VG)
VG_PA710VG_RADIO / VG_760VG_RADIO

Knowing your vehicle
126
4
Using RADIO, SETUP, VOLUME
and AUDIO CONTROL
1. AM Button
Pressing the [AM] button selects the AM
band. AM Mode is displayed on the LCD.
2. FM Button
Turns to FM mode and toggles FM1and
FM2 when the button is pressed each time.
3. SEEK Button
When the [SEEK ] button is pressed,
it increases the band frequency to auto-
matically select channel. Stops at the
previous frequency if no channel is
found.
When the [TRACK ] button is press- ed, it reduces the band frequency to
automatically select channel. Stops at
the previous frequency if no channel is
found. 4. POWER ON/OFF Button
Turns on/off the set when the IGNITION
SWITCH is on ACC or ON.
5. PRESET Buttons
Push [1]~[6] buttons less than 0.8 sec-
onds to play the channel saved in each
button. Push Preset button for 0.8 sec-
onds or longer to save current channel to
the respective button with a beep.
6. AST(AUTO STORE Button)
When the button is pressed, it automati-
cally selects and saves channels with
high reception rate to PRESET buttons
[1]~[6] and plays the channel saved in
PRESET1. If no channel is saved after
AST, it will play the previous channel.
7. SETUP Button ■
PA710VG
Press this button to turn to the SCROLL
option and the other adjustment mode. If
no action is taken for 5 seconds after
pressing the button, it will return to the
play mode. (After entering SETUP mode,
select Manual tune Button and push OK
Button. )The setup change in the order ofSOUND ↔SDVC ↔CLOCK ↔TEMP ↔
SCROLL ↔RETURN
■ PA760VG
The setup change in the order ofSOUND ↔V-EQ ↔SDVC ↔CLOCK ↔
TEMP ↔SCROLL ↔PHONE ↔RETURN
In the case of JBL AMP SOUND ↔SDVC ↔CLOCK ↔TEMP ↔SCR
OLL ↔PHONE

4127
Knowing your vehicle
SOUNDSelect this menu to adjust the sound in
following order: BASS, MIDDLE, TRE-
BLE and FADER /BALANCE. To move
between items, press [OK] button.
BASS/MIDDLE/TREBLE : Use [ FILE ],
[TUNE ] buttons to adjust the menu.
FADER/BALANCE : Use [ FILE ],
[TUNE ] buttons to adjust BALANCE
and [ FOLDER ] buttons to
adjust FADER.
This function automatically adjusts the
volume level according to the speed of
the vehicle and can be turned ON/OFF
through the sound quality control knob.
CLOCK Pressing the [ FILE ], [ TUNE ] but-ton select the time mode(12, 24mode),
and push the [OK] button. TEMP
Select this item to set the
"Temperature Display Type".
SCROLL Select whether long file names are
scrolled continuously (“ON”) or justonce (“OFF”).
PHONE (if equipped) Select this item to enter BLUETOOTH
setup mode. Refer to “BLUETOOTH
PHONE OPERATION” section for
detailed information.
Press [ FILE ], [ TUNE ] button
changes the Innocente, Forza,
Concertro mode, and push [OK]Button. 8. TUNE Button
Push this button to manually adjust fre-
quency, While listening to the radio chan-nel.
9. OK Button
Push this button to select each mode.
10. MUTE Button
When the button is pressed, stops sound
and “Audio Mute” is displayed on LCD.
11. VOLUME Knob
If the knob is turned clockwise/counter-
clockwise, the volume will increase
/decrease.

What to do in an emergency
10
6
6. Loosen the wheel lug nuts coun-
terclockwise one turn each, but do
not remove any nut until the tire
has been raised off the ground. 7. Place the jack at the front or rear
jacking position closest to the tire
you are changing. Place the jackat the designated locations under
the frame. The jacking positions
are plates welded to the frame
with two tabs and a raised dot to
index with the jack.
WARNING - Changing a tire
To prevent vehicle movement
while changing a tire, always
set the parking brake fully,
and always block the wheel
diagonally opposite the wheel
being changed.
We recommend that the wheels of the vehicle be
blocked, and that no person
remain in the vehicle that is
being jacked.
OBK0690031JBA6025

Maintenance
32
7

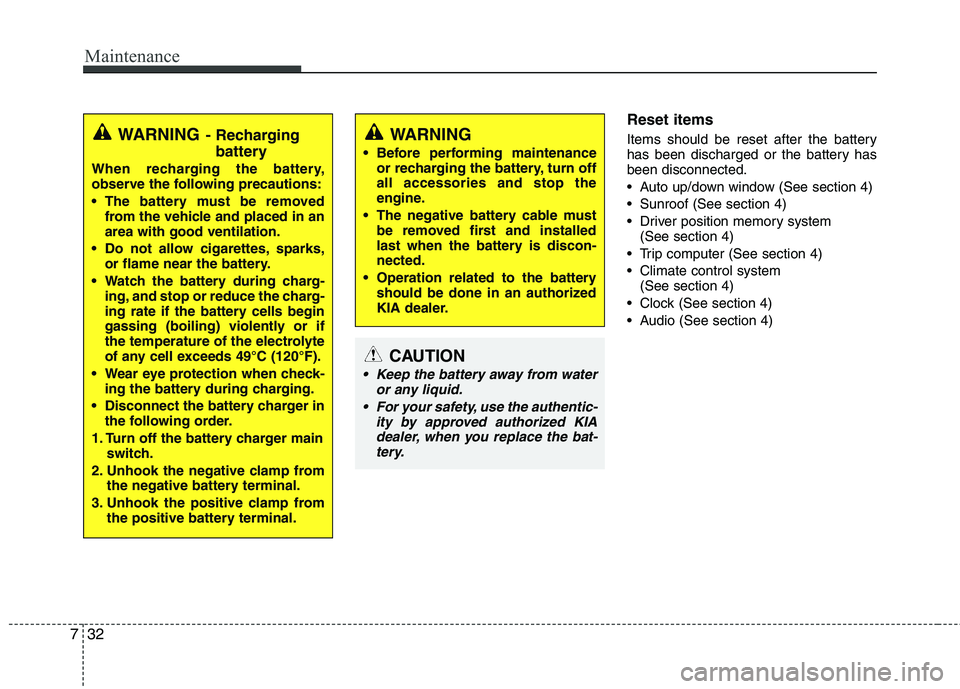

Reset items
Items should be reset after the battery
has been discharged or the battery hasbeen disconnected.
Auto up/down window (See section 4)
Sunroof (See section 4)
Driver position memory system
(See section 4)
Trip computer (See section 4)
Climate control system (See section 4)
Clock (See section 4)
Audio (See section 4)
WARNING
Before performing maintenance or recharging the battery, turn off all accessories and stop the
engine.
The negative battery cable must be removed first and installed
last when the battery is discon-nected.
Operation related to the battery should be done in an authorized
KIA dealer.
CAUTION
Keep the battery away from water
or any liquid.
For your safety, use the authentic- ity by approved authorized KIAdealer, when you replace the bat-tery.
WARNING - Recharging
battery
When recharging the battery,
observe the following precautions:
The battery must be removed from the vehicle and placed in an area with good ventilation.
Do not allow cigarettes, sparks, or flame near the battery.
Watch the battery during charg- ing, and stop or reduce the charg-
ing rate if the battery cells begin
gassing (boiling) violently or if
the temperature of the electrolyte
of any cell exceeds 49°C (120°F).
Wear eye protection when check- ing the battery during charging.
Disconnect the battery charger in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal.

745
Maintenance
Memory fuse
Your vehicle is equipped with a memory
fuse to prevent battery discharge if your
vehicle is parked without being operated
for prolonged periods. Use the following
procedures before parking the vehicle for
prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover andpull up the memory fuse.
✽✽ NOTICE
 If the memory fuse is pulled up from the fuse panel, the warning chime,
audio, clock and interior lamps, etc.,
will not operate. Some items must be
reset after replacement. Refer to
“Battery” in this section.
 Even when the memory fuse is pulled
up, the battery can still be discharged
by operation of the headlights or other
electrical devices.
Engine compartment fuse replacement
1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover
up.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse,use the fuse puller in the engine com-
partment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized
KIA dealer.
OVG079020OVG079021L
