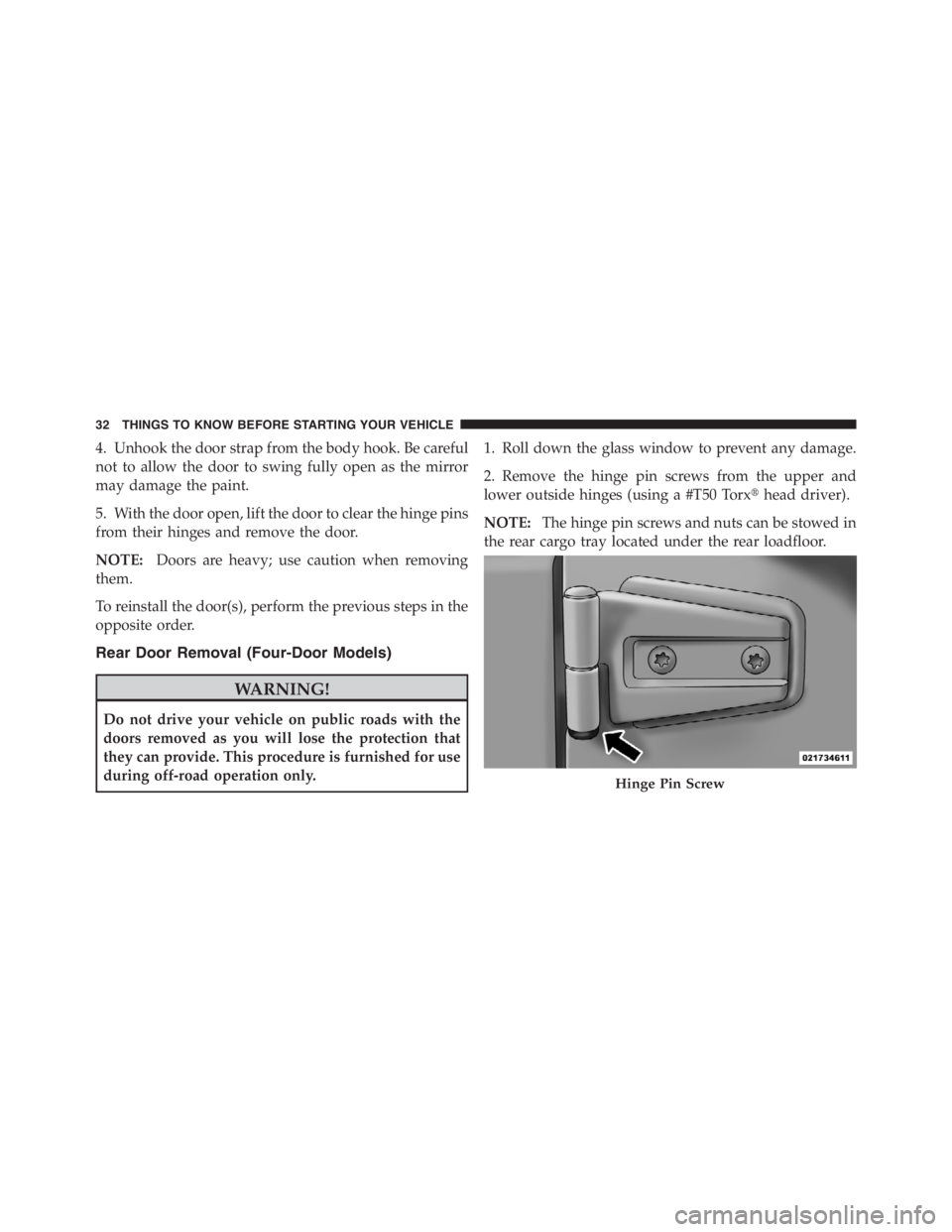

4. Unhook the door strap from the body hook. Be careful
not to allow the door to swing fully open as the mirror
may damage the paint.
5. With the door open, lift the door to clear the hinge pins
from their hinges and remove the door.
NOTE:Doors are heavy; use caution when removing
them.
To reinstall the door(s), perform the previous steps in the
opposite order.
Rear Door Removal (Four-Door Models)
Page 35 of 613
Page 36 of 613
Page 37 of 613
Page 38 of 613
Power Door Locks — If Equipped
The power door lock switch is located on each front door
panel. Press the switch forward to lock the doors, and
rearward to unlock the doors.
Page 39 of 613
Page 40 of 613
Child-Protection Door Lock System — Rear
Doors
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.
To Engage Or Disengage The Child-Protection
Door Lock System
1. Open the rear door.
2. Insert the tip of the ignition key into the lock and
rotate to the LOCK or UNLOCK position.
3. Repeat steps 1 and 2 for the opposite rear door.
