2011 JEEP LIBERTY Owners Manual

1 — Downward Movement
2 — Rearward Movement3—Final Downward Movement To Engage Locking Mechanism
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55

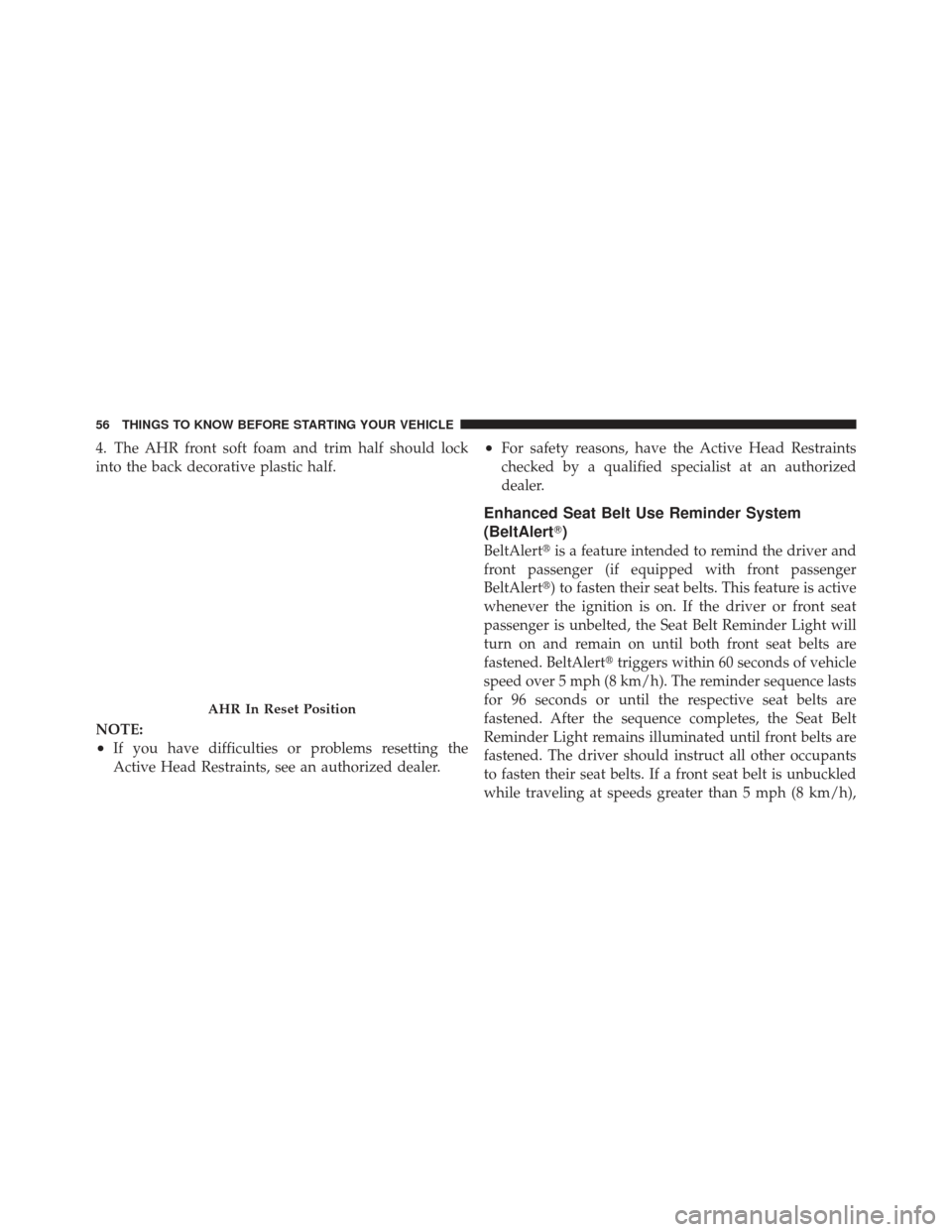

4. The AHR front soft foam and trim half should lock
into the back decorative plastic half.
NOTE:
•If you have difficulties or problems resetting the
Active Head Restraints, see an authorized dealer.
•For safety reasons, have the Active Head Restraints
checked by a qualified specialist at an authorized
dealer.
Enhanced Seat Belt Use Reminder System
(BeltAlert)
BeltAlertis a feature intended to remind the driver and
front passenger (if equipped with front passenger
BeltAlert) to fasten their seat belts. This feature is active
whenever the ignition is on. If the driver or front seat
passenger is unbelted, the Seat Belt Reminder Light will
turn on and remain on until both front seat belts are
fastened. BeltAlert triggers within 60 seconds of vehicle
speed over 5 mph (8 km/h). The reminder sequence lasts
for 96 seconds or until the respective seat belts are
fastened. After the sequence completes, the Seat Belt
Reminder Light remains illuminated until front belts are
fastened. The driver should instruct all other occupants
to fasten their seat belts. If a front seat belt is unbuckled
while traveling at speeds greater than 5 mph (8 km/h),
AHR In Reset Position
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

BeltAlertwill chime as a single notification and illumi-
nate the Seat Belt Reminder Light, then will proceed to
the 96 second reminder sequence.
The front passenger seat BeltAlert is not active when the
front passenger seat is unoccupied. BeltAlert may be
triggered when an animal or heavy object is on the front
passenger seat or when the seat is folded flat (if
equipped). It is recommended that pets be restrained in
the rear seat in pet harnesses or pet carriers that are
secured by seat belts, and cargo is properly stowed.
BeltAlert can be enabled or disabled by your authorized
dealer or by following these steps:
NOTE: The following steps must occur within the first
60 seconds of the ignition switch being turned to the
ON/RUN or START position. Chrysler Group LLC does
not recommend deactivating BeltAlert. 1. Turn the ignition switch to the OFF position, and
buckle the driver’s seat belt.
2. Turn the ignition key to the ON/RUN position (do not
start the engine), and wait for the Seat Belt Reminder
Light to turn off.
3. Within 60 seconds of starting the vehicle, unbuckle
and then re-buckle the driver’s seat belt at least three
times within 10 seconds, ending with the seat belt
buckled.
4. Turn the ignition key to the OFF position. A single
chime will sound to signify that you have successfully
completed the programming.
BeltAlert
can be reactivated by repeating this procedure.
NOTE: Although BeltAlert has been deactivated, the
Seat Belt Reminder Light will continue to illuminate
while the driver’s seat belt remains unfastened.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57

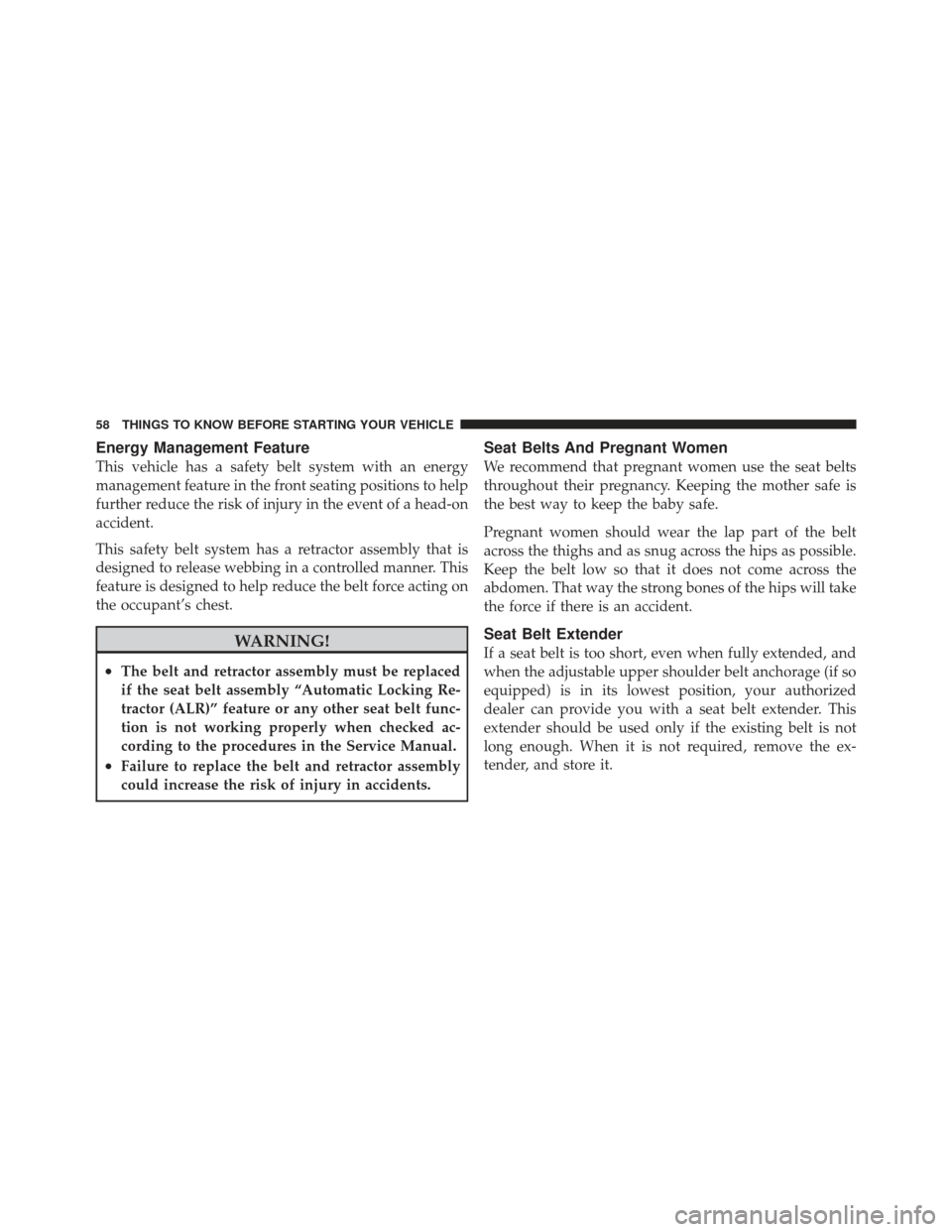

Energy Management Feature
This vehicle has a safety belt system with an energy
management feature in the front seating positions to help
further reduce the risk of injury in the event of a head-on
accident.
This safety belt system has a retractor assembly that is
designed to release webbing in a controlled manner. This
feature is designed to help reduce the belt force acting on
the occupant’s chest.
WARNING!
•The belt and retractor assembly must be replaced
if the seat belt assembly “Automatic Locking Re-
tractor (ALR)” feature or any other seat belt func-
tion is not working properly when checked ac-
cording to the procedures in the Service Manual.
•Failure to replace the belt and retractor assembly
could increase the risk of injury in accidents.
Seat Belts And Pregnant Women
We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is an accident.
Seat Belt Extender
If a seat belt is too short, even when fully extended, and
when the adjustable upper shoulder belt anchorage (if so
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex-
tender, and store it.
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in an accident. Only use
when the lap belt is not long enough when it is worn
low and snug, and in the recommended seating
positions. Remove and store the extender when not
needed.
Supplemental Restraint System (SRS) — Air Bags
This vehicle has Advanced Front Air Bags for both the
driver and front passenger as a supplement to the seat
belt restraint systems. The driver’s Advanced Front Air
Bag is mounted in the steering wheel. The passenger’s
Advanced Front Air Bag is mounted in the instrument
panel, above the glove compartment. The words SRS/
AIRBAG are embossed on the air bag covers.
NOTE:These air bags are certified to the new Federal
regulations for Advanced Air Bags. The Advanced Front Air Bags have a multistage inflator
design. This allows the air bag to have different rates of
inflation that are based on the severity and type of
collision.
Advanced Front Air Bag And Knee Bolster Locations
1 — Driver And Passenger Advanced Front Air Bags
2 — Knee Bolster
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59

This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation rate of the Advanced Front Air Bags based upon
seat position.
This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.
This vehicle is equipped with Supplemental Side Air Bag
Inflatable Curtains (SABIC) that run the entire length of
the headliner to protect the driver and passengers in the
first and second row sitting next to a window.NOTE:
•Air Bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
•After any accident, the vehicle should be taken to an
authorized dealer immediately.
Supplemental Side Air Bag Inflatable Curtains
(SABIC) Label Location
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Air Bag System Components
Your vehicle may be equipped with the following air bag
system components:
•Occupant Restraint Controller (ORC)
•Air Bag Warning Light
•Steering Wheel and Column
•Instrument Panel
•Knee Impact Bolster
•Driver Advanced Front Air Bag
•Passenger Advanced Front Air Bag
•Supplemental Side Air Bag Inflatable Curtains
(SABIC)
•Front and Side Impact Sensors
•Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors
•Supplemental Active Head Restraint for Driver and
Front Passenger
•Occupant Classification System (OCS)
•Occupant Classification Module (OCM)
•Passenger Air Bag Disable (PAD) Indicator Light
•Weight Sensors
Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage driver
and front passenger air bags. This system provides output
appropriate to the severity and type of collision as deter-
mined by the Occupant Restraint Controller (ORC), which
may receive information from the front impact sensors.
The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61

NOTE:The passenger Advanced Front Air Bag may not
deploy, even when the driver Advanced Front Air Bag
has, if the Occupant Classification System (refer to Oc-
cupant Classification System) has determined the pas-
senger seat is empty or is occupied by someone that is
classified in the childsize category. This could be a
child, teenager, or even an adult.
WARNING!
•No objects should be placed over or near the air
bag on the instrument panel, because any such
objects could cause harm if the vehicle is in a
collision severe enough to cause the air bag to
inflate.
(Continued)
WARNING! (Continued)
•Do not put anything on or around the air bag
covers or attempt to manually open them. You may
damage the air bags and you could be injured
because the air bags may no longer be functional.
These protective covers for the air bag cushions
are designed to open only when the air bags are
inflating.
•Do not use accessory seat covers or place objects
between you and the side air bags; the perfor-
mance could be adversely affected and/or objects
could be pushed into you, causing serious injury.
•Do not drill, cut or tamper with the knee bolster in
any way.
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.(Continued)
