Priority Detected items (DTC)
1 U0101 CAN communication line U0113 U1003 CAN communication line
U1001 CAN communication line
U1024 VVEL CAN communication line
P006A P0101 P0102 P0103 Mass air flow sensor
P010A Manifold absolute pressure sensor
P0112 P0113 P0127 Intake air temperature sensor
P0116 P0117 P0118 P0125 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0128 Thermostat function
P0181 P0182 P0183 Fuel tank temperature sensor
P0196 P0197 P0198 Engine oil temperature sensor
P0327 P0328 P0332 P0333 Knock sensor
P0335 Crankshaft position sensor
P0340 P0345 Camshaft position sensor
P0460 P0461 P0462 P0463 Fuel level sensor
P0500 Vehicle speed sensor
P0527 Cooling fan speed sensor
P0605 P0607 P0611 P062B ECM
P0643 Sensor power supply
P0700 TCM
P0705 P0850 Transmission range switch
P1089 P1092 P1608 VVEL control shaft position sensor
P1197 Out of gas*
P1220 Fuel pump control module (FPCM)
P1421 P1423 P1424 Cold start control
P1550 P1551 P1552 P1553 P1554 Battery current sensor
P1556 P1557 Battery temperature sensor
P1606 P1607 VVEL control module
P1610 - P1615 NATS
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
P2539 P2541 P2542 Low fuel pressure sensor
Revision: 2010 May2011 QX56
BASIC INSPECTIONEC-139
< BASIC INSPECTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
BASIC INSPECTION
Work ProcedureINFOID:0000000006217739
1.INSPECTION START
1. Check service records for any recent repairs that ma y indicate a related malfunction, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
- Harness connectors for improper connections
- Wiring harness for improper connections, pinches and cut
- Vacuum hoses for splits, kinks and improper connections
- Hoses and ducts for leakage
- Air cleaner clogging
- Gasket
3. Check that electrical or mechanical loads are not applied.
- Headlamp switch is OFF.
- Air conditioner switch is OFF.
- Rear window defogger switch is OFF.
- Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature indicator points to the middle of gauge.
Check that engine stays below 1,000 rpm.
5. Run engine at approximately 2,000 rpm for approximately 2 min- utes under no load.
6. Check that no DTC is displayed with CONSULT-III or GST.
Are any DTCs detected?
YES >> GO TO 2.
NO >> GO TO 3.
2.REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnosis Procedure.
>> GO TO 3
3.CHECK IDLE SPEED
1. Run engine at approximately 2,000 rpm for approximately 2 minutes under no load.
SEF983U
SEF976U
SEF977U
Revision: 2010 May2011 QX56
THROTTLE VALVE CLOSED POSITION LEARNINGEC-147
< BASIC INSPECTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
THROTTLE VALVE CLOSED
POSITION LEARNING
DescriptionINFOID:0000000006217748
Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time the harness con-
nector of the electric throttle control actuator or ECM is disconnected or elec tric throttle control actuator inside
is cleaned.
Work ProcedureINFOID:0000000006217749
1.START
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “CLSD THL POS LEARN” in “WORK SUPPORT” mode.
3. Follow the instructions on the CONSULT-III display.
4. Turn ignition switch OFF and wait at least 10 seconds.
Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
WITHOUT CONSULT-III
1. Start the engine.
NOTE:
Engine coolant temperature is 25 °C (77 °F) or less before engine starts.
2. Warm up the engine. NOTE:
Raise engine coolant temperature until it reaches 65 °C (149 °F) or more.
3. Turn ignition switch OFF and wait at least 10 seconds. Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
>> END
Revision: 2010 May2011 QX56
EC-148
< BASIC INSPECTION >[VK56VD]
IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING
DescriptionINFOID:0000000006217750
Idle Air Volume Learning is a function of ECM to learn
the idle air volume that keeps engine idle speed within
the specific range. It must be perfo rmed under the following conditions:
Each time the electric throttle control actuator or ECM is replaced.
Idle speed or ignition timing is out of the specification.
Work ProcedureINFOID:0000000006217751
1.PRECONDITIONING
Check that all of the following conditions are satisfied.
Learning will be cancelled if any of the follo wing conditions are missed for even a moment.
Battery voltage: More than 12.9 V (At idle)
Engine coolant temperature: 70 - 105 °C (158 - 221 °F)
Selector lever position: P or N
Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine is
started the headlamp will not illuminate.
Steering wheel: Neutral (Straight-ahead position)
Vehicle speed: Stopped
Transmission: Warmed-up
- With CONSULT-III: Drive vehicle until “ATF TEMP 2” in “DATA MONITOR” mode of “A/T” system indicates
less than 0.9 V.
- Without CONSULT-III: Drive vehicle for 10 minutes.
Will CONSULT-III be used?
YES >> GO TO 2.
NO >> GO TO 3.
2.PERFORM IDLE AIR VOLUME LEARNING
WITH CONSULT-III
1. Perform Accelerator Pedal Released Position Learning. Refer to EC-146, "
Work Procedure".
2. Perform Throttle Valve Closed Position Learning. EC-147, "
Work Procedure".
3. Start engine and warm it up to normal operating temperature.
4. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
5. Touch “START” and wait 20 seconds.
Is
“CMPLT” displayed on CONSULT-III screen?
YES >> GO TO 4.
NO >> GO TO 5.
3.PERFORM IDLE AIR VOLUME LEARNING
WITHOUT CONSULT-III
NOTE:
It is better to count the ti me accurately with a clock.
It is impossible to switch the di agnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
1. Perform Accelerator Pedal Released Position Learning. Refer to EC-146, "
Work Procedure".
2. Perform Throttle Valve Closed Position Learning. EC-147, "
Work Procedure".
3. Start engine and warm it up to normal operating temperature.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
6. Repeat the following procedure quickly 5 times within 5 seconds.
- Fully depress the accelerator pedal.
- Fully release the accelerator pedal.
7. Wait 7 seconds, fully depress the accelerator pedal for approx. 20 seconds until the MIL stops blinking
and turns ON.
8. Fully release the accelerator pedal within 3 seconds after the MIL turns ON.
Revision: 2010 May2011 QX56
HOW TO SET SRT CODEEC-159
< BASIC INSPECTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Flat road
Ambient air temperature: 20 - 30
°C (68 - 86 °F)
Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30 °C (68 - 86 °F)], diagno-
sis may also be performed.
Work ProcedureINFOID:0000000006265595
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-98, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
WITH CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
WITHOUT CONSULT-III
Perform “SRT status” mode with EC-60, "
On Board Diagnosis Function".
WITH GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> END
NO-1 >> With CONSULT-III: GO TO 3.
NO-2 >> Without CONSULT-III: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in t he “SRT ITEM” table. Refer to EC-156, "
Description".
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-98, "DTC Index".
NO >> GO TO 10.
4.PERFORM ROAD TEST
Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-156, "
Description".
Perform the most efficient SRT set drivi ng pattern to set the SRT properly. Refer to EC-157, "
SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32 °F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158 °F)
NOTE:
ECM terminal voltage is follows;
Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 - 4.3 V
-70 °(158 °F): Less than 1.4 V
Fuel tank temperature: Less than 4.1 V
Refer to EC-72, "
Reference Value".
>> GO TO 6.
Revision: 2010 May2011 QX56

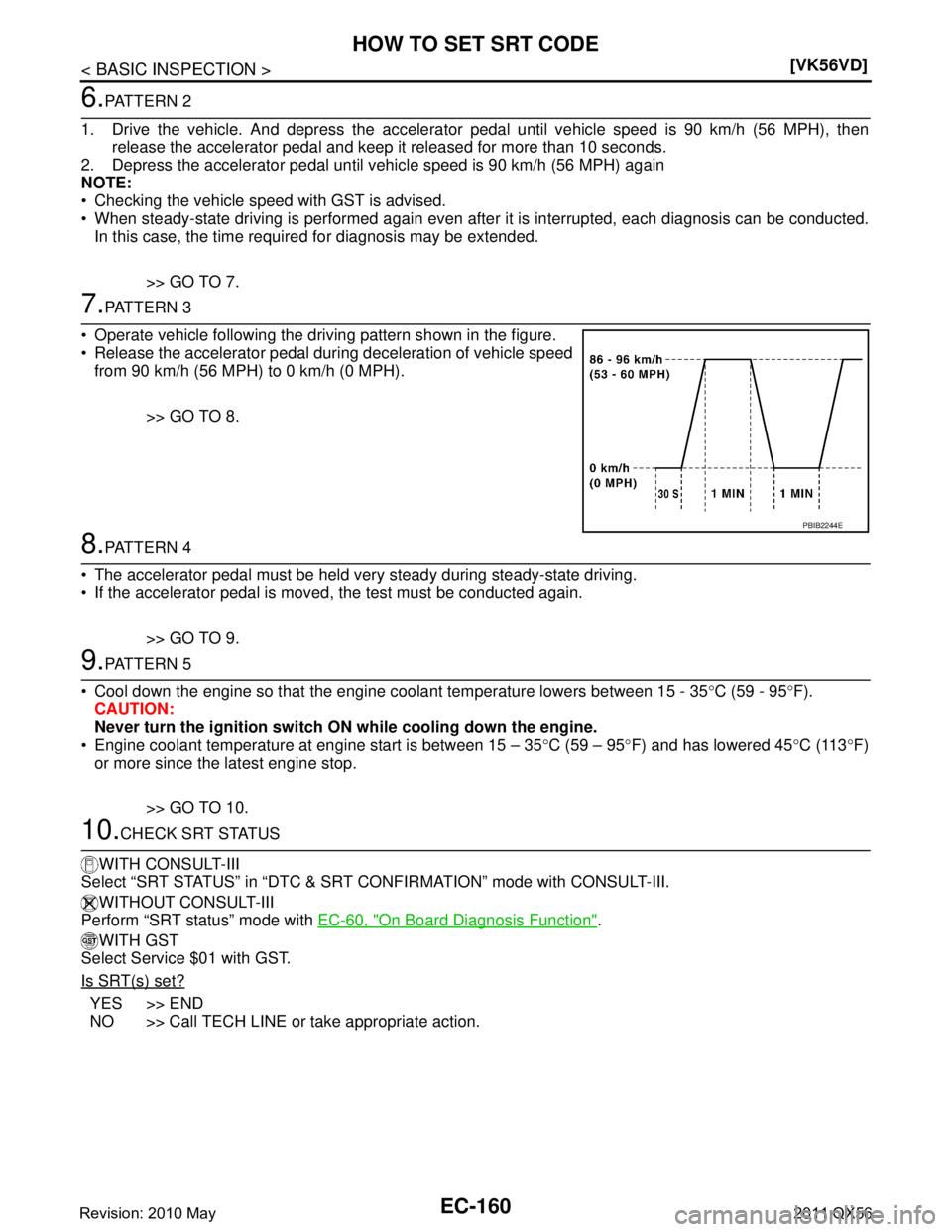

EC-160
< BASIC INSPECTION >[VK56VD]
HOW TO SET SRT CODE
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then
release the accelerator pedal and keep it released for more than 10 seconds.
2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again
NOTE:
Checking the vehicle speed with GST is advised.
When steady-state driving is performed again even afte r it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
>> GO TO 7.
7.PATTERN 3
Operate vehicle following the driving pattern shown in the figure.
Release the accelerator pedal during deceleration of vehicle speed from 90 km/h (56 MPH) to 0 km/h (0 MPH).
>> GO TO 8.
8.PATTERN 4
The accelerator pedal must be held very steady during steady-state driving.
If the accelerator pedal is moved, the test must be conducted again.
>> GO TO 9.
9.PATTERN 5
Cool down the engine so that the engine coolant temperature lowers between 15 - 35 °C (59 - 95 °F).
CAUTION:
Never turn the ignition switch ON while cooling down the engine.
Engine coolant temperature at engine start is between 15 – 35 °C (59 – 95 °F) and has lowered 45 °C (113 °F)
or more since the latest engine stop.
>> GO TO 10.
10.CHECK SRT STATUS
WITH CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
WITHOUT CONSULT-III
Perform “SRT status” mode with EC-60, "
On Board Diagnosis Function".
WITH GST
Select Service $01 with GST.
Is SRT(s) set?
YES >> END
NO >> Call TECH LINE or take appropriate action.
PBIB2244E
Revision: 2010 May2011 QX56
TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-161
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC/CIRCUIT DIAGNOSIS
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000006217760
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” in “DATA MONI-
TOR” mode of CONSULT-III during normal operation of the Engine Control System. When the value in “SPEC”
in “DATA MONITOR” mode is within the SP value, t he Engine Control System is confirmed OK. When the
value in “SPEC” in “DATA MONITOR” mode is NOT wit hin the SP value, the Engine Control System may have
one or more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not illuminate
the MIL.
The SP value will be displayed for the following items:
B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc- tion)
A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
MAS A/F SE-B1/B2 (The signal voltage of the mass air flow sensor)
IDLE FUEL PRES MAX/MIN (the signal voltage of the fuel rail pressure sensor)
Component Function CheckINFOID:0000000006217761
1.PRECONDITIONING
Check that all of the following conditions are satisfied.
TESTING CONDITION
Vehicle driven distance: More than 5,000 km (3,107 miles)
Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
Atmospheric temperature: 20 - 30 °C (68 - 86 °F)
Engine coolant temperature: 75 - 95 °C (167 - 203 °F)
Transmission: Warmed-up
- After the engine is warmed up to normal operating temperat ure, drive vehicle until “ATF TEMP 2” (A/T fluid
temperature sensor signal) indicates more than 60 °C (140 °F).
Electrical load: Not applied
- Rear window defogger switch, air conditioner switch and li ghting switch are OFF. Steering wheel is straight
ahead.
Engine speed: Idle
Gear position: Neutral ( or parking)
>> GO TO 2.
2.PERFORM SPEC IN DATA MONITOR MODE
WITH CONSULT-III
NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.
1. Perform EC-139, "
Work Procedure".
2. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”, “MAS A/F SE-B1” in “SPEC” of “DATA
MONITOR” mode with CONSULT-III.
3. Check that monitor items are within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> Proceed to EC-162, "
Diagnosis Procedure".
Revision: 2010 May2011 QX56
P0087, P0088, P0090 FRP CONTROL SYSTEM
EC-195
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0087, P0088, P0090 FRP CONTROL SYSTEM
DTC LogicINFOID:0000000006217784
DTC DETECTION LOGIC
NOTE:
If DTC P0087 or P0090 is displayed with DTC P1197, first perform the trouble diagnosis for DTC
P1197.
DTC P0087 or P0090 may be displayed when running out of gas.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Check that the fuel tank is 1/8 full of fuel.
2. Warm up the engine to the normal operating temperature and keep the engine speed at idle for 60 sec- onds.
NOTE:
Warm up the engine until “COOLAN TEMP/S” on “DATA MONITOR” of CONSULT-III reaches at least
70 °C (158 °F).
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-196, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
1. Cool the engine until the engine coolant temperature reaches 60 °C (140 °F) or less.
2. Start the engine and wait at least 60 seconds.
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-196, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0087 High fuel pressure too low The following condition continues for 5
seconds or more after engine start (re-
gardless of water temperature): Target
fuel pressure
− Actual fuel pressure ≥
2.7 MPa (27 bar, 27.5 kg/cm
2, 392 psi)
Harness or connectors(The fuel pump circuit is open or shorted.)
Fuel system
P0088 high fuel pressure too high The following condition continues for 5
seconds or more after engine start (re-
gardless of water temperature):Actual
fuel pressure
− Target fuel pressure ≥
2.7 MPa (27 bar, 27.5 kg/cm
2, 392 psi)
P0090 High pressure fuel pump per-
formance Fuel rail pressure remains at 1.5 MPa
(15 bar, 15.3 kg/ cm
2, 217.5 psi) or less
for 3 seconds or more during engine rev.
Revision: 2010 May2011 QX56
