DRIVE PINIONDLN-217
< UNIT DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
DisassemblyINFOID:0000000006222426

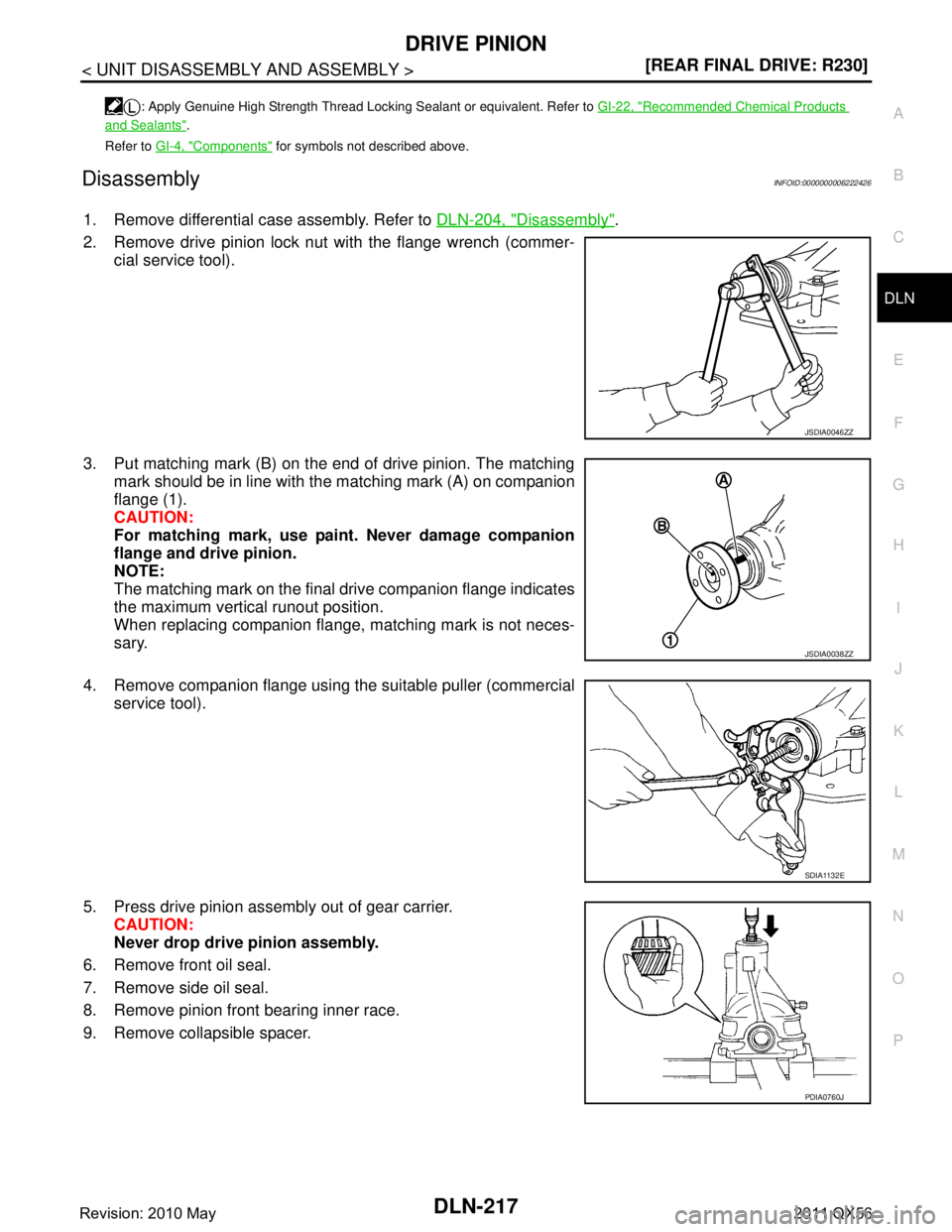

1. Remove differential case assembly. Refer to DLN-204, "Disassembly".
2. Remove drive pinion lock nut with the flange wrench (commer- cial service tool).
3. Put matching mark (B) on the end of drive pinion. The matching mark should be in line with the matching mark (A) on companion
flange (1).
CAUTION:
For matching mark, use pain t. Never damage companion
flange and drive pinion.
NOTE:
The matching mark on the final drive companion flange indicates
the maximum vertical runout position.
When replacing companion flange, matching mark is not neces-
sary.
4. Remove companion flange using the suitable puller (commercial service tool).
5. Press drive pinion assembly out of gear carrier. CAUTION:
Never drop drive pinion assembly.
6. Remove front oil seal.
7. Remove side oil seal.
8. Remove pinion front bearing inner race.
9. Remove collapsible spacer.
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to GI-22, "Recommended Chemical Products
and Sealants".
Refer to GI-4, "
Components" for symbols not described above.
JSDIA0046ZZ
JSDIA0038ZZ
SDIA1132E
PDIA0760J
Revision: 2010 May2011 QX56

DLN-220
< UNIT DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
DRIVE PINION

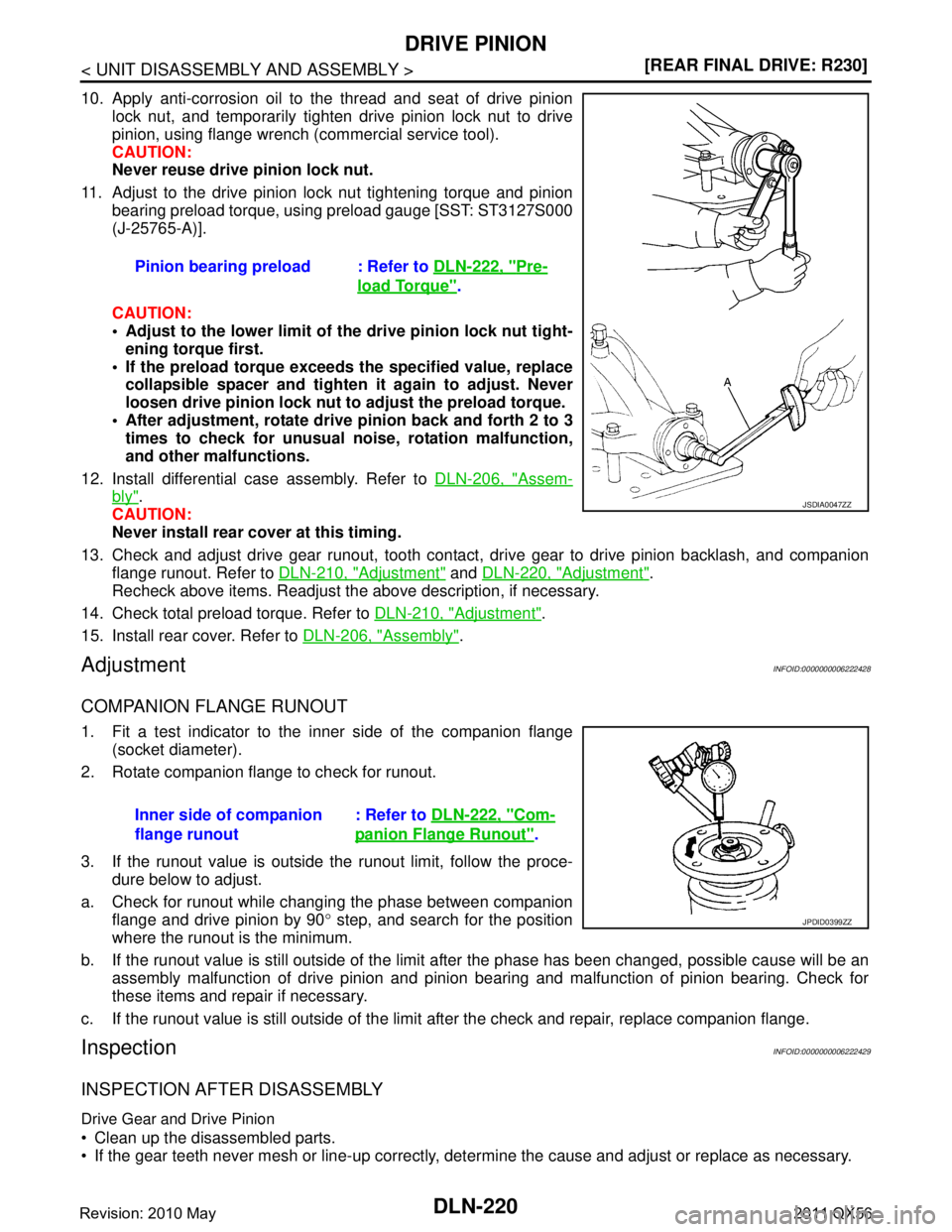

10. Apply anti-corrosion oil to the thread and seat of drive pinion
lock nut, and temporarily tighten drive pinion lock nut to drive
pinion, using flange wrench (c ommercial service tool).
CAUTION:
Never reuse drive pinion lock nut.
11. Adjust to the drive pinion lock nut tightening torque and pinion bearing preload torque, using preload gauge [SST: ST3127S000
(J-25765-A)].
CAUTION:
 Adjust to the lower limit of the drive pinion lock nut tight-
ening torque first.
 If the preload torque exceeds the specified value, replace
collapsible spacer and tighte n it again to adjust. Never
loosen drive pinion lock nut to adjust the preload torque.
 After adjustment, rotate dri ve pinion back and forth 2 to 3
times to check for unusual no ise, rotation malfunction,
and other malfunctions.
12. Install differential case assembly. Refer to DLN-206, "
Assem-
bly".
CAUTION:
Never install rear cover at this timing.
13. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and companion flange runout. Refer to DLN-210, "
Adjustment" and DLN-220, "Adjustment".
Recheck above items. Readjust the above description, if necessary.
14. Check total preload torque. Refer to DLN-210, "
Adjustment".
15. Install rear cover. Refer to DLN-206, "
Assembly".
AdjustmentINFOID:0000000006222428
COMPANION FLANGE RUNOUT
1. Fit a test indicator to the inner side of the companion flange
(socket diameter).
2. Rotate companion flange to check for runout.
3. If the runout value is outside t he runout limit, follow the proce-
dure below to adjust.
a. Check for runout while changing the phase between companion flange and drive pinion by 90 ° step, and search for the position
where the runout is the minimum.
b. If the runout value is still outside of the limit after the phase has been changed, possible cause will be an
assembly malfunction of drive pinion and pinion bearing and malfunction of pinion bearing. Check for
these items and repair if necessary.
c. If the runout value is still outside of the limit after the check and repair, replace companion flange.
InspectionINFOID:0000000006222429
INSPECTION AFTER DISASSEMBLY
Drive Gear and Drive Pinion
 Clean up the disassembled parts.
 If the gear teeth never mesh or line-up correctly, det ermine the cause and adjust or replace as necessary.
Pinion bearing preload : Refer to
DLN-222, "
Pre-
load Torque".
JSDIA0047ZZ
Inner side of companion
flange runout: Refer to
DLN-222, "Com-
panion Flange Runout".
JPDID0399ZZ
Revision: 2010 May2011 QX56

DLN-222
< SERVICE DATA AND SPECIFICATIONS (SDS) [REAR FINAL DRIVE: R230]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000006222430
Drive Gear RunoutINFOID:0000000006222431
Unit: mm (in)
Side Gear ClearanceINFOID:0000000006222432
Unit: mm (in)
Preload TorqueINFOID:0000000006222433
BacklashINFOID:0000000006222434
Unit: mm (in)
Companion Flange RunoutINFOID:0000000006222435
Unit: mm (in)
Applied model 2WD 4WD
VK56VDA/T
Final drive model R230
Gear ratio 2.937
Number of teeth (Drive gear/Drive pinion) 47/16
Oil capacity (Approx.) (US pt, lmp pt)1.75 (3-3/4, 3-1/8)
Number of pinion gears 2
Drive pinion adjustment spacer type Collapsible
Item Runout limit
Drive gear back face 0.05 (0.0020) or less
Item Specification
Side gear back clearance
(Clearance limit between side gear and differential case for adjusting
side gear backlash) 0.20 (0.0079) or less
(Each gear should rotate smoothly without excessive resis-
tance during differential motion.)
Item Specification
Drive pinion bearing preload torque 1.76 − 2.65 N·m (0.18 − 0.27 kg −m, 16 − 23 in-lb)
Side bearing preload torque (reference value determined by drive
gear bolt pulling force) 0.29
− 1.47 N·m (0.03 − 0.14 kg −m, 3 − 13 in-lb)
Total preload torque
(Total preload torque = drive pinion bearing preload torque + Side
bearing preload torque) 2.06
− 4.12 N·m (0.21 − 0.42 kg −m, 19 − 36 in-lb)
Item Specification
Drive gear to drive pinion gear 0.13 − 0.18 (0.0051 − 0.0070)
Item Runout limit
Inner side of the companion flange 0.08 (0.0031) or less
Revision: 2010 May2011 QX56
