2011 INFINITI QX buttons

3. The panic alarm stops when:
●It has run for 25 seconds, or
● Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
button2is
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCKbutton
is pushed, neither the hazard indicator nor the
horn operates. Hazard indicator and horn mode:
DOOR LOCK
DOOR UNLOCK
Intelligent Key system
(Using door handle request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Remote keyless entry system
(Using
orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
DOOR LOCK DOOR UNLOCK
Intelligent Key system
(Using door handle request switch) HAZARD -
twice HAZARD - none
Remote keyless entry system
(Using
orbutton) HAZARD -
twice HAZARD - none
Pre-driving checks and adjustments3-17

Switching procedure :
Push the LOCK
1and UNLOCK2
buttons on the Intelligent Key simultaneously
for more than 2 seconds to switch the mode
from one to the other.
When pushing the buttons to set the hazard
indicator mode, the hazard indicator flashes 3
times.
When pushing the buttons to set the hazard
indicator and horn mode, the hazard indicator
flashes once and the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down and make sure it locks into
place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2775
HOOD
3-18Pre-driving checks and adjustments

BluetoothHands-Free Phone System ..............4-96
Regulatory information ......................... 4-97
Voice commands .............................. 4-97
Control buttons ............................... 4-98
Connecting procedure ......................... 4-98
Phone selection ............................... 4-99
Vehicle phonebook ............................ 4-99
Making a call ................................ 4-101
Receiving a call .............................. 4-102
During a call ................................. 4-103Phone setting
................................ 4-104
Troubleshooting guide ........................ 4-105
INFINITI Voice Recognition system ................4-106
INFINITI Voice Recognition standard mode ......4-106
Using the system ............................. 4-109
INFINITI Voice Recognition alternate
command mode ............................... 4-119
Using the system ............................. 4-125
Troubleshooting guide ........................ 4-130

1. “CAMERA” Around View Monitor displaybutton (P. 4-19)
2, 6, 7. For navigation system control buttons (Refer to the separate Navigation Sys-
tem Owner’s Manual.)
3. INFINITI controller (P. 4-3)
4. “INFO” vehicle and navigation informa-tion button (P. 4-7)
5. “SETTING” button (P. 4-11)
8. “STATUS” status display button (P. 4-7)
9. “
OFF” brightness control and dis-
play ON/OFF button (P. 4-7)
HOW TO USE INFINITI CONTROLLER
Choose an item on the display by rotating or
pushing the center dial
1upward/ downward,
and push the ENTER button
2for operation.
If you push the BACK button
3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
3and return to the previous screen.
For the VOICE button
4functions, refer to the
separate Navigation System Owner’s Manual.
SAA3020SAA3025
CENTER MULTI-FUNCTION CONTROL PANEL
Monitor, climate, audio, phone and voice recognition systems4-3

Manual operation
Fan speed control :
Push the fan speed increase “
”orde-
crease “” buttons to manually control the
fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Air flow control :
Pushing the “MODE” manual air flow control
button selects the air outlet to:
: Air flows from center and side ventila- tors.
: Air flows from center and side ventila-tors and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
Air recirculation :
Push the intake air control button to recirculate
interior air inside the vehicle. The indicator light
on the “
” button will illuminate.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “
”. Outside air circulation :
Push the intake air control button to draw
outside air into the passenger compartment.
The indicator light on the “
” button will
turn off and “” (if so equipped) will
illuminate.
Automatic intake air control :
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the intake air control button.
● Without Advanced Climate Control System
(ACCS):
To return to the automatic control mode,
push the intake air control button for about
2 seconds. The indicator lights (both air
recirculation “
” and outside air circu-
lation “” buttons) will flash twice, and
then the intake air will be controlled auto-
matically.
● With Advanced Climate Control System
(ACCS):
To return to the automatic control mode,
push the intake air control button until the
indicator light on the “
” button illumi-
nates. The Advanced Climate Control System
(ACCS) turns on and the intake air will be
controlled automatically. To turn the system off :
Push the “OFF” button.
Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System (ACCS)
keeps the air inside of the vehicle clean, using
the ion control and the automatic air intake
control with exhaust gas detecting sensor.
Monitor, climate, audio, phone and voice recognition systems4-35

Turning the system off :
Push the OFF button when the rear air condi-
tioner screen is displayed.
1. “OFF” button
2. Fan speed control button
3. “AUTO” button
4. Display5. “MODE” button
6. “TEMP” button
Rear control buttons:
The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches at the rear of the center con-
sole.
The rear control buttons do not function when
the rear air conditioner screen is shown on the
front display. To activate the rear control but-
tons, push the “REAR” button on the front air
conditioner control panel and switch the screen
on the front display.
“OFF” button: Rear automatic air conditioning
system off.
“
” button: Rear fan speed control
up/down
“AUTO” button: Rear automatic air conditioning
system on, AUTO mode on
“MODE” button: Rear air flow control change
“TEMP” button: Rear temperature control
up/down
SAA3327
4-38Monitor, climate, audio, phone and voice recognition systems

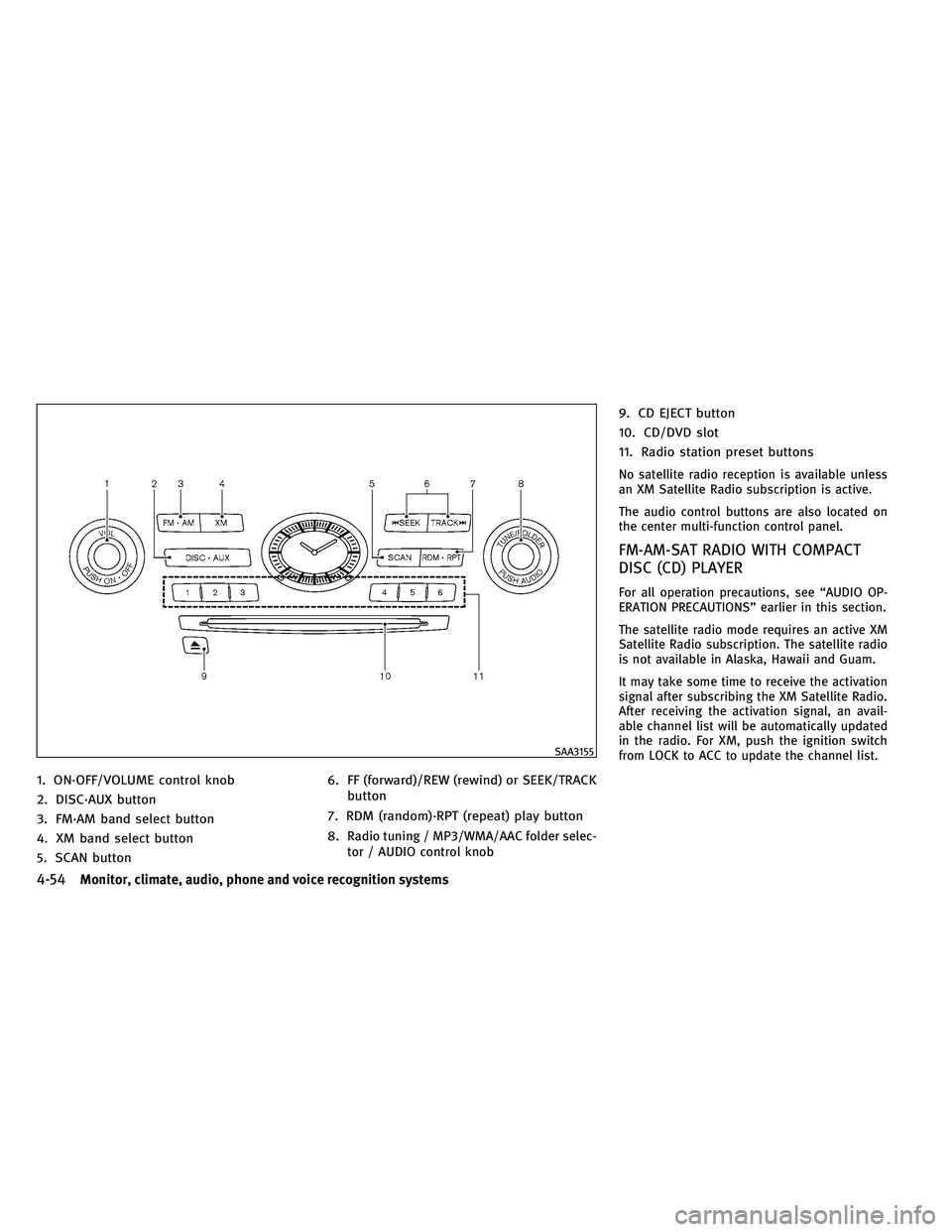

1. ON·OFF/VOLUME control knob
2. DISC·AUX button
3. FM·AM band select button
4. XM band select button
5. SCAN button6. FF (forward)/REW (rewind) or SEEK/TRACK
button
7. RDM (random)·RPT (repeat) play button
8.
Radio tuning / MP3/WMA/AAC folder selec-
tor / AUDIO control knob
9. CD EJECT button
10. CD/DVD slot
11. Radio station preset buttons
No satellite radio reception is available unless
an XM Satellite Radio subscription is active.
The audio control buttons are also located on
the center multi-function control panel.
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
For all operation precautions, see “AUDIO OP-
ERATION PRECAUTIONS” earlier in this section.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
It may take some time to receive the activation
signal after subscribing the XM Satellite Radio.
After receiving the activation signal, an avail-
able channel list will be automatically updated
in the radio. For XM, push the ignition switch
from LOCK to ACC to update the channel list.
SAA3155
4-54Monitor, climate, audio, phone and voice recognition systems

SEEK tuning :
● For AM and FM radio
Push the SEEK or TRACK button
orto tune from low to high or high to low
frequencies and to stop at the next broad-
casting station.
● For XM Satellite Radio
Push the SEEK or TRACK button
orto tune to the first channel of the next
or previous category.
During satellite radio reception, the following no-
tices will be displayed under certain conditions.
● NO SIGNAL (No signal is received while the
SAT tuner is connected.)
● OFF AIR (Broadcasting signed off)
● CHECK ANTENNA (Antenna connection error)
● LOADING (When the initial setting is per-
formed)
● UPDATING (When the satellite radio sub-
scription is not active)
● INVALID CH (Invalid channel is received.)
SCAN tuning :
Push the SCAN tuning button to tune from low
to high frequencies and stop at each broadcast-
ing station/channel for 5 seconds. Pushing the button again during this 5 second period will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within
5 seconds, SCAN tuning moves to the next
station/channel.
1to6Station memory operations :
12 stations/channels can be set for the FM band
(6 each for FM1 and FM2), 18 for XM radio (6
each for XM1, XM2 and XM3) and 6 stations can
be set for the AM band.
1. Choose the radio band using the radio band select button.
2. Tune to the desired station/channel using the SEEK, TRACK, SCAN button or the
radio TUNE knob.
3. Push and hold the desired station preset button
1to6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is
now complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the
fuse opens, the radio memory will be erased. In
that case, reset the desired stations/channels. Menu (XM Satellite Radio) :
When the “Menu” key on the display is selected
while the XM Satellite Radio is being played,
the menu list will be displayed.
The following items are available.
●
Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
● Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.
● Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the “Alert” key to be reminded
when the stored artist or song is playing on
a station while listening to XM.
● Categories
Selecting a category will go to the first
channel in that category as defined by XM
Radio.
● Direct Tune
Inputs the channel number by using a key-
pad.
4-56Monitor, climate, audio, phone and voice recognition systems
